PHANTEKS EVOLV SHIFT XT (M-ITX) MINI TOWER CABINET TEMPERED GLASS SIDE PANEL (STAIN BLACK) (PH-ES121XT-DBK01)
- Super compact small form-factor chassis that can be extended to tailor the cooling performance to your needs with 2x 120/140mm fans and/or a 240 AIO liquid cooler support.
- No compromise on performance with support for large 3-slot 324mm GPU’sandbuilt in PCI-e x16 Gen4 Riser Cable.
- Premium build quality known from the Phanteks Evolv series using 2.5mm thick anodized aluminum panels.
- Integrated D-RGB Infinity mirror with built-in lighting effects that can be expanded and/or synced with other system components.
- Well-thought-out component layout and removable radiator bracket to provide a smooth building process in a small form-factor.
The Phanteks Evolv Shift XT is a truly unique small form-factor chassis that extends to tailor the cooling performance to your need.Even in its ultra-compact mode there is no compromise on performance with support for powerful hardware such as 324mm long triple-slot GPUs and 72mm tall CPU air coolers. The Evolv Shift XT has the unique capability to extend the height of the chassisto boost theair-coolingperformance with two 120 or 140 fans at the top. When fully extended the Evolv Shift XT can house a 240 radiator in the top to cool even the most powerful systems.
Being part of the Phanteks Evolv series, the Evolv Shift XT offer premium build quality and components using thick anodized aluminum panels, PCI-e X16 Gen4 riser cable and USB-C Gen2 front IO.Performance is uncompromised with Ultra-Fine Mesh panels and vented aluminum panels while providing a clean and stylishappearance with the tempered glass infinity mirror.

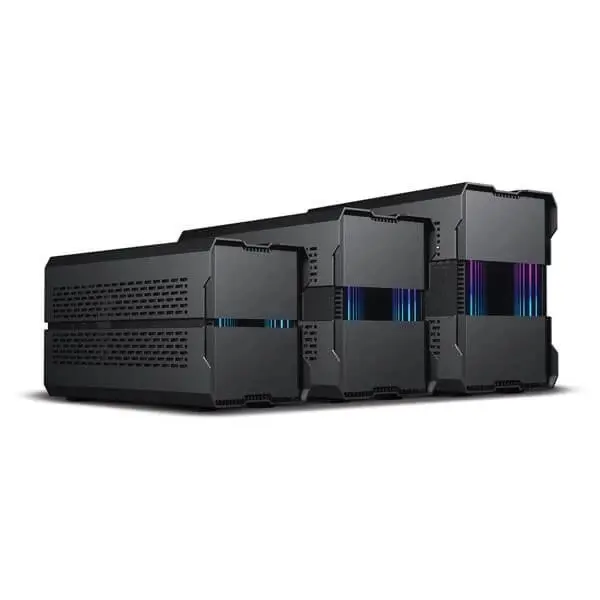

Unique small form-factor chassis that extends into 3 sizes

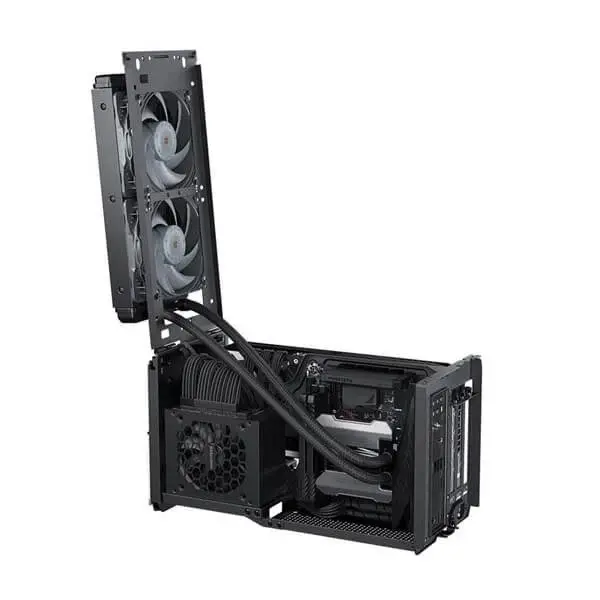

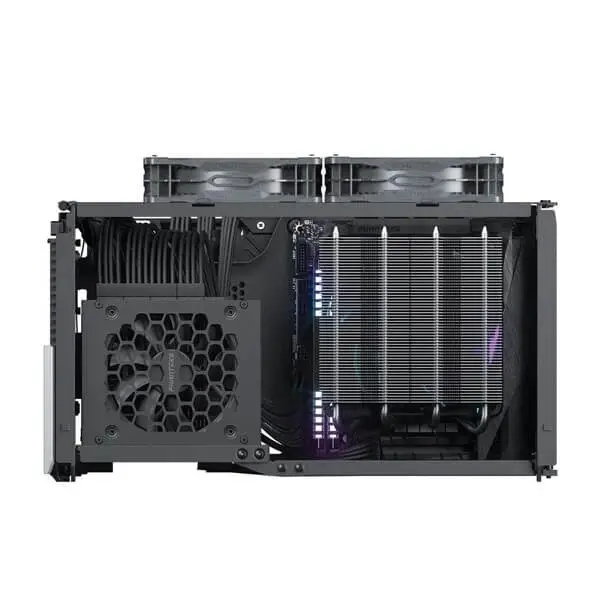

With the unique capability to extend the chassis size you can tailor the cooling performance to your need. In its most Compact Size, the Evolv Shift XT can still house powerful systems with 324mm long 3-slot GPUs and 72mm tall CPU coolers that have direct access to fresh air. By extending the height of the chassis in ‘Air Boost’ or ‘Liquid Cooled’ mode, the height is increased by 32or 60mm respectively. This allows for either 2x 120/140mm fans or a 240 AIO liquid cooler to be installed for the best possible performance.

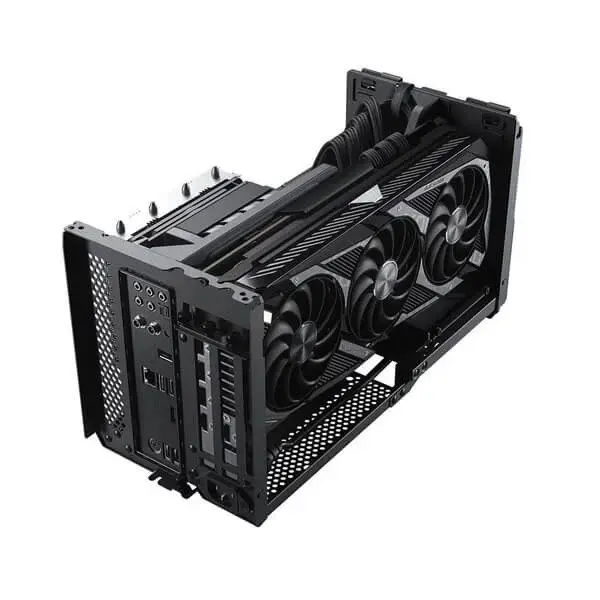

Full Size GPU Support with Gen4 Riser Cable
Being a compact SFF chassis does not mean you have to compromise on gaming performance. The Evolv Shift XT has a built-in Gen4 X16 Riser Cable and supports up to 324mm long 3-slot GPUs. The Ultra-fine Mesh panels provide direct fresh air to the GPU cooler for optimum cooling performance.

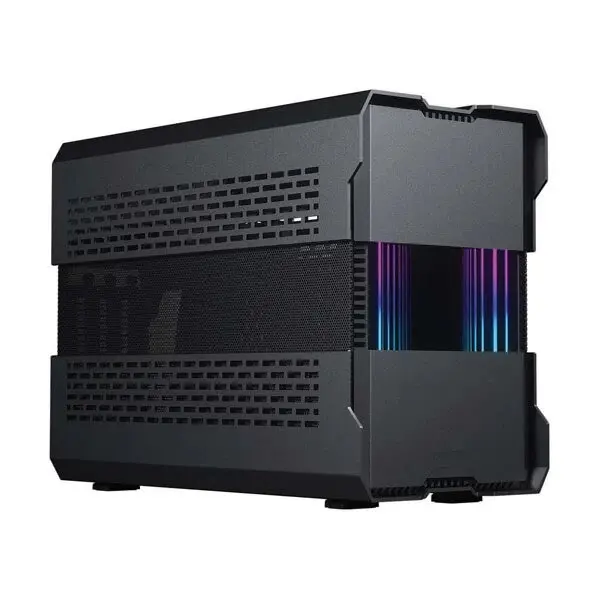

Premium Aluminum Exterior and Tempered Glass Infinity Mirror
With its iconic design known from the Phanteks Evolv Series, the Evolv Shift XT is made to stand apart wherever you place it. Its 2.5mm thick aluminum exterior panels are crafted and finished with high precisionto combine great airflow performance with a premium appearance. The tempered glass front panel houses a D-RGB Infinity Mirror that is revealed even more as you extend the Evolv Shift XT chassis height.
|Product Name||Evolv Shift XT|
|Form Factor||Small Form-Factor Mini-ITX Chassis|
|Material(s)||Aluminum Panels, Steel Chassis, Tempered Glass Infinity Mirror|
|Front I/O||USB-C GEN 2, 1x USB 3.0, LED Mode Button, LED Color Button, Power Button|
|Internal Connectors||Power Switch, D-RGB Expansion, D-RGB Third Party, D-RGB MB Adapter, USB 3.0, USB 3.2 GEN 2 Type-E|
|Riser Cable||PCI-e 4.0 X16 pre-installed|
|Side Window||No, mesh side panels|
|PCI slots &Storage Bays|
|Internal 3.5” bay||–|
|Top||Up to240(120mm Radiator)|
|GPU length||324mm / 12.76in|
|GPU thickness||3-slot, 62mm / 2.44 in|
|GPU height (from PCI fingers)||147mm / 5.79 in|
|CPU cooler height||72mm / 2.83 in|
|Top Radiator Clearance||315x150mm|
|Top fan Clearance||32mm thickness|
|Top radiator+fan Clearance||60mm thickness|
|PSU size||SFX, SFX-L (SFX is recommended)|
|Packaging & Shipping|
|Dimensions (LxBxH)||444 x 245 x 285 mm / 17.5 x9.6 x 11.2 in|
|Net Weight||4.20kg / 9.26lbs|
|Gross Weight||5.00kg / 11.02lbs|
|40HQ (without pallet)||2106|
|40FT (without pallet)||1872|
|20FT (without pallet)||936|
|Warranty||5 Years Limited|
|Note||*** Features, Price, Specifications are subject to change without notice.|
