Phanteks Eclipse G500A Atx Mid Tower Cabinet (White) (PH-EC500GA-DMW01A)
Model No : PH-EC500GA-DMW01A
Original price was: ₹24,499.00.₹15,100.00Current price is: ₹15,100.00.
Inclusive of all taxes
all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing
- **Usually delivered within 3-4 Business days*
Description

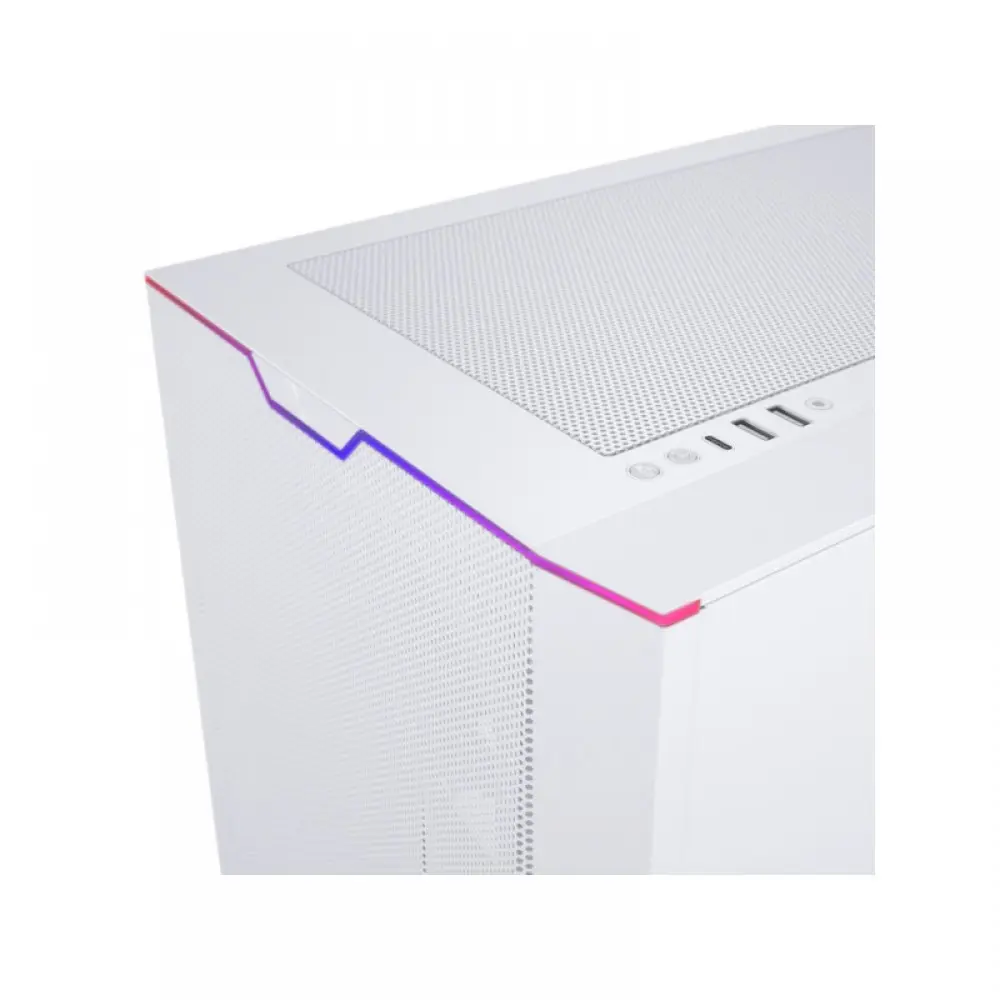

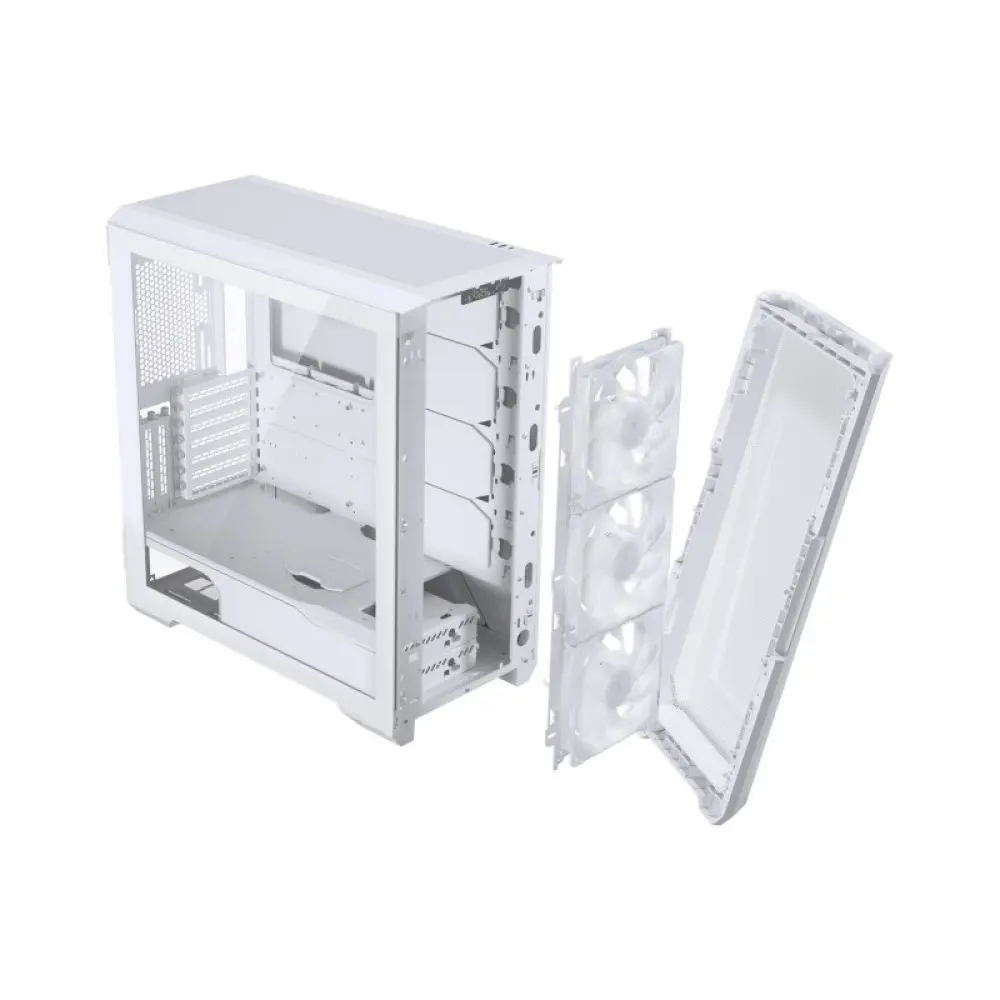

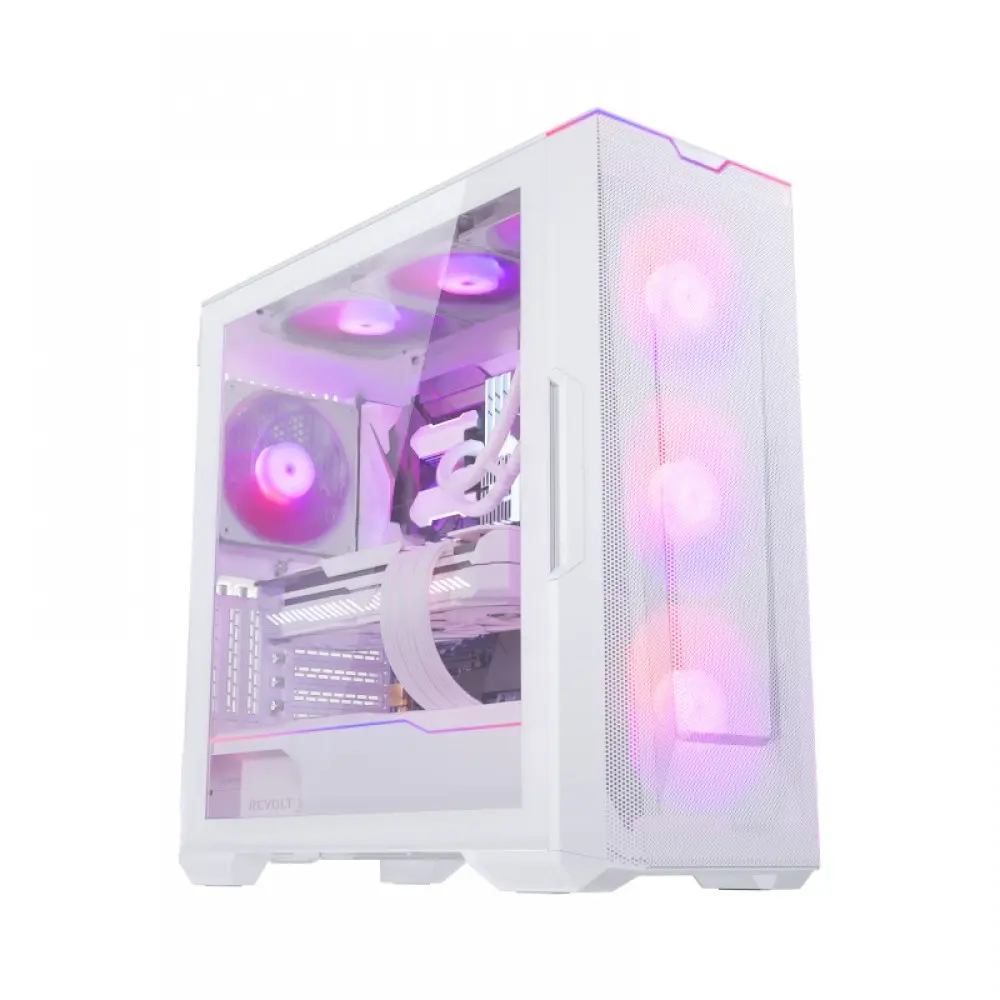

Phanteks Eclipse G500A Atx Mid Tower Cabinet (White) (PH-EC500GA-DMW01A)
The Eclipse G500A pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. With its spacious interior, the G500A is ready for powerful gaming setups, offering 420 radiator in the front, 360 radiator in the top, while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
The integrated D-RGB lighting can be easily connected to a A/D-RGB equipped motherboards and expanded with more D-RGB products. The G500A Base comes with 2 LED strips built into the front and side pre-installed.
| Specification | |
| Model Name | Eclipse G500A D-RGB White |
| Model No. | PH-EC500GA-DMW01A |
| Color | White |
| Dimension (WxHxD) | 500 X 240 X 515 mm |
| Form Factor | Mid Tower |
| Materials | Steel Chassis, Tempered Glass |
| Motherboard Support | ATX, Micro ATX, Mini ITX, E-ATX (up to 280mm wide) |
| Front IO | 1x USB 3.2 GEN 2 Type-C
2x USB 3.0 D-RGB Color Button D-RGB Mode Button Power Button Microphone/ Headphone |
| Connectors | Power Switch
HD-Audio USB 3.0 USB 3.2 GEN2 Type-E SATA Power D-RGB Expansion D-RGB Third Party D-RGB MB Adapter |
| Side Window | Tempered Glass Window |
| PCI Slots | 7 |
| Vertical GPU | Yes, with optional Bracket PH-VGPUKT4.0_03 |
| Internal 3.5” bay | 10 (2x included) |
| Internal 2.5” bay | 9 (9x included) |
| Color | White |
| Front Fan | 3x 120mm / 3x 140mm (3 x 140mm D-RGB included) |
| Rear Fan | 1x 120mm / 1x 140mm |
| Top Fan | 3 x 120mm / 3 x 140mm |
| Included Fans | 3x M25-140 PWM D-RGB White |
| Front Radiator | Up to 360 / 420 mm |
| Top Radiator | Up to 360 / 280 mm |
| Rear Radiator | 120 mm |
| GPU Length | 435 mm |
| CPU Cooler Height | 185 mm |
| Front Panel Fan Thickness | 33mm for fan or radiator |
| Front 360 Radiator Thickness | 90mm thickness |
| Front 420 Radiator | Maximum size: 142*475*90mm |
| Top 360 Radiator Thickness | 70mm thickness |
| PSU Length | 195/250 mm (4 HDD bottom brackets / 2 HDD brackets used) |
| Package Dimension | 325 x 610 x 610 mm |
| Net Weight | 10.68 Kg |
| Gross Weight | 12.85 Kg |
| Package Contents | Eclipse G500A D-RGB Chassis
3 x 2.5” SSD bracket 2 x 3.5” HDD bracket 3 x M25 140mm D-RGB fan 6 x Zip Ties 1 x Accessory Bag/Box GPU anti-sag bracket Vertical GPU mount Necessary Screws |
| Warranty | 5 years limited |
| Note* | Price, feature and specifications are subject to change without notice. |
