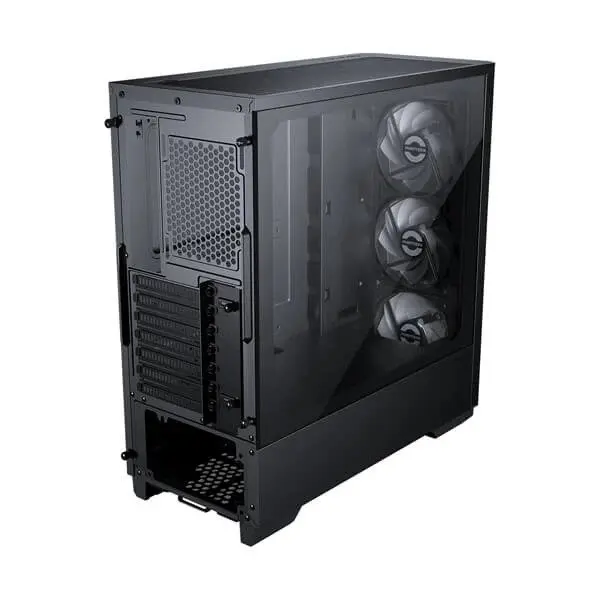

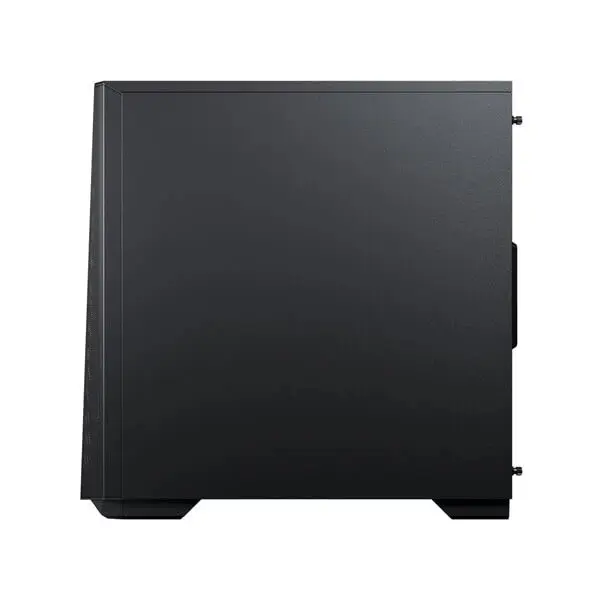

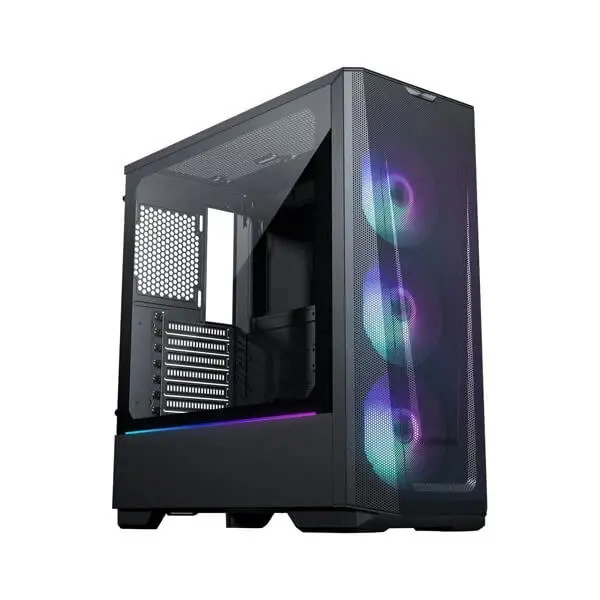

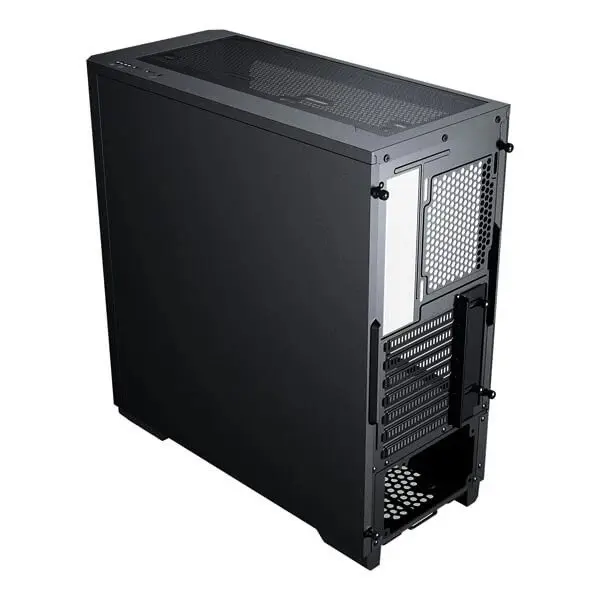

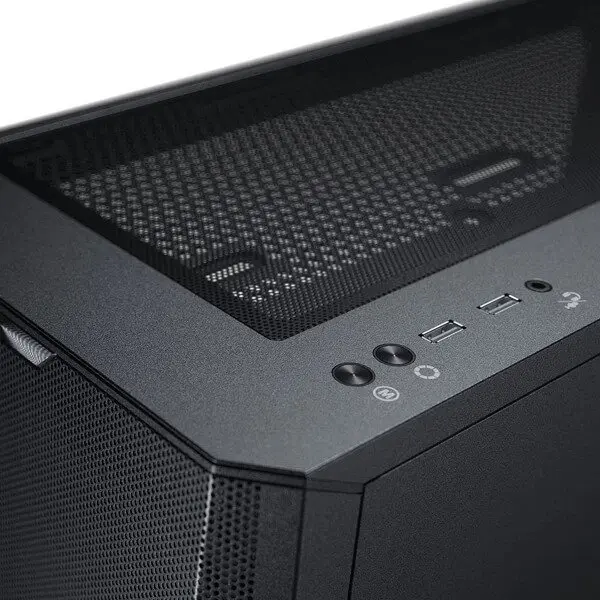

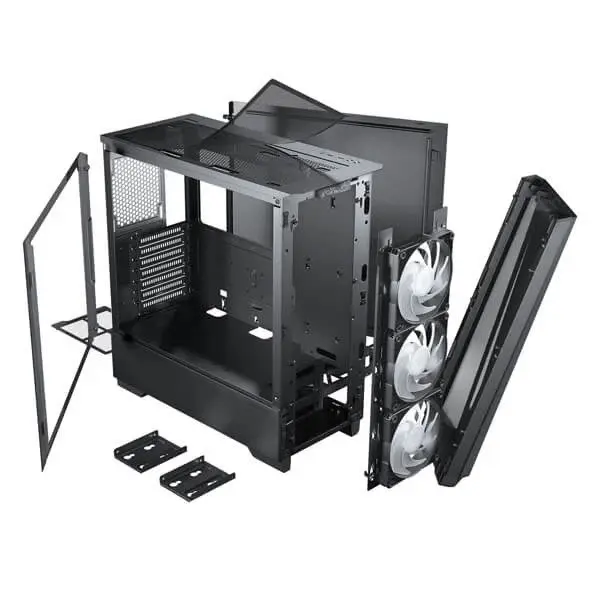

Phanteks Eclipse G360A Drgb E-Atx Mid Tower Cabinet With Tempered Glass Side Panel (Black) (PH-EC360ATG-DBK02)

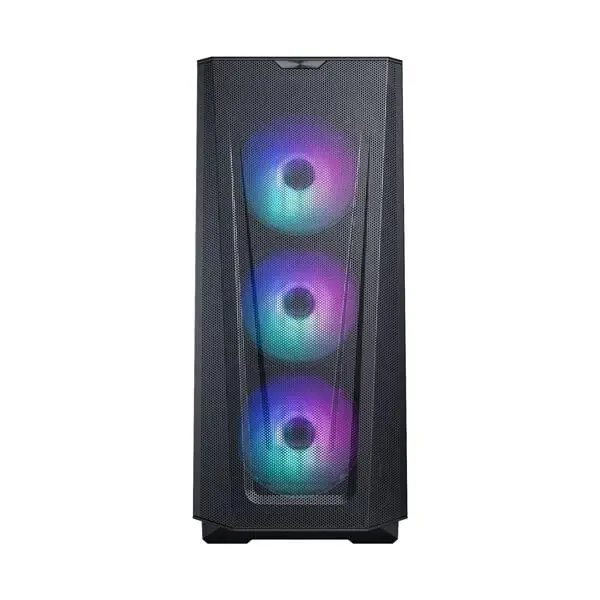

The metal front panel features Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with dust filtration, all-in-one. With its high-performance design, the G360A is ready for powerful gaming setups, offering 360 radiator options in the top and front while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
Like all Phanteks lighting products, the integrated D-RGB lighting is simple to control with pre-programmed lighting effects and requires no software. Optionally, the D-RGB controller can be synchronized with compatible motherboards and expanded with more D-RGB products.
Phanteks Eclipse G360A feature highlights:
High performance design
Equipped with the Ultra-fine Mesh front panel, the G360 was designed to meet next gen cooling demands. It brings high-end cooling capabilities with 360 radiator support in the front and top of the chassis, 7 fan locations and plenty of clearance for large GPUs.
Great value yet capable
The Eclipse Series from Phanteks is known for offering a great value across its lineup. The G360A brings unique capabilities and features to house even the highest end gaming systems in a compact ATX mid-tower chassis.
Equipped with its own Digital-RGB controller, the Eclipse G360A makes lighting easy. It’s software-free with manual control and programmed with tasteful lighting effects out of the box. Three Digital-RGB 120mm fans are pre-installed and a LED strip is integrated along the tempered glass panel. Like all of Phanteks’ lighting products, the Digital-RGB controller can be expanded with more lighting products and/or synced with motherboards to allow for software control.
The Eclipse G360A is ready for next-gen performance with incredible value.
|Model Name||Eclipse G360A Black|
|Case Dimention||455 x 200 x 465 mm/ 17.9 x 7.87 x 18.3 in|
|Form Factor||Mid Tower|
|Materials||Steel Chessis,Tempered Glass|
|MotherBoard Support||E-ATX(up to 280mm wide), ATX, micro-ATX, mini-ITX|
|Side Window||Tempered Glass Side Panel|
|Vertical GPU||Yes, With Optional Vertical GPU Bracket|
|Internal 3.5” bay||2(2xincluded,also support 2.5″ drive)|
|Internal 2.5” bay||3(2xincluded)|
|Total Fan Mounts||7 x 120mm/ 4 x 140mm|
|Front Fan||3 x 120mm/ 2 x 140mm|
|Top Fan||3 x 120mm/ 2 x 140mm|
|Rear Fan||1 x 120mm|
|Front Radiator||up to 360mm/ up to 280 mm|
|Top Radiator||up to 360mm|
|CPU Cooler Height||162mm/6.3in|
|Motherboard Size||Max 305 x 280mm (E-ATX)|
|PSU||220 mm or 280 mm/8.6in or 11in|
|Cable Management||36mm/1.4 in|
|Package Dimension||513 x 282 x 537 mm/ 20.19 x 11.1 x 20.14 in|
|Net Weight||6.51 Kg/14.35 Ibs|
|Gross Weight||7.84 Kg/17.28 Ibs|
|Note||*** Features, Price, Specifications are subject to change without notice.|
