Description

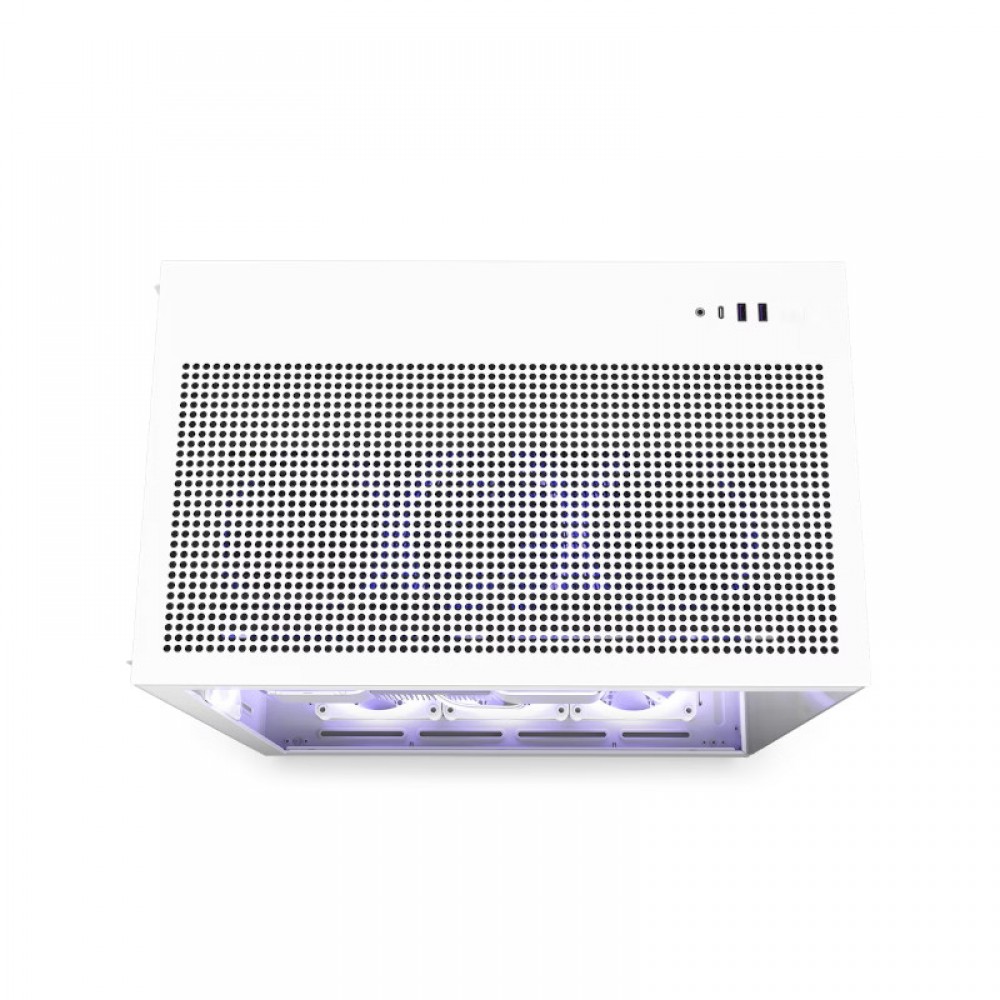

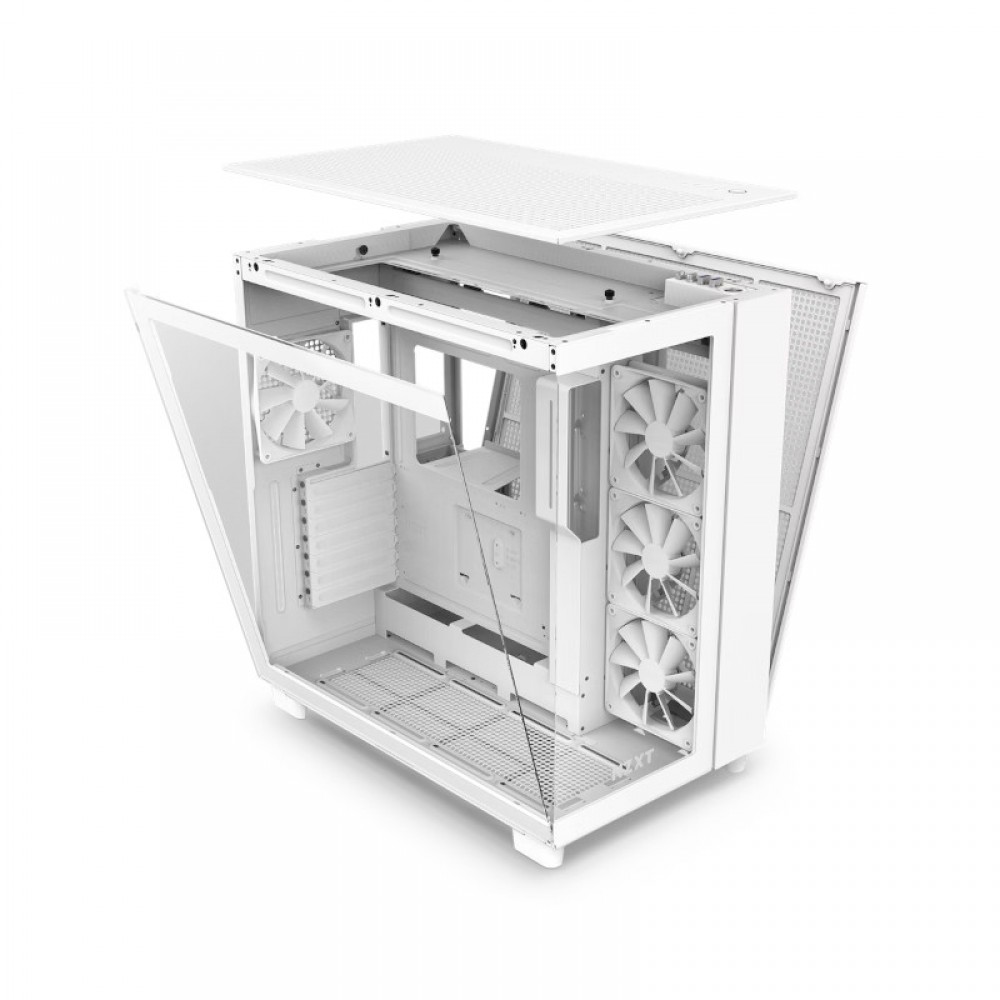

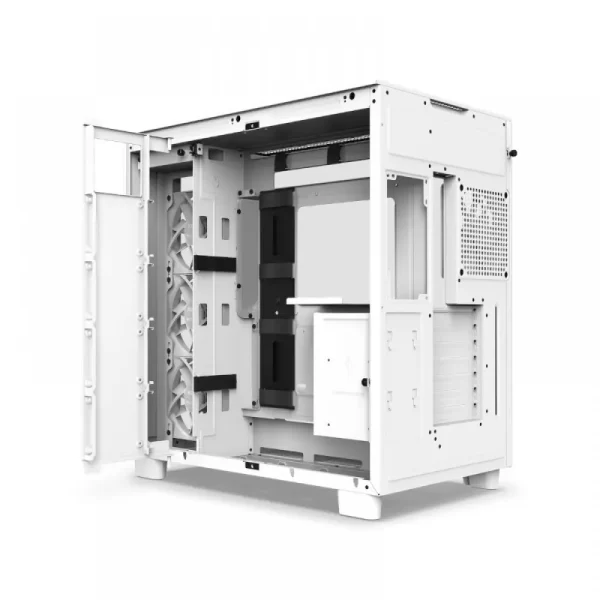

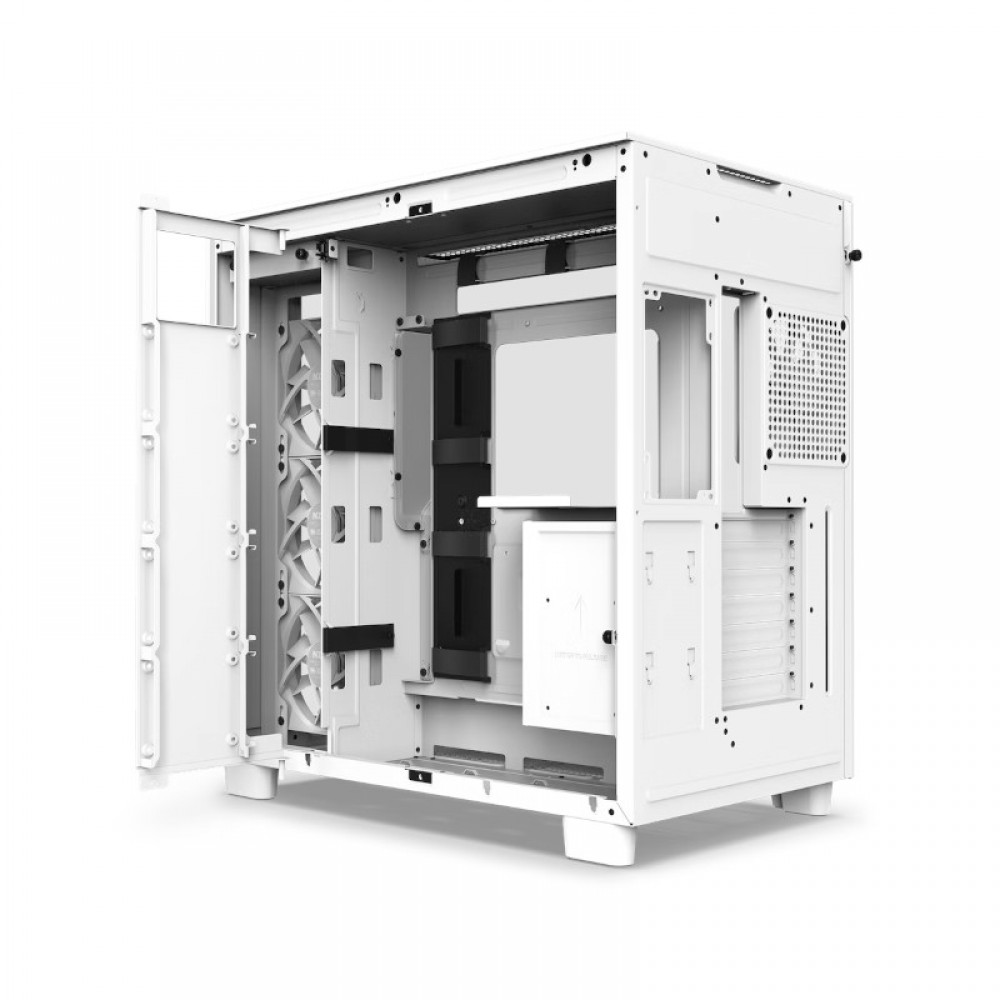

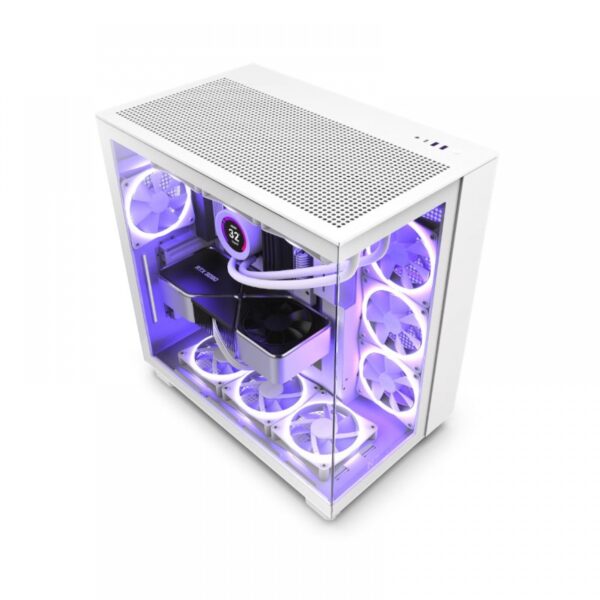

Nzxt H9 Flow Atx Mid Tower Cabinet White (CM-H91FW-01)
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Perforated top panel for enhanced cooling
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes four F Series 120mm Quiet Airflow fans
Specification | |
Model number | CM-H91FW-01 |
Color | White |
Key Specs | Motherboard Support: Mini-ITX, Micro-ATX, ATX
Enclosure Type: Mid-Tower Case Material: SGCC Steel, Tempered Glass |
Dimensions | Height: 495mm (With Feet)
Width: 290mm Depth: 466mm Weight: 12.1 kg |
Compatibility & Clearance | Max CPU Cooler Clearance: Up to 165mm
Max GPU Clearance: Up to 435mm PSU Clearance: 200mm Cable Management: 91mm |
Front I/O Ports | USB 3.2 Gen 1 Type-A: 2
USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
Expansion Slots | Standard: 7
Vertical: 0 |
Drive Bays | 2.5″: 4+2
3.5″: 2 |
Fan Support | Side: 3 x 120mm
Top: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm Filters: All Air Intakes |
Radiator Support | Side: Up to 360mm with Push/Pull
Top: Up to 360mm Bottom: Up to 360mm Rear: Up to 120mm |
Fan Specs | Side: Up to 360mm with Push/Pull
Top: Up to 360mm Bottom: Up to 360mm Rear: Up to 120mm |
Inside the Box | H9 Flow Case 1
Front I/O split cables 1 120mm Quiet Airflow Fan (Case Version) 4 Installation Accessories 1 Manual 1 |
Warranty | 2 years |
Note* | Price, feature and specifications are subject to change without notice. |
