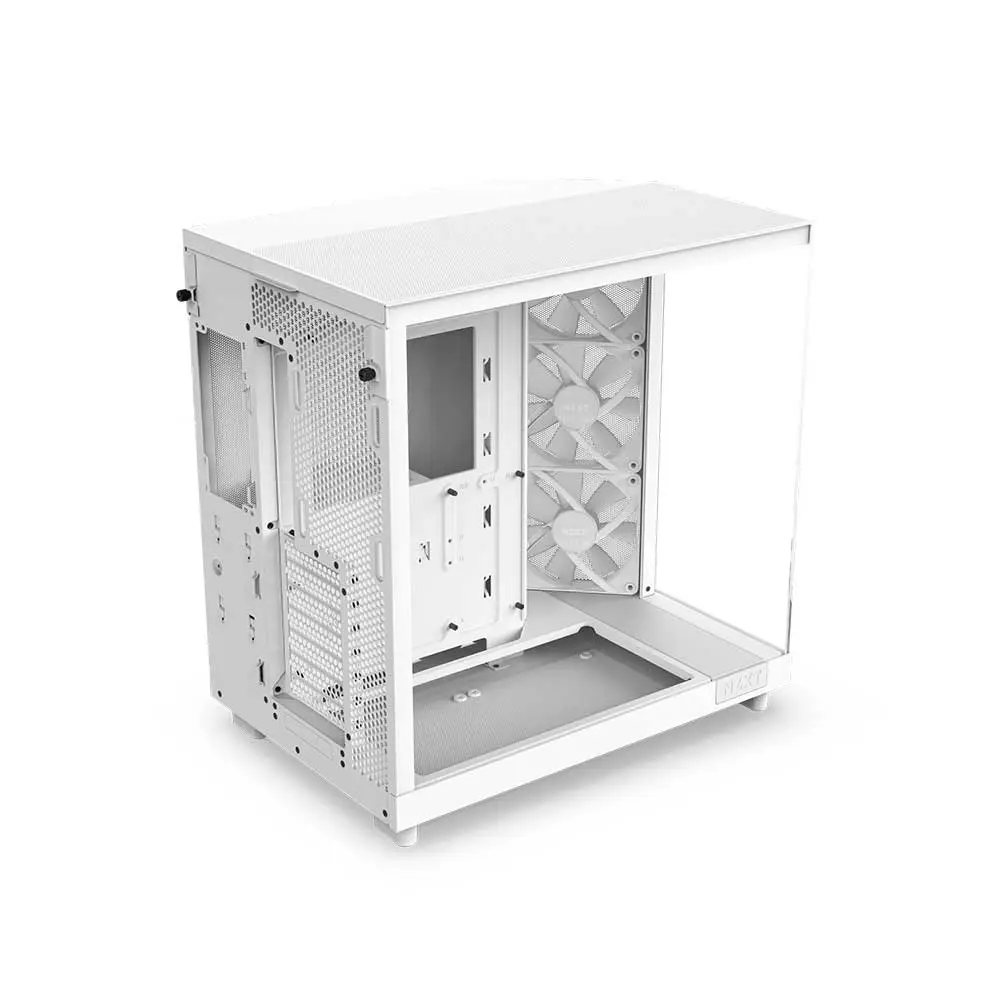

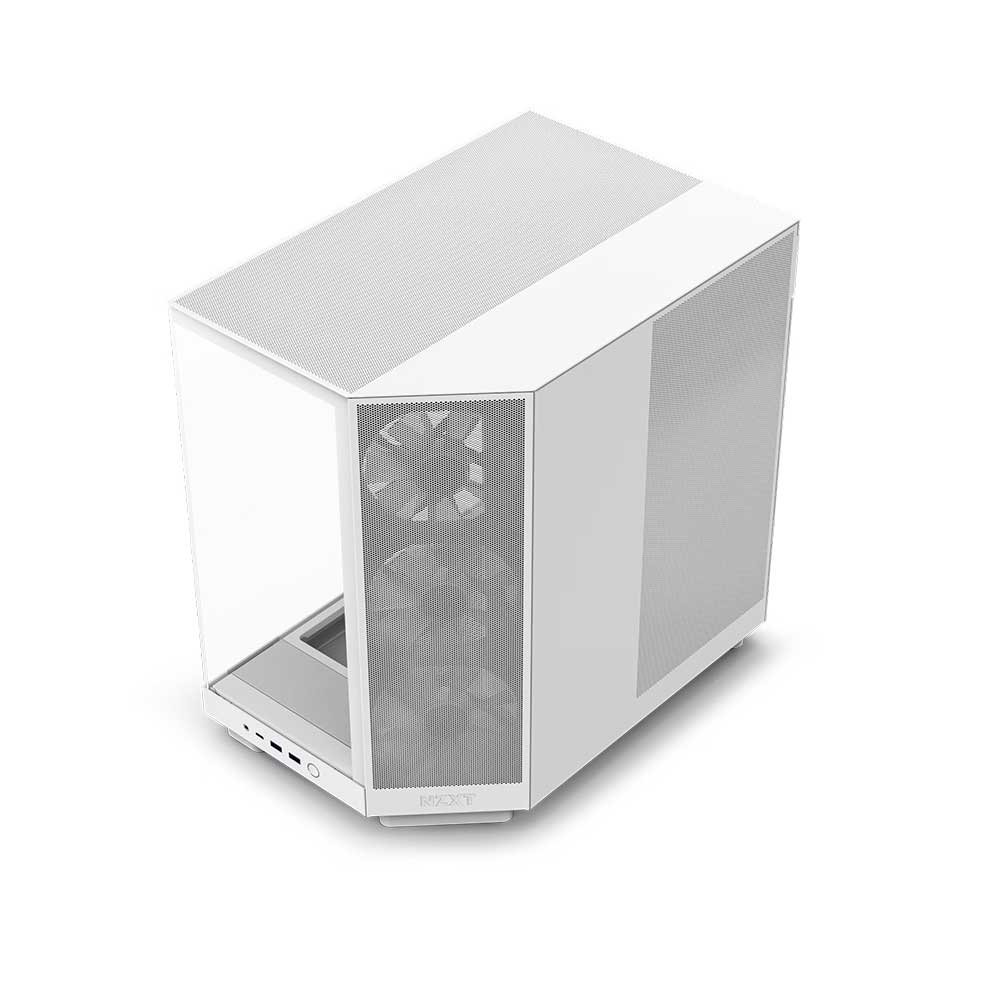

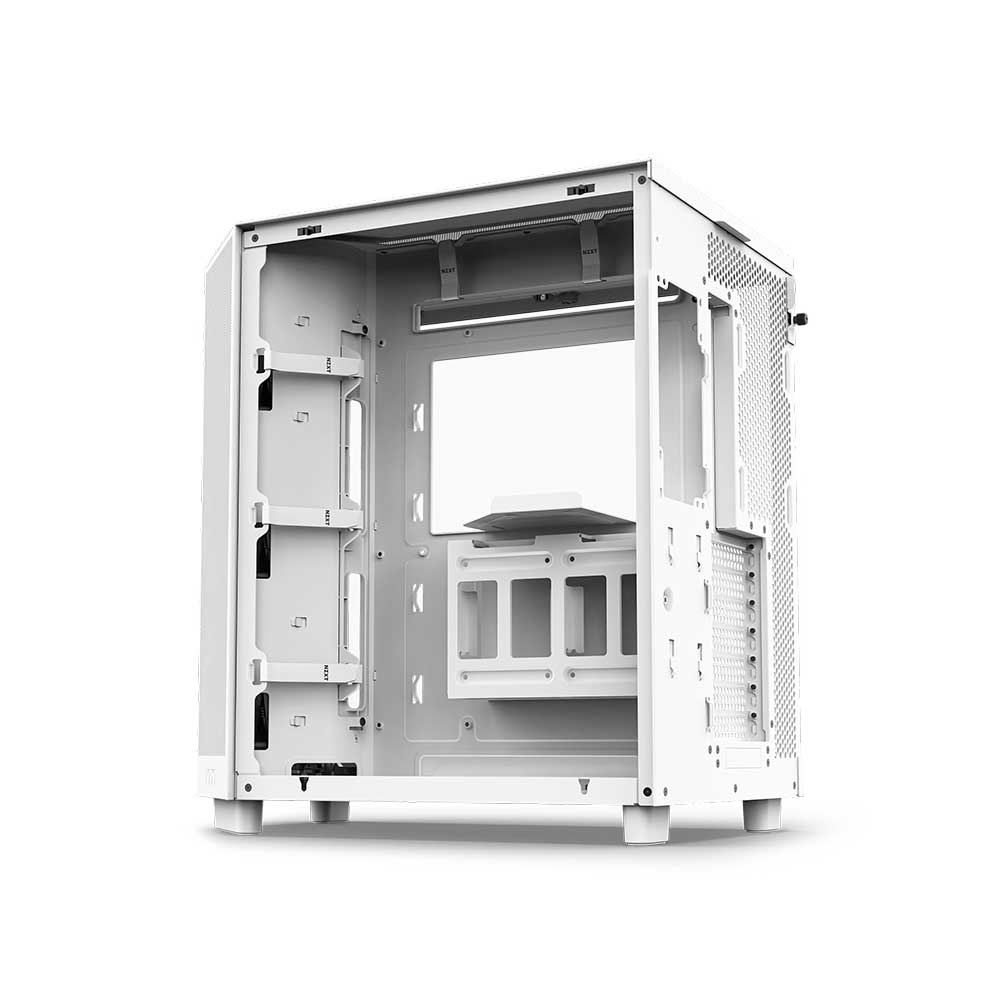

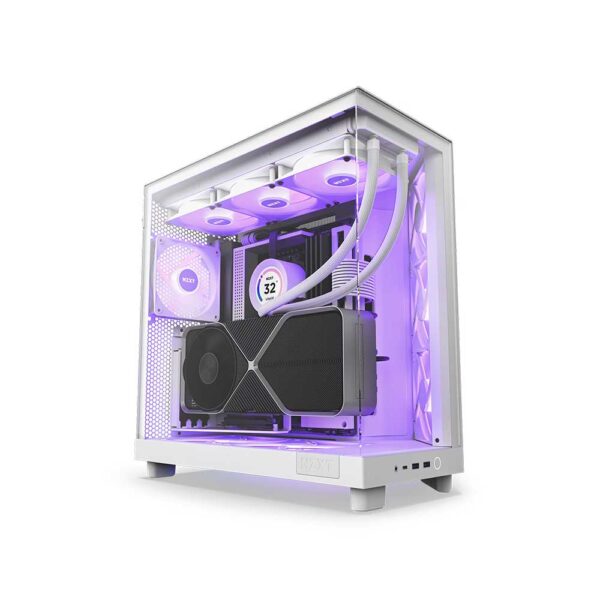

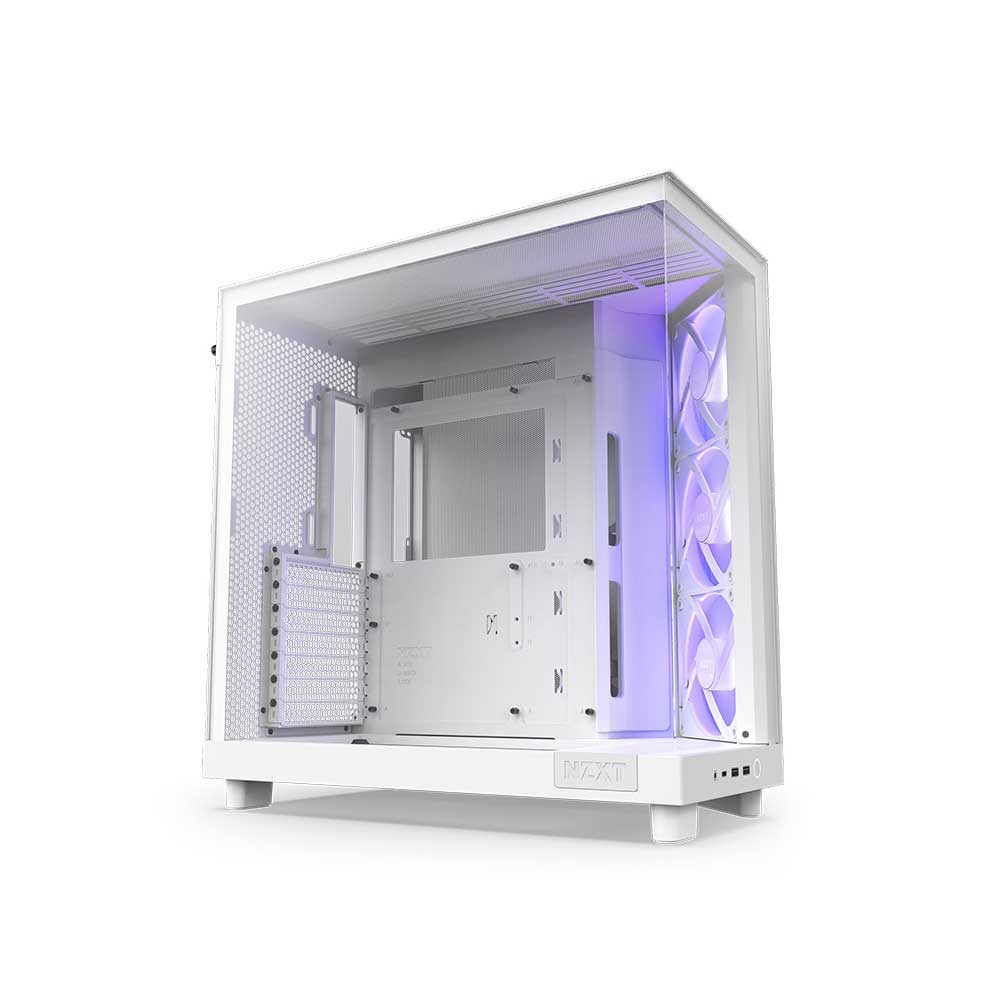

Nzxt H6 Flow Rgb Atx Mid Tower Cabinet Matte White (CC-H61FW-R1)
Experience peak performance and vibrant Nzxt H6 Flow Rgb Cabinet within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow’s panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.

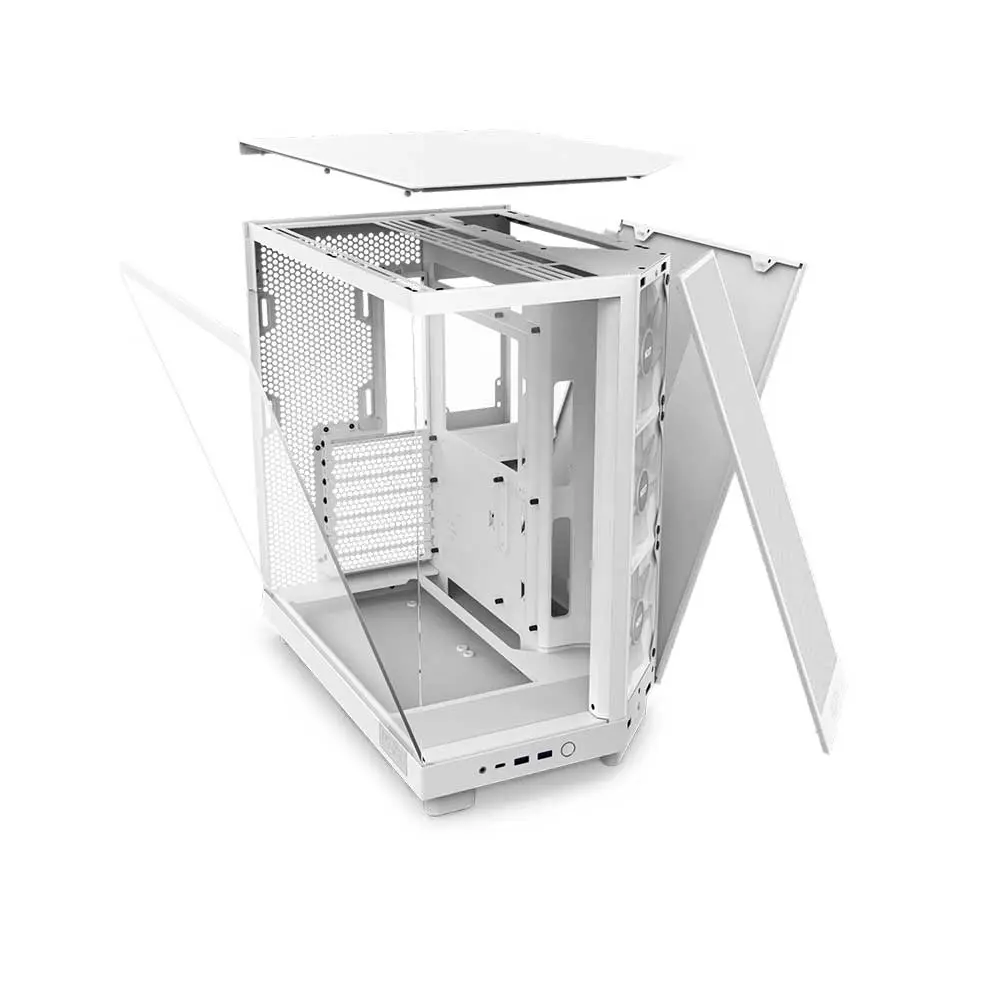

- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.
Improves cooling performance and creates an uncrowded aesthetic.
3 x 120mm RGB fans are angled for optimal out-of-the-box cooling with vibrant RGB lighting.
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
|Motherboard Support||ATX, Micro-ATX, Mini-ITX|
|Enclosure Type||Mid Tower|
|Case Material||SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)|
|Height (with Feet)||435 mm / 17.13 in|
|Width||287 mm / 11.3 in|
|Depth||415 mm / 16.34 in|
|Front-Right||3 x 120 mm (3 x F120 RGB Core included)|
|Top||23 x 120 mm / 2 x 140 mm|
|Bottom||22 x 140 mm|
|Rear||1 x 120mm|
|Compatibility & Clearance|
|CPU Cooler Height||163 mm / 6.42 in|
|GPU Length||365 mm / 14.37 in|
|PSU Length||200 mm / 7.87 in|
|Cable Management||91 mm / 3.58 in|
|Top Radiator||30 mm / 1.18 in|
|Top||Up to 360mm|
|Rear||Up to 120mm|
|Model||F120 RGB Core Fan (Case Version)|
|Speed||1300 ± 130 RPM|
|Static||1.27 mm – H₂O|
|Fan Controller||3 – Pin|
|Front I/O Ports|
|USB 3.2 Gen 1 Type-A||2|
|USB 3.2 Gen 2 Type-C||1|
|Headset Audio Jack||1|
