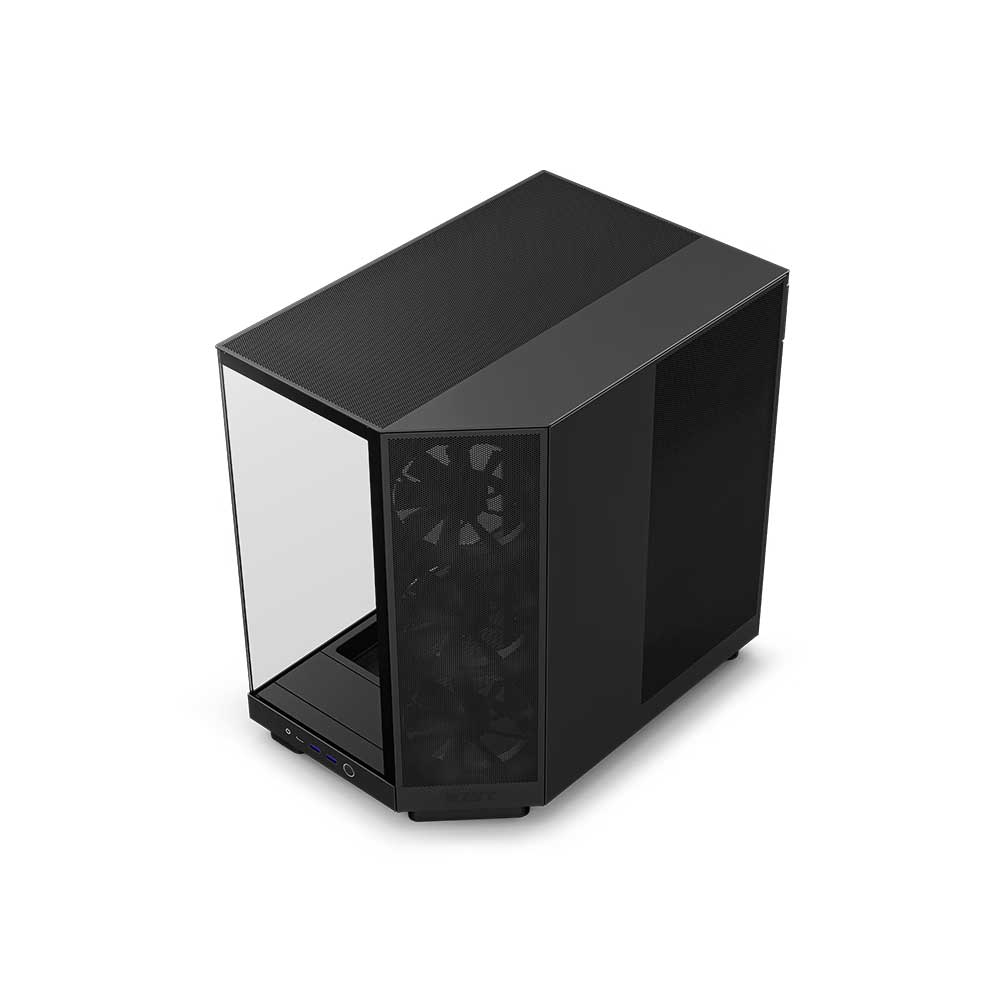

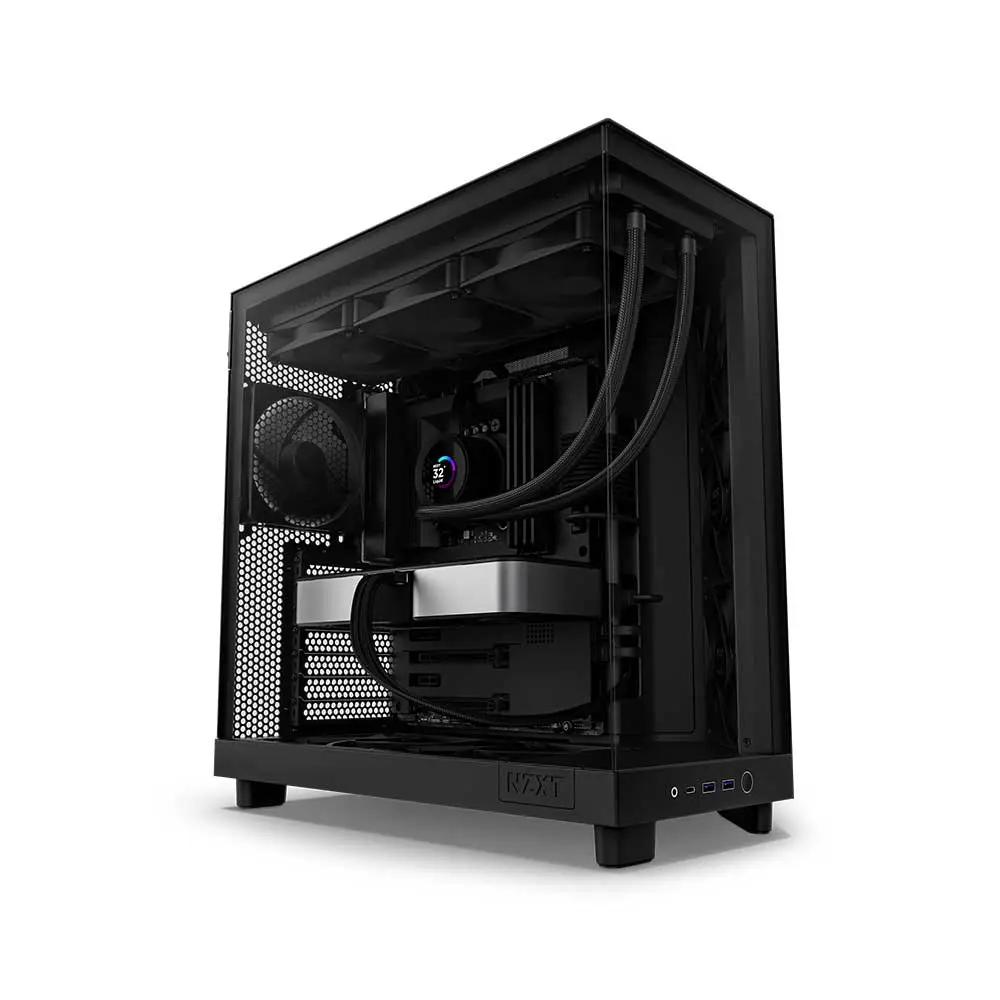

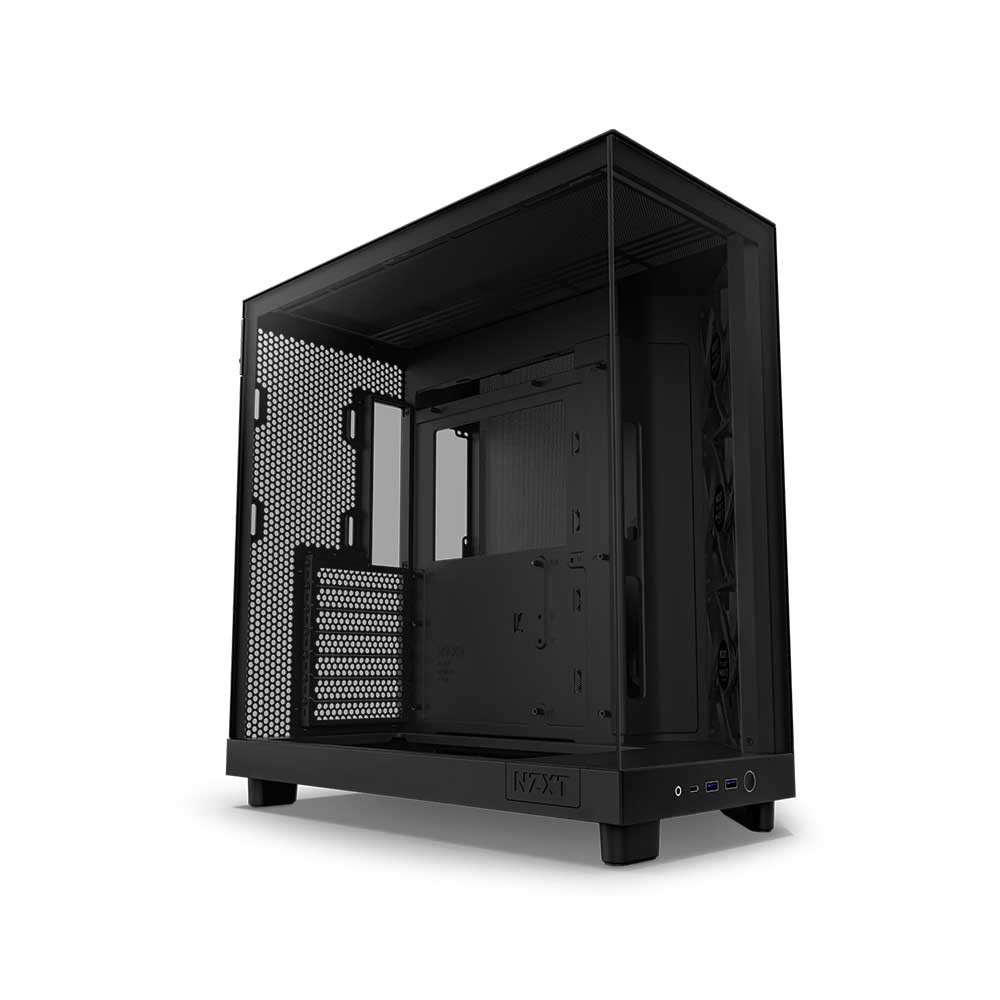

Nzxt H6 Flow Atx Mid Tower Cabinet Matte Black (CC-H61FB-01)
Experience peak performance of Nzxt H6 Flow Atx Cabinet within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow’s panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.

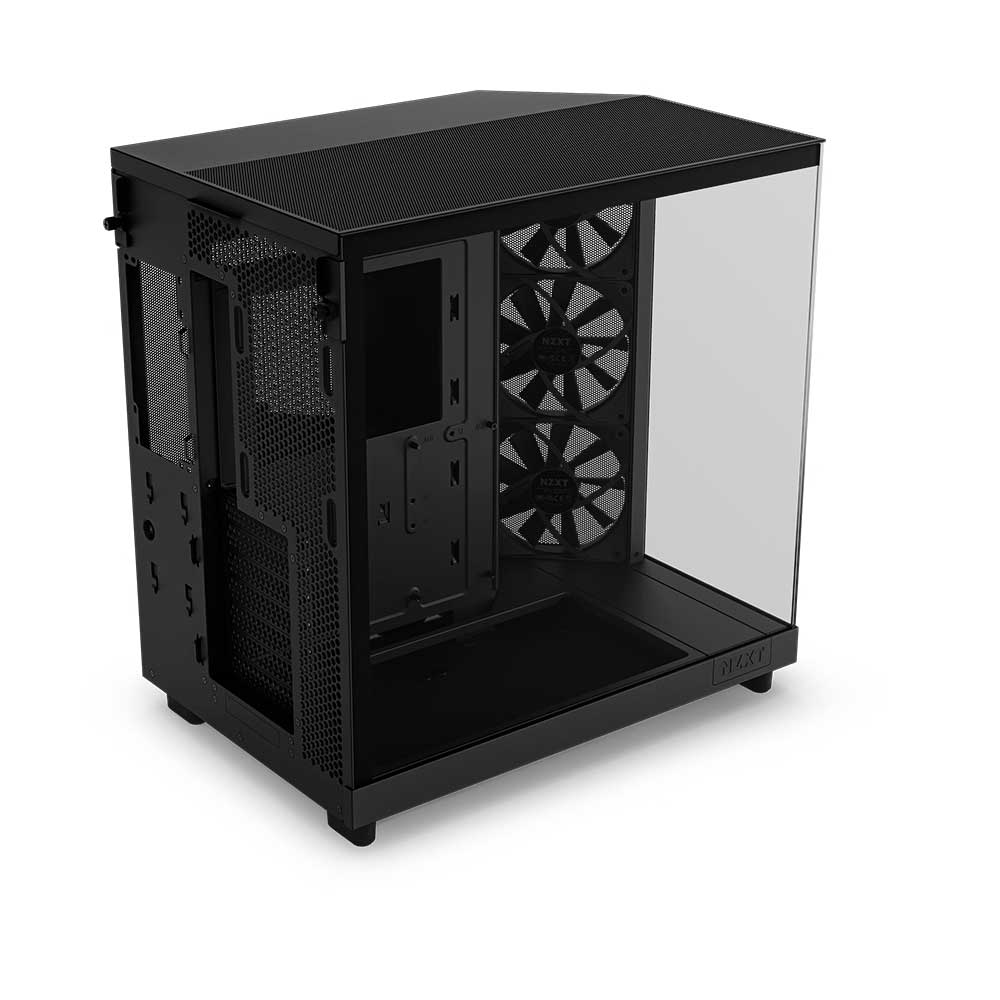

- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.

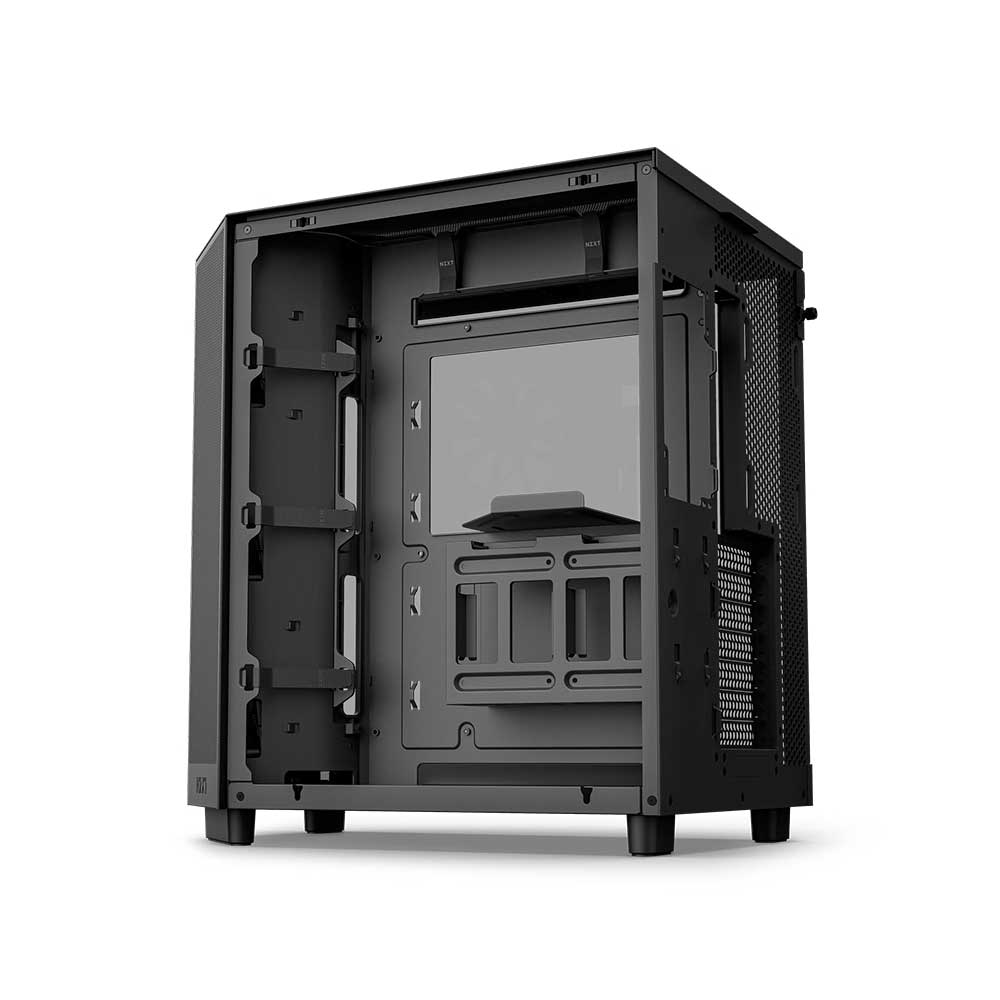

- An intuitive cable management system simplifies the build process by using wide channels and straps.

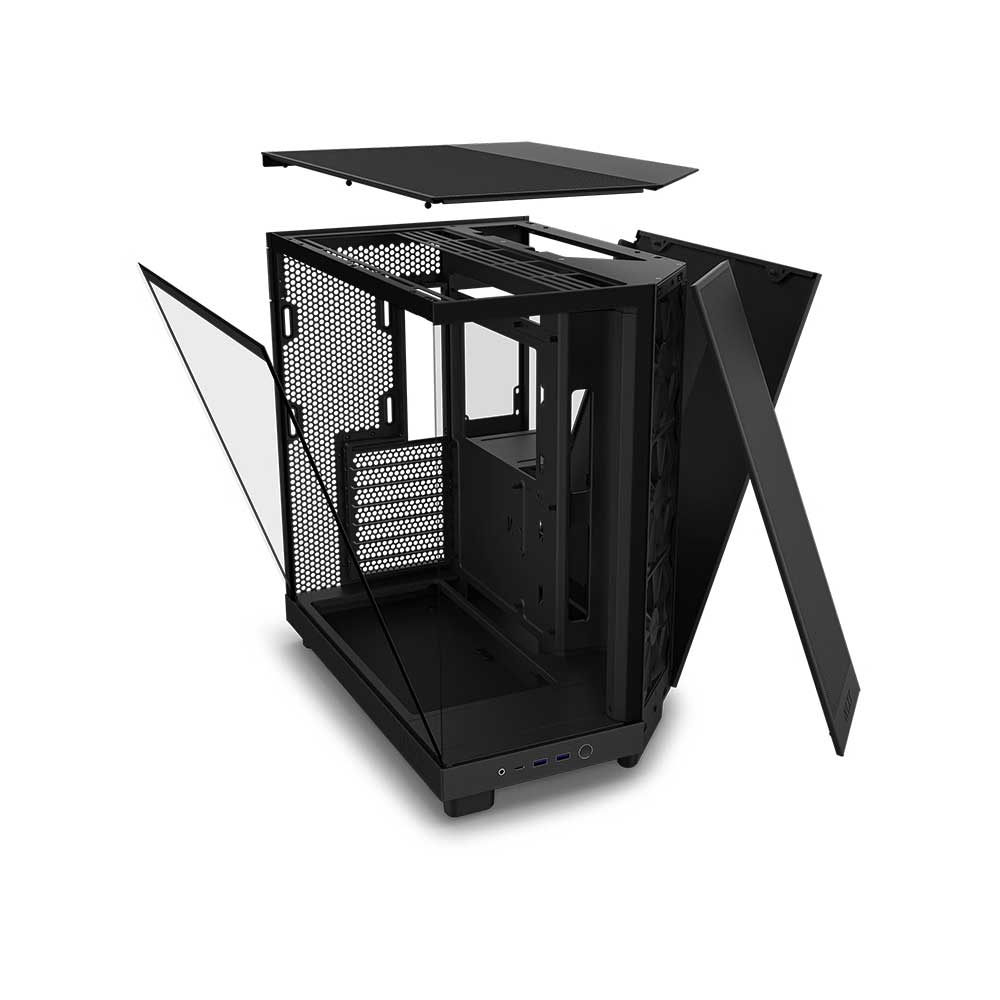

- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Improves cooling performance and creates an uncrowded aesthetic.
3 x 120mm fans are angled for optimal out-of-the-box cooling.
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
Easily manage cables with the wide channels and included straps.
Access the top and side panels without tools for quick upgrades.
Up to a 360mm radiator in the top and clearance for a 365mm GPU.
|Motherboard Support||ATX, Micro-ATX, Mini-ITX|
|Enclosure Type||Mid Tower|
|Case Material||SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)|
|Height (with Feet)||435 mm / 17.13 in|
|Width||287 mm / 11.3 in|
|Depth||415 mm / 16.34 in|
|Front-Right||3 x 120 mm (3 x F120Q included)|
|Top||3 x 120 mm / 2 x 140 mm|
|Bottom||2 x 140 mm|
|Rear||1 x 120mm|
|Compatibility & Clearance|
|CPU Cooler Height||163 mm / 6.42 in|
|GPU Length||365 mm / 14.37 in|
|PSU Length||200 mm / 7.87 in|
|Cable Management||91 mm / 3.58 in|
|Top Radiator||30 mm / 1.18 in|
|Top||Up to 360mm|
|Rear||Up to 120mm|
|Model||F120Q Airflow Fan (Case Version)|
|Speed||1200 ± 240 RPM|
|Static||1.05 mm – H₂O|
|Fan Controller||3 – Pin|
|Front I/O Ports|
|USB 3.2 Gen 1 Type-A||2|
|USB 3.2 Gen 2 Type-C||1|
|Headset Audio Jack||1|
|Note**||**Prices, Specifications & Features are subject to change without notice|
