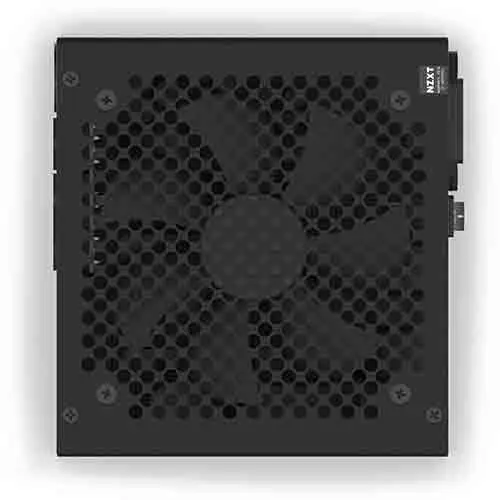

Nzxt C750 750 Watt 80 Plus Bronze Semi Modular Power Supply (PA-7B1BB-IN)

5,900.00

Inclusive of all taxes

Model No : PA-7B1BB-IN
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Nzxt C750 750 Watt 80 Plus Bronze Semi Modular Power Supply (PA-7B1BB-IN)

The C750 provides 750 watts of reliable power to your battlestation and can support up to the GeForce RTX 3080.

Technical Details
Brand : NZXT
Model : C750 Bronze

Technical Specs
KEY SPECS

Dimensions:W 150mm x L 140mm x H 86mm
Material(s):Steel, PCB and plastic
Compliance Standard:ATX12V v2.4 / EPS12V v2.92
AC Input Rating:10A/115V;5A/230V 47Hz ~ 63Hz

DC OUTPUT RATING
Voltage:+3.3V / +5V / +5VSB /+12V / -12V
Max Load:20A / 20A / 2.5A / 62.5A / 0.3A
Voltage Regulation:±5% / ±5% / ±5% / ±5% / ±10%
Ripple & Noise:< 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
Output Power (watt):120 / 120 / 12.5 / 750 / 3.6
Total:750

FAN SPECS
Dimensions:120 x 120 x 25 (mm)
Speed:2400 ±10% RPM
Airflow:72.90 CFM
Noise:<44 dBA
Bearing:FDB (Fluid Dynamic Bearing)

ENERGY EFFICIENCY
Rating:80 Plus Bronze
10% loading:82%
20% loading:83%
50% loading:87%
100% loading:83%

OPERATION
PF Correction:[email protected]
MTBF:100,000 hours
Operation Temperature:0 to 40°C

OUTPUT CONNECTOR(S)
24-pin ATX Power:1
4+4-pin CPU power:2
6+2-pin PCIe power:6
SATA Power:6
Peripherals:3

GENERAL
Regulations & Certifications (EMC & Safety):CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE /
Warranty:5 years
Hazardous Materials:RoHS & China RoHS

Model
Brand Nzxt
Model C750 Bronze
Spec
Type ATX
Maximum Power 750W
Fans 120mm fan
PFC [email protected]
PCI-E Connectors 6
Efficiency 10% loading:82%, 20% loading:83%, 50% loading:87%, 100% loading:83%
Input Frequency Range 47-63Hz
Warranty 5 Years
