Description

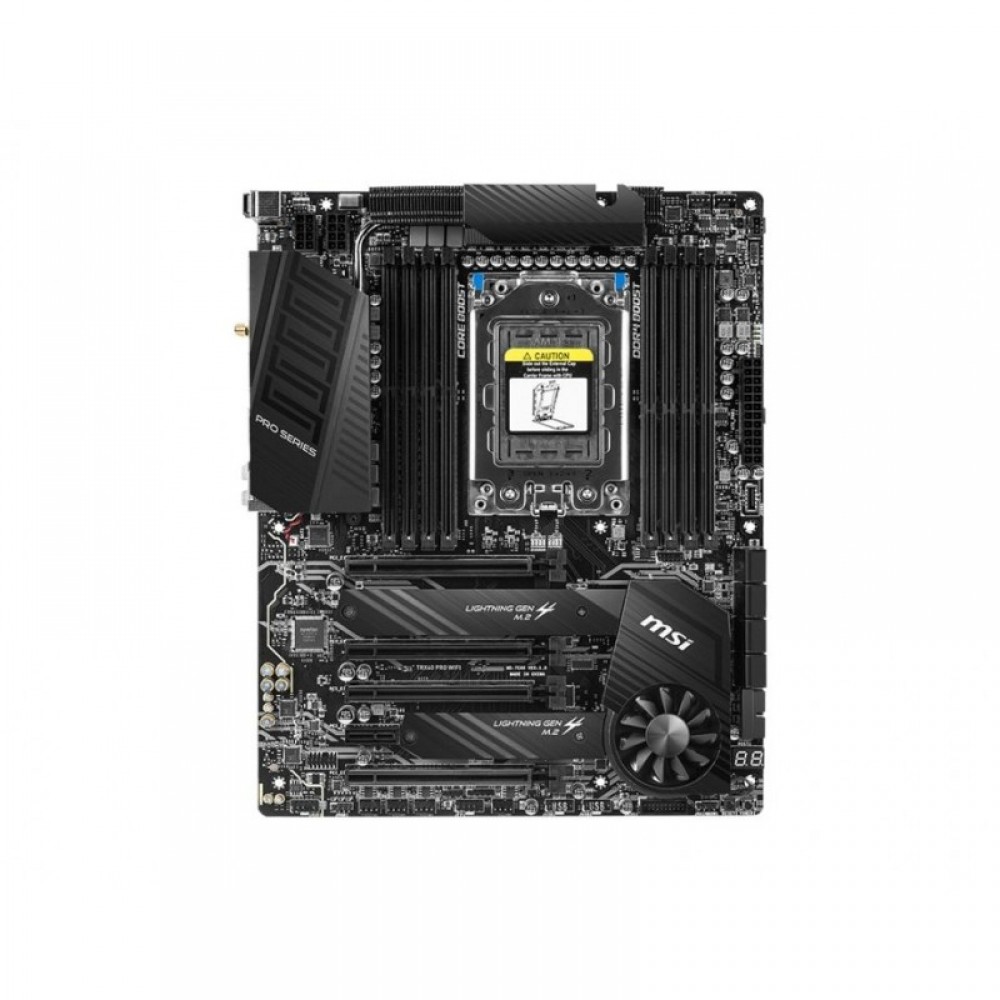

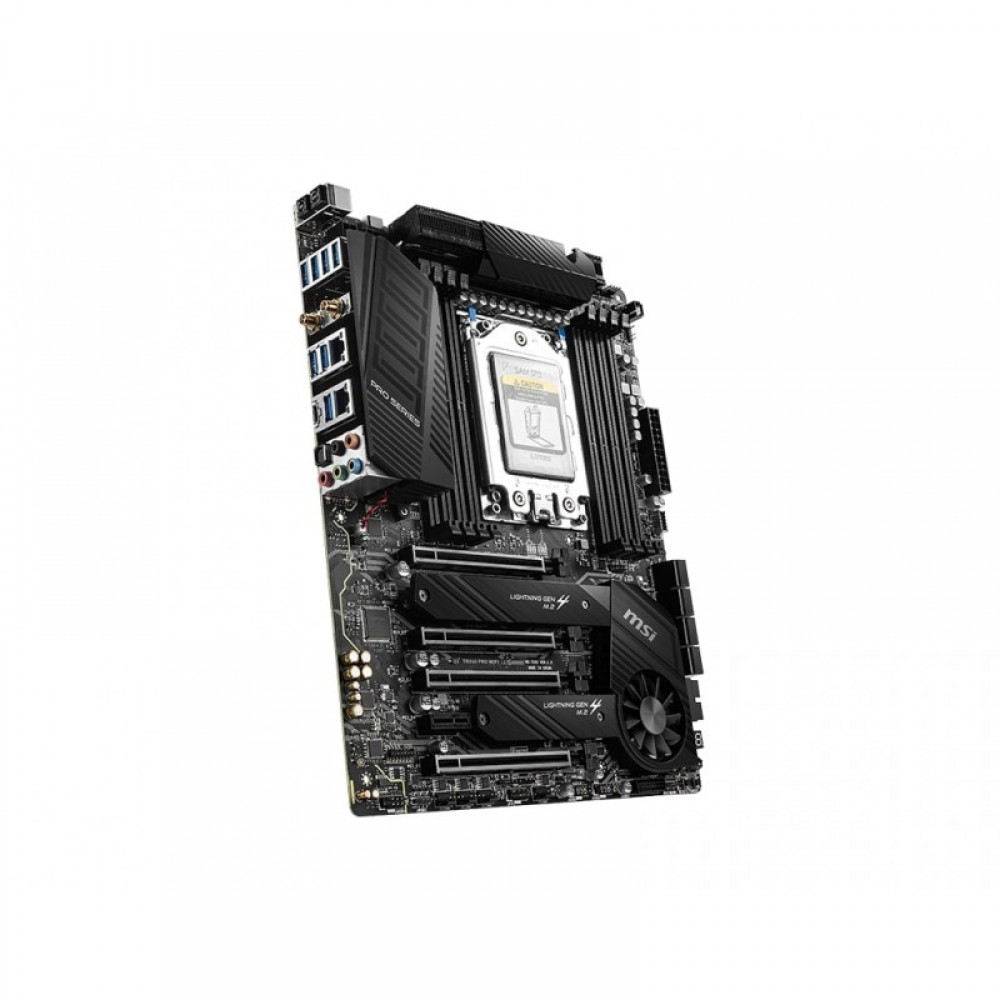

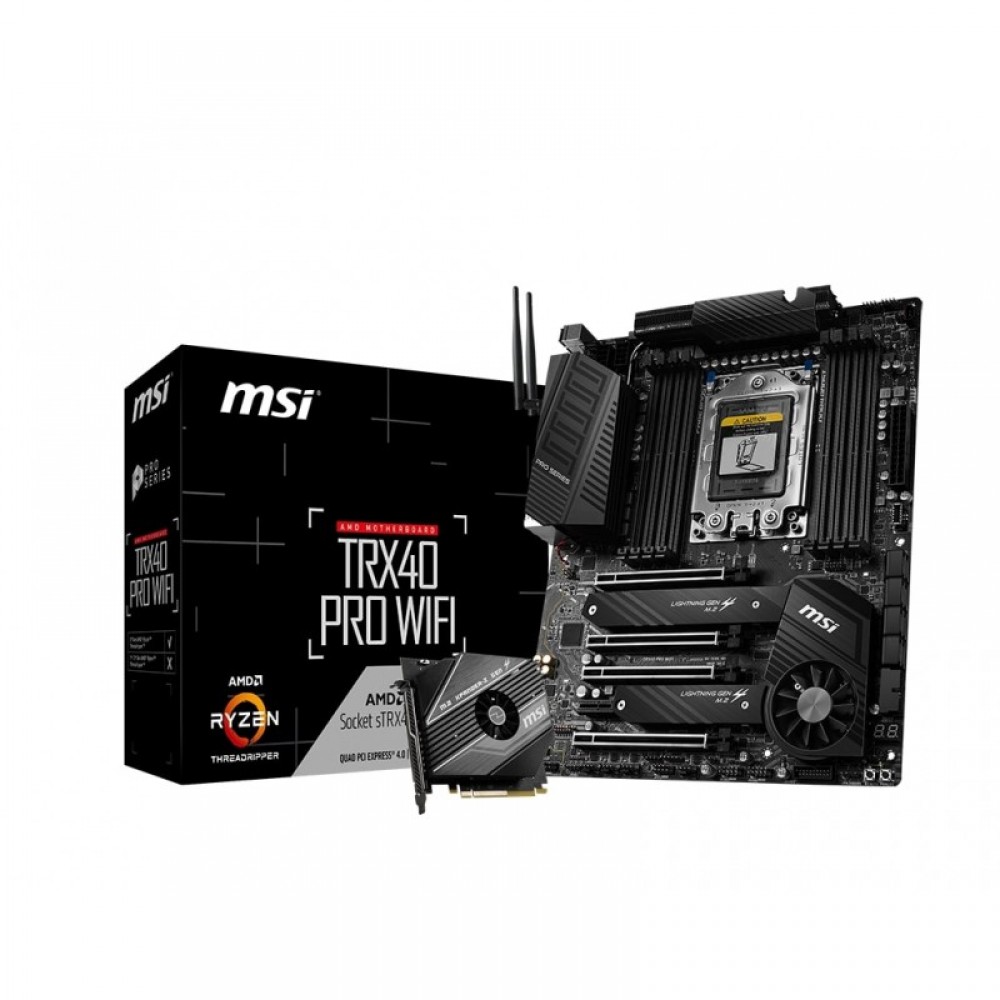

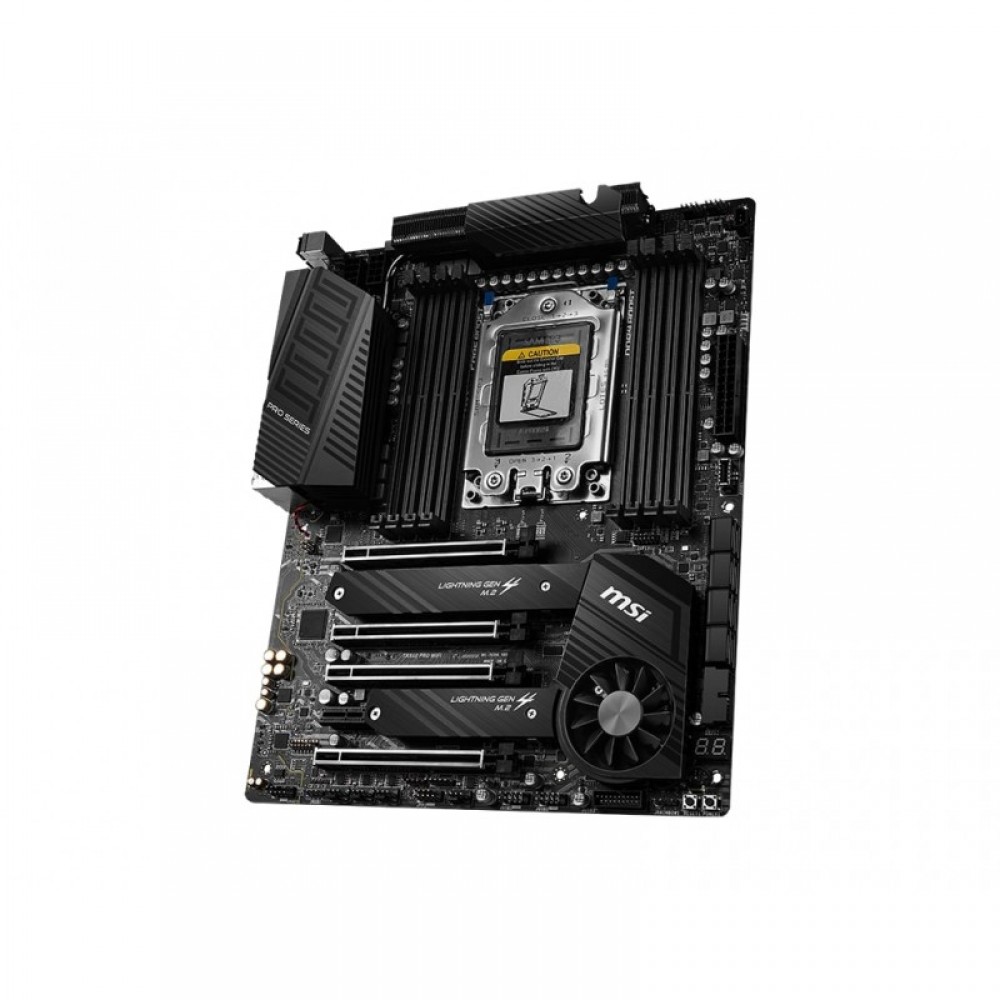

MSI TRX40 PRO WIFI MOTHERBOARD (TRX40 PRO WIFI)

Inspired from architectural design with the extended heatsink for having better thermal solution; PCIe gen4 slots and M.2 connectors, high speed USB 3.2 Gen2x2 solution, Core Boost, DDR4 Boost, Wi-Fi 6, Dual LAN onboard, Frozr Heatsink Design, Twin Lightning Gen4 M.2 with M.2 Shield Frozr, M.2 Xpander-Z Gen4
  • Supports 3rd Gen AMD® Ryzen™ Threadripper™ Desktop Processors for Socket sTRX4
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
  • Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
  • Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
  • Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
  • M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
  • Dual LAN onboard and latest Wi-Fi 6 solution:  Premium network solution for professional and multimedia use, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering a secure, stable and fast network connection.
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™



Specification
CPU 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors
Chipset AMD® TRX40 Chipset
Memory 8 x DDR4 memory slots, support up to 256GB1

Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz

1DPC 1R max speed 4666 MHz

1DPC 2R max speed 4000 MHz

2DPC 1R max speed 4000 MHz

2DPC 2R max speed 3600 MHz

Quad channel memory architecture2

Supports Intel® Extreme Memory Profile (XMP)

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory

Supports un-buffered memory

For the latest information about memory, please visit http://www.msi.com

Please refer the DIMM Slots section for more details.

Slots 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)

1 x PCIe 3.0 x1 slot

Multi-GPU Support Supports 3-Way NVIDIA® SLI™ Technology

Supports 3-Way AMD® CrossFire™ Technology

Storage AMD® TRX40 Chipset

8 x SATA 6Gb/s ports

AMD® Processor

2 x M.2 slots (Key M)

M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

RAID AMD® TRX40 Chipset

Supports RAID 0, RAID 1 and RAID 10

USB AMD® TRX40 Chipset

2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)

6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)

4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors

AMD® Processor

2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

ASMedia® ASM3242 Chipset

1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Audio Realtek® ALC1220 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN 2 x Intel® I211AT Gigabit LAN controller
WiFi & Bluetooth Intel® Wi-Fi 6 AX200

The Wireless module is pre-install in the M2_4 (Key-E)slot

Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps

Supports Bluetooth® 5.1

Internal Connectors 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

8x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen2 Type-C port

2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin Water Pump Fan connector (supports up to 2A)

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 4-pin 5050 RGB LED connector

2x 3-pin ARGB LED connectors

1x 3-pin CORSAIR LED connector

1x Slow mode booting jumper

1x Power button

1x Reset button

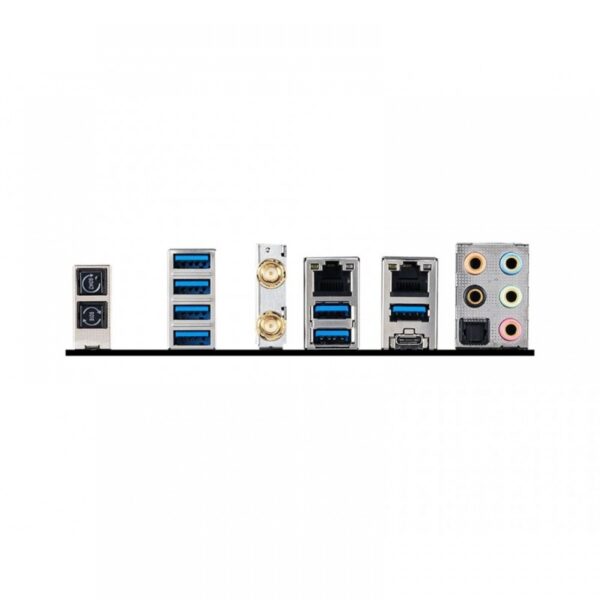

Back Panel Ports Clear CMOS Button

Wireless / Bluetooth

Gigabit LAN

Gigabit LAN

Audio Connectors

Flash BIOS Button

USB 3.2 Gen1 Type-A

USB 3.2 Gen2 Type-A

USB 3.2 Gen2x2 20G Type-C

Optical S/PDIF out

Dimensions 12 in. x 9.6 in. (30.4 cm x 24.4 cm)

ATX Form Factor

Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice
