Description

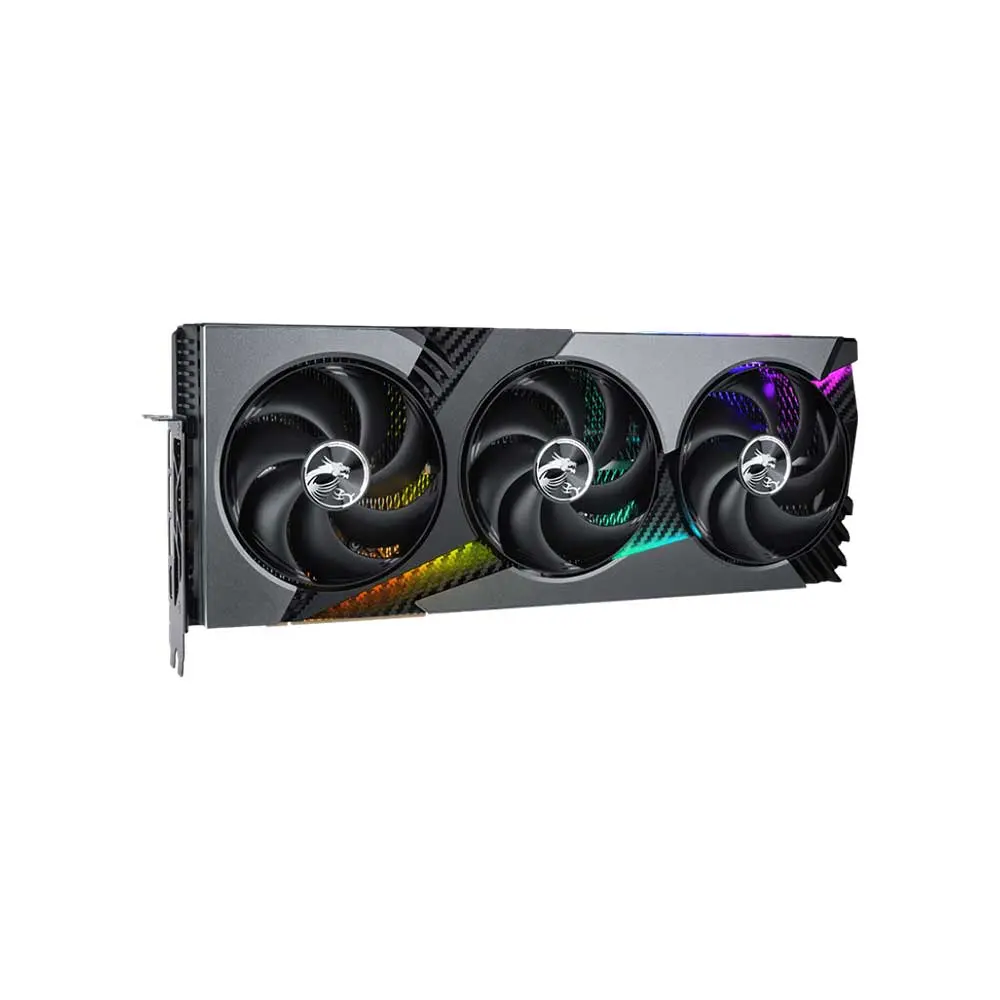

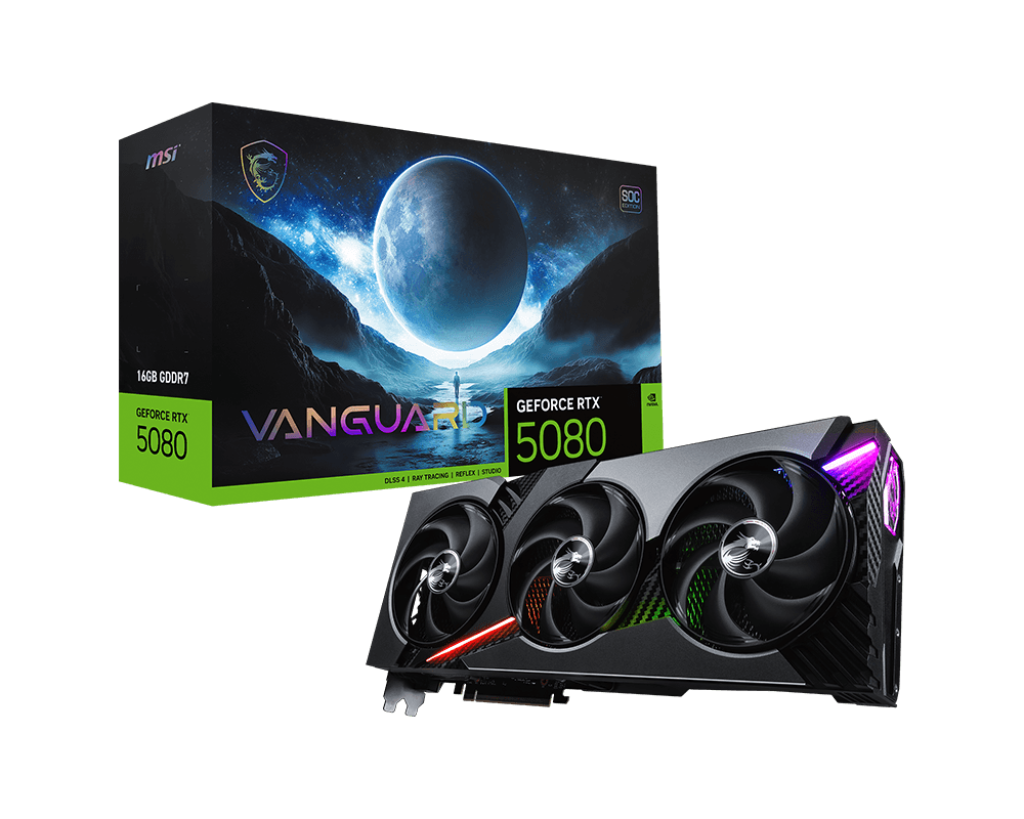

Msi Rtx 5080 Vanguard SOC 16Gb GDDR7 Graphics Card
To celebrate the launch of the MSI RTX 5080 Vanguard SOC, we invite adventurers to join us on this journey: a special blind box bundled edition where every player can experience the thrill of an unknown Lucky. Each Vanguard Launch Edition graphics card includes one exclusive limited-edition Lucky figure – Lucky Around The World series!
Let’s join in on the fun and enjoy new gaming adventures together!
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clock: Extreme Performance: 2745 MHz (MSI Center)
Boost: 2730 MHz (GAMING & SILENT Mode) - HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.

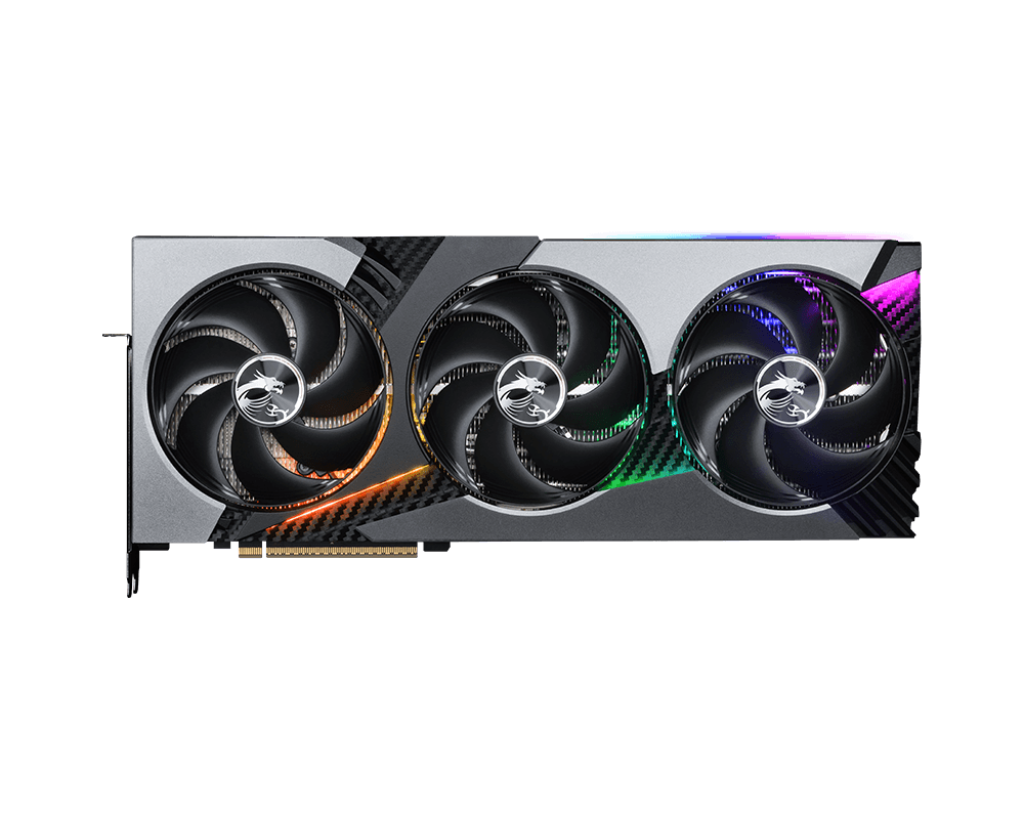

- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
- Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
- Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

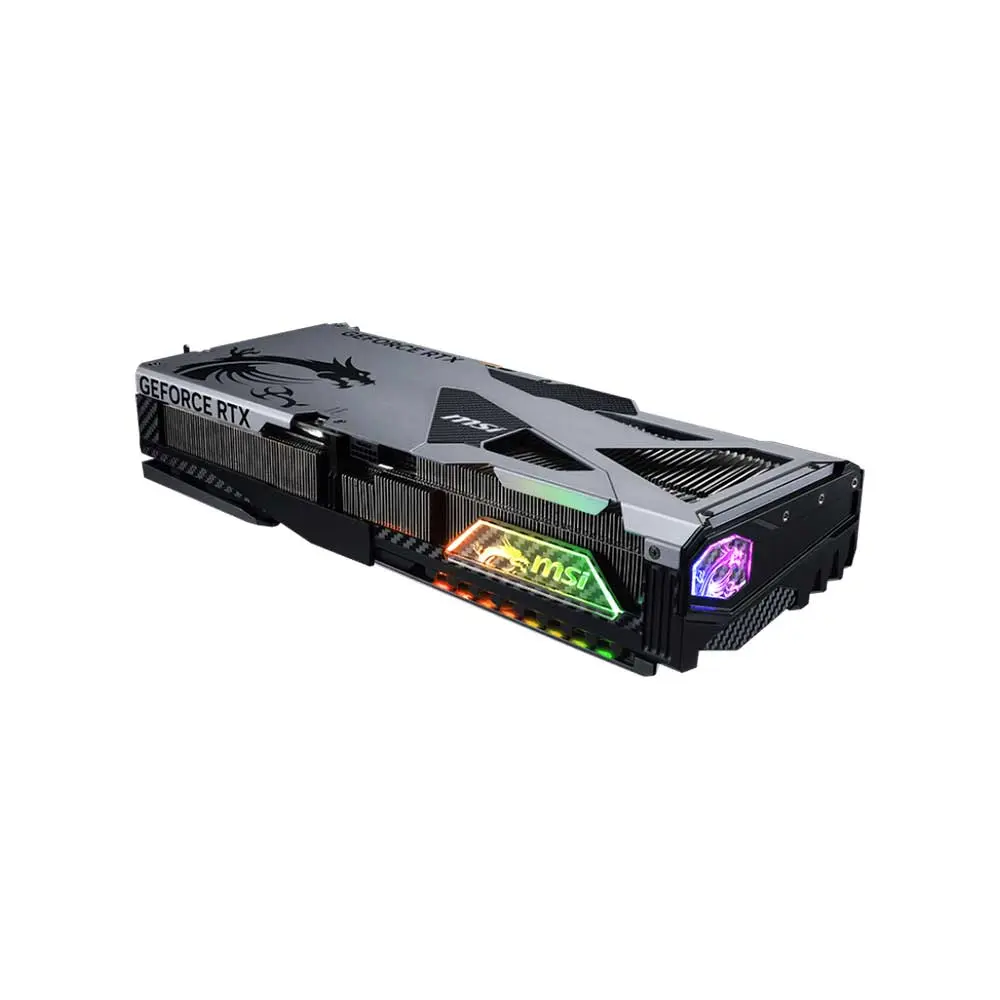

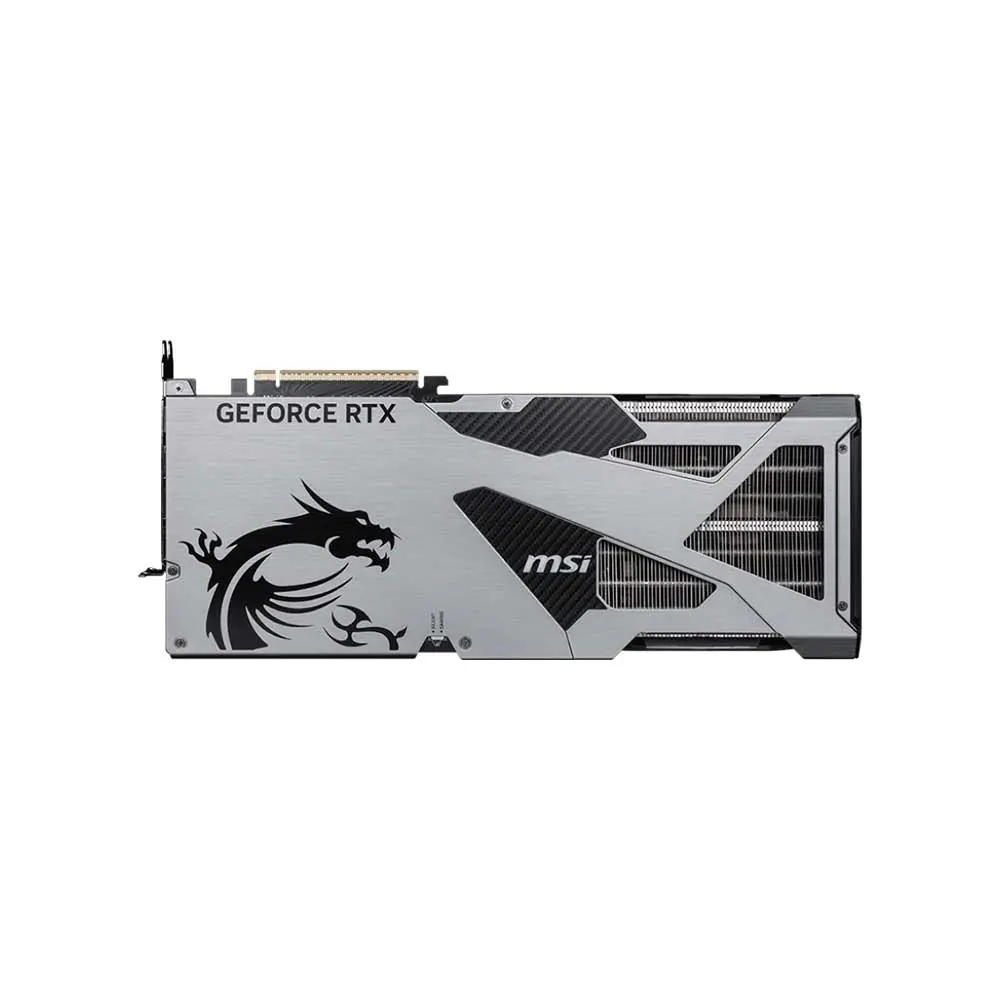

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Dual BIOS: Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Marketing Name | GeForce RTX™ 5080 16G VANGUARD SOC |
Model Name | G5080-16VGS |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
Interface | PCI Express® Gen 5 |
Core Clock | Extreme Performance: 2745 MHz (MSI Center) Boost: 2730 MHz (GAMING & SILENT Mode) |
Cuda Cores | 10752 Units |
Memory Speed | 30 Gbps |
Memory | 16GB GDDR7 |
Memory Bus | 256 Bit |

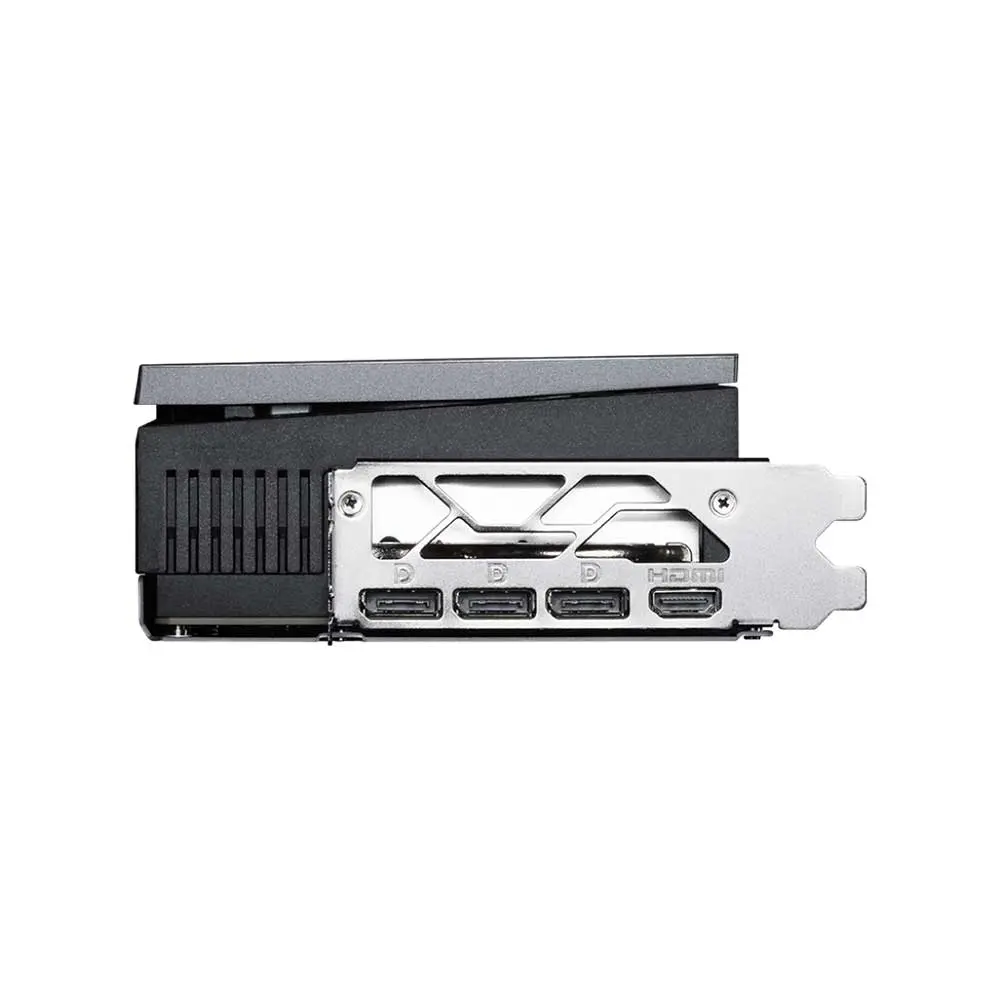

Output | DisplayPort x 3 (v2.1a) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Y |
Power Consumption | 360W |
Power Connectors | 16-pin x 1 |
Recommended PSU | 850W |
Card Dimension (mm) | 357 x 151 x 66 mm |
Weight (Card / Package) | 1945 g / 2844 g |
Direct X Version Support | 12 Ultimate |
Open GL Version Support | 4.6 |
Maximum Displays | 4 |
G-Sync Technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
Warranty | 3 Year |
Note** | **Prices, Specifications & Features are subject to change without notice |
