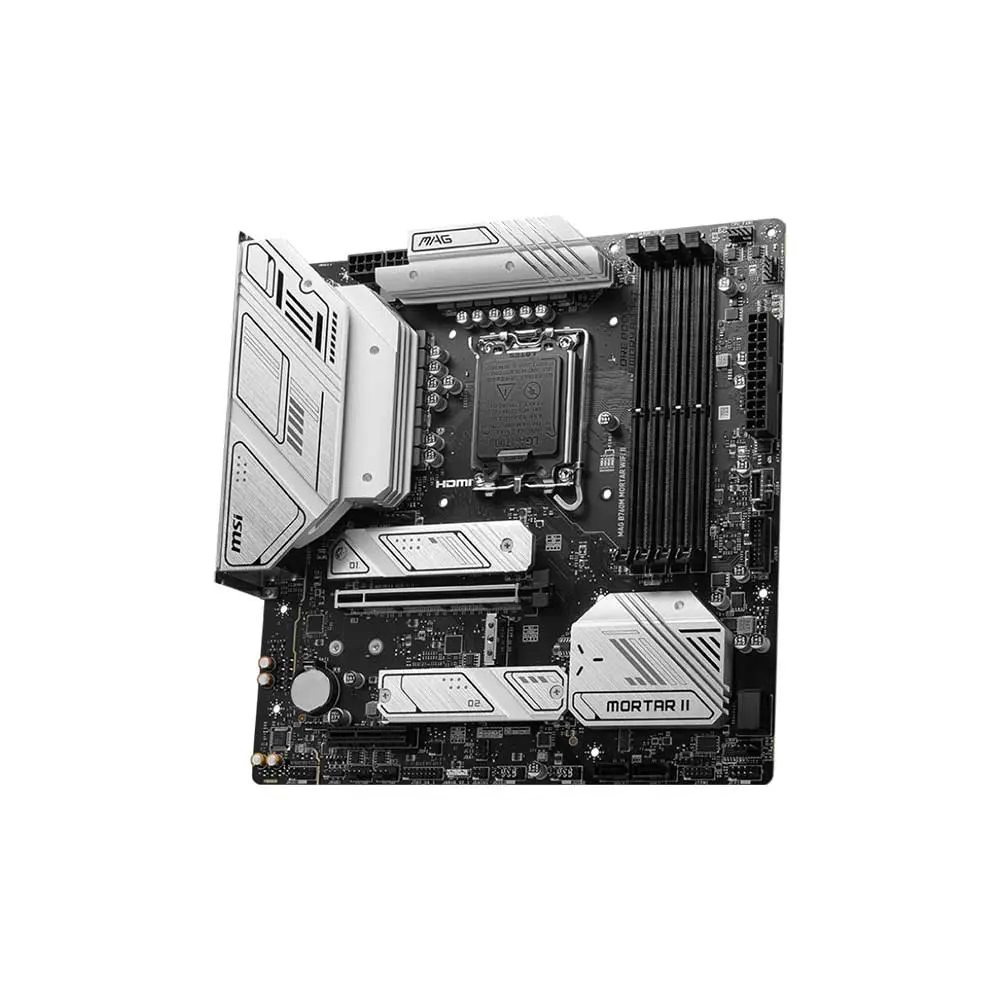

Msi Mag B760M Mortar Wifi II Lga1700 Matx Motherboard (MAG-B760M-MORTAR-WIFI-II)
share this product

Msi Mag B760M Mortar Wifi II Lga1700 Matx Motherboard (MAG-B760M-MORTAR-WIFI-II)

Model No : MAG-B760M-MORTAR-WIFI-II

Original price was: ₹33,999.00.Current price is: ₹18,600.00.

Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing
BUY NOW
  • **Usually delivered within 3-4 Business days*

Description

Msi Mag B760M Mortar Wifi II Lga1700 Matx Motherboard (MAG-B760M-MORTAR-WIFI-II)

Msi Mag B760M Mortar Wifi II Motherboard Supports Intel® Core™ Next-gen / 13th Gen / 12th Gen, Pentium® Gold and Celeron® processors for LGA 1700 socket

  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Chipset INTEL B760
CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA1700
Memory 4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot 1x PCI-E x16 slot
Supports x16/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USD 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 2.5Gbps LAN
Wireless / Bluetooth Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED Feature 4x EZ Debug LED
Back Panel Ports
  1. DisplayPort 1.4
  2. USB 3.2 Gen 2 10Gbps Type-A
  3. 2.5G LAN Port
  4. Wi-Fi / Bluetooth
  5. HD Audio Connectors
  6. USB 2.0
  7. HDMI™ 2.1 Port
  8. USB 3.2 Gen 2×2 20Gbps Type-C
  9. USB 3.2 Gen 2 10Gbps Type-A
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (WxL) mATX
243.84mmx243.84mm
Warranty 3 Years
