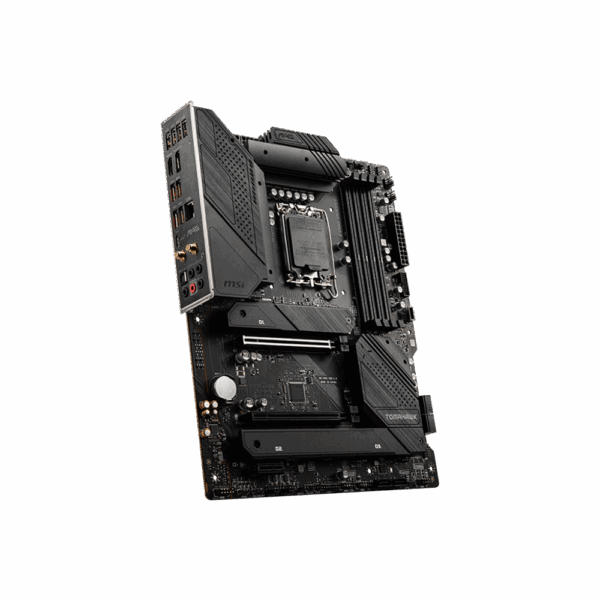

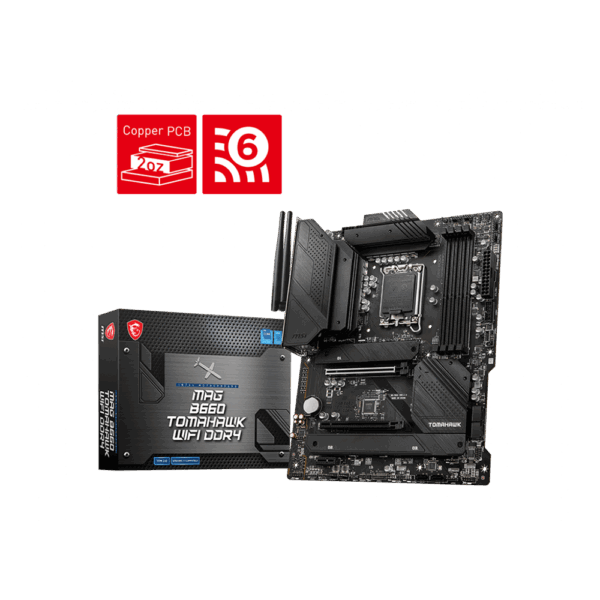

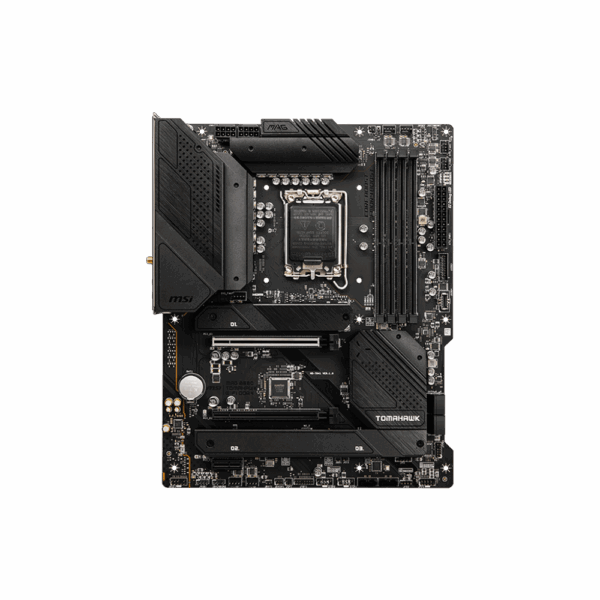

MSI MAG B660 TOMAHAWK WIFI INTEL LGA1700 ATX MOTHERBOARD

Inclusive of all taxes

Model :

MAG B660 TOMAHAWK WIFI DDR4

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

MSI MAG B660 TOMAHAWK WIFI INTEL LGA1700 ATX MOTHERBOARD

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
CPU (Max Support) i9
Socket 1700
Chipset Intel® B660 Chipset
DDR4 Memory 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x 16 2
PCI-E x 1 1
SATA III 6
M.2 Slot 3
RAID 0/1/5/10
LAN 1x Realtek® 8125BG 2.5G LAN
Wifi & Bluetooth Intel® Wi-Fi 6 module
USB 3.2 Ports (Front) 1(Gen 2, Type C), 1(Gen 1, Type A)
USB 3.2 Ports (Rear) 1(Gen 2×2, Type C), 4(Gen 2, Type A)
USB 2.0 Ports (Front) 4
USB 2.0 Ports (Rear) 4
Audio Ports (Rear) Realtek® ALC1220P Codec
Display Port 1
HDMI 1
Direct X 12
Form Factor ATX
Crossfire Y
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty 3 Years
Note** **Prices, Features & Specifications are subject to change without notice
