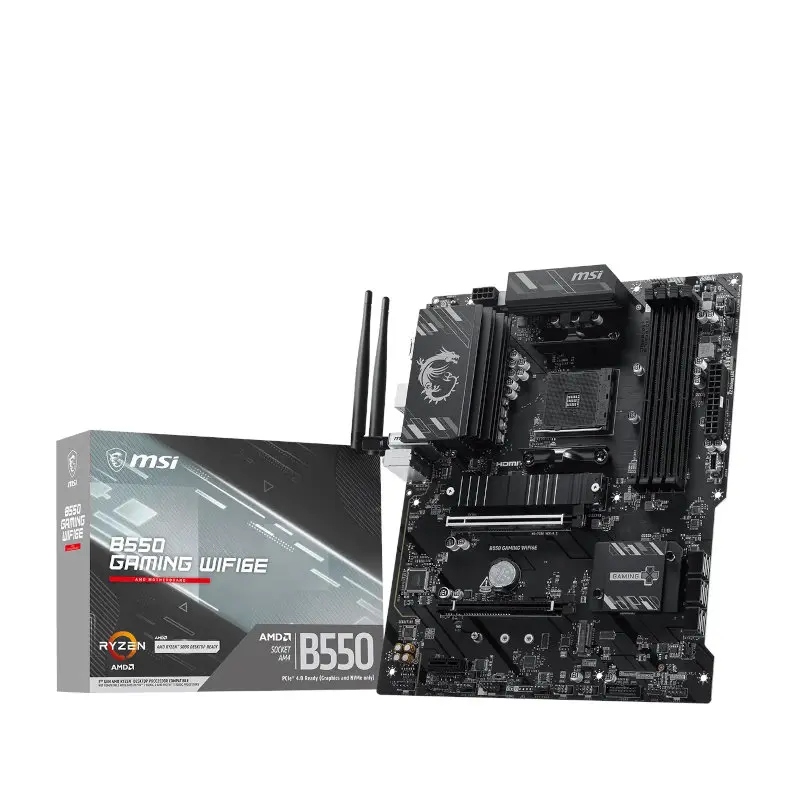

Msi b550 gaming wifi6e am4 ddr4 motherboard

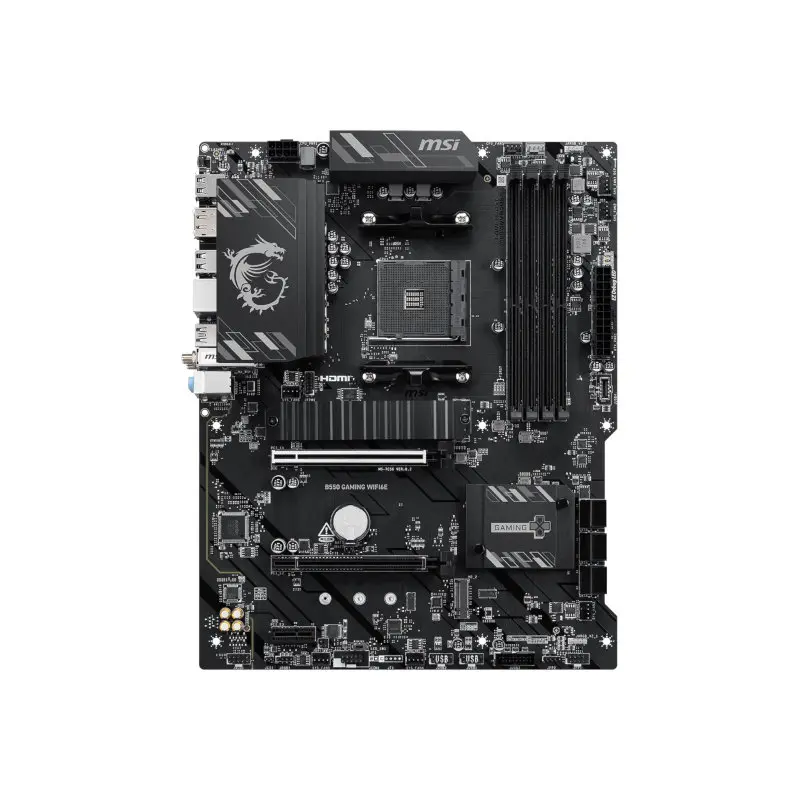

Msi gaming motherboard with pcie x16 slot, cpu socket, ram dimm slots, and i/o panel visible
Rear pc i/o panel with multiple usb ports, ethernet, hdmi/dp, and color-coded audio jacks.
Home>Brand>MSI>MSI B550 Gaming Wifi6E AM4 DDR4 Motherboard

MSI B550 Gaming Wifi6E AM4 DDR4 Motherboard

No Customer Rating

₹13,900

(Inclusive of all taxes)

Model No : B550 GAMING WIFI6E
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

MSI B550 Gaming Wifi6E AM4 DDR4 Motherboard

  • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 4800+MHz (OC)
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • EZ DIY: EZ Debug LED and EZ Mounting
  • Wi-Fi 6E Solution: the ideal solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
  • MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

Specifications

CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Socket AM4
Chipset AMD B550
Memory 4x DDR4, Maximum Memory Capacity 128GB

Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE

Max. overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz

• 1DPC 2R Max speed up to 3866+ MHz

• 2DPC 1R Max speed up to 4000+ MHz

• 2DPC 2R Max speed up to 3600+ MHz

• Dual channel memory architecture

• Supports non-ECC UDIMM memory

• Supports ECC UDIMM memory (non-ECC mode)

• Supports un-buffered memory

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Expansion Slots 2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Onboard Graphics 1x HDMI

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

1x DisplayPort

Support DisplayPort 1.2, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

6x SATA 6G
USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)
Audio Realtek® ALC897

7.1-Channel High Definition Audio
LAN Realtek® 8111H 1G LAN
Wireless LAN & Bluetooth Wi-Fi 6E Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal Connectors 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports
Back Panel Ports USB 2.0

DisplayPort 1.2

1G LAN

USB 10Gbps (Type-A)

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI™

USB 2.0

USB 5Gbps (Type-A)

USB 10Gbps (Type-C)
Dimensions ATX

243.84mmx304.8mm
Operating System Support for Windows® 11 64-bit
LED Feature 4x EZ Debug LED
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
