Intel RNUC13ANKI70000 Nuc 13 Pro i7 Barebone Kit (RNUC13ANKI70000)

Model No : RNUC13ANKI70000

64,500.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing
BUY NOW

Description

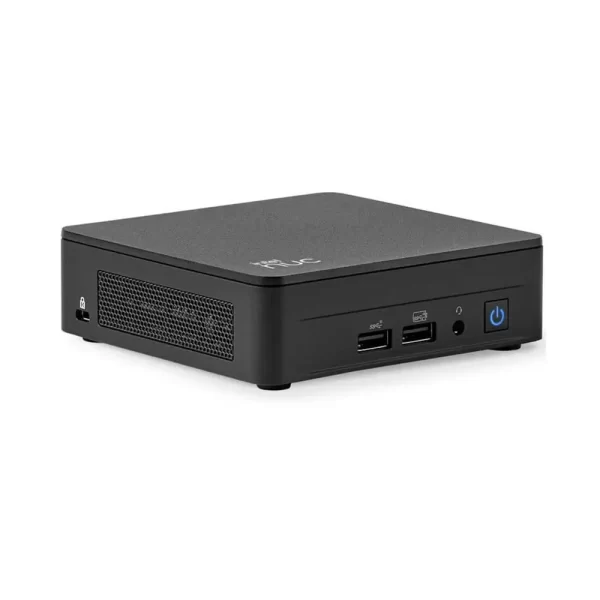

Intel RNUC13ANKI70000 Nuc 13 Pro i7 Barebone Kit

CPU: Intel Core i7-1360P || 12 Cores (18MB Cache, up to 5.0 GHz)
Onboard GPU: Intel UHD Graphics
RAM Slots: 2 x DDR4 SO-DIMM (3200MHz || Maximum Capacity: 64GB)
Storage Slots: 1 x M.2 PCIe
Ethernet Port: 1 x RJ45 (2.5 Gigabit)
Wireless Connectivity: Wi-Fi 6E (802.11ax) + Bluetooth 5.3
Display Outputs: 2 x Thunderbolt 4 || 2 x HDMI 2.1
Rear USB: 1 x USB 3.2 Type-A || 1 x USB 2.0 Type-A
Front USB: 2 x USB 3.2 Type-A
Operating System: Not Included

Product Collection

Intel® NUC Kit with 13th Generation Intel® Core™ Processors

Code Name

Products formerly Arena Canyon

Marketing Status

Launched

Launch Date

Q1’23

Expected Discontinuance

1H’26

Supported Operating Systems

Windows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu*

Board Number

NUC13ANBi7

Board Form Factor

UCFF (4″ x 4″)

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 SSD

# of Internal Drives Supported

2

DC Input Voltage Supported

12-20 VDC



Processor Included

Intel® Core™ i7-1360P Processor (18M Cache, up to 5.00 GHz)

Total Cores

12

Total Threads

16

Lithography

Intel 7

Max Turbo Frequency

5.00 GHz

Supplemental Information

Included Items

VESA bracket

Memory & Storage

Max Memory Size (dependent on memory type)

64 GB

Memory Types

DDR4-3200 1.2V SODIMMs

Max # of Memory Channels

2

Max # of DIMMs

2

ECC Memory Supported

No

Processor Graphics

Integrated Graphics

Yes

Graphics Output

2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C

# of Displays Supported

4

Expansion Options

PCI Express Revision

Gen 4 (m.2 22×80 slot); Gen 3 (otherwise)

PCI Express Configurations

PCIe x4 Gen 4: M.2 22×80 (key M)
PCIe x1 Gen 3: M.2 22×42 (key B)
PCIe x1: M.2 22×30 (key E)

M.2 Card Slot (wireless)

22×30 (E)

M.2 Card Slot (storage)

22×80 NVMe (M); 22×42 SATA (B)

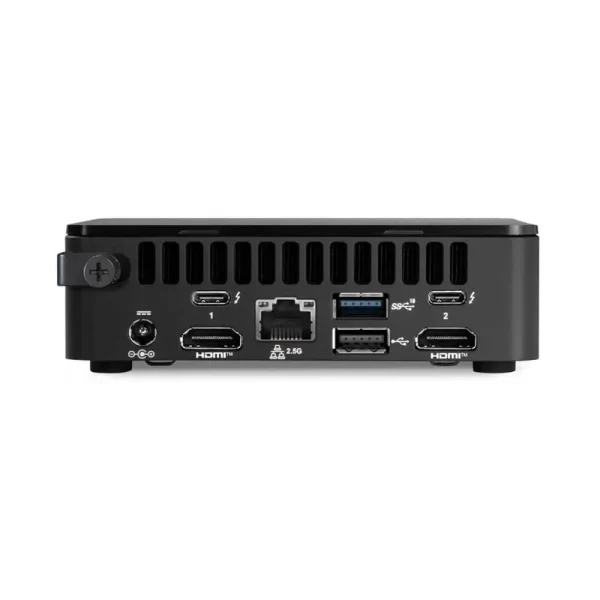

I/O Specifications

# of USB Ports

4

USB Configuration

Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22×42 (pins), 2x USB 2.0 (headers)

Serial Port via Internal Header

No

Audio (back channel + front channel)

Front panel: 3.5mm headphone/mic jack

Integrated LAN

Intel® Ethernet Controller i226-V

Integrated Wireless

Intel® Wi-Fi 6E AX211(Gig+)

Integrated Bluetooth

Yes

Additional Headers

Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector

# of Thunderbolt™ Ports

2x Thunderbolt™ 4

Package Specifications

Chassis Dimensions

117 x 112 x 37 [mm] (LxWxH)

Advanced Technologies

Intel® Optane™ Memory Supported

No

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® ME Firmware Version

16.1

Intel® HD Audio Technology

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes

Security & Reliability

Intel® AES New Instructions

Yes

Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
