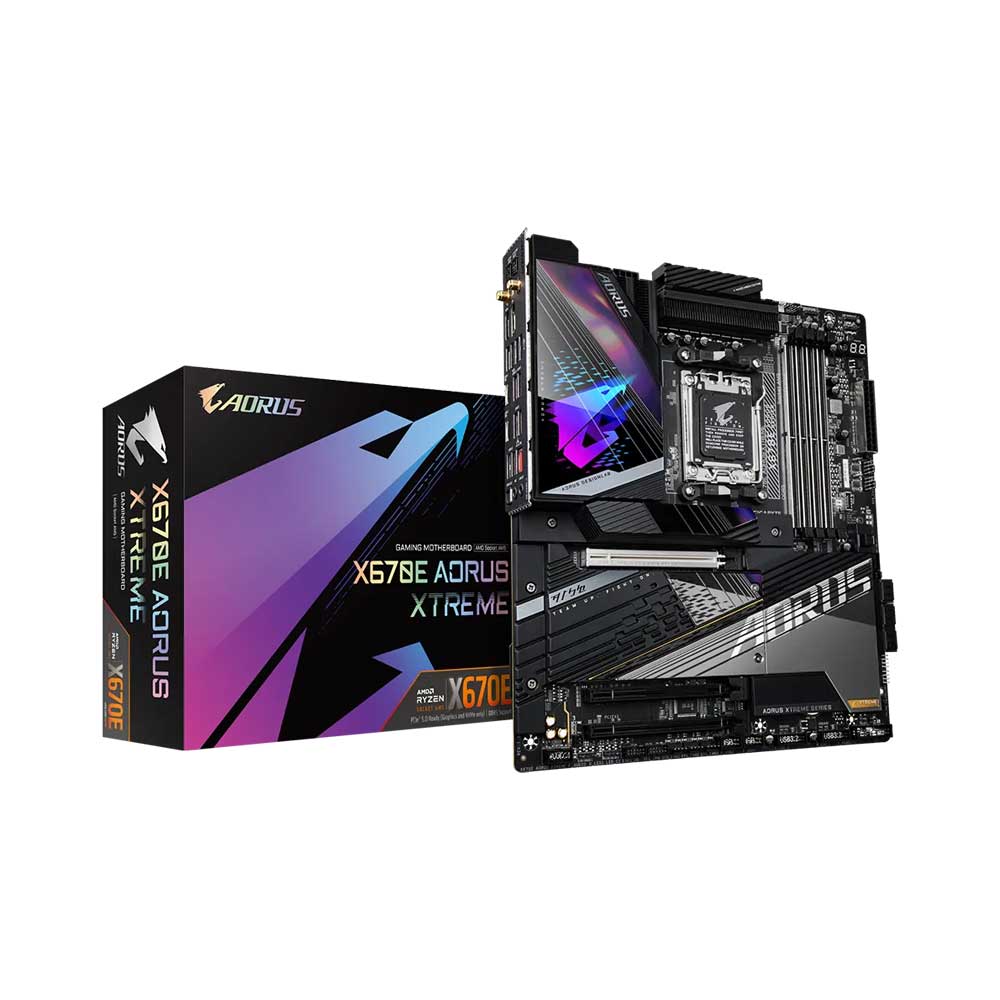

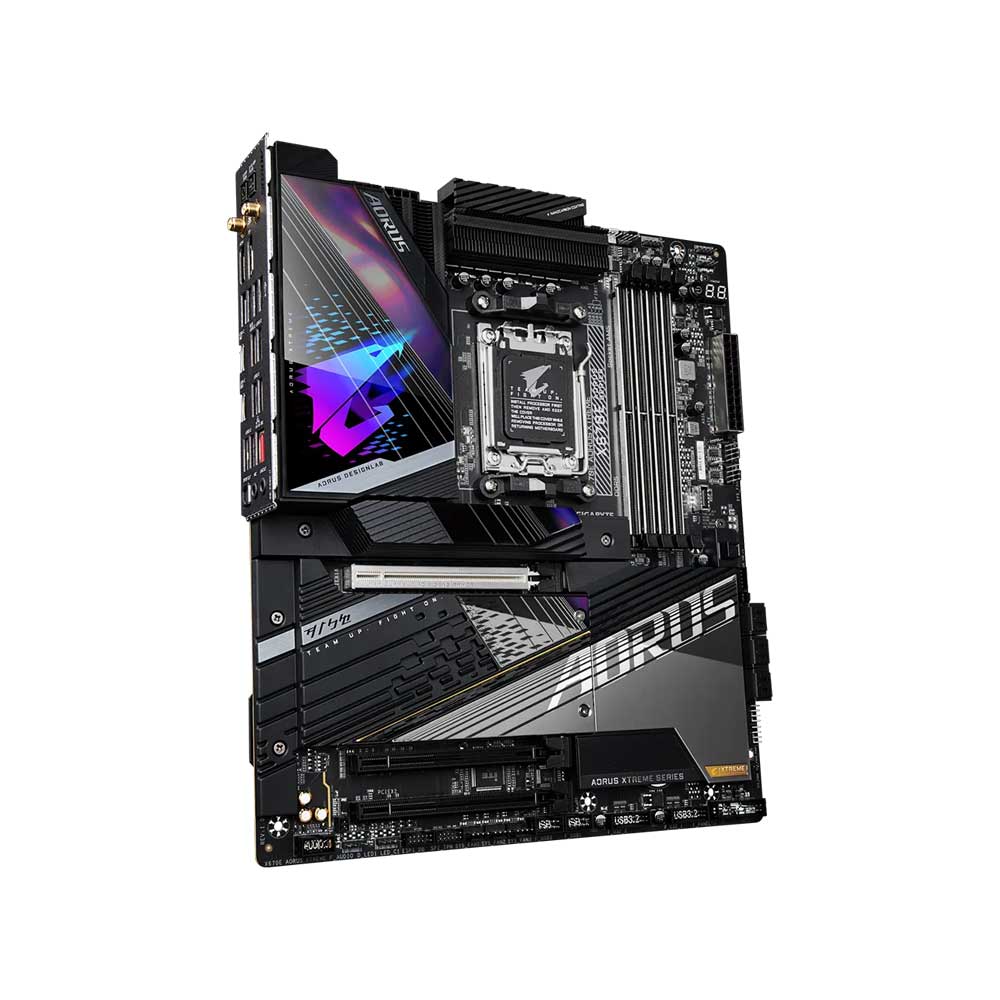

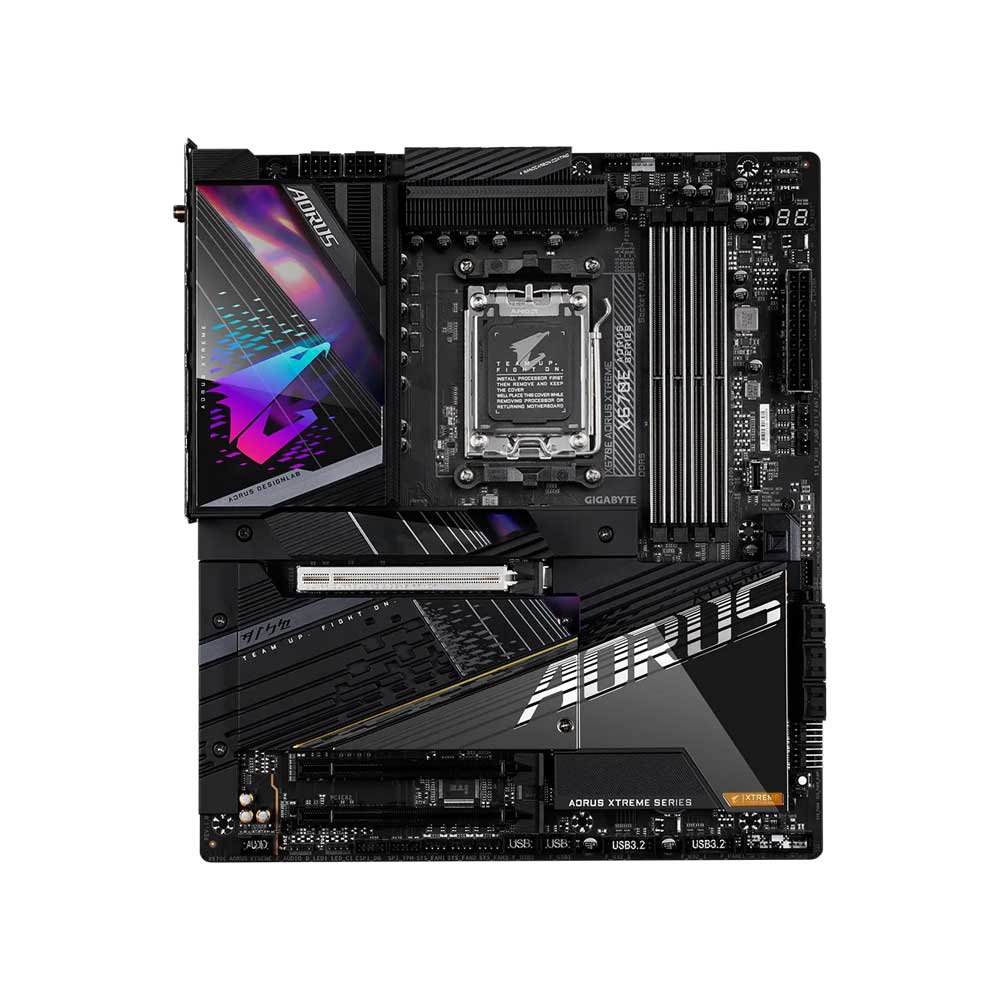

Gigabyte X670E Aorus Extreme AM5 E-Atx Motherboard (X670E-AORUS-XTREME)

Inclusive of all taxes

Model No : X670E-AORUS-XTREME

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Gigabyte X670E Aorus Extreme AM5 E-Atx Motherboard (X670E-AORUS-XTREME)

  • AMD Socket AM5 : Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance : Direct 18+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage : 4*PCIe 5.0 x4 M.2 Connectors
  • Fins-Array III & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch Plus : SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Hi-Fi Audio with DTS : X® Ultra : ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC with Front ESSential USB DAC Bundled
  • Fast Networks : Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax
  • Extended Connectivity : DP, HDMI, USB-C® 10Gbps, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
Chipset AMD X670
Memory Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics 1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 3840×[email protected] Hz
* Support for DisplayPort 1.4 version and HDR.
Audio Realtek® ALC1220-VB CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN Marvell® AQtion AQC113C 10GbE LAN chip
Wireless Communication Module Intel® Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
* Actual support may vary by CPU.
* The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support (M2B_CPU/M2C_CPU/M2D_CPU)
* Actual support may vary by CPU.
Chipset:
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Voltage Measurement Points

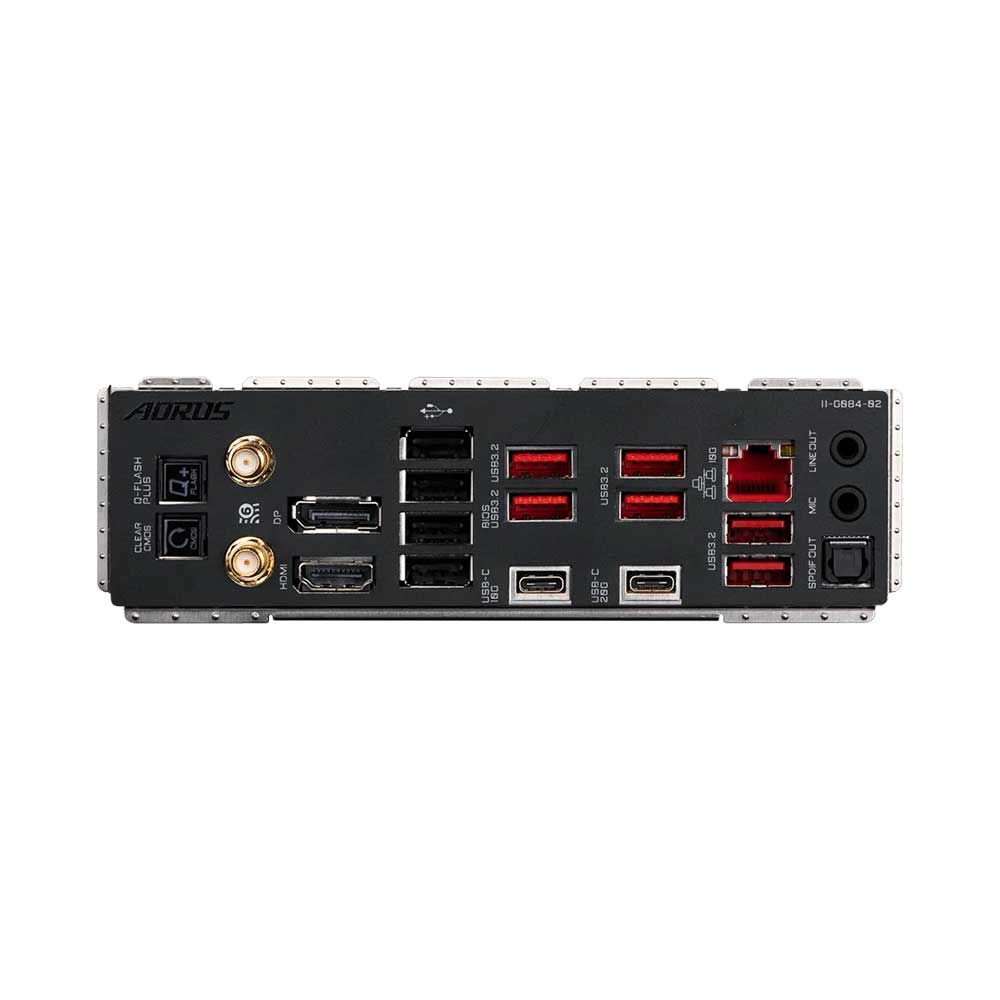

Back Panel Connectors 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI 2.0 port
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port, with USB 3.2 Gen 2 support
6 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor E-ATX Form Factor; 30.5cm x 26.9cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
