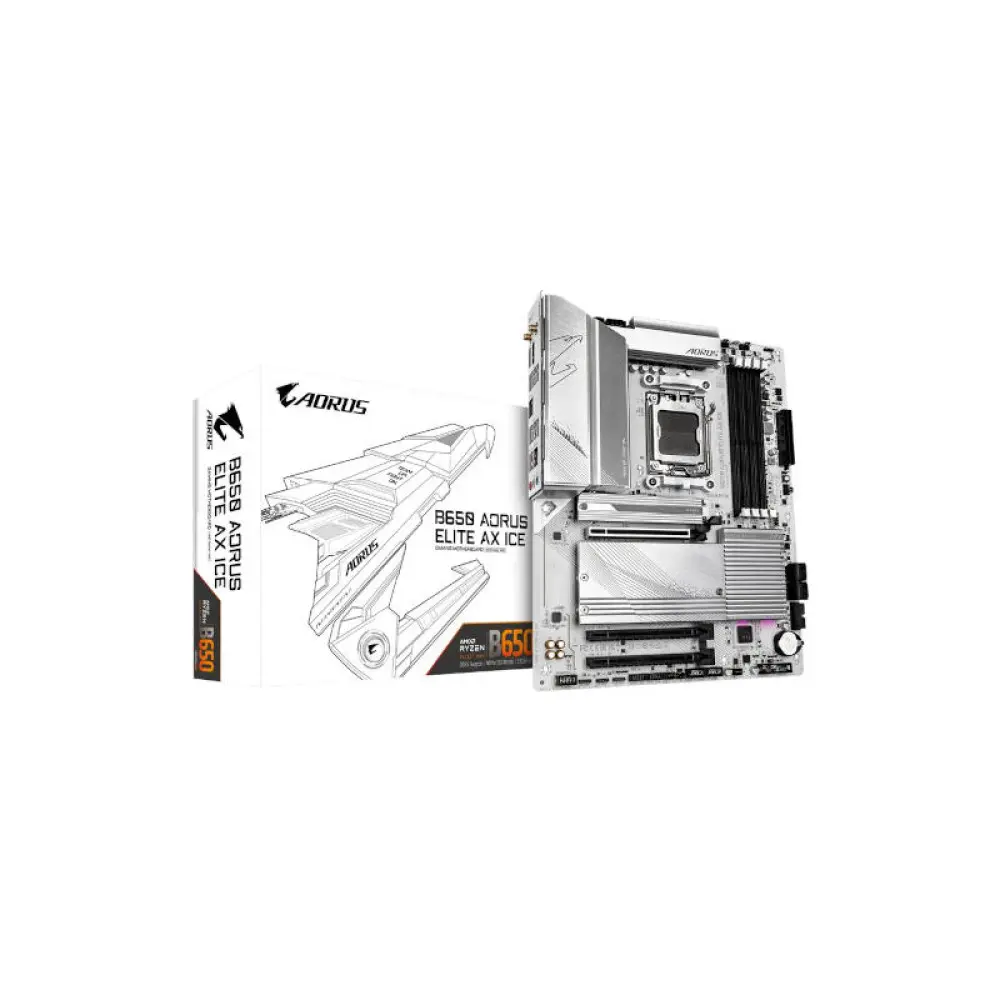

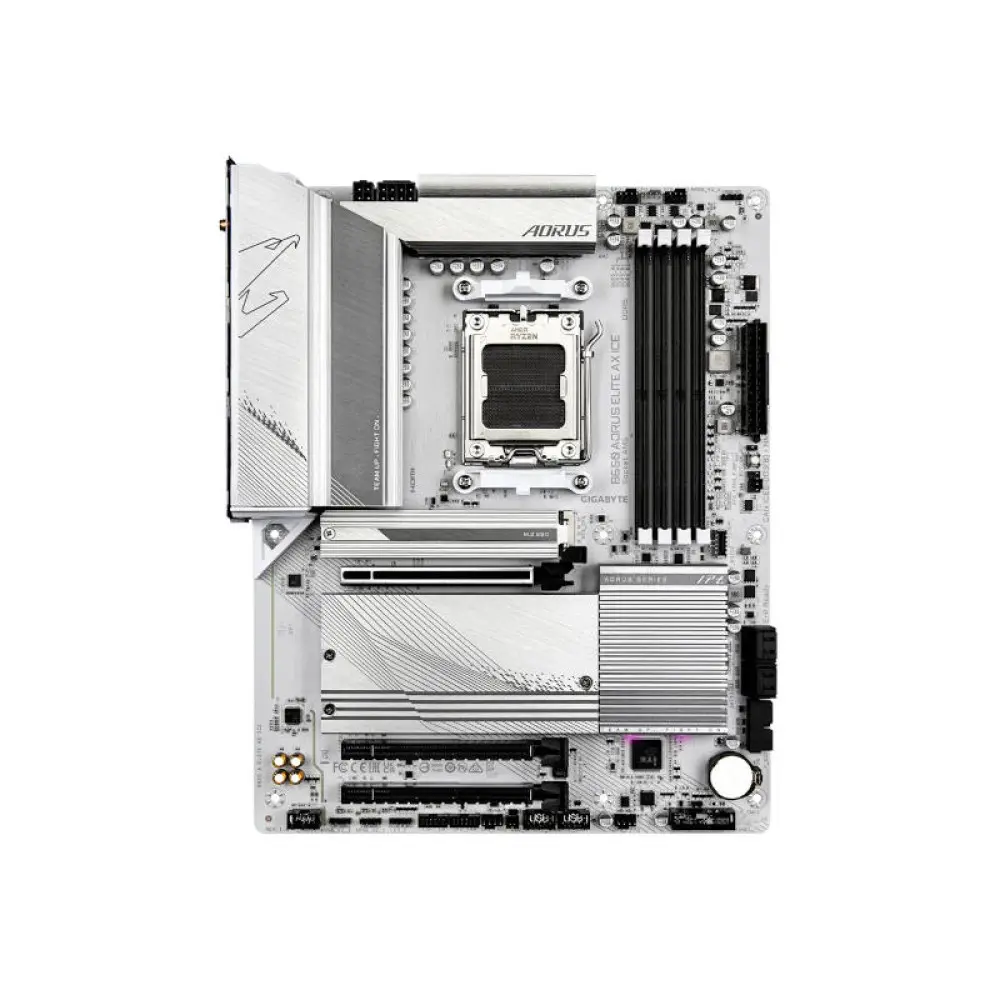

Gigabyte B650 Aorus Elite Ax Ice Am5 Atx Motherboard

Model No : B650 AORUS ELITE AX ICE

Original price was: ₹38,900.00.Current price is: ₹24,800.00.

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing
BUY NOW

Description

Gigabyte B650 Aorus Elite Ax Ice Am5 Atx Motherboard

  • AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
  • Unparalleled Performance:Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Superfast Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity:HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
CPU AMD Socket AM5, support for:

AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

* Please refer to “CPU Support List” for more information.

Chipset AMD B650
Memory Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:

– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE

– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.3

– Support for 11ax 160MHz wireless

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

– AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode

– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

– 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

– AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

– AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports on the back panel

Chipset:

– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

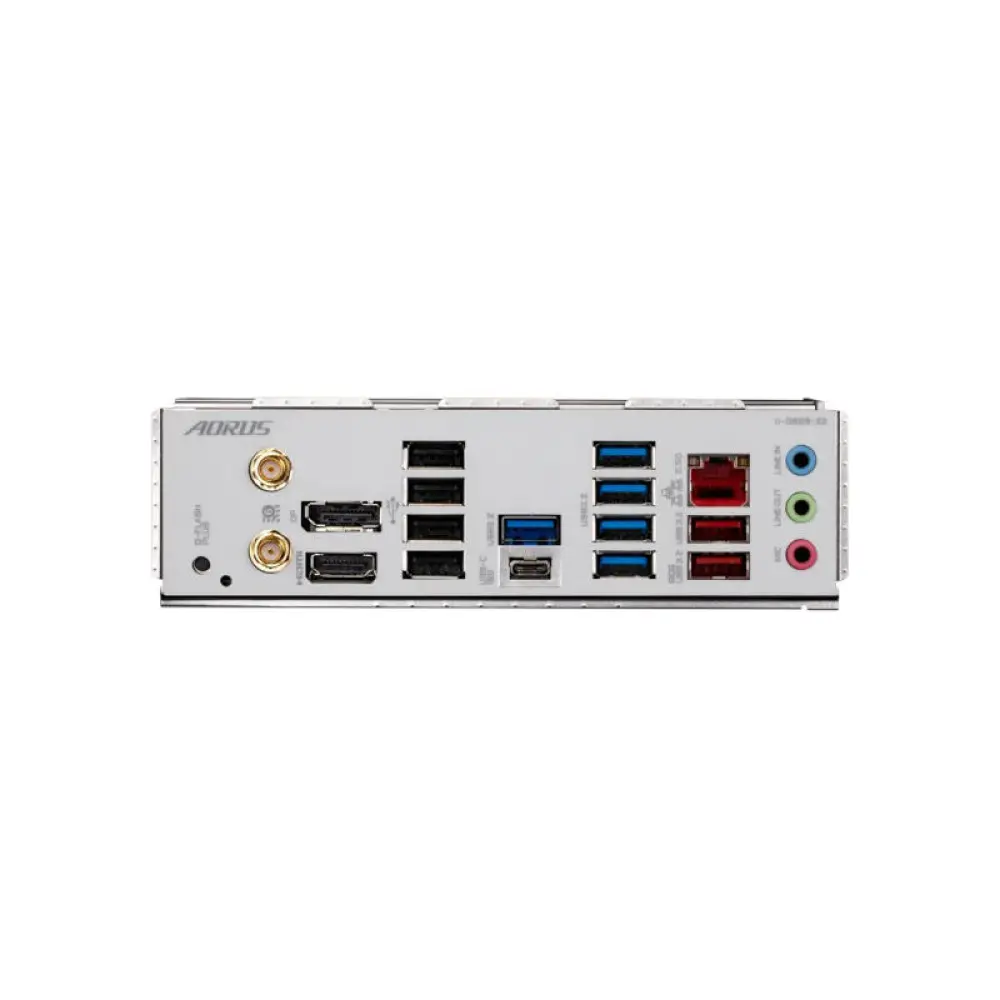

Back Panel Connectors 1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)jk

1 x DisplayPort

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

5 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

BUNDLE SOFTWARE Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note Price, feature and specifications are subject to change without notice.
