7,680.00

SKU: DP-DQ750-M-V2L WH Categories: ,

Description

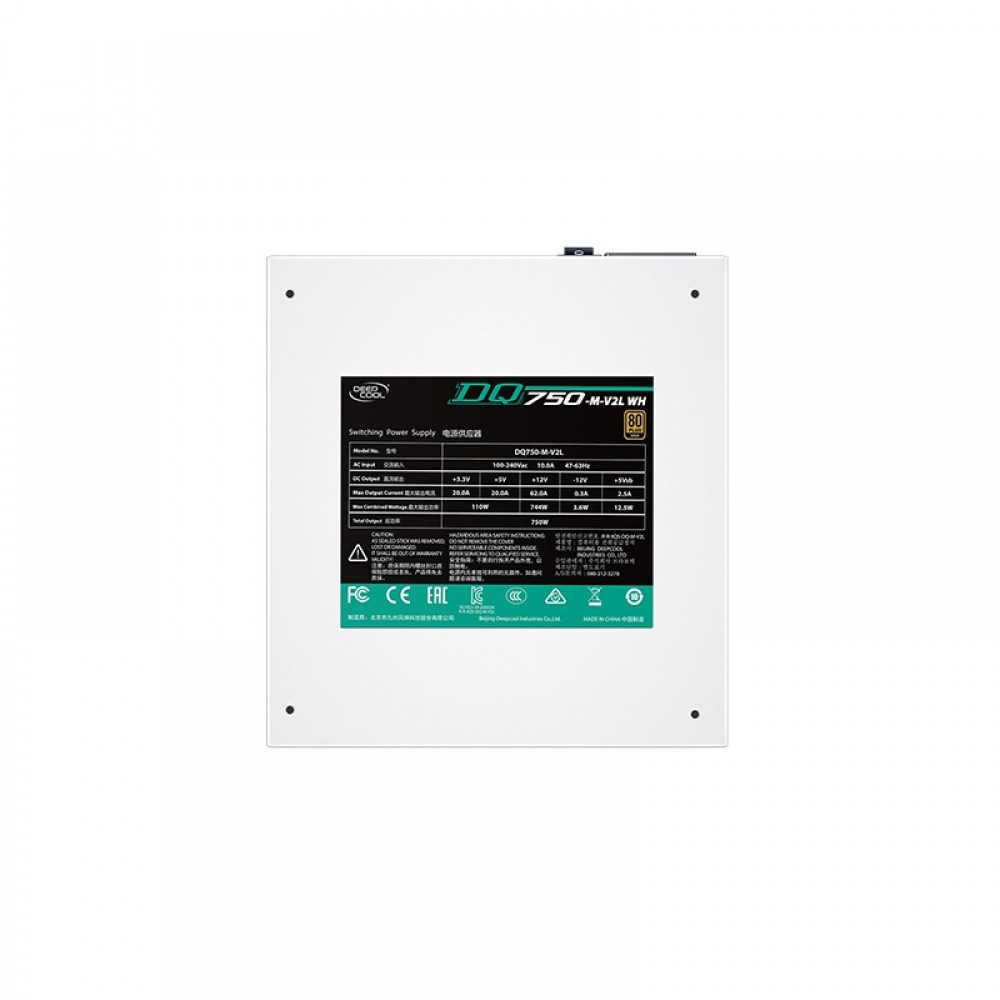

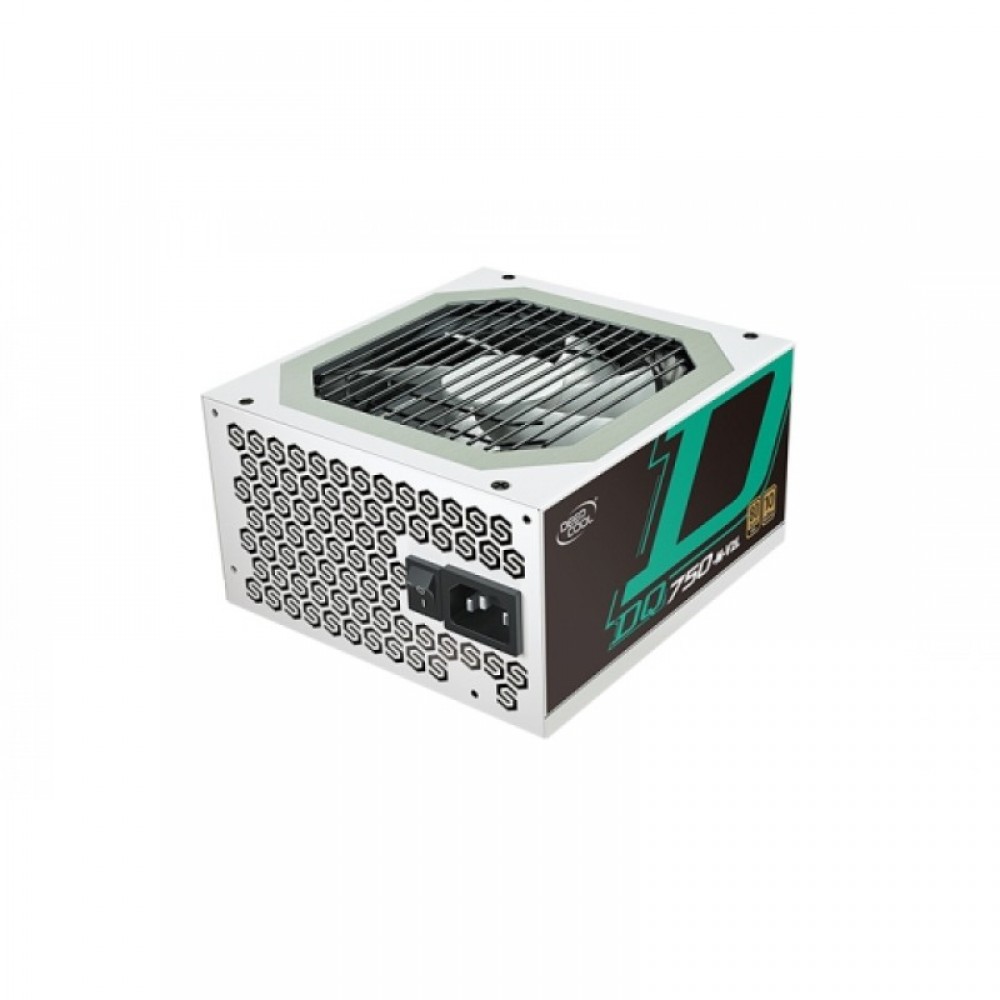

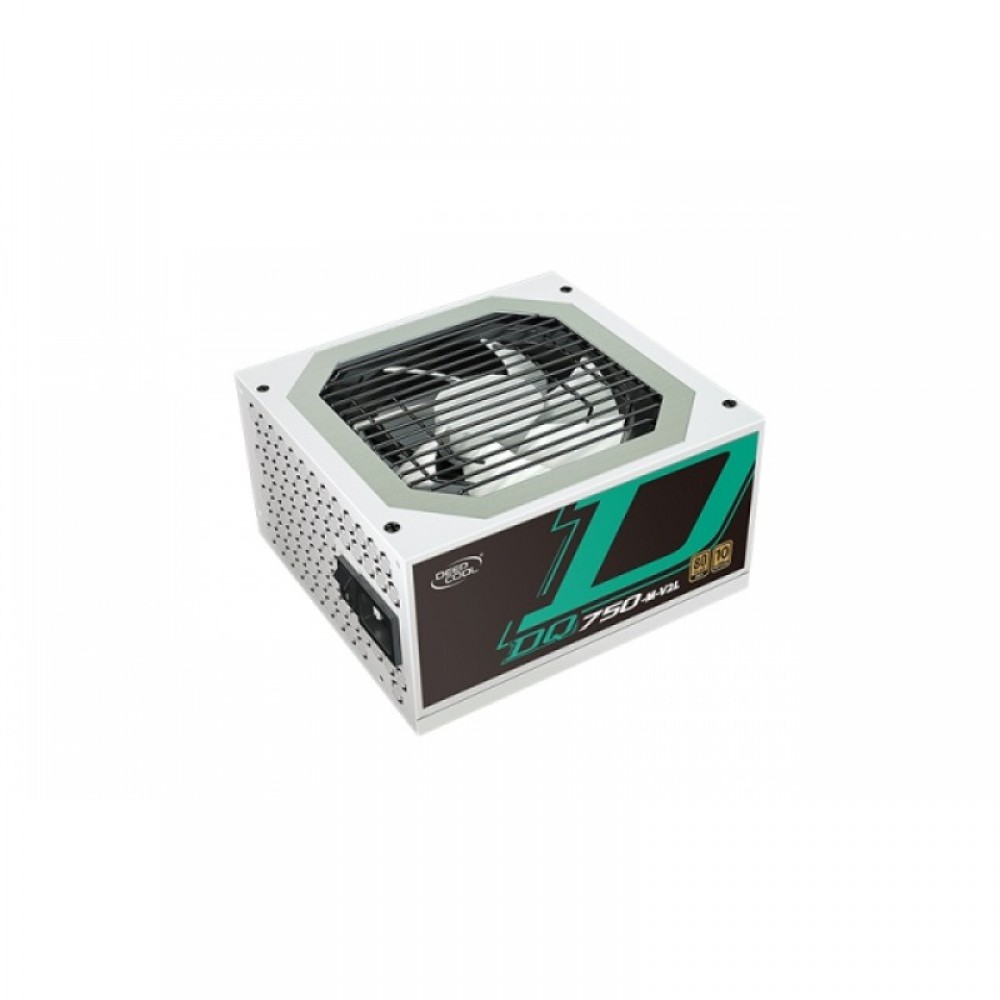

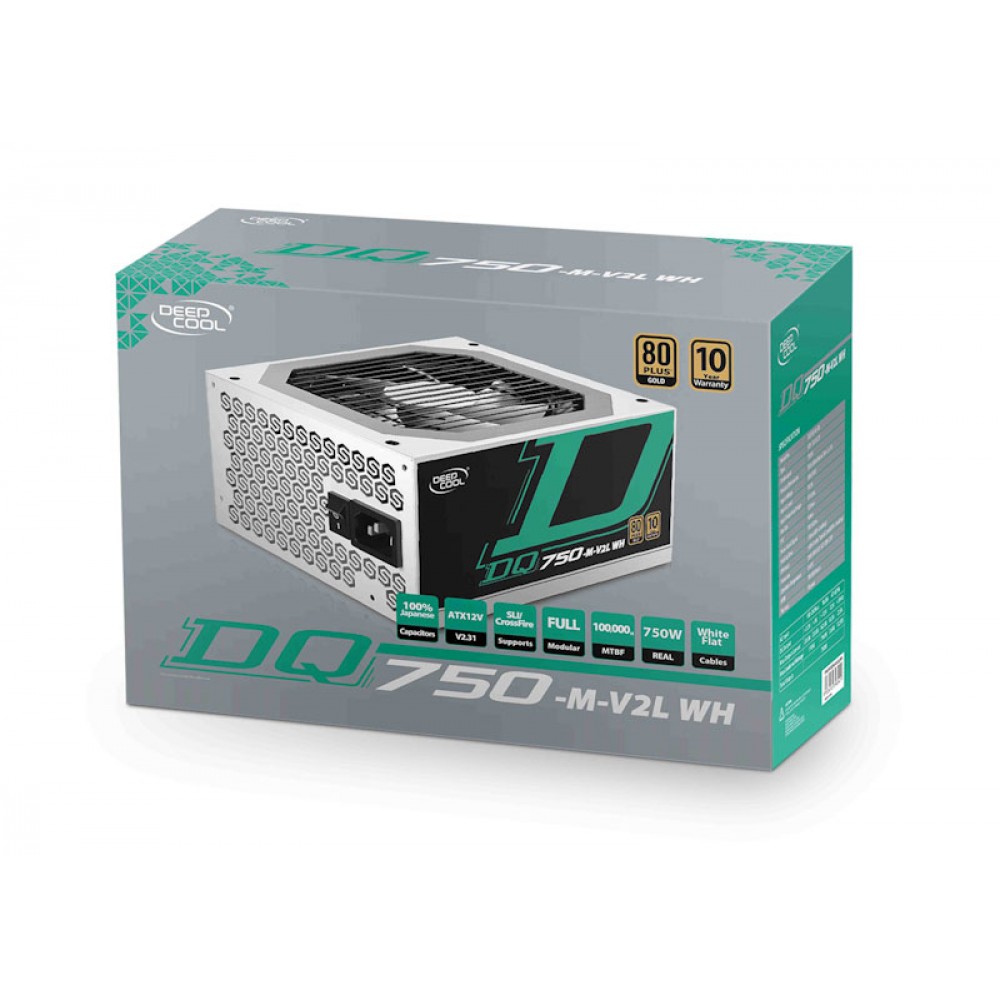

DEEPCOOL DQ750M V2L WHITE POWER SUPPLY (DP-DQ750-M-V2L WH)

The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.



FEATURES :
  • 80 PLUS® GOLD certified – Up to 91.2% efficiency
  • 100% High quality Japanese capacitors
  • Full bridge PFC + LLC Resonant converter
  • Fully modular with flat cable design
  • CircuitShield™ — OVP / UVP / SCP / OPP / OTP



Specification
Model DQ750-M-V2L WH
Type ATX 12V V2.31
Certifications 80PLUS GOLD
Dimension 150 × 160 × 86mm
Output Capacity 750W
Input Voltage 100-240V
Input Current 10.0A
Input Frequency Range 47 – 63Hz
Fan Size 120mm
PFC Active
Power Good Signal 100 – 500ms
Hold Up Time >16ms (80%  Loading)
Efficiency >90% Under Typical Load (50%  Loading)
Standby Efficiency ErP Lot 3 2014
Protection OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature 0 – 40°C
Regulatory CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF 100,000 Hours
Warranty 10 Years
Note Price, feature and specifications are subject to change without notice.
