Cooler Master Mwe Gold 1250 V2 Fully Modular Atx 3.0 Power Supply With PCI-E 5.0 12VHPWR Connector (MPE-C501-AFCAG-3IN)

Model No : MPE-C501-AFCAG-3IN


Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

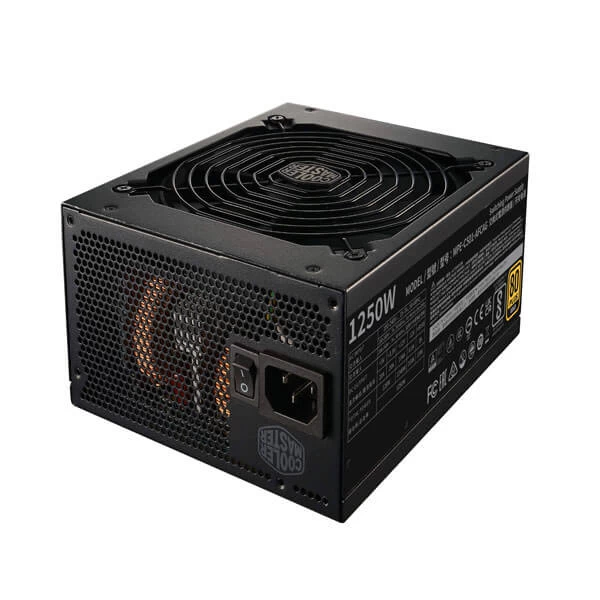

Cooler Master Mwe Gold 1250 V2 Fully Modular Atx 3.0 Power Supply With PCI-E 5.0 12VHPWR Connector (MPE-C501-AFCAG-3IN)

Overview :

MWE Gold 1050/1250 -V2 brings optimal performance for a classic configuration. The MWE Gold 1050/1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.

Highly Efficient Performance : The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.

140mm FDB Fan : MWE Gold 1250 – V2 has delivered to a premium high air flow and long life bearing fan, offering more effective cooling performance.

Fully support ATX3.0 : 12VHPWR connector with a compact 12+4 pin cable can pump up to 600W of power to a GPU via a single cable.

100% Japanese Capacitors : Implementing the highest quality of Japanese capacitors to increase efficiency and reduce ripple noise.

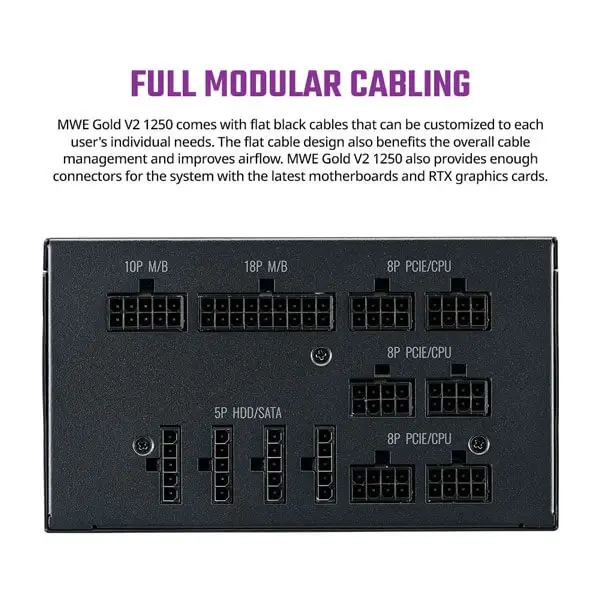

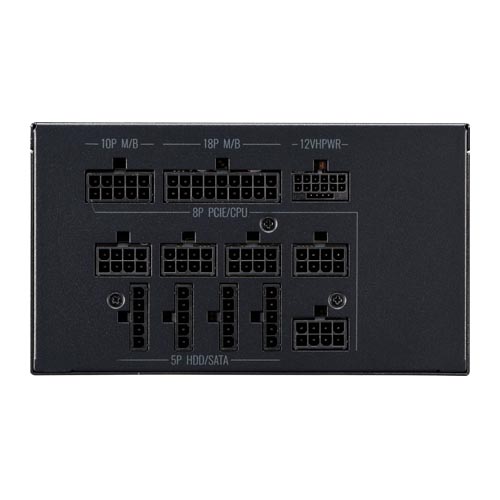

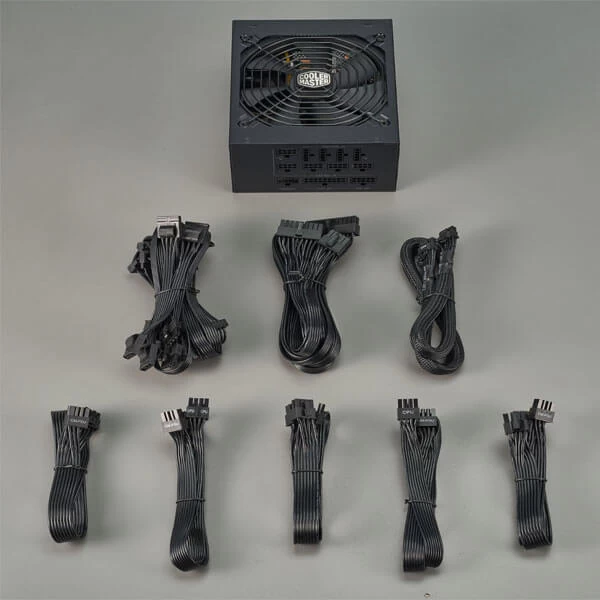

Fully Modular Cabling : MWE Gold – V2 comes with fully modular flat, black cables for increased airflow.

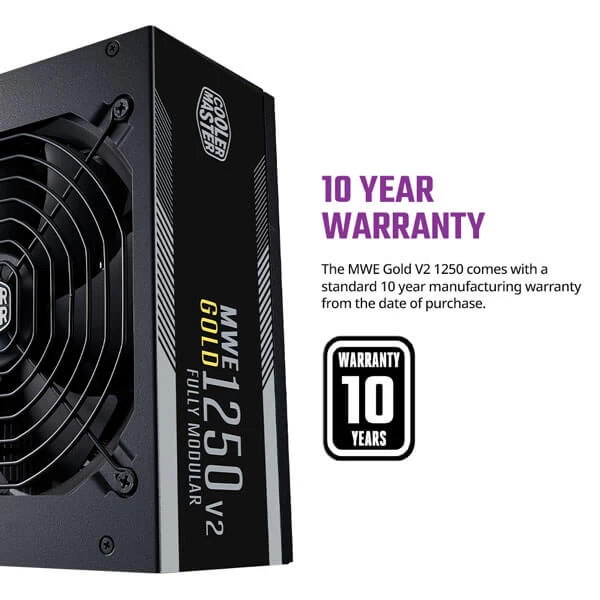

10 Year Warranty : MWE Gold 1250 – V2 model comes with a 10 year factory warranty from purchase date.

Specification :

Product Name MWE Gold 1250 – V2 (Fully Modular) ATX3.0
Item Code MPE-C501-AFCAG-3IN
ATX Version ATX Rev. 3.0
PFC Active PFC
Input Voltage 100 – 240V
Input Current 15 – 7A
Input Frequency 50 – 60Hz
Dimensions (L x W x H) 180 x 150 x 86mm
Fan Size 140mm
Fan Bearing FDB
Efficiency ≥ 90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes

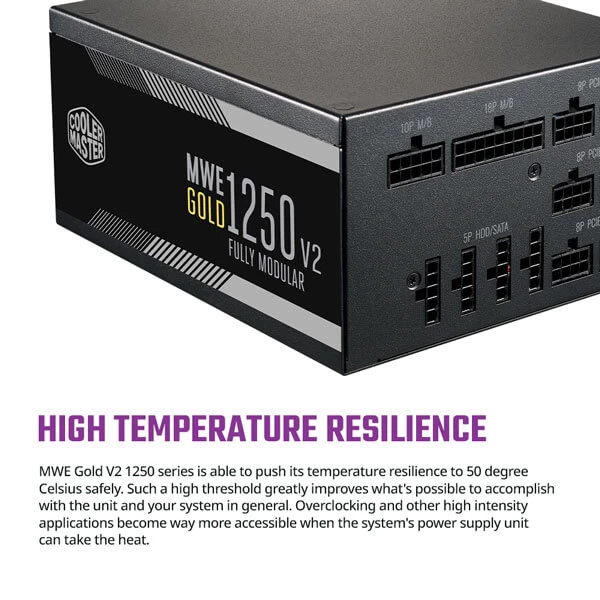

Operating Temperature 0 – 50°C
Power Good Signal 100 – 150 ms
Hold Up Time ≥ 16ms at 100% Load
MTBF >100,000 hours
Protections OVP / OPP / SCP / OCP / UVP / OTP /
Inrush Protection
ATX 24 Pin x1 = 1x (650mm)
EPS 4+4 Pin x1 = 1x (650mm)
EPS 8 Pin x1 = 1x (650mm)
SATA x12 = 3x (500+120+120+120mm)
Peripheral 4 Pin x4 = 1x (500+120+120+120mm)
PCI-e 6+2 Pin x3 = 3x (550mm)
12VHPWR x1 = 1x (650mm)
Warranty 10 Years
Note** **Prices, Specifications & Features are subject to change without notice.
