Description

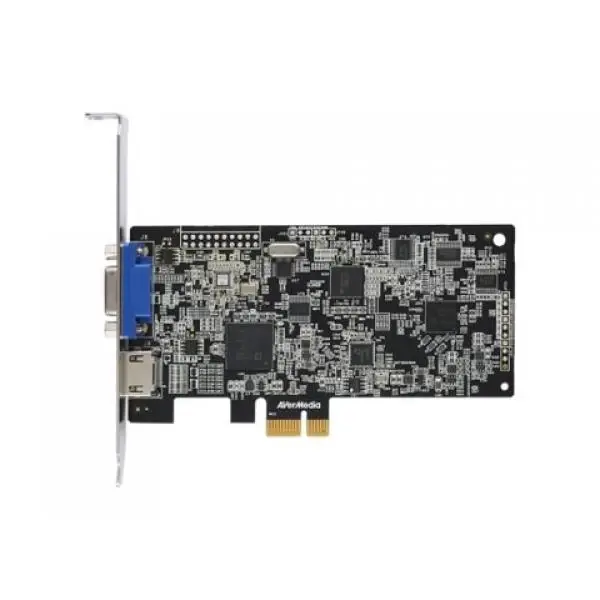

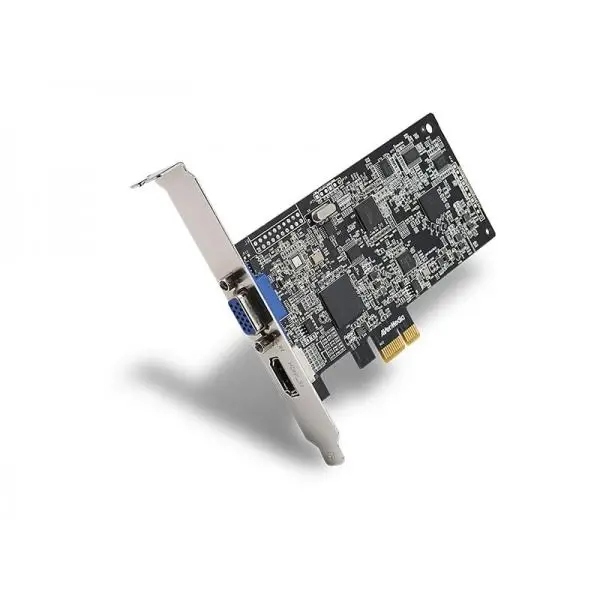

AVerMedia DarkCrystal Hd Capture Card
The AVerMedia DarkCrystal HD Capture CD311 with Gen 2 x1 interface is the leading HD PCI-e capture card on the market. Its astonishingly low latency renders video capture effortless and seamless with HDMI and VGA inputs of up to 1080p60. Various recording formats – including AVI, WMV, MPG and MP4 – allow different encoding parameters to be saved as different profiles and with custom recording time lengths. The entire AVerMedia Capture Studio suite comes included for greater customization and adaptability. The DarkCrystal HD Capture CD311 is AVerMedia’s latest solution for real-time, high-definition video capture.
Extremely low latency means real-time capture
Don’t waste another minute waiting on capture lag or poor video quality. Precise, clear and powerful, the DarkCrystal HD Capture CD311 guarantees real-time results with virtually no latency: content input means instant viewing. Plus, video quality comes at a guaranteed 1080p 60fps.
Specification
Host Interface | PCIe Gen2 x1 |
Audio Interface | HDMI (1.3/ HDCP 1.3) |
Audio Format | PCM |
Audio Sampling Rate | Audio L/R: 48KHz, 16bit |
HDMI: 32KHz/44.1KHz/48KHz, 16bit | |
Connector Type | HDMI |
VGA | |
Input Interface | HDMI |
VGA | |
Preview Video Format | YUY2 (4:2:2) |
Record Video Format | AVI: YUY2 (4:2:2) MP4, WMV: YUY2 (4:2:0) |
Color Depth | 8 bit |
Channel No. | 1 Ch |
Max. Input Resolution | 1920 x 1080 60fps |
Max. Recording Resolution | 1920 x 1080 60fps |
Encoding Mode | Software encoding |
Multi-Card Support | No |
Multi-Channel Support | No |
Supported OS | Windows 7/8.1/10 (32/64 bits)* |
Form factor | PCIe Gen2 x1 |
Dimensions (L x W) | 124.8 x 68.78mm |
Power requirements | +3.3V max @ 3A |
+12V max @ 0.5A | |
Operating Temperature | 0°C ~ 65°C |
Operating Humidity | 0 ~ 80% Relative humidity |
Warranty | 1 Year |
Note | ***Features, Price and Specifications are subject to change without notice. |
