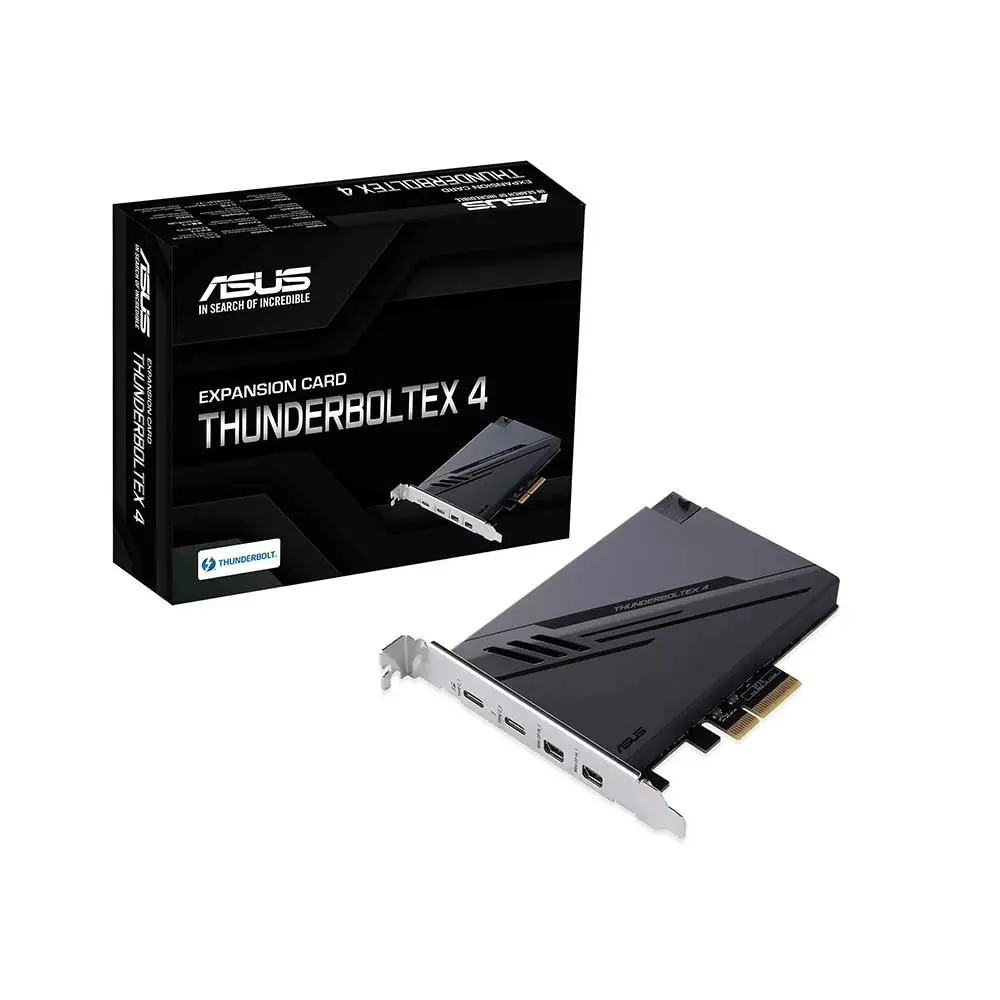

Asus ThunderboltEX 4 Expansion Card Dual Thunderbolt 4
Asus ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
- Intel®-certified Thunderbolt™ 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort™ 1.4 for 8K Ultra HD support
Intel® Thunderbolt™ 4 JHL8540 ControllerExternal Connectors

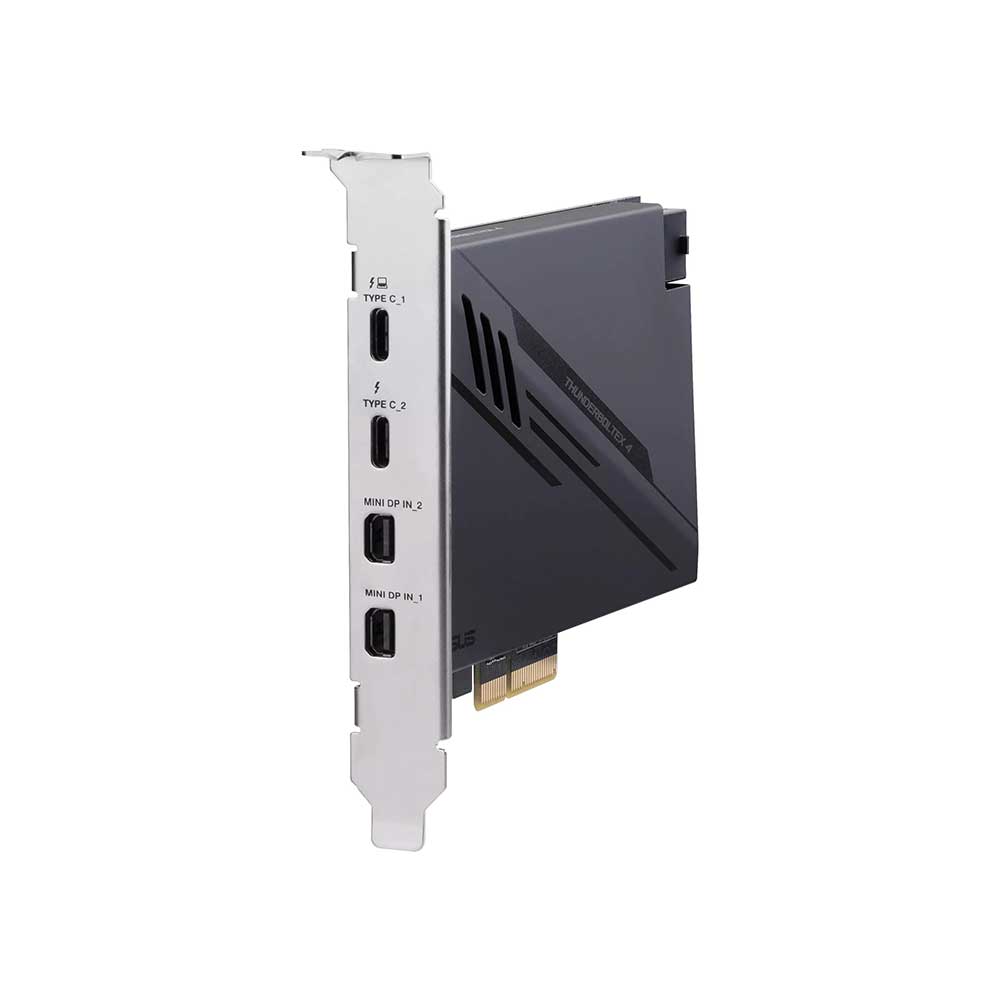

2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology)
– up to 40Gbps for Thunderbolt devices
– The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.
2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header
|Dimensions||4.6 inch x 7.1 inch (11.77 cm*18.05 cm)|
|Note**||**Prices, Specifications & Features are subject to change without notice|
