ASUS ROG STRIX RTX 3080 WHITE OC 10GB GRAPHICS CARD
This limited edition of the ROG Strix GeForce RTX™ 3080 features a completely white colorway on top of all the generational improvements to the ROG Strix series. Now’s your chance to build a high-end white-themed gaming rig with the latest in graphics technology.

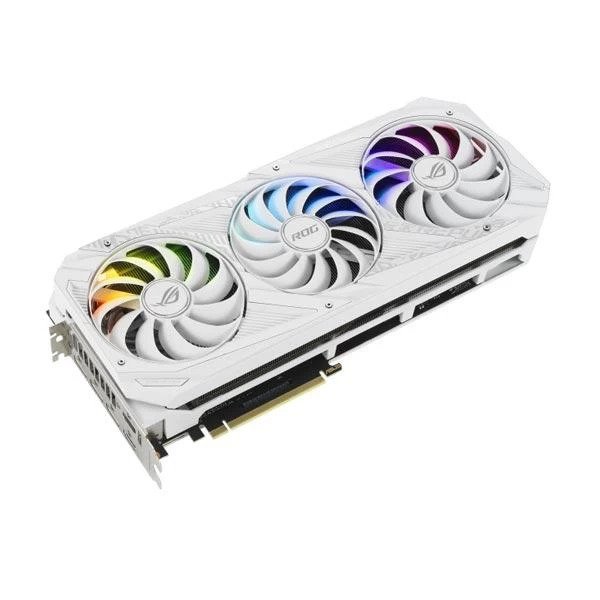

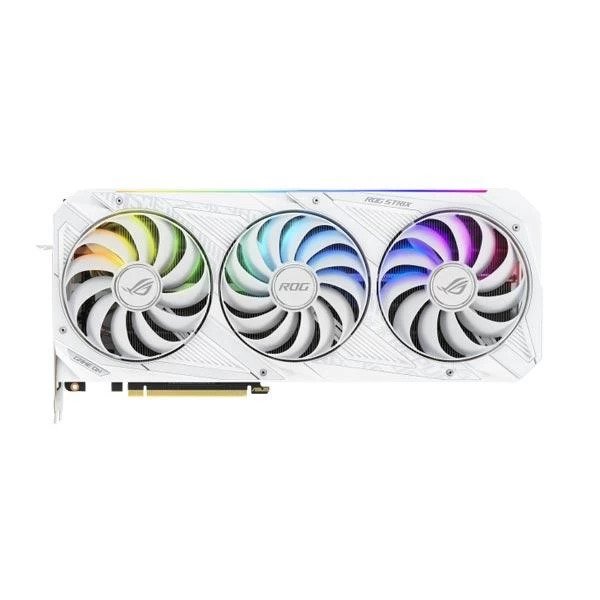

Our Axial-tech fan design is optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count is increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans is slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.
To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. The fans also shut off completely when card power consumption is low and the GPU temperature falls beneath 50 Celsius, keeping noise levels down when the system is idling or under a light load
To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.
IT’S COOLER OUT BACK

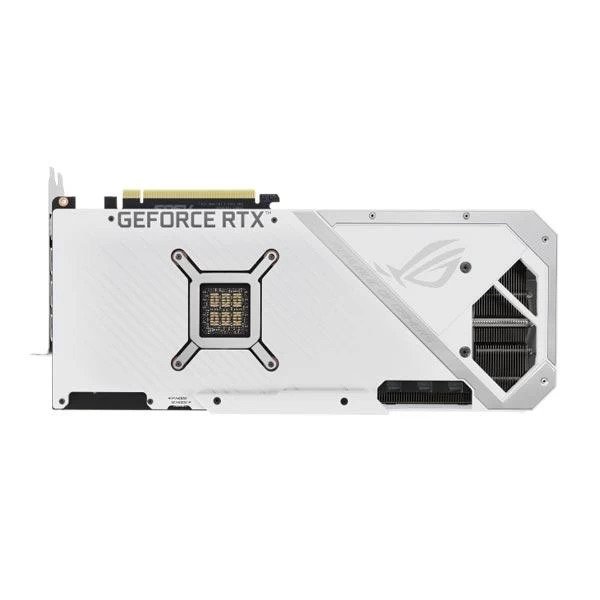

Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU’s circulating cooler design. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customization of the card’s default behavior without software.

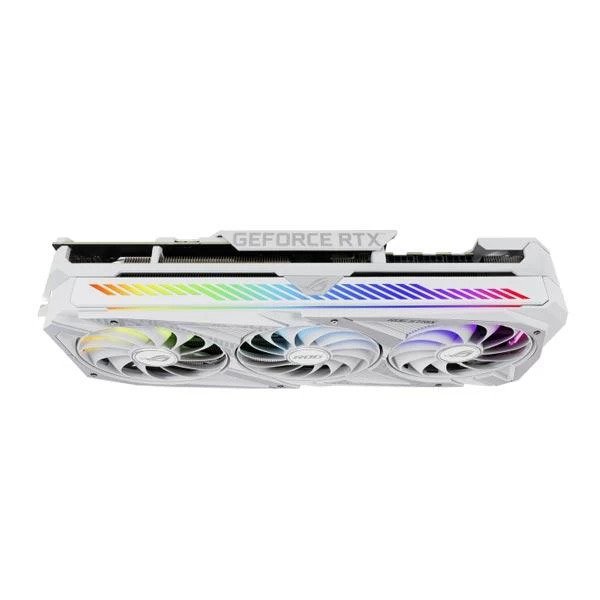

Careful attention has been paid to the front of the GPU, as it’s the most visible part of the card in typical configurations. An addressable RGB element can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the GeForce RTX 3080, three 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix’s reinforced metal frame is also visible here, adding a literal layer of durability.
GPU TWEAK II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
|GPU Base Clock||Boost Clock (OC-Mode) : 1935 MHzBoost Clock (Gaming-Mode) : 1905 MHz|
|Memory Clock||19 Gbps|
|Memory Size||10 GB|
|Memory Interface||320 Bit|
|Direct X Support||12|
|Ports||HDMI – Yes x 2 (Native HDMI 2.1)DisplayPort- Yes x 3 (Native DisplayPort 1.4a)|
|DUAL-LINK DVI SUPPORTED||N/A|
|Software||ASUS GPU Tweak II and Driver|
|Package Contents||Graphics Card, User Manual|
|GPU Core (Cuda Core)||8704|
|Power Connectors||3 x 8 Pin|
|Note**||***Features, Price and Specifications are subject to change without notice.|
