No Payment Gateway Charges

20,900.00

SKU: ROG STRIX B550-F GAMING (WI-FI) Categories: ,

Description

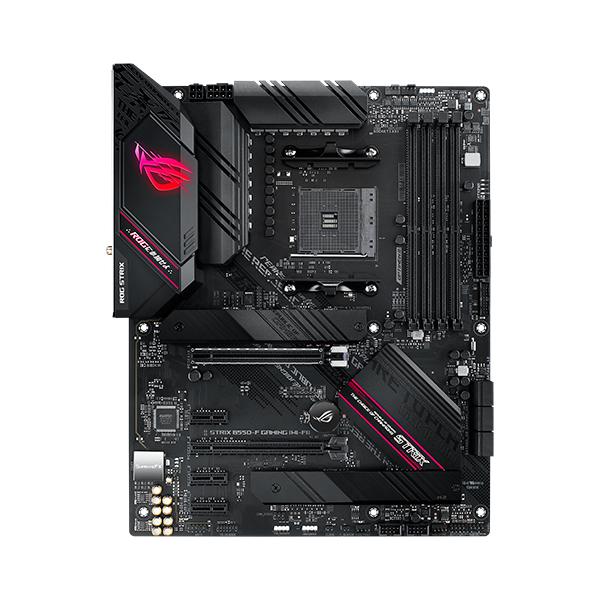

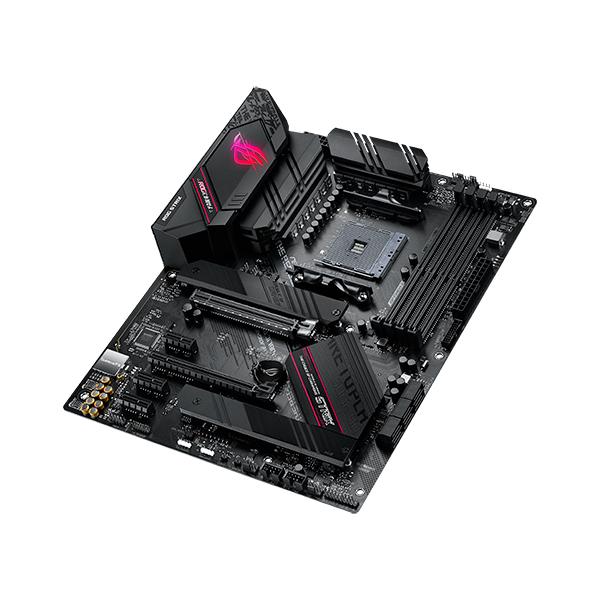

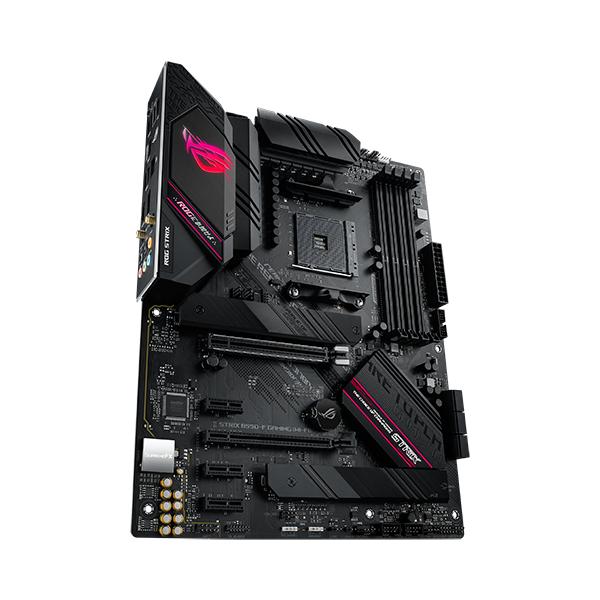

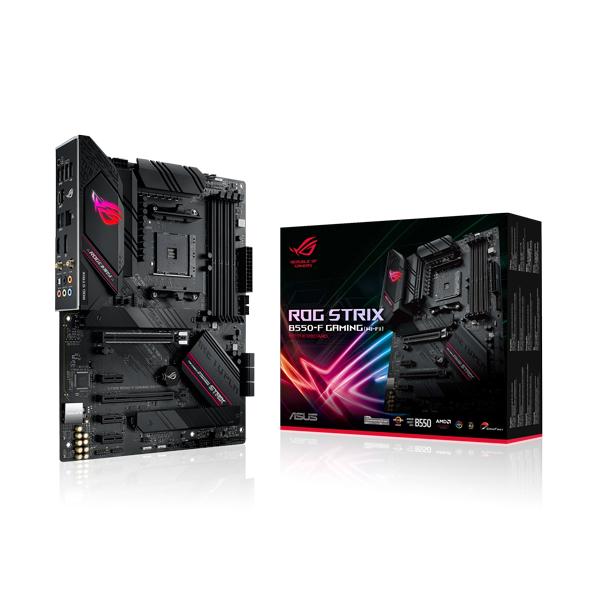

ASUS ROG STRIX B550-F Gaming (Wi-Fi) Motherboard(90MB14F0-M0IAY0)

Features

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming (Wi-Fi) gives you a head start on your dream build.

Advance Your Gaming Immersion

ROG Strix B550-F Gaming (Wi-Fi) is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

All-round Performance

ROG Strix B550-F Gaming (Wi-Fi) provides robust power delivery to fuel Ryzen’s cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.

Play Your Own Style

The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming (Wi-Fi) are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

ROG Gives You More

ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.

Specifications

CPU AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset AMD B550
Memory 3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.
Graphic Integrated Graphics Processor
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network Intel® Wi-Fi 6 AX200
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback *
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF in port(s) at back panel
– Audio Shielding
– Premium Japanese audio capacitors
– Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
– AI Noise Cancelling Microphone
AI Suite 3:
– PPSU
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features Aura Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashBack™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-ProCool
-Pre-mounted I/O shield
– SafeSlot

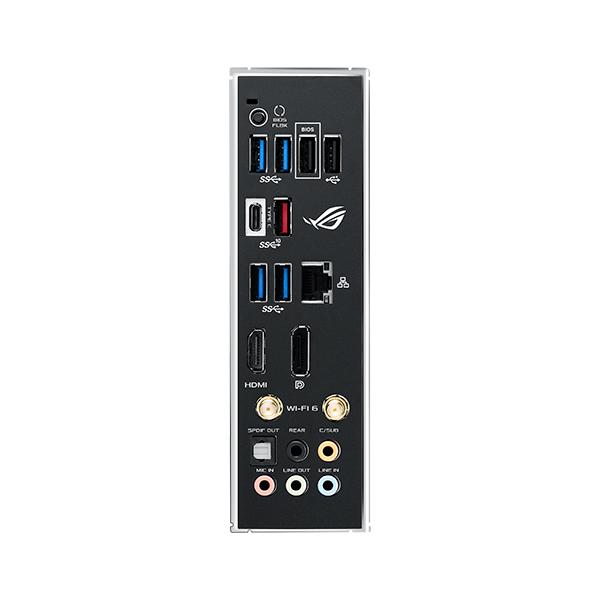

Back I/O Ports 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack Button(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years
Note * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
* When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.***Features, Price and Specifications are subject to change without notice.
