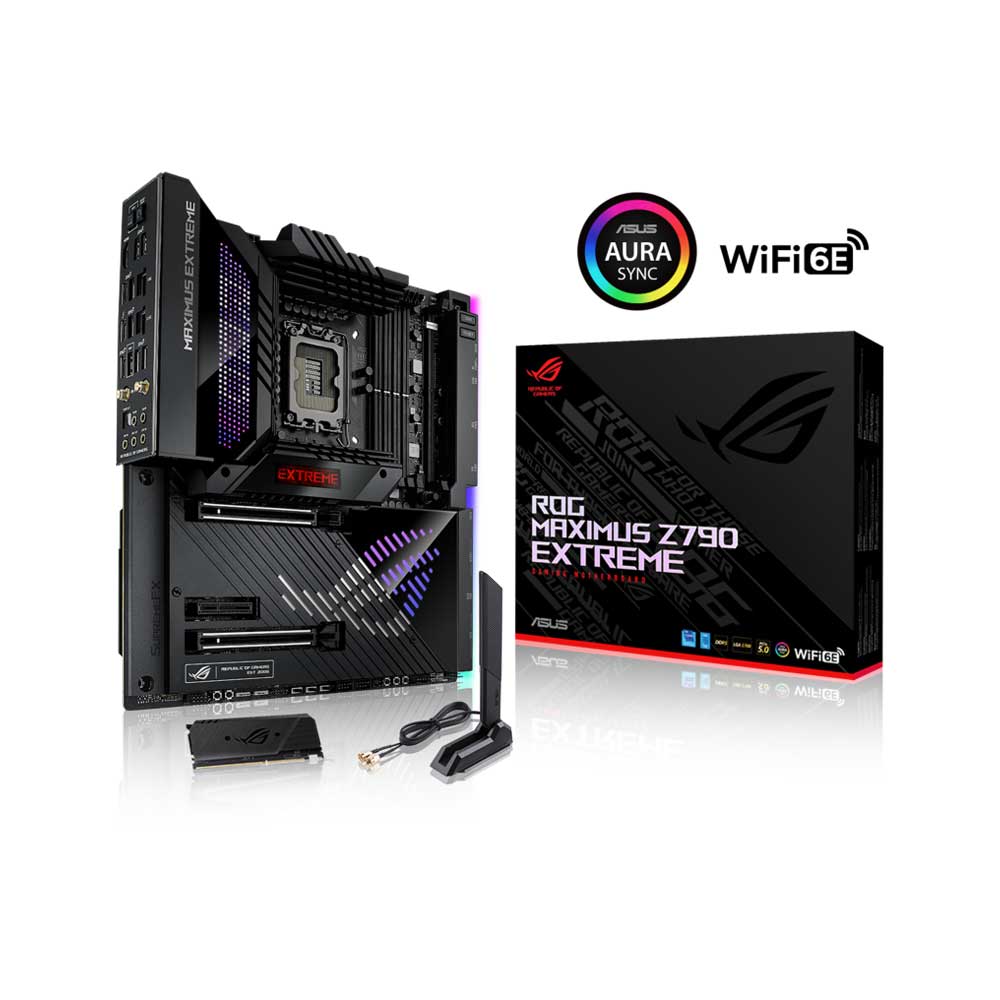

Asus Rog Maximus Z790 Extreme LGA1700 EATX Motherboard (ROG-MAXIMUS-Z790-EXTREME)

95,900.00

Inclusive of all taxes

Model No : ROG-MAXIMUS-Z790-EXTREME
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Asus Rog Maximus Z790 Extreme LGA1700 EATX Motherboard (ROG-MAXIMUS-Z790-EXTREME)

Intel® Z790 LGA 1700 EATX motherboard with 24 + 1 power stages, DDR5, five M.2 slots, on-board PCIe® 5.0 NVMe® SSD slot, two PCIe 5.0 x16 SafeSlots, Wi-Fi 6E, Thunderbolt 4 port and front-panel connector, USB 3.2 Gen 2×2 Type-C® port and front-panel connector with Quick Charge 4+ up to 60W, PCIe Slot Q-Release, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting

  • Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core processors & 12th Gen Intel Core, Pentium® Gold and Celeron® Processors
  • Dominant Power Solution: 24 + 1 teamed power stages rated for 105A with dual ProCool II power connectors, high-quality alloy chokes, and premium metallic capacitors to support multi-core processors

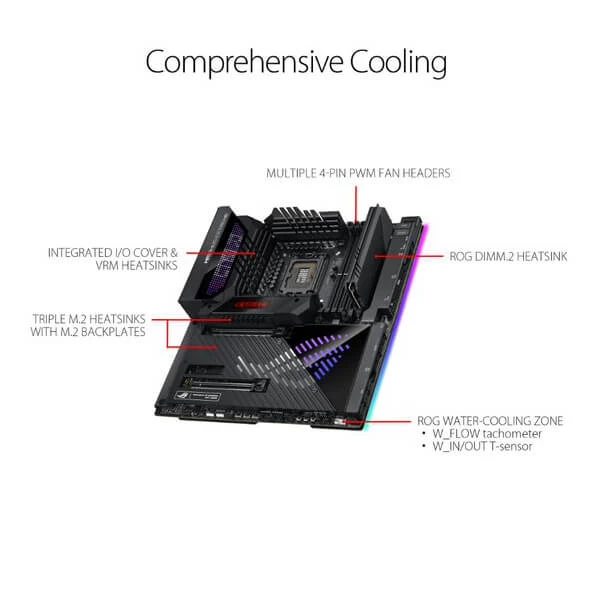

  • Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
  • Next-Gen M.2 Support: On-board PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots all with front and back heatsinks, and two additional PCIe 4.0 M.2 slots on the ROG DIMM.2
  • Abundant Connectivity: Thunderbolt 4 USB Type-C® port and front-panel connector, USB 3.2 Gen 2×2 Type-C® port and front-panel connector with Quick Charge 4+ up to 60W, eight additional USB 3.2 Gen 2 ports, two PCIe 5.0 x16 SafeSlots, HDMI® 2.1
  • High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax), Marvell® AQtion 10Gb, Intel 2.5 Gb Ethernet, and ASUS LANGuard
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9218 Quad DAC for up to 32-Bit/384 kHz playback

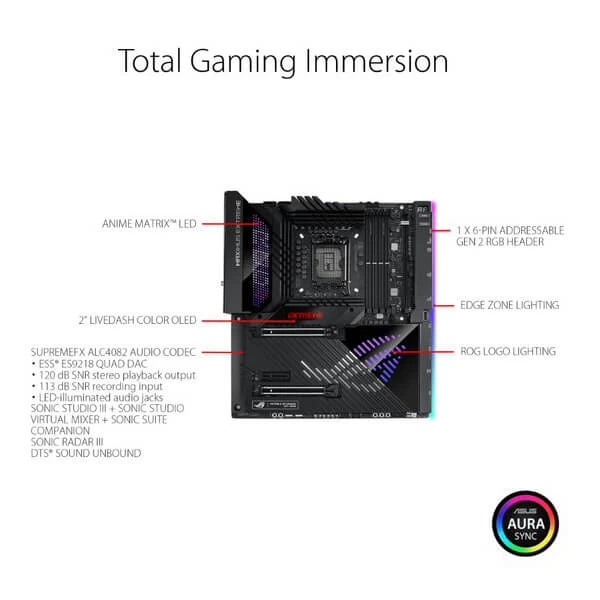

  • Unmatched Personalization: AniMe Matrix LED display, 2” LiveDash Color OLED, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
  • DIY Friendly Design: ROG Water Cooling Zone, PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, and Clear CMOS button
  • Renowned Software: Bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z790 Chipset
Memory 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics 1 x HDMI® port*
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs**
*Supports [email protected] as specified in HDMI 2.1.
** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slot Intel® 13th & 12th Gen Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
Intel® Z790 Chipset**
1 x PCIe 4.0×4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 5.0 x4 mode)**
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
*** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
Ethernet 1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Supports Intel® Double Connect Technology
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB Rear USB (Total 10 ports)
1 x Thunderbolt™ 4 ports (1 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
Front USB (Total 10 ports)
1 x Thunderbolt™ 4 connector (supports USB Type-C®)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9218 QUAD DAC
– LED-illuminated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

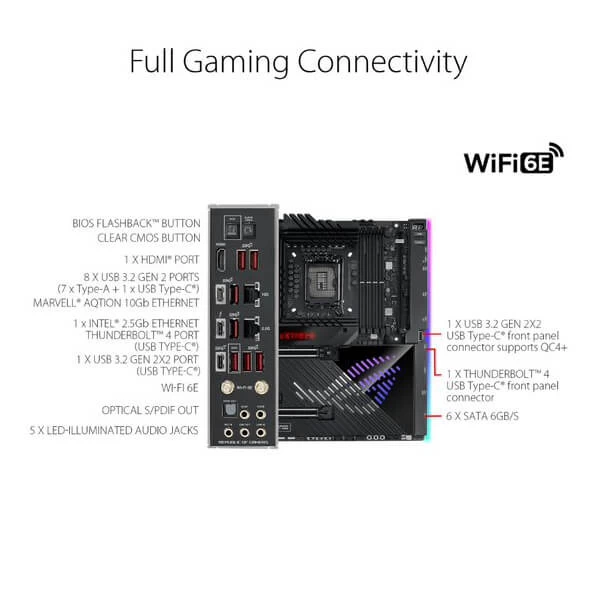

Back Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
5 x LED-illuminated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
1 x Addressable Gen 2 header
1 x Aura RGB header
2 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features Extreme OC Kit
– FlexKey button
– LN2 Mode
– ProbeIt
– ReTry button
– Safe boot button
– Start button
– Slow Mode
Extreme Engine Digi+
– 10K Black Metallic Capacitors
– MicroFine Alloy Choke
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Code
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– Metal backplate
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– ROG Aura Sync backplate
– Aura RGB header
– Addressable Gen 2 headers
Dual BIOS
2″ LiveDash Color OLED
Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Support: up to 60W charging*
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W will be supported.
Software Features ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– ROG True Voltician
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– AniMe Matrix™
– Two-Way AI Noise Cancellation
– OLED Display
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ Power Control
– Turbo app
– PC Cleaner
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller velcro tape
1 x Fan Controller manual
ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
ROG True Voltician
1 x ROG True Voltician
4 x cables for ROG True Voltician
Additional Cooling Kit
1 x Thermal pad for M.2
1 x DDR5 Fan holder
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x ROG key chain
1 x ROG logo plate sticker
1 x ROG multi-bit screwdriver
1 x ROG stickers
1 x ROG VIP card
1 x Screw package for M.2 SSD
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
