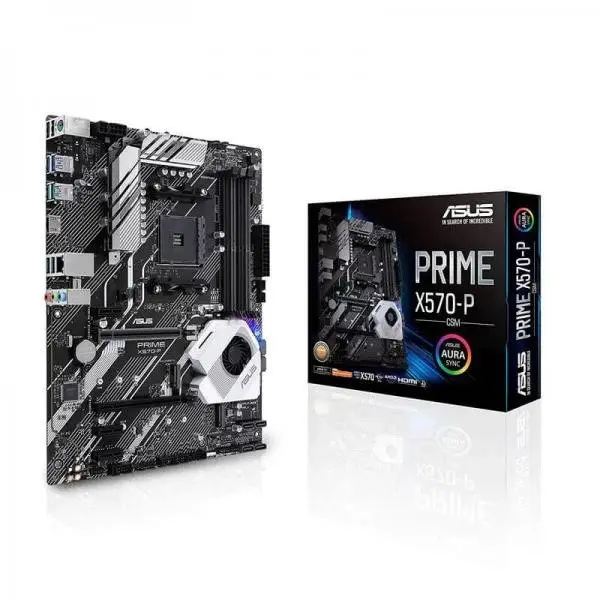

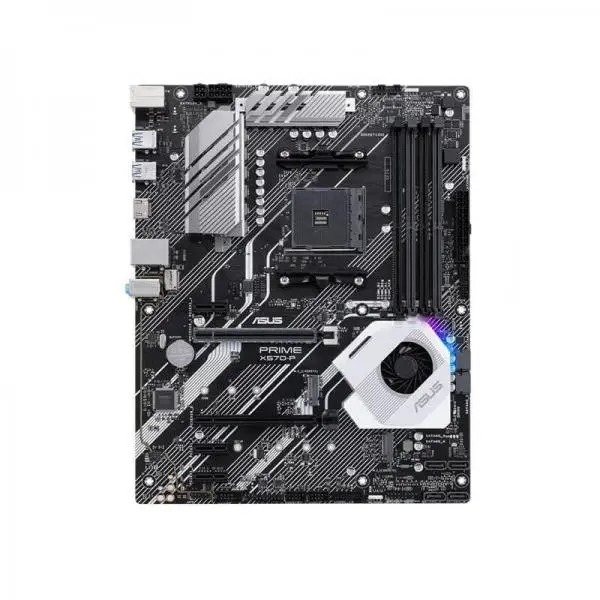

Asus Prime X570-P/Csm Amd Am4 Atx Motherboard (Prime-X570-P-Csm)

Model No : PRIME-X570-P-CSM

20,700.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

ASUS PRIME X570-P/CSM AMD AM4 ATX MOTHERBOARD (PRIME-X570-P-CSM)

FEATURES



AMD AM4 ATX motherboard with PCIe 4.0, 12 DrMOS power stages, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB header

  • AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™ processors
  • ASUS Corporate Stable Model (CSM): A commercial program offers up to 36-month product lifecycle and 6-month EOL notice for product transitions
  • ASUS Control Center Express: A centralized server-grade management software for asset management, software deployment and monitoring and mobile control
  • Enhanced power solution: 8+4 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports
  • Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

PRIME

Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen™ processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

ASUS Control Center Express

One-minute installation

ASUS Control Center Express is centralized server-grade management software that takes just one minute to install and is designed to reduce IT operations costs and improve efficiency. This powerful tool enables IT administrators to manage and control multiple clients in different locations remotely and includes features such as asset management, software deployment and monitoring. It also lets IT staff visualize deployments, facilitating real-time control.

Power delivery enhancements

The 3rd Gen AMD Ryzen™ processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Prime X570-Pro/CSM is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.

ProCool connectors

It augments the motherboard’s link to the PSU with 8+4 pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors.

Media-acclaimed UEFI BIOS

The UEFI BIOS is an early waypoint on any PC-building journey, and Prime X570-Pro/CSM offers one of the best in the business.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

Aura Sync RGB headers

Outshine the competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard’s RGB headers, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Addressable Gen 2 RGB header

Prime X570-Pro/CSM’s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Brighten Up Your Build

LED-illuminated control for PCH

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

SPECIFICATIONS

CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors * Due to CPU limitation, CPU cores supported varies by processors.
Chipset AMD X570
Memory 3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/

3600(O.C.)/3466(O.C.)/3400(O.C.)/

3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/

3200(O.C.)/3000(O.C.)/2933/2800/

2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/

2666/2400/2133 MHz Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

* The maximum memory capacity supported vary depending on the CPU you installed.

Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
VGA output support : HDMI port
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode) 1 year / 2 years
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1
Storage 3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN Realtek® RTL8111H
ASUS LAN Guard
Audio Realtek® S1200A 8-Channel High Definition Audio CODEC *
– Supports : Jack-detection, Front Panel Jack-retasking
– Front panel audio connector (AAFP)
Audio Feature :
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
AMD X570 chipset :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
AMD X570 chipset :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
AMD X570 chipset :
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors
Special Features ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM – Digital power design with Dr. MOS
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
ASUS SafeSlot – Protect your graphics card Investment
ASUS OptiMem:
– Improved DDR4 Stability
ASUS EPU :
– EPU
AURA :
– Aura RGB Strip Headers
– Aura Control
– Addressable Gen 2 Header
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Armoury Crate
ASUS Quiet Thermal Solution :
– Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
– ASUS Fan Xpert 4
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
3 x Audio jack(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors
Internal I/O Ports 2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x PCH_FAN (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WOL by PME, PXE
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
30.5 cm x 24.4 cm (12.0 x 9.6 )
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
