Description

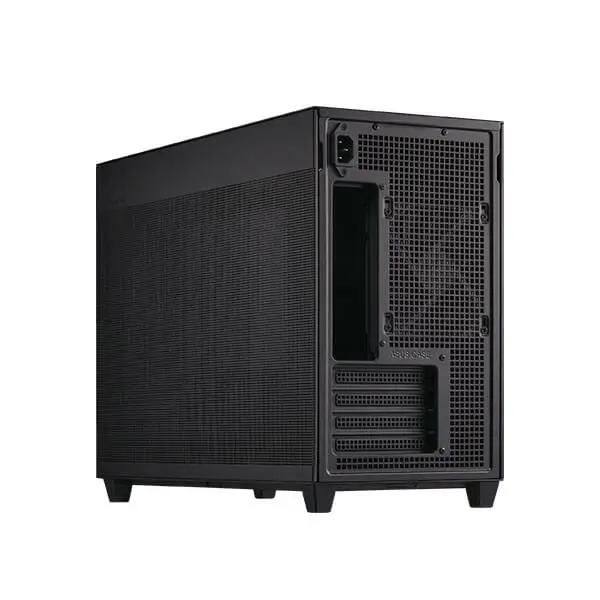

Asus Prime AP201 Micro Atx Mini Tower Cabinet (Black) (PRIME-AP201-BLACK)
Features
The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Specification
Model | AP201-BLACK |
Motherboard Compatibility | Micro-ATX, Mini-ITX |
Color | Black |
Dimension (W*H*D) | 205 x 350 x 460 mm (33L) |
Weight | 7 kg |
Materials | Steel, Plastic/Steel, Plastic |
I/O Ports | 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen 2 (Type-C), 1 x Headphone, 1 x Microphone |
3.5″/2.5″ Drive Bays | 3 |
2.5″ Drive Bays | 1 |
Expansion Slots | 4 |
Vertical VGA | NA |
Maximum GPU Length | 338 mm |
Maximum CPU Cooler Height | 170 mm |
Maximum PSU Length | 140-180 mm |
Radiator Compatibility | Top: 120/140/240/280/360 mm, Rear: 120 mm |
Cooling Support | Top: 2 x 140mm / 3 x 120mm, Rear: 1 x 120 mm, Bottom: 2 x 120 mm |
Pre-installed Fans | Rear: 1 x 120 mm |
Removable Dust Filters | Bottom |
Cable Routing | Max. 32mm |
Warranty | 1 Year |
Note | *** Features, Price, Specifications are subject to change without prior notice. |
