Asrock Z790 Pro RS Lga1700 Atx Motherboard (Z790 PRO RS)
Home>Brand>ASRock>Asrock Z790 Pro RS Lga1700 Atx Motherboard (Z790 PRO RS)

Asrock Z790 Pro RS Lga1700 Atx Motherboard (Z790 PRO RS)

(Inclusive of all taxes)

Model No : Z790 Pro RS
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

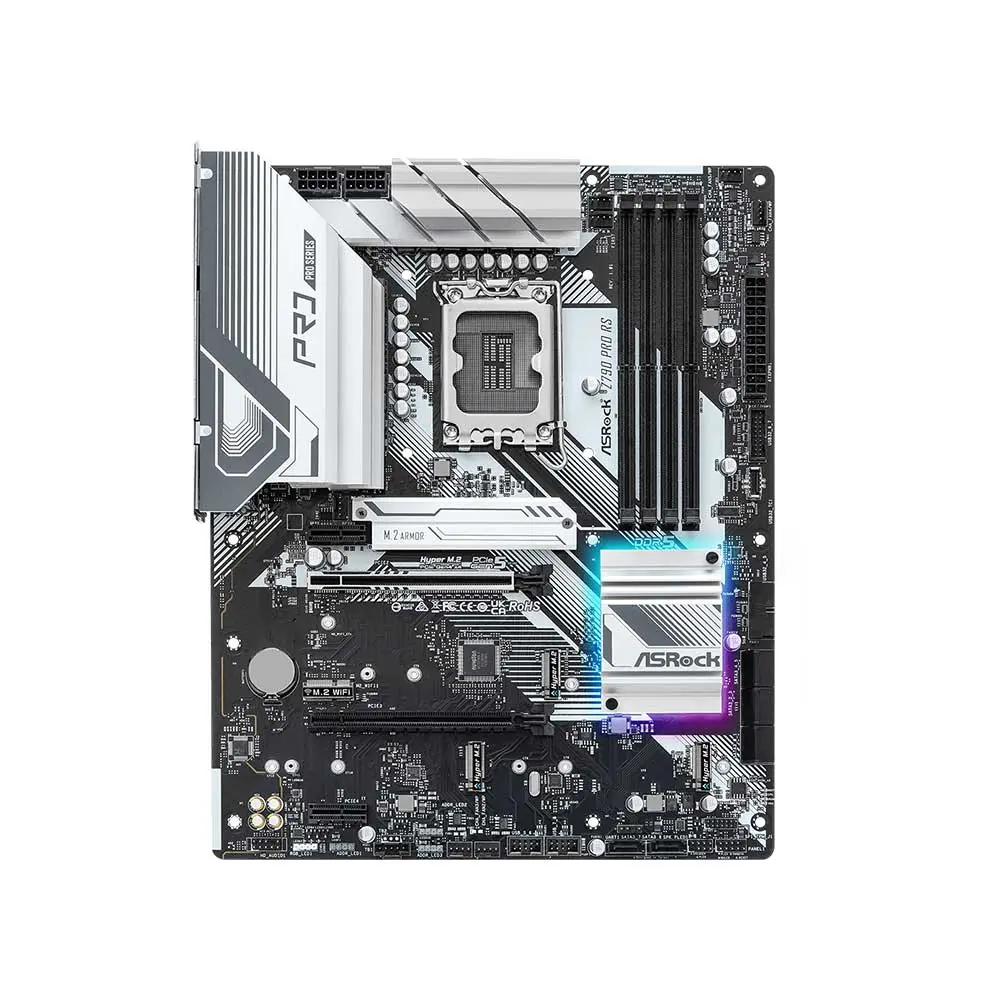

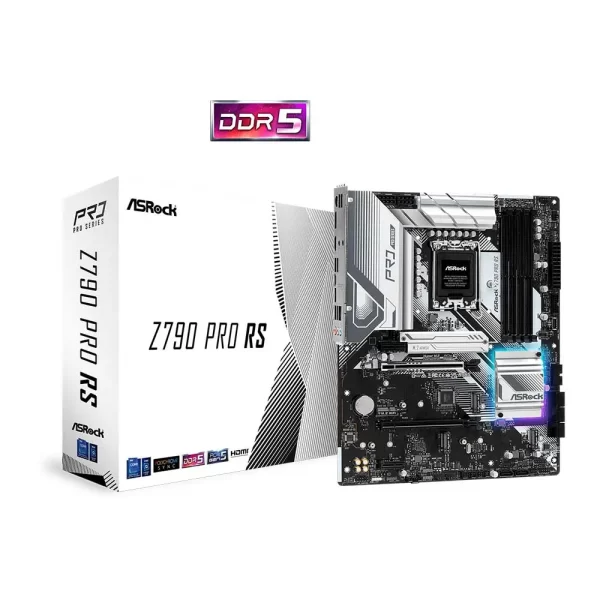

Asrock Z790 Pro RS Lga1700 Atx Motherboard (Z790 PRO RS)

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN
Unique Features Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability
– 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
Ultrafast Connectivity
– 2.5G LAN
EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
Chipset Intel® Z790
Memory – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS – 128Mb AMI UEFI Legal BIOS with GUI support
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
– 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)- Supports AMD CrossFire™
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 8 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB – 1 x USB 3.2 Gen2x2 Type-C (Front)
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
Connector – 1 x eDP Signal Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

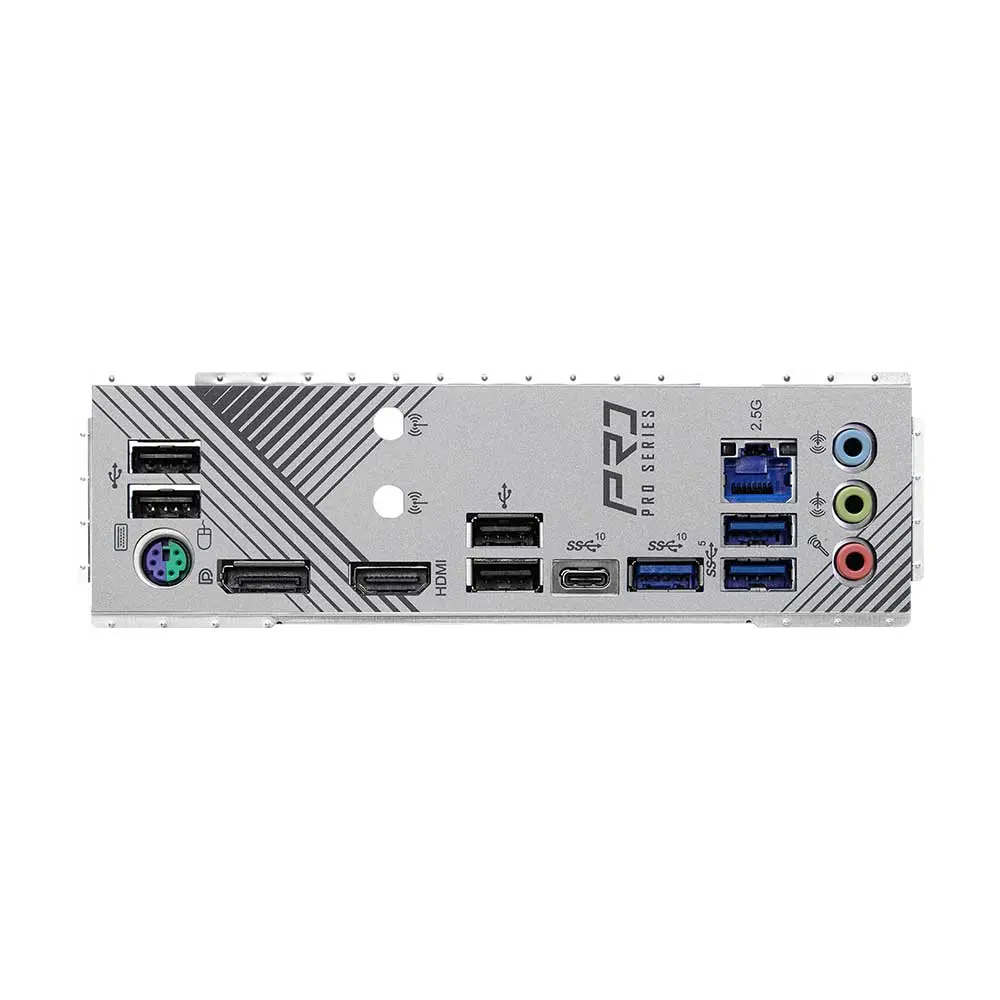

Rear I/O Panel – 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software & UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer
Accessories – 1 x User Manual
– 2 x SATA Data Cables
– 5 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note** **Prices, Specifications & Features are subjet to change without notice
