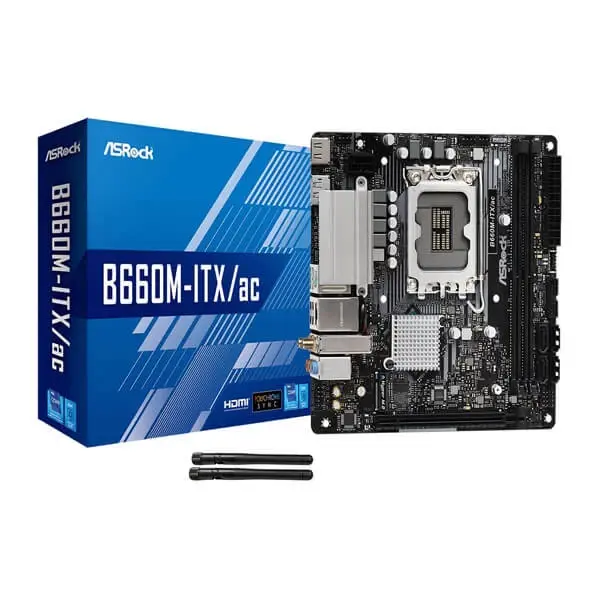

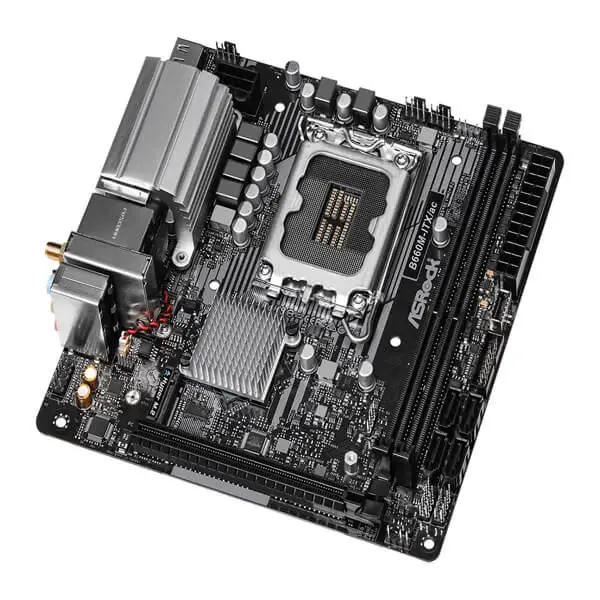

Asrock B660M Itx/Ac Wifi Lga1700 Mini-Itx Motherboard (B660M-ITX-AC)

11,990.00

Inclusive of all taxes

Model No : B660M-ITX-AC
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

Asrock B660M Itx/Ac Wifi Lga1700 Mini-Itx Motherboard (B660M-ITX-AC)

Features:

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 6 Phase Dr.MOS Power Design
  • Supports DDR4 5000MHz (OC)
  • 1 PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C) 4 Rear USB 2.0 (2 Front, 2 Rear)
  • Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + Bluetooth

Specification:

Unique Feature ASRock Super Alloy
– Premium Power Choke
– 50A Dr.MOS
– Sapphire Black PCB
– High Density Glass Fabric PCB
802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
– Digi Power design
– 6 Power Phase design
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset – Intel® B660
Memory – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN – Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
Wireless LAN – 802.11ac WiFi Module
– Supports IEEE 802.11a/b/g/n/ac
– Supports Dual-Band (2.4/5 GHz)
– Supports high speed wireless connections up to 433Mbps
– Supports Bluetooth + High speed class II
Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector – 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin)**
– 1 x Chassis Fan Connector (4-pin)***
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

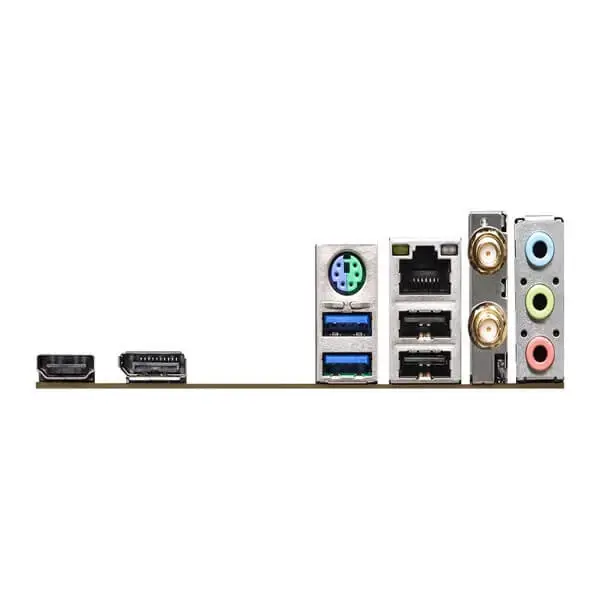

Rear Panel I/O – 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installe
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5 GHz Antennas
– 1 x Screw for M.2 Socket
Hardware Monitor – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH
Form Factor – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
– Solid Capacitor design
OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
