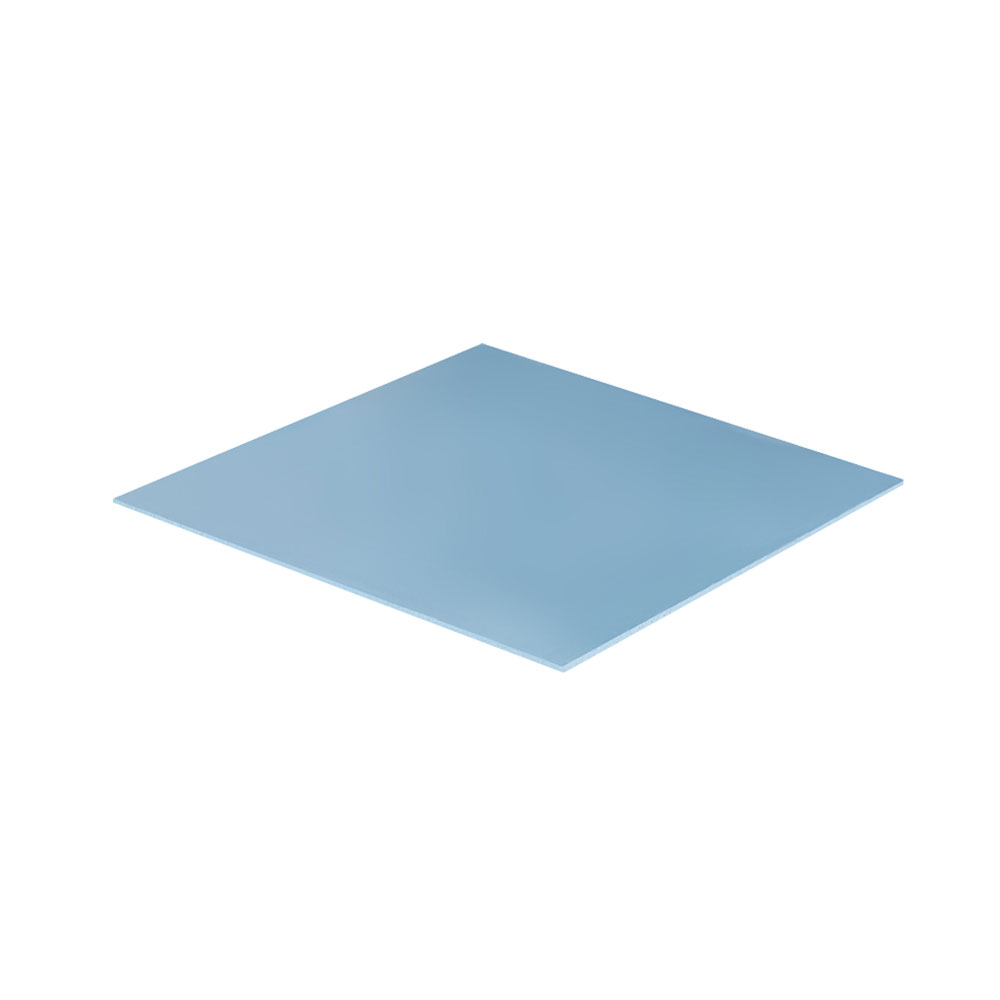

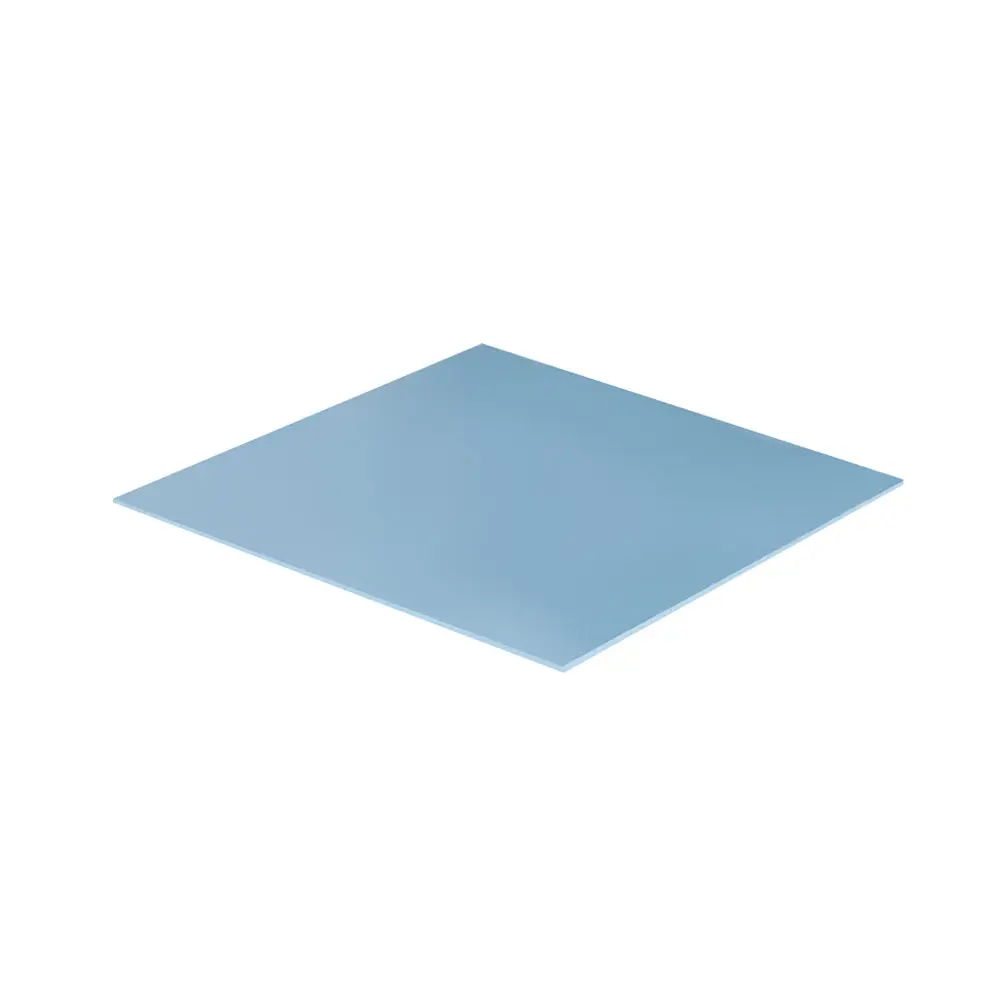

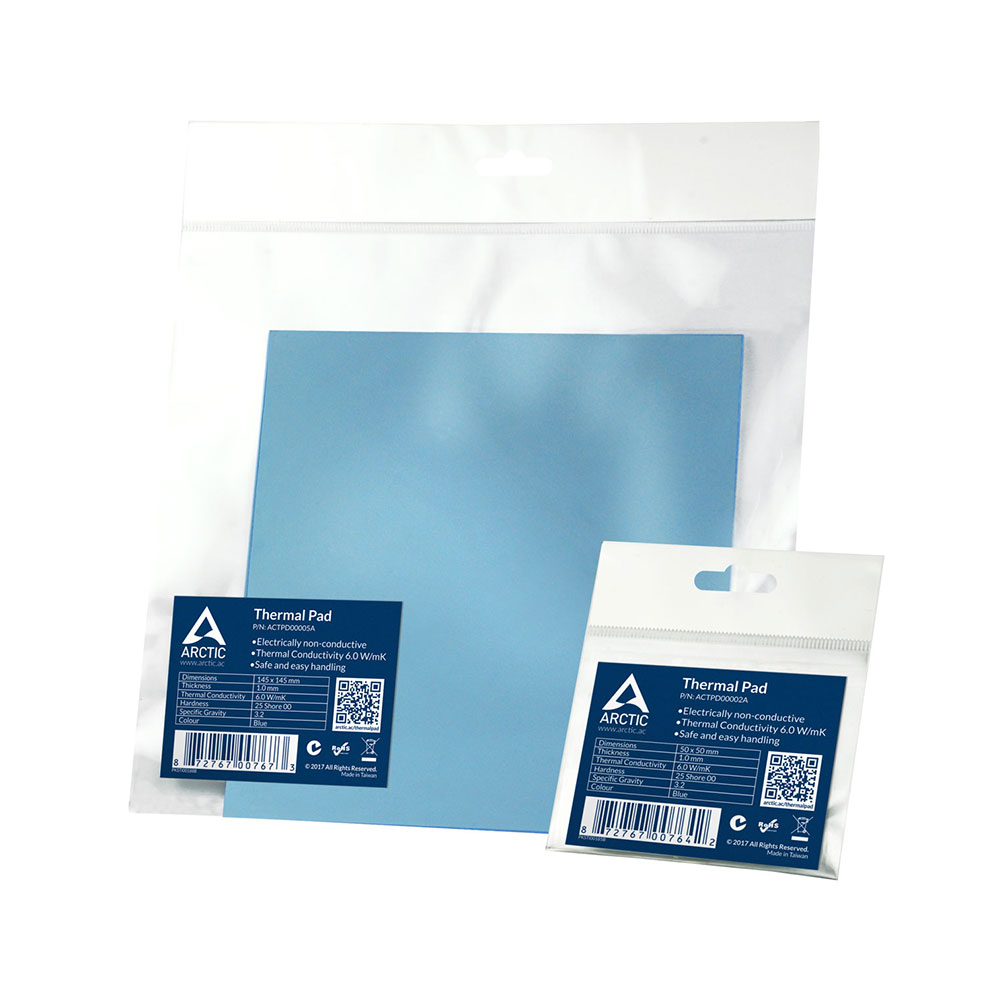

ARCTIC THERMAL PAD APT2560 145x145mm (ACTPD00004A)
EFFICIENT THERMAL CONDUCTIVITY
The thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads.
EXCELLENT PRICE/PERFORMANCE RATIO
In a test conducted by PC Games Hardware (11/2018), the pads‘ “excellent processability and reusability in every respect” were praised. Because of its fair pricing and good performance, our thermal pad was recommended as a “price-performance recommendation”.
BRIDGING THE GAP
Thanks to its low rigidity and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.
EASY INSTALLATION AND SAFE HANDLING
The ARCTIC Thermal Pads are non-adhesive and can therefore be placed precisely.
The pad contains no metal particles, is electrically insulating and not capacitive. This makes handling them safe, since contact with electrical parts does not lead to damage.
AVAILABLE IN DIFFERENT STRENGTHS AND SIZES
Our thermal pads are available in 0.5 mm, 1.0 mm and 1.5 mm. Its slimness makes the 0.5 mm variant an excellent alternative to heat-conducting film. Depending on the thickness of the pads, they are available in different sizes.
|Hardness||50 Shore OO|
|Continuous Use Temperature||-40~200 ℃|
|Specific Gravity||3.2 g/cm³|
|Thermal Conductivity||6.0 W/(m K)|
|Dielectric Constant @1Mhz||13.0264|
|Volume Resistance||1 X 1012 Ω-cm|
|Flammability Rating||UL 94 V-0|
|Note**||**Prices, Features & Specifications are subject to change without notice|
