Adata Xpg Core Reactor 750 Watt 80 Plus Gold Power Supply (CORE-REACTOR-750)

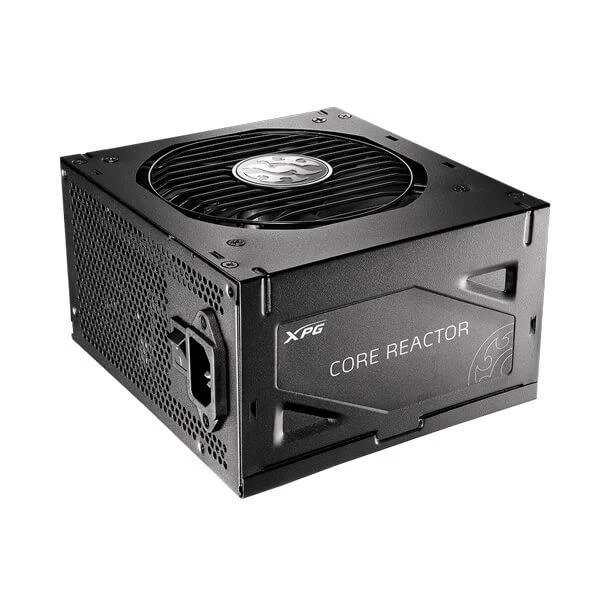

The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
The 80 Plus Gold Certified
The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load.
Cybenetics LAMBA / ETA Certified
The XPG CORE REACTOR modular power supply surpasses Cybenetics LAMBDA-A and ETA-A certification standards to meet the exacting needs of gamers for power transfer efficiency and low-noise operation.

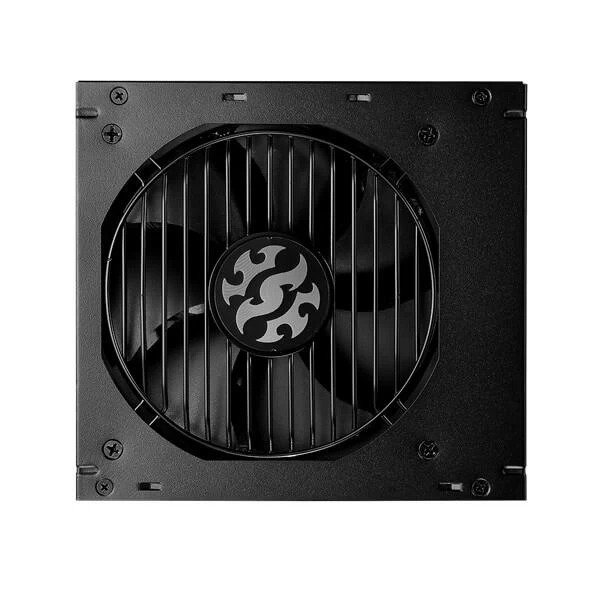

Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.
Compact and Modular

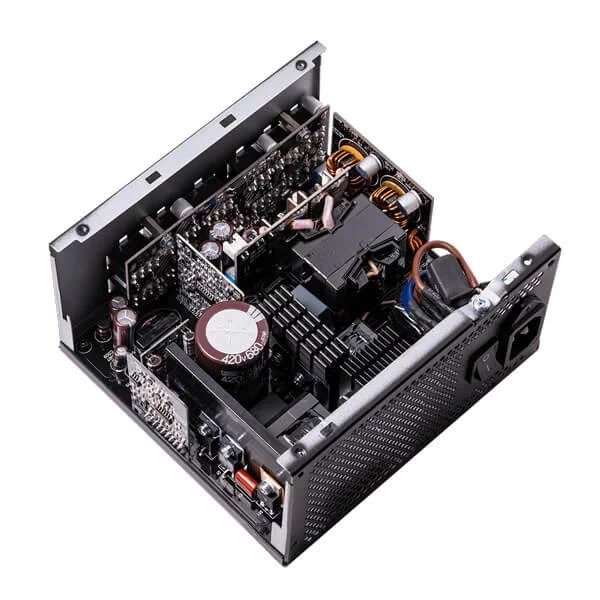

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What’s more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.
The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
- No Load Operation (NLO)
- Surge & Inrush Protection (SIP)
|80 PLUS Rating||GOLD|
|ATX Version||Intel 1.42|
|Protections||OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP|
|Certification||CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC|
|Noise Level @ 20%||11.2dB(A)|
|Noise Level @ 50%||750W : 11.3dB(A)|
|Noise Level @ 100%||750W : 22.7dB(A)|
|MTBF||100K hours at full load|
|ATX 24 Pin Connector||1|
|EPS 4+4 Pin Connector||750W : 2|
|EPS 8 Pin Connector||750W : Not Applicable|
|Peripheral 4 Pin Connector||4|
|PCI-e e 6 2 Pin Connector||750W : 6|
|Note||***Features, Price, and specifications are subject to change without notice.|
