Superior storage. Superior surveillance.
WD Purple drives are built for 24/7, always-on, high-definition security systems. With support for up to 8 hard drives and 32 cameras, WD Purple drives are optimized for surveillance. WD Purple surveillance storage also comes with WD’s exclusive AllFrame technology, so you can confidently create a security system tailored to the needs of your business. Using AllFrame technology, WD Purple drives improve ATA streaming to reduce errors, pixilation, and video interruptions that happen when the wrong drive is used in your video recorder system.
The right drive for the right job.
WD Purple drives have been engineered specifically for surveillance, so they’re able to withstand the extreme heat fluctuations and equipment vibrations within an DVR environment. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. A disruption to a drive could result in a failure that impacts multiple users, your security archive, or even the entire system. With WD Purple, you get reliable, surveillance-class storage that’s tested for compatibility in a wide-range of security systems.
Industry-leading storage. Surveillance you can trust.
WD is a worldwide leader in the hard drive industry. With WD Purple surveillance storage, you have a drive engineered for high temperature, always-on surveillance systems so you can rely on quality video playback when you need it most. Whether you’re protecting loved ones or monitoring your business, WD Purple offers performance you can trust.
Expand your view to 32
WD Purple drives are optimized to support up to 32 HD cameras. With so many options, you have the flexibility to upgrade or expand your security system in the future.
Wide compatibility. Seamless integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR configuration that’s right for you.

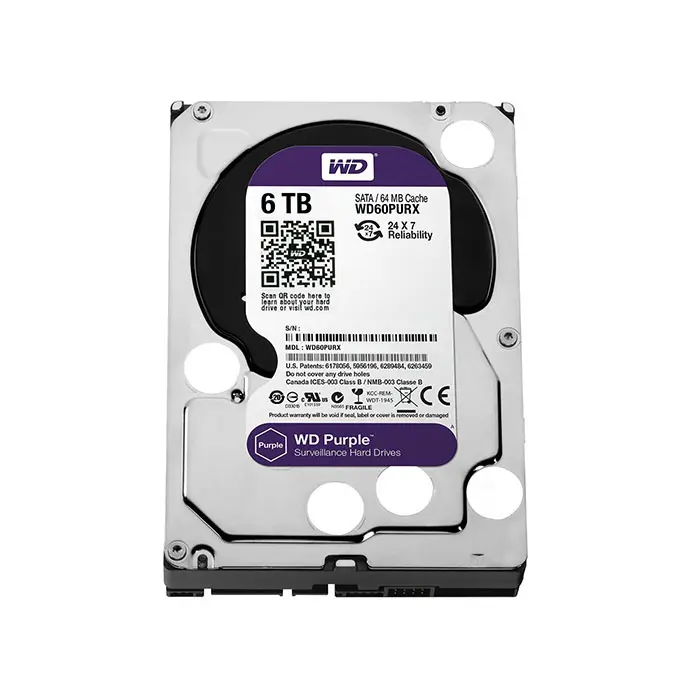

- Model number: WD60PURX
- Formatted capacity: 6TB
- Form factor: 3.5-inch
- Advanced Format (AF): Yes
- RoHS compliant: Yes
Interface transfer rate (max)
- Buffer to host: 6 Gb/s
- Host to/from drive (sustained): 175 MB/s
- Cache (MB): 64
- Performance Class: 5400 RPM Class
- Load/unload cycles: 300,000
- Height (in./mm, max): 1.028/26.1
- Length (in./mm, max): 5.787/147
- Width (in./mm, ± .01 in.): 4/101.6
- Weight (lb/kg, ± 10%): 1.65/0.75
