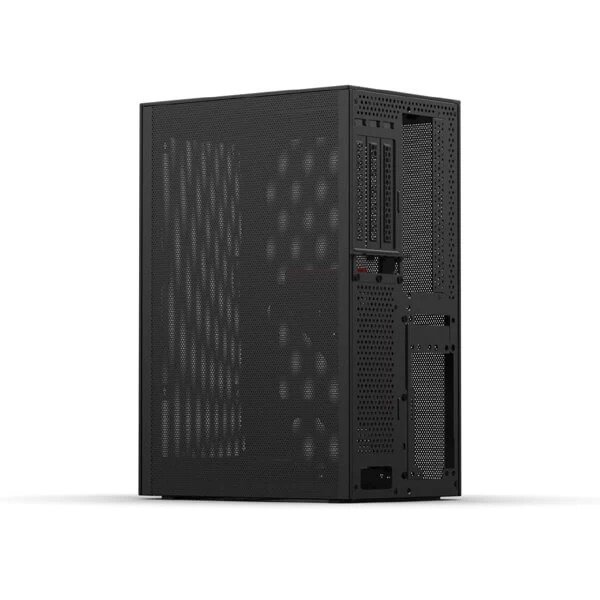

SSUPD MESHLICIOUS (M-ITX) MINI TOWER CABINET WITH PCIE 4.0 RISER CABLE AND FULL MESH SIDE PANEL (BLACK) (G99-OE759FMX4-00)
Meshlicious is a combination of MESH and Delicious. There’s so much mesh that your mouth will water. Breathable, mesh panels lets you savor the airflow and minty temps.
Fine mesh panels and well ventilated
14.67 liters in size
Support for regular size hardware
High quality powder coated SGCC steel

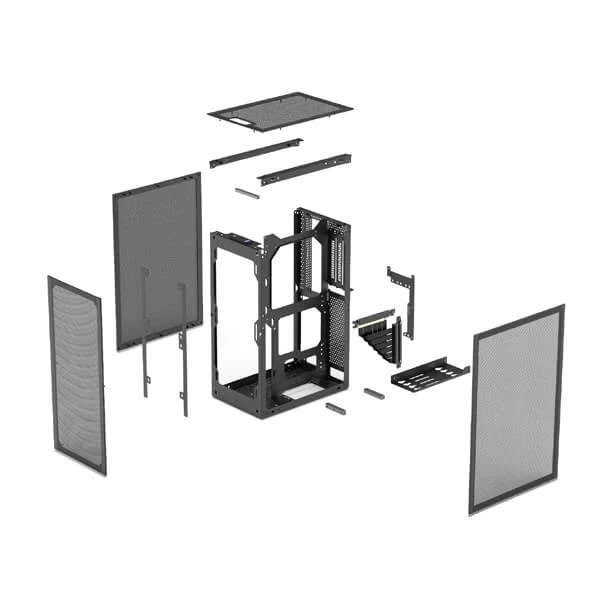

Tool-less external panels and easy to assemble

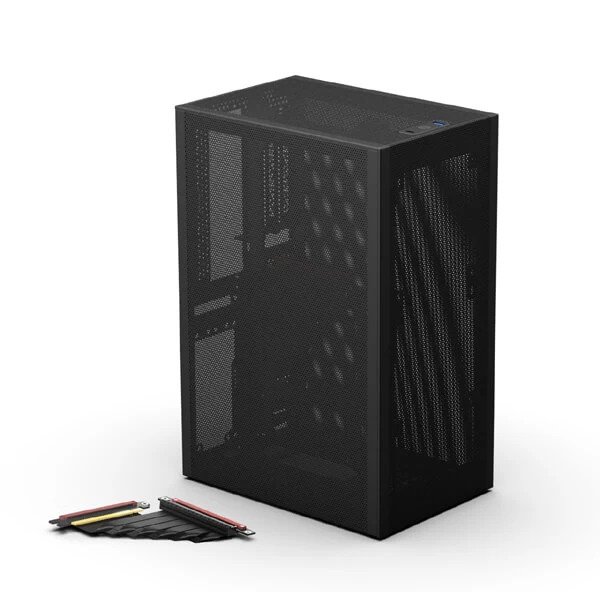

The upgrade version comes with a PCIe 4.0 Riser Cable by LINKUP. It is fully tested and compatible with newly released NVIDIA RTX3000 series GPU, AMD RX6000 series GPU and AMD X570 motherboards.
The package included one PCIe riser cable and one HDMI 2.0 cable.
Support radiators up to 280mm.
Meshlicious is great for liquid cooling. It can support a wide range of radiators up to 280mm. Dimensions up to length 320mm, width 143mm, thickness 63mm.
LARGE GPU SUPPORT- UP TO 4 SLOTS

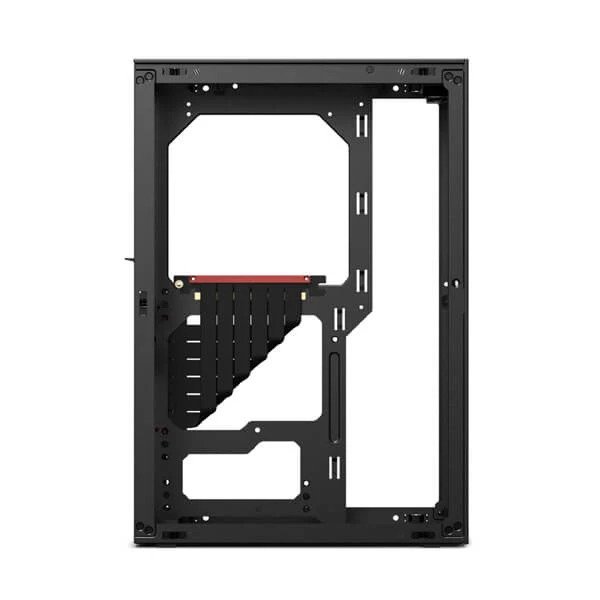

The motherboard tray also functions as a divider. So you can split the CPU space and GPU space, making it possible to support GPUs up to 4 slots thick.
The GPU bracket is adjustable vertically, allowing for adjustments to the space available for the cables that are connected to the GPU.
Keeping It Cool by Design
Meshlicious is a high airflow, Small Form Factor (SFF) enclosure designed to keep your high end components cool and performing at their best.
ATX AND SFX POWER SUPPLY SUPPORTED
Compatible with both ATX and SFX power supplies. Meshlicious makes transitioning from an ATX build easy. There’s no need to buy a new power supply.
Storage Drive Support up to 2 x HDD and 3 x SSD
Despite the small size, Mesh-Licious can support up to two 3.5’ harddrives or four 2.5’ hard drives (dependent on GPU size).
|Expansion slots||Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot|
|Front ports||1x USB 3.0; 1x Type-C 3.1 Gen 2; Power LED|
|Front fan||2x 120 mm or 2x 140 mm|
|Tool-less push-to-lock||Both side, Top side, and Front side Panels|
|Tempered glass version side panel||One tempered glass panel (3mm thick) and one mesh panel (1mm thick)|
|Full mesh version side panel||Two mesh panels (1mm thick)|
|3.5” drive support||Up to 2 x 3.5” HDD (with Small Form Factor GPU)|
|2.5” drive support||2 x 2.5” SSD (with full length GPU & ATX PSU) / 3 x 2.5” SSD (with full length GPU & SFX PSU) / 7 x 2.5” SSD (with SFF GPU & SFX PSU)|
|Motherboard compatibility||Mini ITX / Mini-DTX (need additional 20cm PCIe riser cable)|
|Power supply type||ATX, SFX-L, SFX|
|Front radiator||120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type)|
|PSU max length||170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO)|
|GPU max length||Full length GPU: 4 slots mode up to 336mm length / 3 slots mode up to 332mm length and 155 mm tall; small form factor GPU: Up to 211 mm length (without radiator)|
|CPU cooler max height||3 slots GPU mode: Up to 73mm Height / 4 slots GPU mode: 53mm Height|
|Case dimensions (L x W x H)||245 mm x 166.4 mm x 360 mm|
|Package dimensions (L x W x H)||415 mm x 220 mm x 310 mm|
|Net weight||Tempered glass version – 3.7 kg. Full mesh version – 3.6 kg.|
|Note||*** Features, Price, Specifications are subject to change without notice.|
