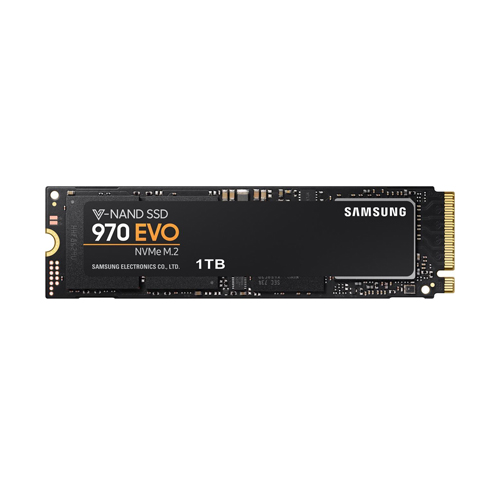

SAMSUNG 970 EVO M.2 2280 1TB PCIe NVMe SSD (MZ-V7E1T0BW)
The SSD that goes further
Accelerate into next-gen computing. The Samsung 970 EVO delivers breakthrough speeds, best-in-class reliability, and a broad range of capacity options up to 2TB*.The latest V-NAND, new Phoenix controller, and Intelligent TurboWrite technology enhance high-end gaming and 4K & 3D graphic editing.
Next level SSD speed
Feel the NVMe difference. The 970 EVO transforms high-end gaming and streamlines graphic intensive workflows with the new Phoenix controller and Intelligent TurboWrite technology. Get stunning sequential read/write speeds of 3,500/2,500 MB/s*, up to 32% faster writes than the previous generation.
The next advancement in NVMe SSD. The 970 EVO fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.
The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty, achieving 50 percent higher than the previous generation. The 970 EVO provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Brand : SAMSUNG
Series : 970 EVO
Model : MZ-V7E1T0BW
Device Type : Internal Solid State Drive (SSD)
Used For : Consumer
Form Factor : M.2 2280
Capacity : 1TB
Memory Components : 64L V-NAND MLC
Interface : PCIe Gen3. X4, NVMe 1.3
Controller : Samsung Phoenix Controller
Cache : 1GB LPDDR4 DRAM
Max Sequential Read : Up to 3400 MBps
Max Sequential Write : Up to 2500 MBps
4KB Random Read : QD32: Up to 500,000 IOPS
QD1: Up to 15,000 IOPS
4KB Random Write : QD32: Up to 450,000 IOPS
QD1: Up to 50,000 IOPS
MTBF : 1,500,000 hours
Power Consumption (Idle) : Max. 30 mW
Power Consumption (Active) : Average: 6W
Maximum: 10W (Burst mode)
Operating Temperature : 0°C ~ 70°C
Max Shock Resistance : 1,500G & 0.5 ms (Half sine)
Dimensions & Weight
Height : 2.30mm
Width : 22.10mm
Depth : 80.26mm
Weight : 7.94g
