Qnap TVS-872XT 8-Bay Tower Nas Enclosure (TVS-872XT-I5-16G)

Model No : TVS-872XT-I5-16G

229,499.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

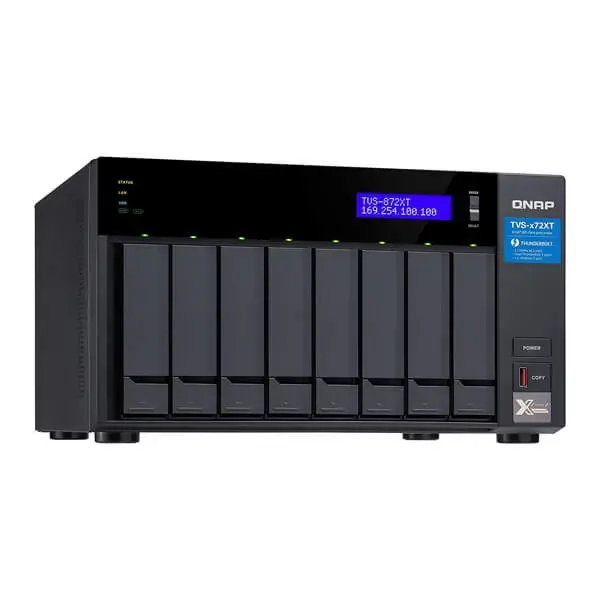

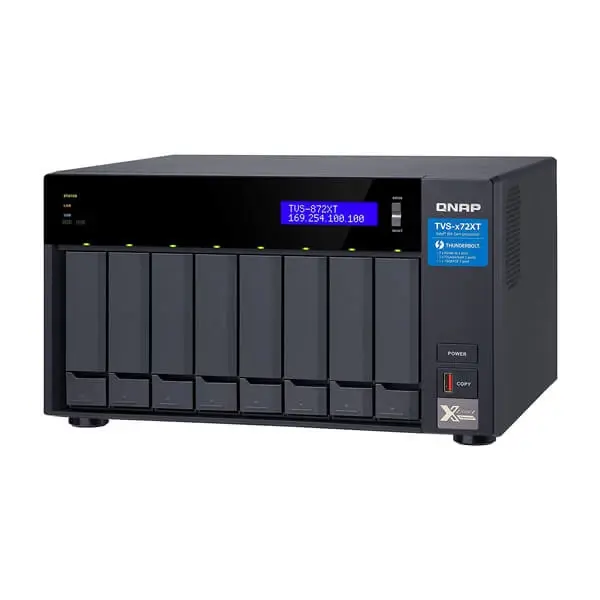

Qnap TVS-872XT 8-Bay Tower Nas Enclosure

Powered by an 8th generation Intel® Core™ processor, the high-performance Qnap TVS-872XT 8-Bay NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

High-speed Thunderbolt™ 3 with SMB protocol, perfect for collaboration on media editing.

5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.

PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.

4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity

The TVS-872XT adopts the powerful 8th generation Intel® Core™ processor with 16 GB dual-channel DDR4 memory (upgradable to 64 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Extend NAS functionality with a graphics card and other PCIe devices

Graphics cards

Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

10GbE/ 40GbE adapters

Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.

Wireless network cards

Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TVS-872XT into a wireless NAS. Or make the TVS-872XT a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.

Obtain performance benefits from M.2 SSD caching

Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-872XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TVS-872XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data’s access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

Potentially attain performance and endurance levels similar to enterprise-grade SSDs

With SSD prices continuing to become more affordable, there’s never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-872XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell®, ATTO® or QNAP Fibre Channel card has been installed in the TVS-872XT, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier™ tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

Specifications:

  Hardware
CPU Intel® Core™ i5 Processor
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 630
System Memory 16 GB SODIMM DDR4 (2 x 8 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 Slot 2 x M.2 2280 PCIe Gen3 x2 slots
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Thunderbolt Port 2 (Thunderbolt™ 3)
PCIe Slot 2
Slot 1: PCIe Gen 3 x16 (CPU)
Slot 2: PCIe Gen 3 x4 (PCH)
USB 3.2 Gen 1 port 1
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators HDD 1-8, Status, LAN, USB port, M.2 port
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 × 329.3 × 279.6 mm
Weight (Net) 7.06 kg
Weight (Gross) 9.19 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V
Power Consumption: HDD Sleep Mode 41.47 W
Power Consumption: Operating Mode, Typical 65.03 W
Fan System fan: 2 x 120mm, 12VDC
CPU fan: 2 x 60mm blower fan
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 3500
  Software
Operating System QuTS hero h5.0.0
Supported Client Operating Systems Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10, and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Supported Browsers Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Maximum Pool size 1024 TB
Maximum number of storage pool 128
Shared Folder Type Thick, Thin
Maximum shared folder size 1024 TB
Maximum number of shared folder 256
LUN Type Thick, Thin
Maximum LUN size 1024 TB
Maximum number of targets LUN 128
RAID Type 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
RAID Hot Spare Global, Local
Internal drive ZFS
External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Minimum Snapshot Interval 1 minute
SSD Cache RAID 0, 1, 10 (journal)
File Server File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
FTP Server FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
Maximum FTP connection 1024
Local user account 16,000
Network recycle bin Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
Supports Virtual Hosts 32
Management Mode User customization, Central
Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control 64
File Cloud Gateway Concurrent Connections = 80 Upload & 80 Download
Free cloud gateway sessions 2
Maximum number of backup job 400
 AI-assisted photo management People, things, places, and others
Remote Access

PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)

Supportedd utility and mobile app Windows, macOS, iOS, and Android
Supported maximum clients 100
Supports Virtual machine instances Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration All function is Fine.
Virtual switches Can create a virtual switch
GPU pass-through GPU function is fine
Supported type LXC/LXD and Docker
Recording Technique Standard MP4 file based
License Type Subscription-based
QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile) Android and iOS
Recording camera streams H.264
Free built-in camera channels 2
Expandable camera channels Developing
Warranty 2 Years
Note *** Features, Price, Specifications are subject to change without notice.
