Nzxt N9 X870E AM5 ATX Motherboard White (N9-X87XT-W1)
Home>Brand>NZXT>Nzxt N9 X870E AM5 ATX Motherboard White (N9-X87XT-W1)

Nzxt N9 X870E AM5 ATX Motherboard White (N9-X87XT-W1)

(Inclusive of all taxes)

Model No : N9-X87XT-W1
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Nzxt N9 X870E AM5 ATX Motherboard White

The NZXT N9 X870E Motherboard delivers cutting-edge performance in a sleek design, making it an ideal foundation for modern AMD® gaming PCs. Built for the latest AMD® Ryzen™ processors, it features overclocking-ready power, optimized thermals, and PCIe 5.0 support, plus high-speed Wi-Fi 7 and USB 4 connectivity. The full-metal cover with subtle RGB lighting adds a touch of sophistication to any build.

  • AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.
  • Advanced Power Solution: A robust 20+2+1 power stage design (110A SPS) and 8-layer, low-loss 2oz copper PCB ensure exceptional stability and overclocking potential.
  • Optimized Thermal Design: Stay cool under pressure with a high-performance VRM heatsink array with thermal pads, dual PWM fans, and fins, plus dedicated heatsinks for all M.2 slots.
  • PCIe® 5.0 M.2 Slot: Access PCIe® 5.0 storage speeds with the top M.2 slot, plus three additional PCIe® 4.0 M.2 slots.
  • DDR5 Performance: Four dual-channel DDR5 RAM slots accelerate load times, enhance multitasking, and support speeds up to 8000+ MHz through overclocking.
  • USB 4 Connectivity: Two USB 4 ports provide up to 40 Gbps data transfer speeds, video output, and device charging through a single, versatile connection.
  • Next-Gen Networking: Enjoy ultra-fast speeds with Wi-Fi 7 and 5G LAN, ensuring a flawless, lag-free connection for both wireless and wired setups.

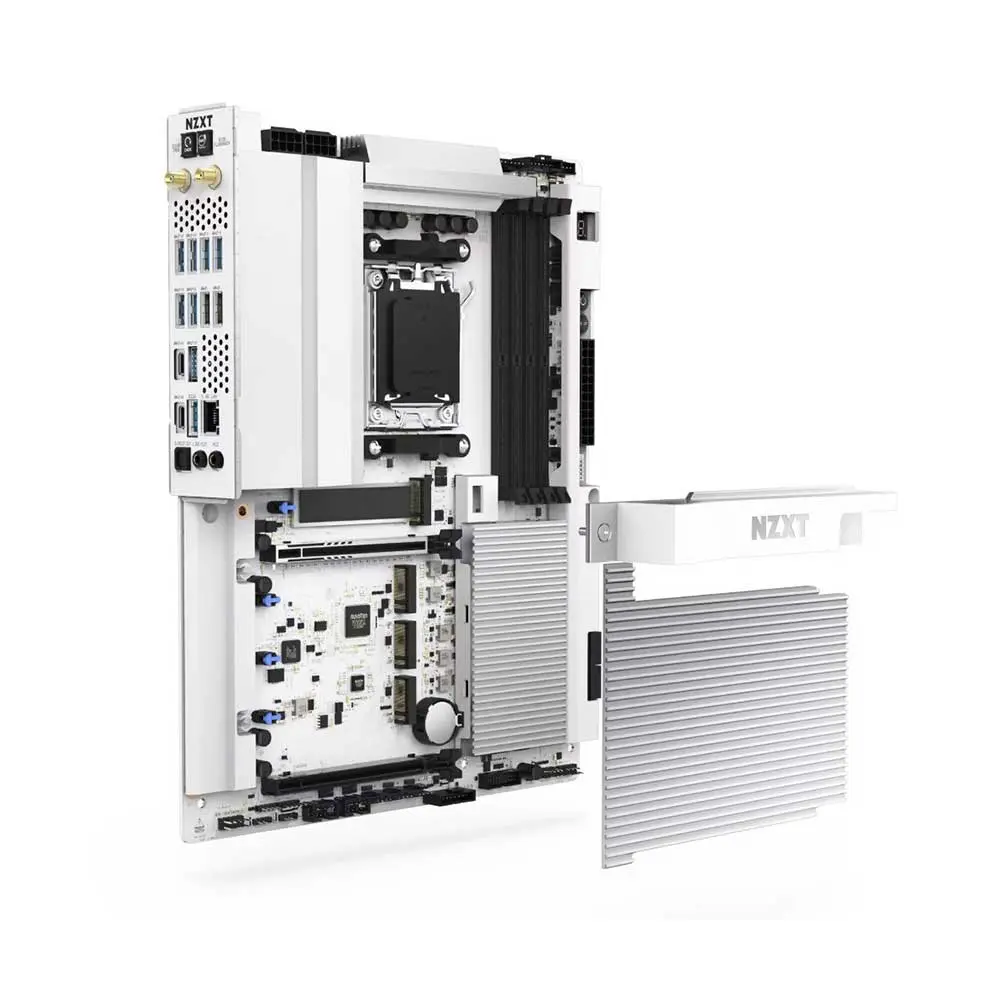

  • Seamless Style: Achieve a sleek and sophisticated aesthetic with a full-metal cover that conceals the majority of the PCB.
  • Integrated RGB Lighting: Personalize your build with vibrant onboard RGB lighting, controlled through NZXT CAM software.
  • Single-Frame Fans: Effortlessly connect and control NZXT RGB single-frame fans with the convenient 8-pin combo fan headers (4-pin RGB + 4-pin PWM).
CPU
CPU AMD Socket AM5 for AMD® Ryzen™ 9000, 8000, and 7000 series processors
Chipset
Chipset AMD® X870E
Memory
DIMM Slots 4 x DDR5 only
Memory Architecture Dual-Channel
Extreme Memory Profile (XMP) Supported
EXTended Profiles for Overclocking (EXPO) Supported
OC Frequency Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
Expansion Slots
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode 1
PCIe 4.0 ×16 slots (PCIEX16_2), support ×2 mode 1
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 1
Storage
M.2_1, Type 2280 (PCIe 5.0 ×4 mode) 1
M.2_2, Type 2280 (PCIe 4.0 ×4 mode) 1
M.2_3, Type 2280 (PCIe 4.0 ×4 mode) 1
M.2_4, Type 2280 (PCIe 4.0 ×4 mode) 1
M.2_5, Type 2280 (PCIe 4.0 ×4 mode) 1
SATA 6Gb/s ports 4
LAN
LAN Realtek® 5.0G LAN
Wireless
Dual Band WiFi 7 Supported (320MHz)
Bluetooth v5.4
Audio
Audio Realtek® ALC4082 Audio Codec

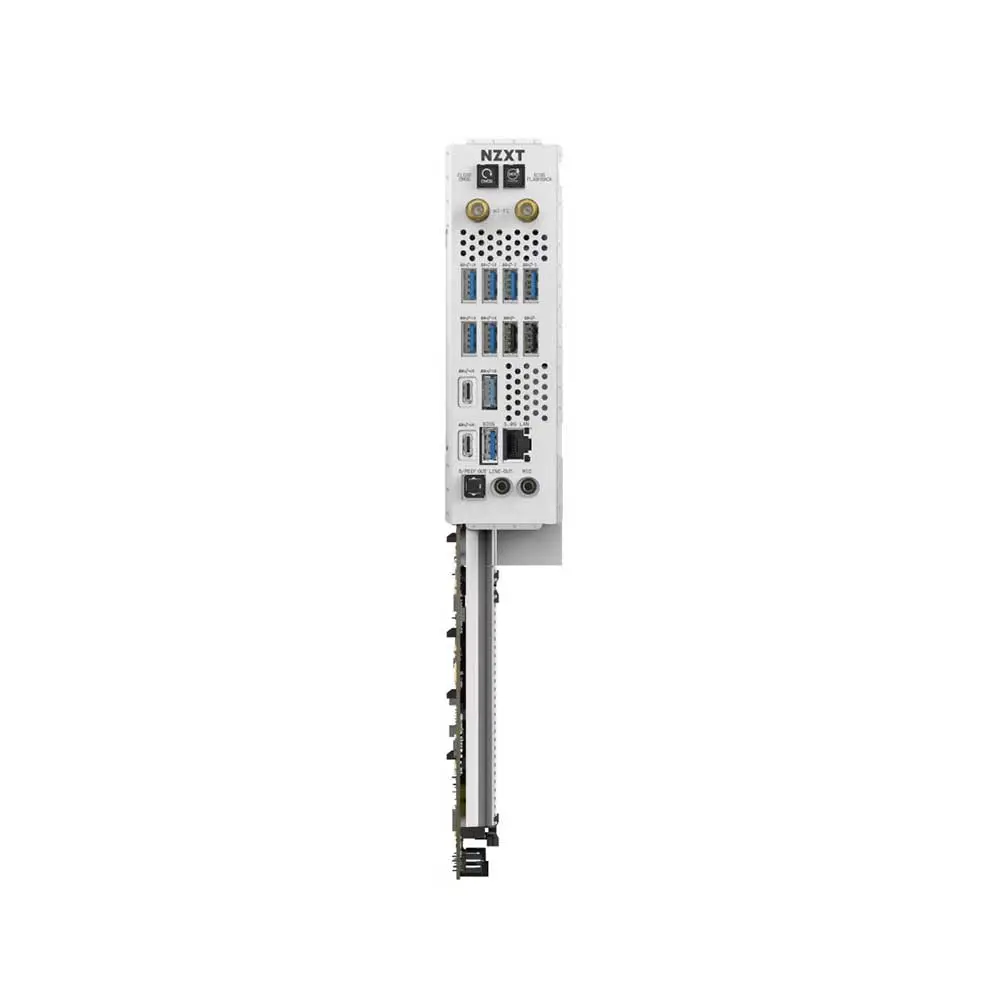

Rear I/O
Wireless antenna SMA connectors 2
USB USB 4 ports 2
USB 3.2 Gen 2 ports 5
USB 3.2 Gen 1 Type-A ® ports 3
USB 2.0 port 2
Clear CMOS button 1
LAN (RJ45) port 1
Audio jacks 2
Optical S/PDIF out port 1
Intenal I/O
24-pin ATX power connector 1
8-pin ATX 12V power connector 2
4-pin CPU_FAN connector 1
4-pin AIO_PUMP connector 1
4-pin SYS_FAN connectors 3
NZXT RGB LED connector 1
5V ARGB LED connectors 2
NZXT 8-pin PWM connectors 2
USB 2.0 header (Up to 4 USB 2.0 ports) 2
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports) 2
USB 3.2 Gen2x2 front panel header (For USB Type-C) 1
Front panel audio connector 1
Power button 1
Reset Button 1
Post LEDs 1
Digital Debug LED 1
General
Operating System Windows® 11/10 64-bit
Form Factor ATX
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
