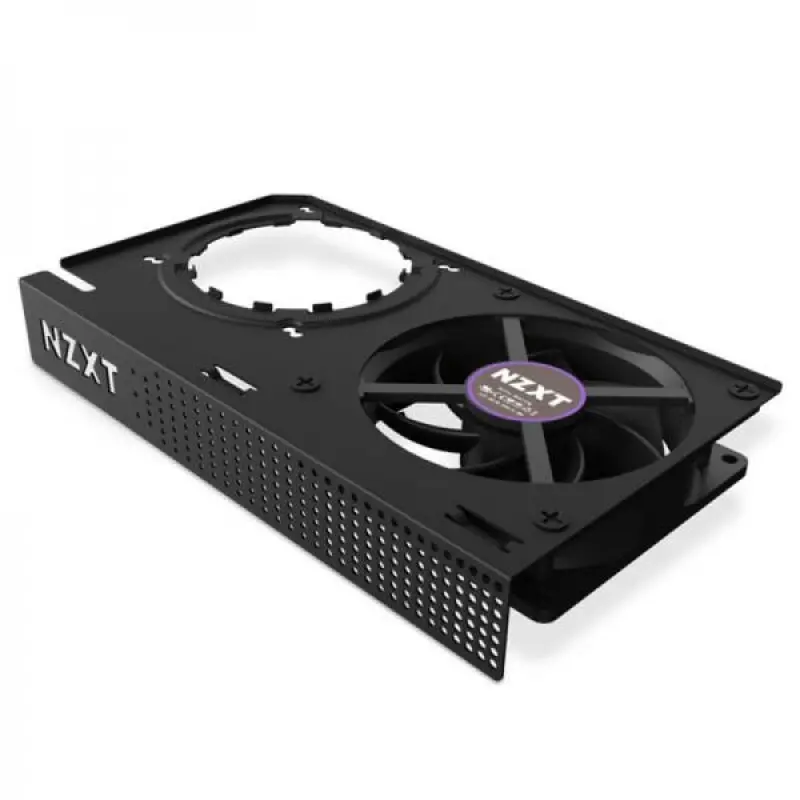

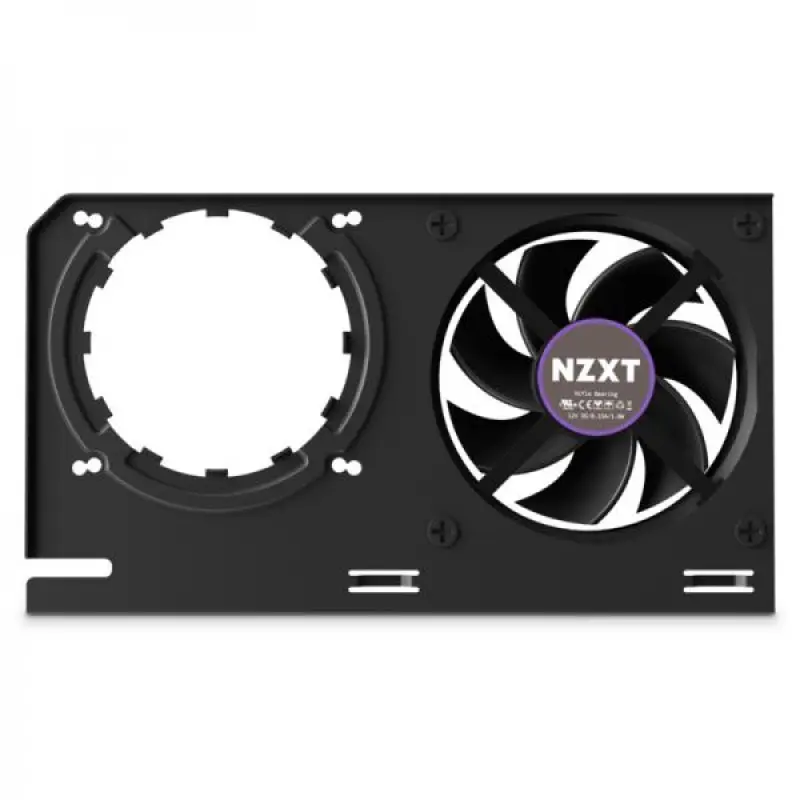

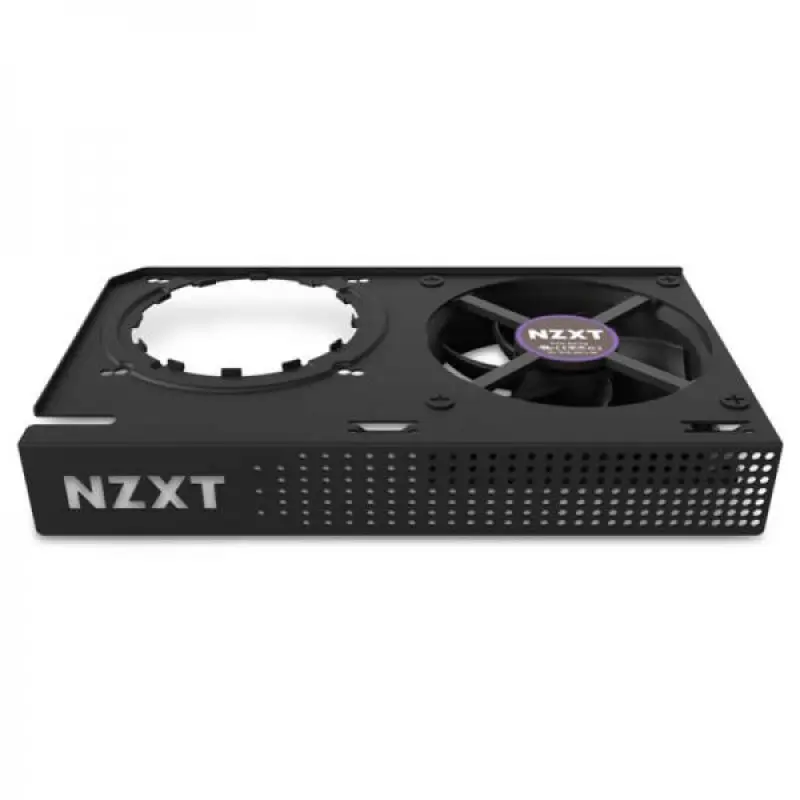

NZXT KRAKEN G12 GPU MOUNTING KIT FOR KRAKEN X SERIES AIO (MATTE BLACK) (RL-KRG12-B1)
Quickly mount any Kraken X-Series liquid cooler onto graphics cards with the Kraken G12 mounting kit. It delivers a 40% increase in cooling capacity over stock cooling, and features a newly designed bracket with an easier installation process versus the Kraken G10. Plus, the G12 is compatible with more than 30 liquid coolers on the market.
ENHANCE YOUR GPU COOLING
With a 40% increase in cooling capacity compared to stock cooling, you’ll maximize your GPU clock speeds for higher performance and better frame rates from your graphics processor.
The G12 supports both reference and non-reference design AMD and NVIDIA GPUs, for more than 30 liquid coolers, including aftermarket VRM heatsinks.
ACTIVE COOLING FOR VRM
Comes with a 92mm fan, providing active cooling for the VRM and memory on the graphics card.
Designed for a fast and easy installation, you can now lay the graphic card flat as you install the Kraken G12. Score serious liquid cooling on your GPU in a matter of minutes.
|Dimensions||201 x 113 x 32 mm|
|Material(s)||Steel and Plastic|
|Fan Dimensions||92 x 92 x 25 mm|
|Fan Speed||1,500 RPM|
|Fan Bearing||Rifle Bearing|
|Fan Rated Voltage||12V DC, 0.18A, 2.16W|
|Compatibility – Graphic Cards||Nvidia
Geforce RTX 2080*, 2080 Ti*, Titan X, Titan, Geforce GTX 1080 Ti, 1080, 1070, 1060, 980 Ti, 980, 970, 960, 780 Ti, 780, 770, 760, 680, 670, 660Ti, 660, 580, 570
RX 480, 470, R9 390X**, 390**, 380X**, 380, 290X**, 290**, 285**, 280X**, 280**, 270X, 270, R7 370, HD7970**, 7950**, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830
*RTX uses the “A” brackets for mounting.
**Some variations in AMD die height may require the use of a copper shim which is not included.
|Compatibility – AIO Liquid Coolers||NZXT
Kraken X72, X62, X52, X42, X61, X41, X31, X60, X40
H105, H110, H90, H75 (CW-9060015-WW only), H55, H50 (CW-906006-WW only)
Water 3.0 Riing RGB 360, 280, 240, Red 280, 140,
Water 3.0 Ultimate, Extreme S, Extreme, Pro, Performer
Water 2.0 Extreme, Pro, Performer
KUHLER H2O 920V4, 620V4, 920, 620
LQ-320, LQ-315, LQ-310
|Note||***Features, Price, and specifications are subject to change without notice.|
