Description

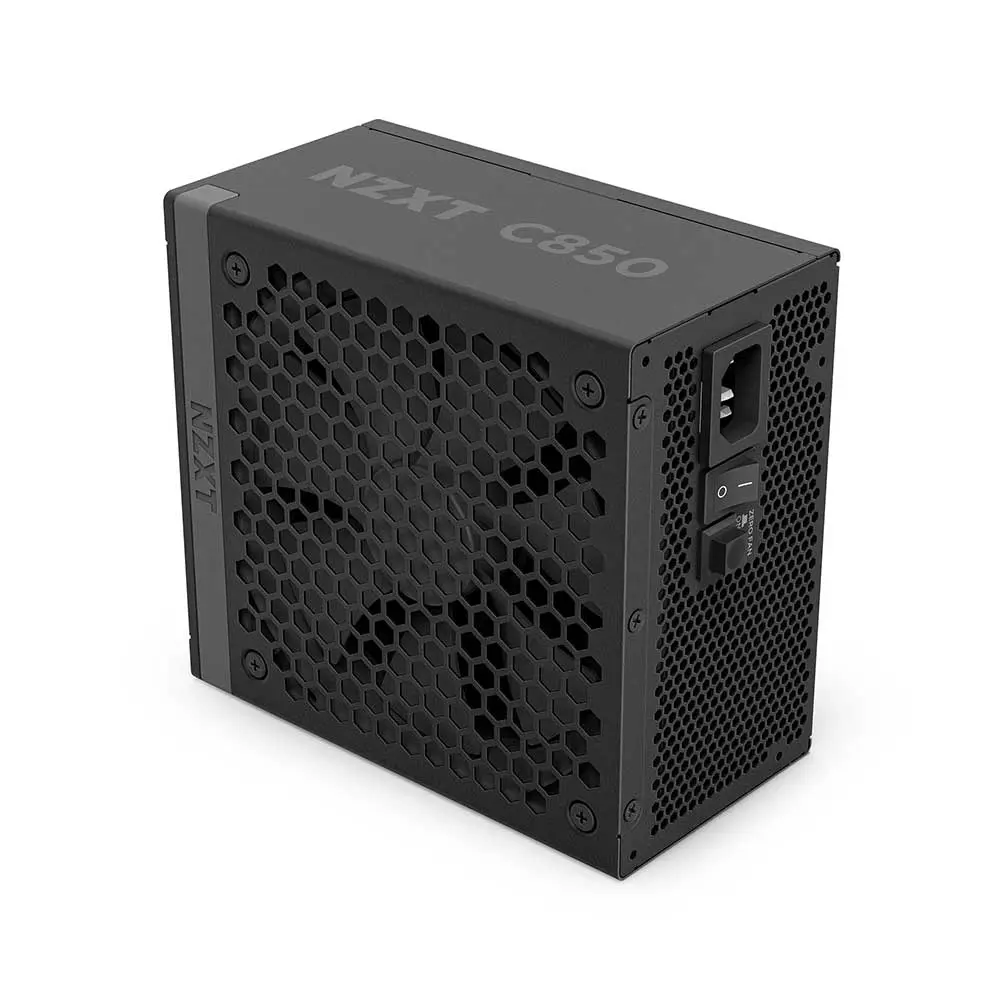

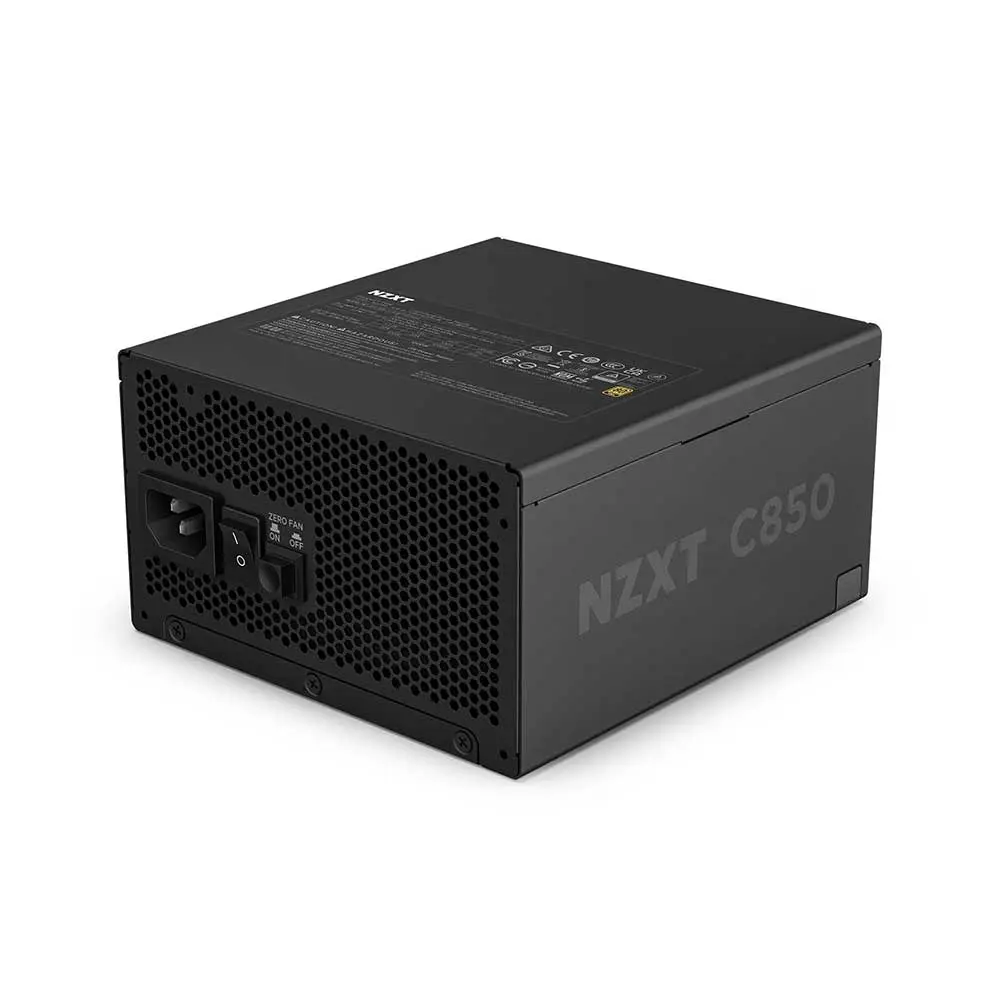

NZXT C850 850 Watt 80 Plus Gold ATX 3.1 Power Supply Matte Black
Designed for maximum performance with minimal noise, NZXT C850 850 Watt C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2×6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.

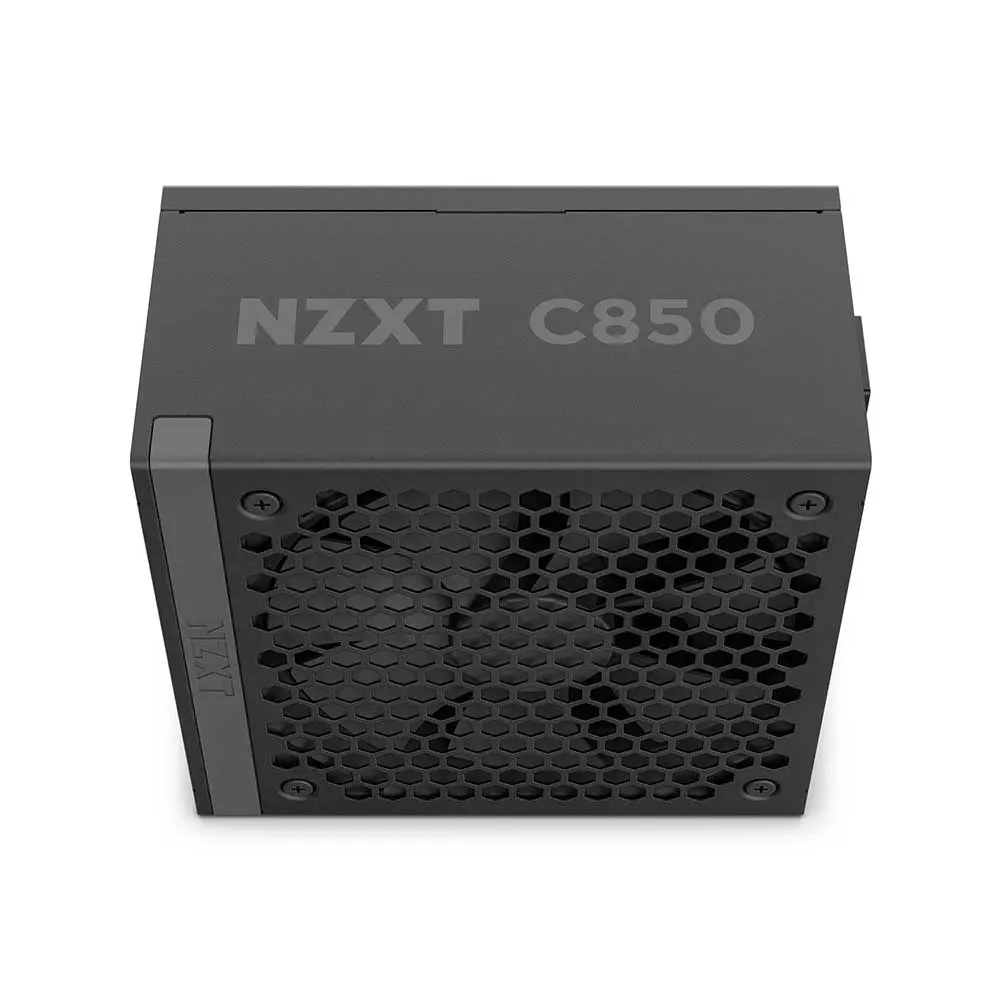

- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.

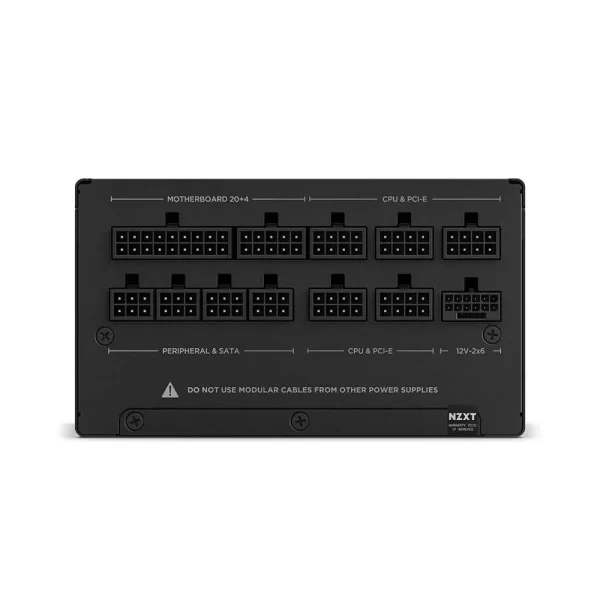

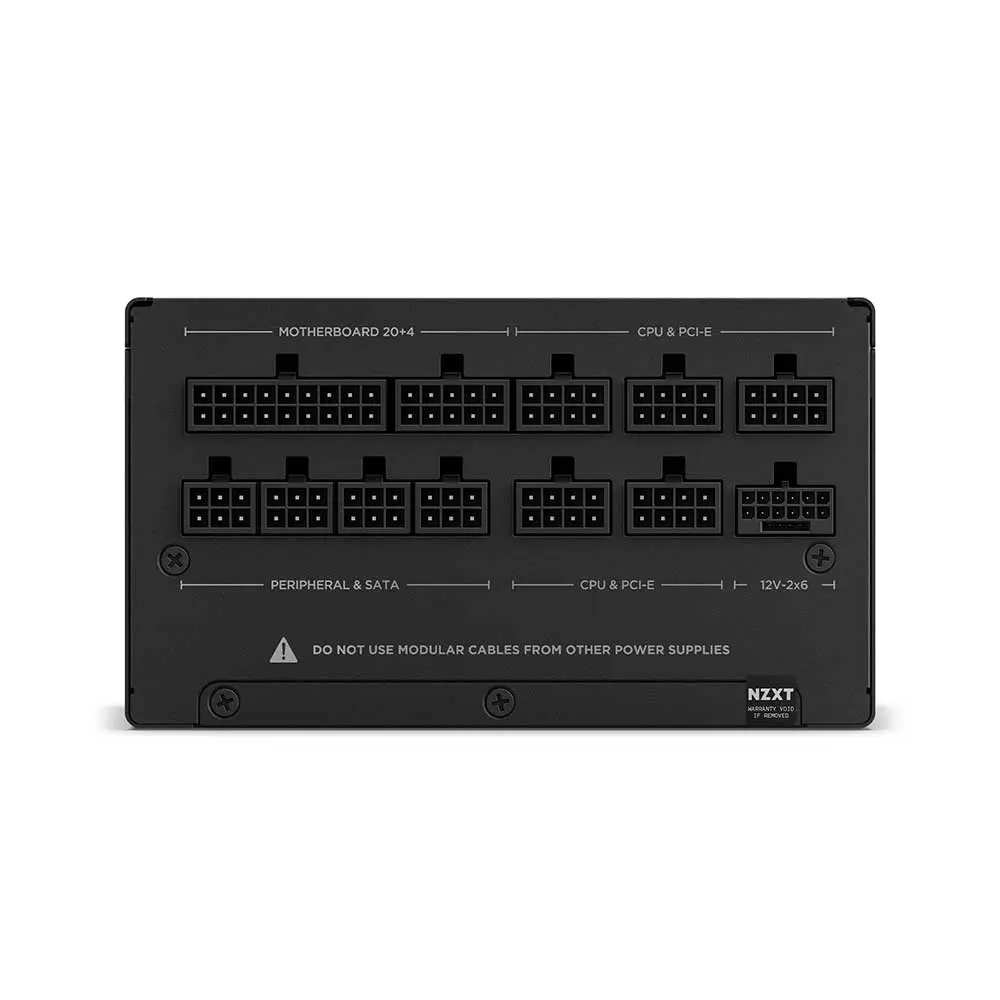

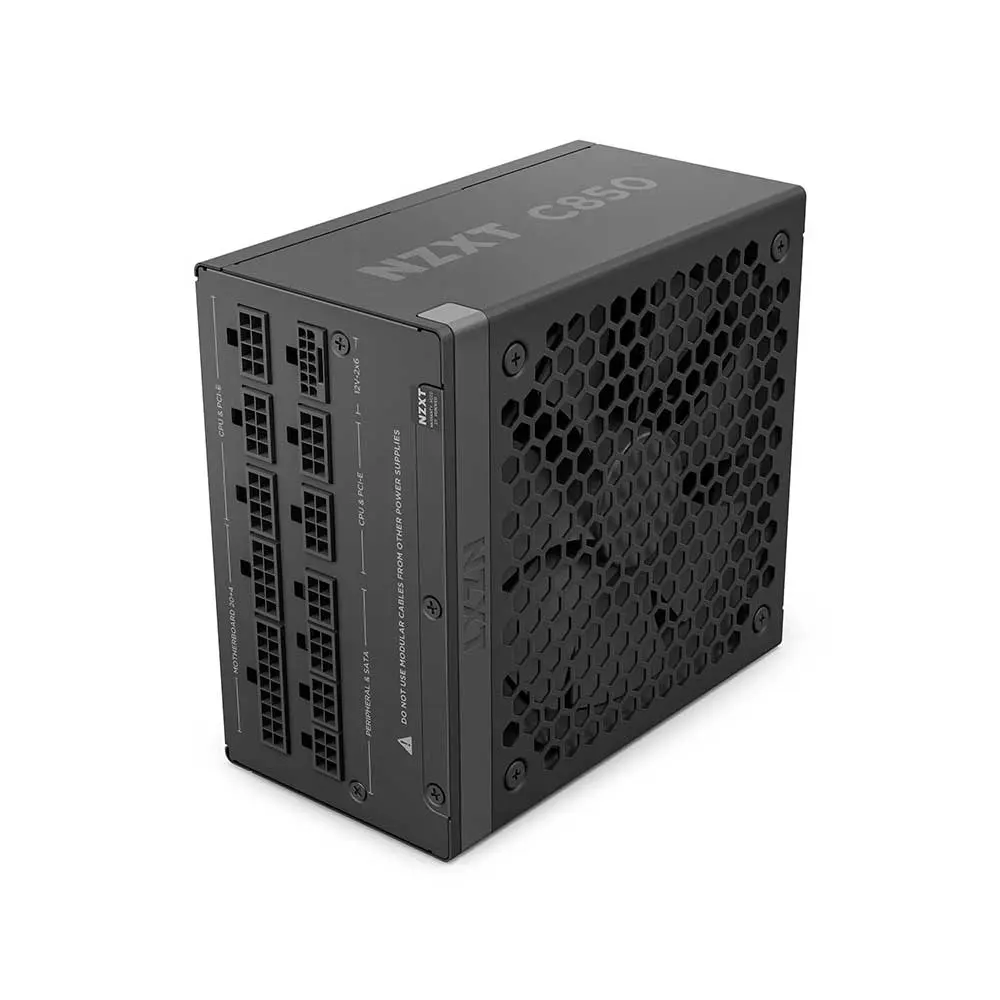

- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.

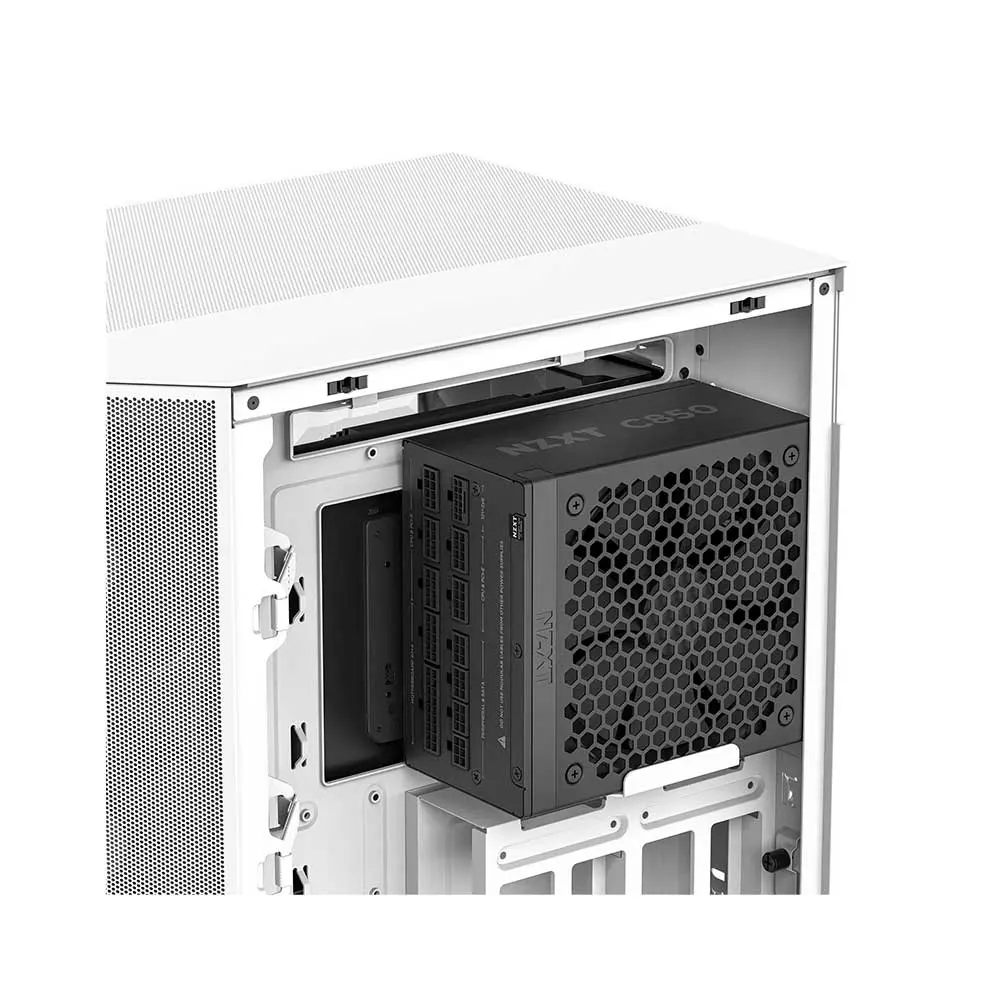

- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
Tech Specs | |
Output Connectors | |
24-pin ATX Power Cable | 1 |
4+4-pin CPU Power Cable | 1 |
8-pin CPU Power Cable | 1 |
6+2-pin PCIe Power Cable | 3 |
16-pin (12+4) 12V-2×6 PCIe Cable | 1 |
SATA Cable | 12 |
Peripherals Cable | 4 |
Cable Specs | |
24-pin ATX Power Cable | 600mm with nylon sleeving |
4+4-pin CPU Power Cable | 700mm with nylon sleeving |
8-pin CPU Power Cable | 700mm with nylon sleeving |
6+2-pin PCIe Power Cable | 650mm with nylon sleeving |
16-pin (12+4) 12V-2×6 PCIe Cable | 650mm with nylon sleeving |
SATA Cable | 500+150mm |
Peripherals Cable | 500 + 150mm |
AC Input Rating | |
100 – 240Vac | 10A-5A 50Hz-60Hz |
DC Output Rating | |
3.3V / +5V | 22A (120W) |
12V | 70.83A (850W) |
5Vsb | 3A (15W) |
Total | 850W |
Energy Efficiency | |
Rating | 80 Plus Gold |
10% Loading | 85.8% @115Vac |
20% Loading | 89.5% @115Vac |
50% Loading | 91.7% @115Vac |
100% Loading | 89.2% @115Vac |
Electrical Features | |
PF Correction | Active @0.99 |
Protections | OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / |
Fan Specs | |
Dimensions | 135 x 135 x 25 mm |
Speed | 2300 ± 10% RPM |
Airflow | 93.02 CFM (Min.) |
Noise | 44.5 dBA max |
Bearing | Fluid Dynamic Bearing (FDB) |
Operation | |
MTBF | 100,000 hours |
Temperature | 0 – 50 °C |
Dimensions | |
Width | 150mm |
Height | 86mm |
Depth | 160mm |
Warranty | 10 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
