Description

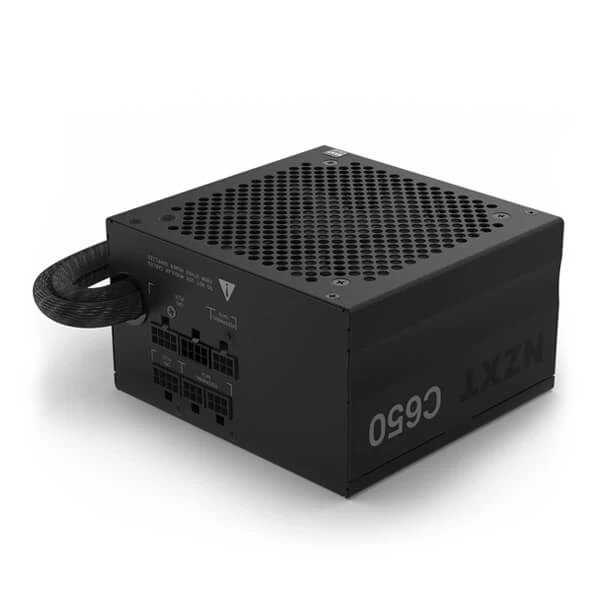

Nzxt C650 650 Watt 80 Plus Bronze Semi Modular Power Supply (PA-6B1BB-IN)
Features:
The C650 brings you 650 watts of efficient power and is a must-have for the majority of power needs.
Specification:
Key Specs | |
Dimensions | W 150 x L 140 x H 86 (mm) |
Material(s) | Steel, PCB and plastic |
Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
AC Input Rating | 10A/115V;5A/230V 47Hz ~ 63Hz |
General | |
Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / |
Hazardous Materials | RoHS & China RoHS |
DC Output Rating | |
Voltage | +3.3V / +5V / +5VSB /+12V / -12V |
Max Load | 20A / 20A / 2.5A / 54A / 0.3A |
Voltage Regulation | ±5% / ±5% / ±5% / ±5% / ±10% |
Ripple & Noise | < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p |
Output Power (watt) | 110 / 110 / 12.5 / 648 / 3.6 |
Total | 650 |
Fan Specs | |
Dimensions | 120 x 120 x 25 (mm) |
Speed | 2400 ±10% RPM |
Airflow | 72.90 CFM |
Noise | <44 dBA |
Bearing | FDB (Fluid Dynamic Bearing) |
Energy Efficiency | |
Rating | 80 Plus Bronze |
10% loading | 82% |
20% loading | 83% |
50% loading | 87% |
100% loading | 83% |
Operation | |
PF Correction | [email protected] |
MTBF | 100,000 hours |
Operation Temperature | 0 to 40°C |

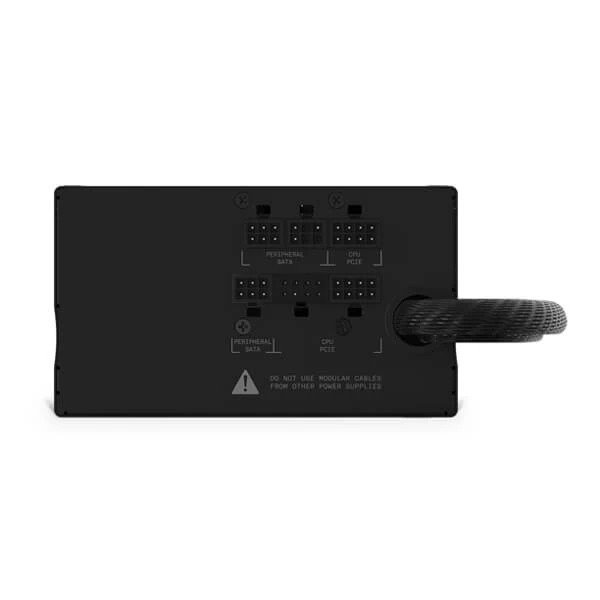

Output Connector(s) | |
24-pin ATX Power | 1 |
4+4-pin CPU power | 2 |
6+2-pin PCIe power | 4 |
SATA Power | 6 |
Peripherals | 3 |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
