Noctua NH-U14S TR5-SP6 140mm Cpu Air Cooler
Home>Cooler>Air Cooler>Noctua NH-U14S TR5-SP6 140mm Cpu Air Cooler

Noctua NH-U14S TR5-SP6 140mm Cpu Air Cooler

Original price was: ₹13,500.Current price is: ₹12,900.

(4% OFF)

(Inclusive of all taxes)

Model No : NH-U14S TR5-SP6
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Noctua NH-U14S TR5-SP6 140mm Cpu Air Cooler

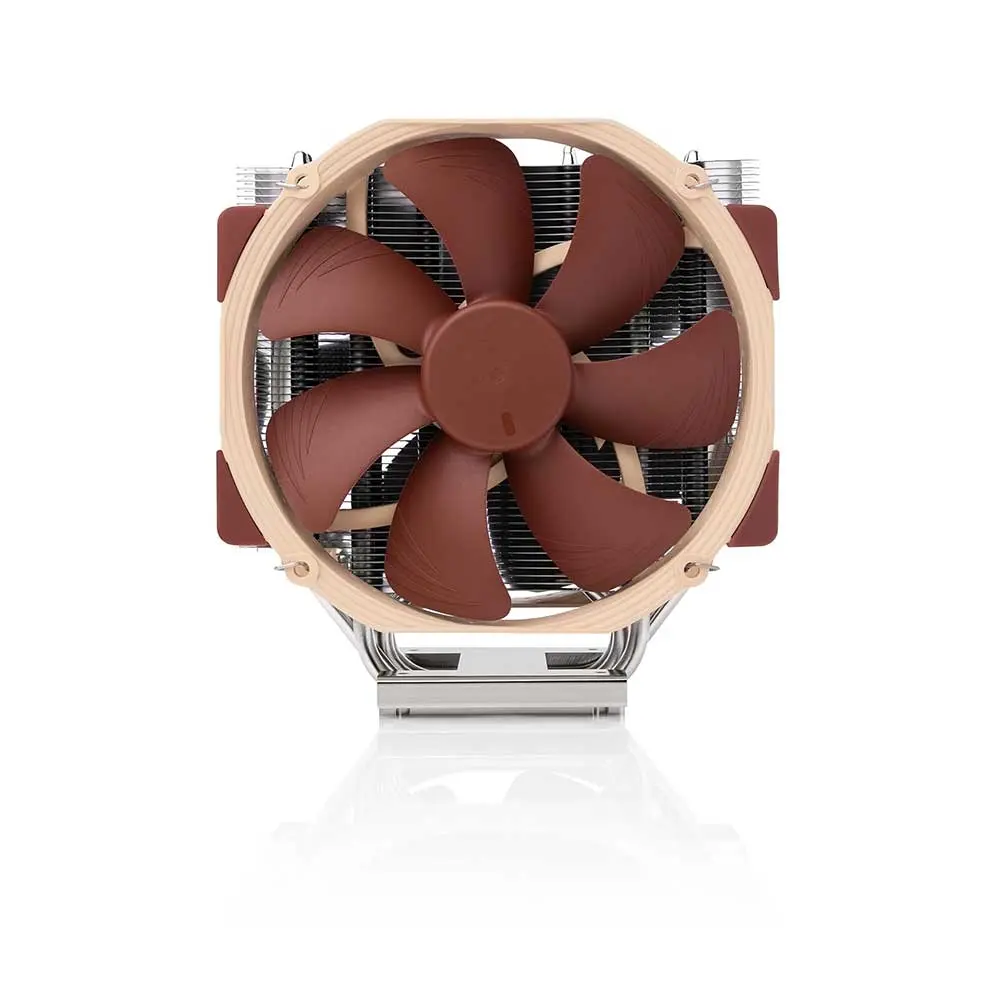

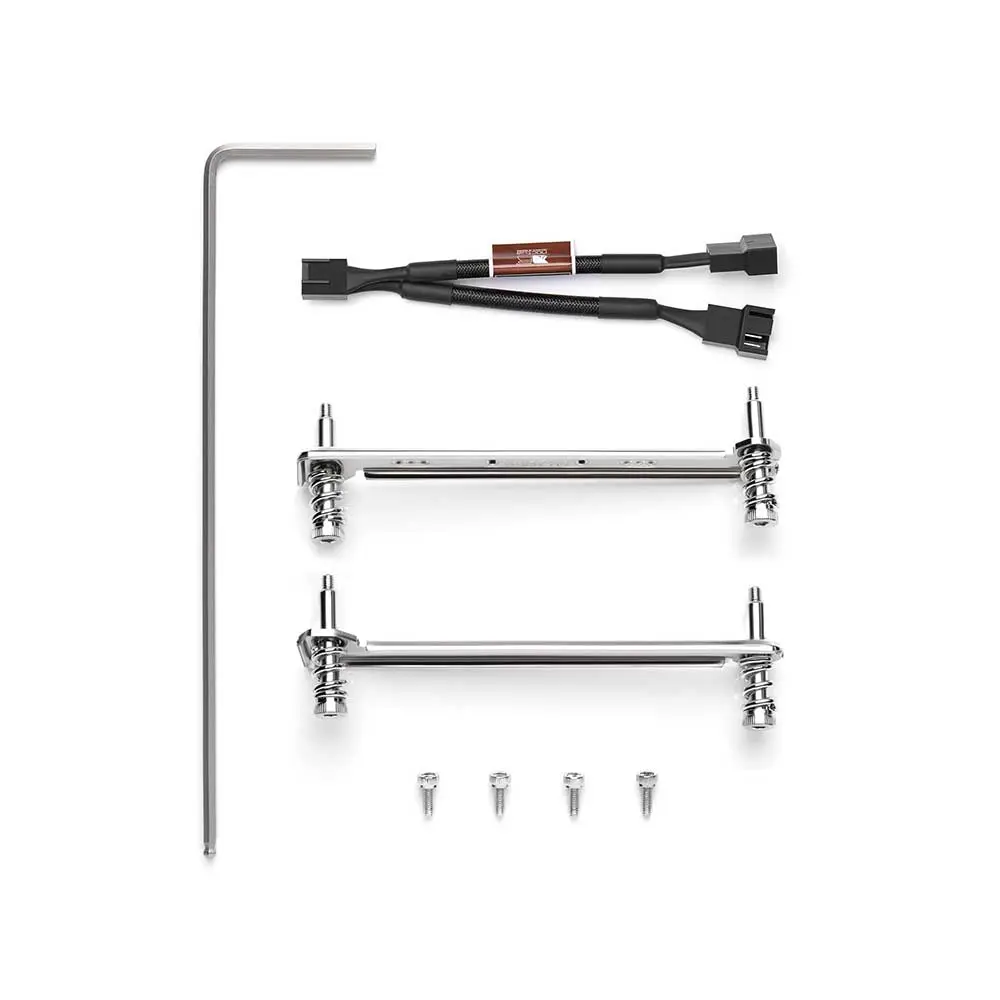

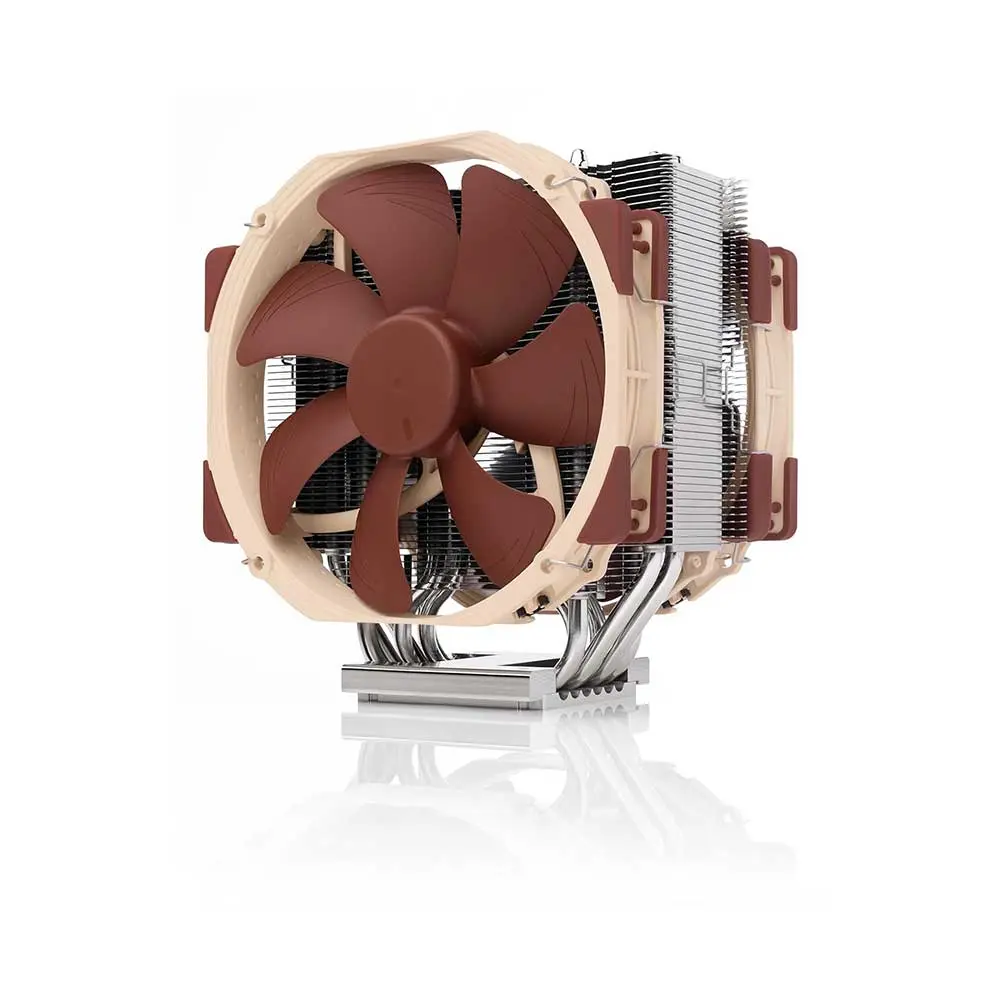

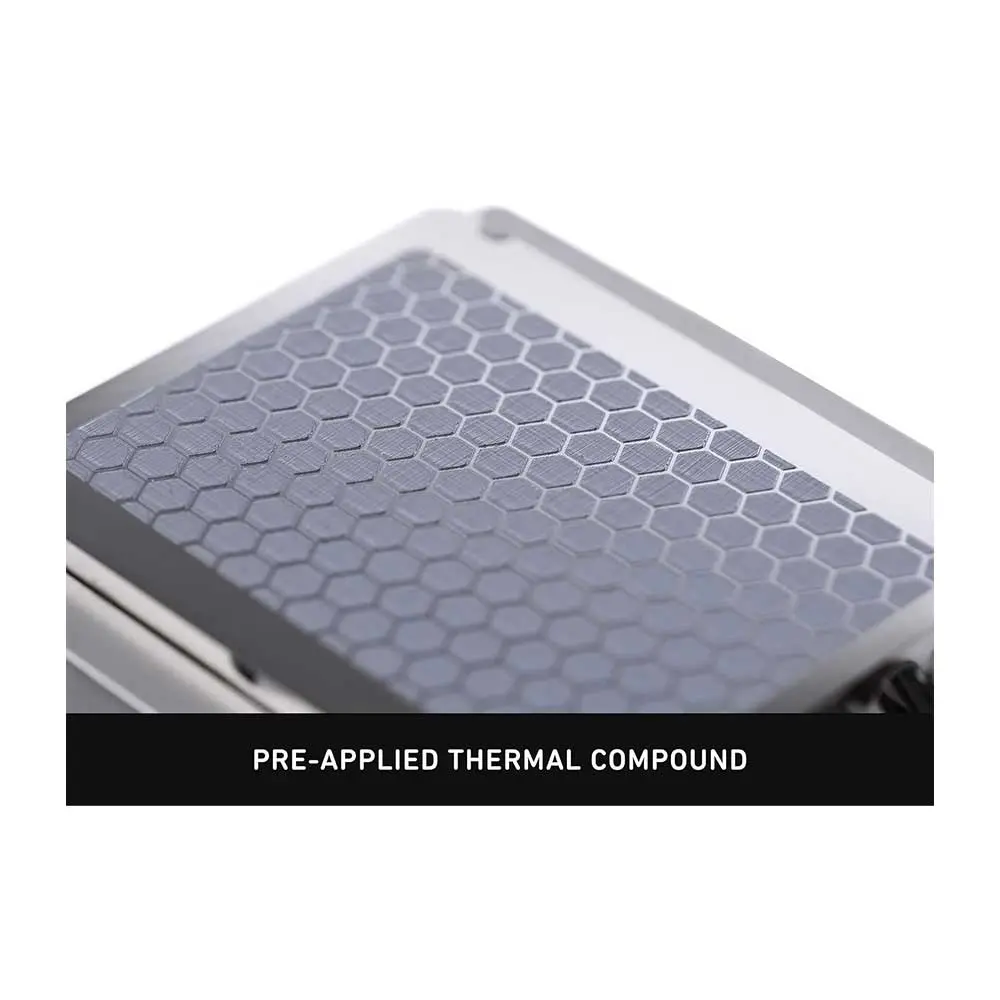

The Noctua NH-U14S TR5-SP6 is a 140mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise sTR5/SP6 sockets. Built on the proven basis of the renowned TR4-SP3 model with its large heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctua’s award-winning, PWM controlled NF-A15 140mm fans in order to achieve maximum performance and superb acoustics. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2™ mounting system for sTR5/SP6 that has been updated to meet the platform’s increased pressure specifications, the NH-U14S TR5-SP6 forms a complete premium quality package for quietly cooling sTR5-based Threadripper workstations and SP6-based Epyc servers.

Cooler Specification
Socket Compatibility AMD sTR5, SP6
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm
Weight (without fan) 797 g
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 111 mm
Weight (with fan) 1136 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 179
Max. TDP see NSPR
Fan Compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
Model 2x Noctua NF-A15 HS-PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1200 RPM
Min. rotational speed @ 20% PWM (+/-20%) 300 RPM
Max Airflow 140,2 m³/h
Max. airflow with L.N.A. 115,5 m³/h
Max. acoustical noise 24,6 dB(A)
Max. acoustical noise with L.N.A. 19,2 dB(A)
Airflow 140.2 m³/h
Airflow with L.N.A. 115.5 m³/h
Acoustical noise 24.6 dB(A)
Input power (typical) 1.056 W
Input power (max.) 1,56 W
Voltage Range 12 V
MTTF > 150.000 h
Warranty 6 Years
Note** *** Features, Price, Specifications are subject to change without notice.

Additional information

brand

cooler-type

cooler-radiator-size
