Noctua NF-F12 5V PWM Cabinet Fan (NF-F12-5V-PWM)
Home>Brand>NOCTUA>Noctua NF-F12 5V PWM Cabinet Fan (NF-F12-5V-PWM)

Noctua NF-F12 5V PWM Cabinet Fan (NF-F12-5V-PWM)

(Inclusive of all taxes)

Model No : NF-F12-5V-PWM
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

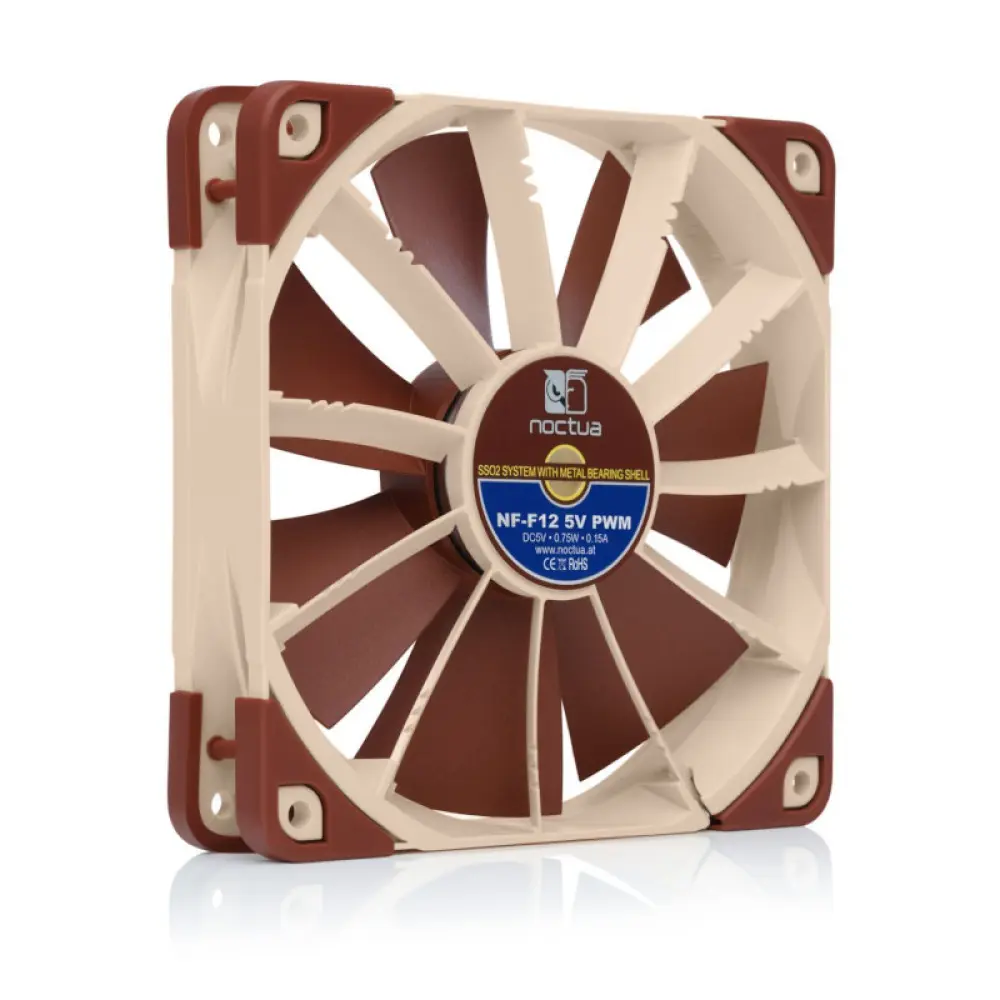

Noctua NF-F12 5V PWM Cabinet Fan

The NF-F12 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as the FocusedFlow™ system, the NF-F12 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s warranty, the NF-F12 5V PWM is a premium choice for demanding 5V applications that require PWM control.

Specification
Notes and warnings Being a 5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
Size 120x120x25 mm
Mounting hole spacing 105×105 mm
Connector & pin-configuration 4-pin PWM
Bearing  SSO2
Blade geometry  Heptaperf™
Frame technology  Focused Flow™
Rotational speed (+/- 10%) 1500 RPM
Min. rotational speed @ 20% PWM (+/-20%)

300 RPM
Airflow 93.4 m³/h
Acoustical noise 22.4 dB(A)
Static pressure 2.61 mm H₂O
Input power (typical) 0.65 W
Input power (max.) 0.75 W
Input current (typical) 0.13 A
Max. input current 0.15 A
Operating voltage 5 V
MTTF > 150.000 h
Scope of delivery 30cm extension cable

NA-AV1 anti-vibration mounts

USB power adaptor cable

OmniJoin adaptor set

Fan screws
Warranty 6 Years
Note* Price, feature and specifications are subject to change without notice.
