NOCTUA NF-A12x25 PWM CABINET FAN (SINGLE PACK)

Inclusive of all taxes

Model :

NF-A12X25-PWM

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

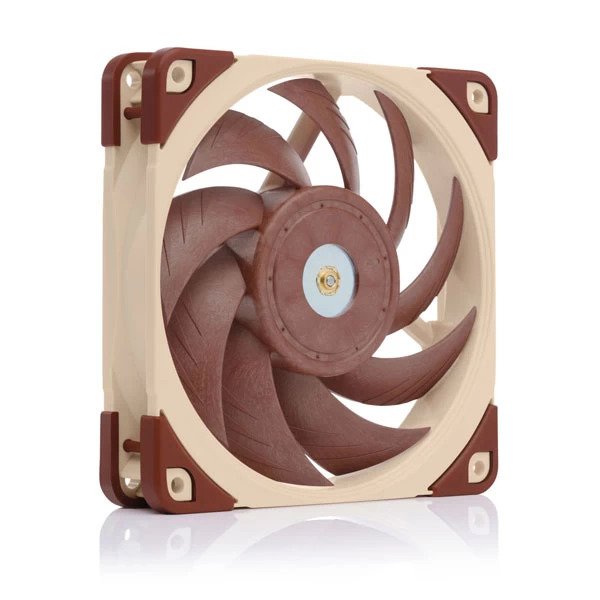

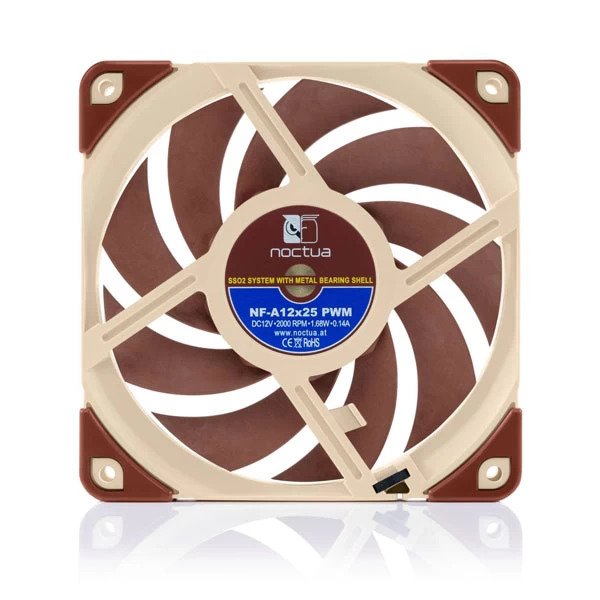

NOCTUA NF-A12x25 PWM CABINET FAN (SINGLE PACK)

specifications

Product Details
Notes & Warning NF-A12x25 further reading:

  • Performance comparison to NF-F12 and NF-S12A
  • Technical backgrounds and manufacturing challenges
  • Interview with Lars Strömbäck (Noctua CTO)
  • Which 120mm fan is right for me?
Fan Specifications
Size 120x120x25 mm
Mounting hole spacing 105×105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Material Sterrox® LCP
Rotational speed (+/- 10%) 2000 RPM
Rotational speed with L.N.A. (+/- 10%) 1700 RPM
Min. rotational speed (PWM, +/-20%) 450 RPM
Airflow 102,1 m³/h
Airflow with L.N.A. 84,5 m³/h
Acoustical noise 22,6 dB(A)
Acoustical noise with L.N.A. 18,8 dB(A)
Static pressure 2,34 mm H₂O
Static pressure with L.N.A. 1,65 mm H₂O
Max. input power 1,68 W
Max. input current 0,14 A
Operating voltage 12 V
Voltage PWM signal 5 V
MTTF > 150.000 h
Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV2 anti-vibration mounts
  • Anti-vibration gasket for water cooling radiators
  • Fan screws
Warranty 6 years
