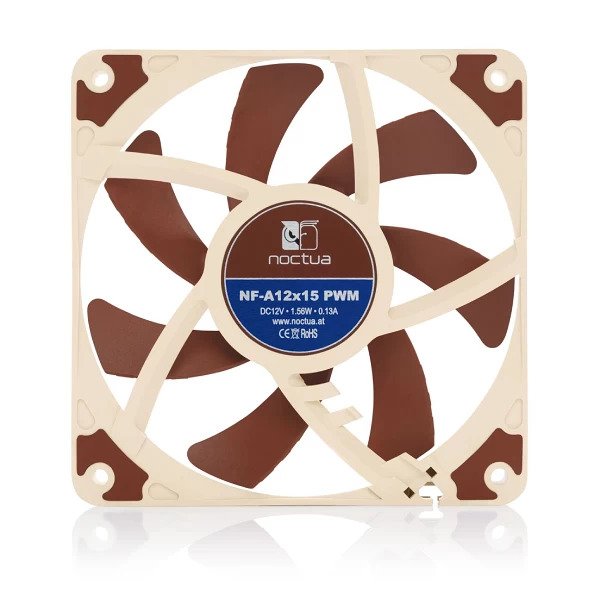

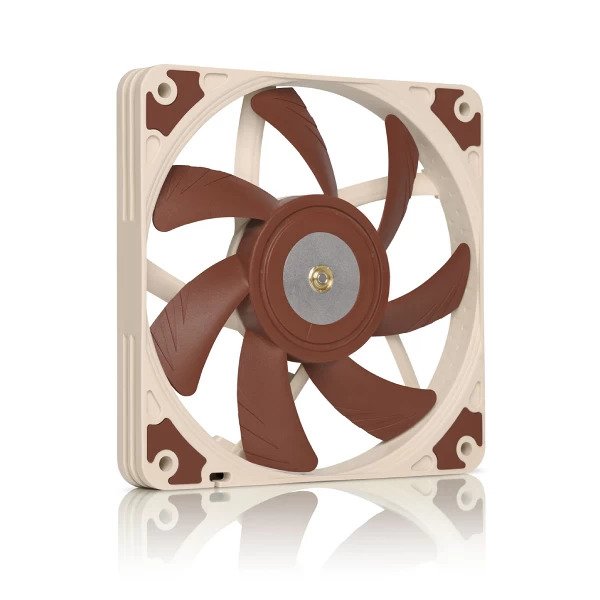

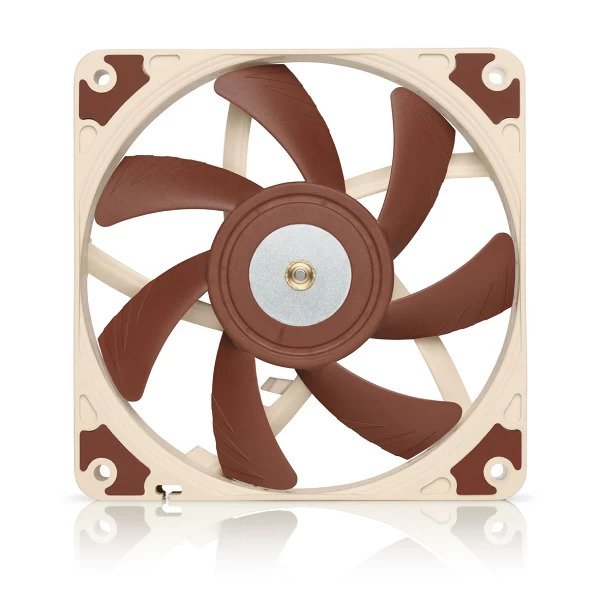

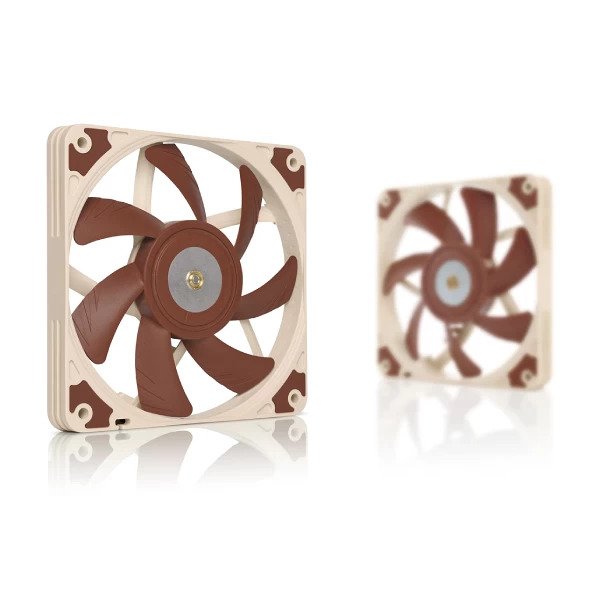

NOCTUA NF-A12x15 PWM CABINET FAN (SINGLE PACK)

Inclusive of all taxes

Model :

NF-A12X15-PWM

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

NOCTUA NF-A12x15 PWM CABINET FAN (SINGLE PACK)

Specifications

Size 120x120x15 mm
Mounting hole spacing 105×105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1850 RPM
Rotational speed with L.N.A. (+/- 10%) 1400 RPM
Min. rotational speed (PWM, +/-20%) 450 RPM
Airflow 94,2 m³/h
Airflow with L.N.A. 70,8 m³/h
Acoustical noise 23,9 dB(A)
Acoustical noise with L.N.A. 16,8 dB(A)
Static pressure 1,53 mm H₂O
Static pressure with L.N.A. 0,9 mm H₂O
Max. input power 1,56 W
Max. input current 0,13 A
Operating voltage 12 V
Voltage PWM signal 5 V
MTTF > 150.000 h

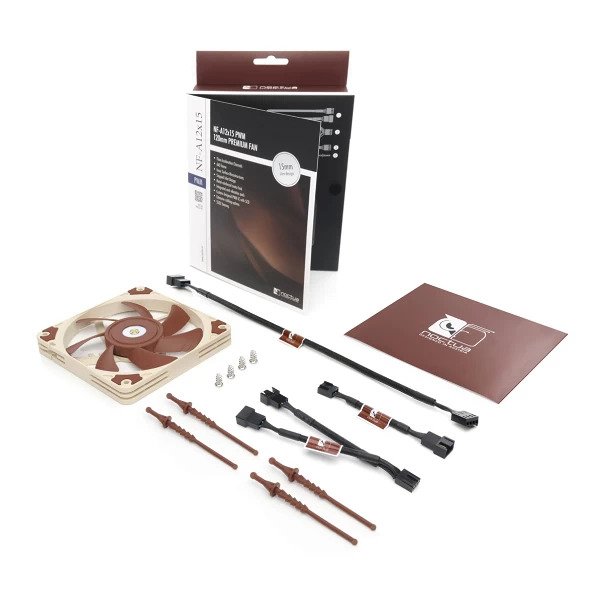

Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV3 anti-vibration mounts
  • Fan screws
Warranty 6 Years
Note *** Features, Price, Specifications are subject to change without notice.
