MSI Z790 Gaming Pro WIFI Motherboard ( Z790-GAMING-PRO-WIFI)

( No Customer Rating )

Original price was: ₹42,999.Current price is: ₹26,850.

(38% OFF)

(Inclusive of all taxes)

Model No : Z790-GAMING-PRO-WIFI

Out of stock

all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

MSI Z790 Gaming Pro WIFI Motherboard ( Z790-GAMING-PRO-WIFI)

Upgrade your gaming setup with the MSI Z790 Gaming Pro Wifi Motherboard. Buy now for high-performance gaming and seamless connectivity.

Features:

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads are built for a high-performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
  • High-Quality PCB: 6-layer PCB made of 2oz thickened copper
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience.

  • Specifications:

  • Chipset  INTEL Z790
     CPU SUPPORT  Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
     Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
     Onboard Graphics  1x HDMI™
    Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz
     EXPANSION SLOT  3x PCI-E x16 slot
    2x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset)
     Storage  3x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
     RAID  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
     USB  4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    3x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
     LAN  Realtek® RTL8125BG 2.5Gbps LAN
    Realtek® RTL8111H 1Gbps LAN
     WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz(160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/axe

    Supports Bluetooth® 5.3, FIPS, FISMA
     Audio  Realtek® ALC897 Codec
    7.1-Channel High-Definition Audio
    Supports S/PDIF output
     Internal I/O  1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
     LED FEATURE  4x EZ Debug LED

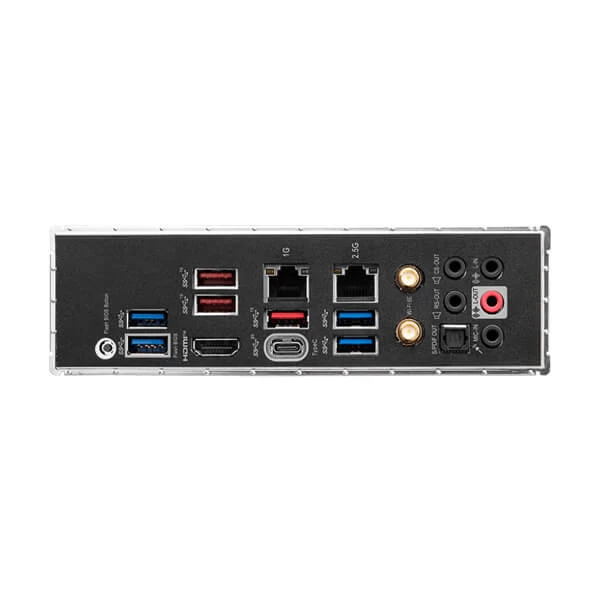

     BACK PANEL PORTS USB 3.2 Gen 1 5Gbps Type-A
    USB 3.2 Gen 2 10Gbps Type-A
    1G LAN
    2.5G LAN Port
    Wi-Fi / Bluetooth Antenna
    HD Audio Connectors
    Flash BIOS Button
    HDMI™ 1.4 Port
    USB 3.2 Gen 2×2 20Gbps Type-C
    USB 3.2 Gen 1 5Gbps Type-A
    Optical S/PDIF OUT
     OPERATING SYSTEM  Support for Windows® 11 64-bit, Windows® 10 64-bit
     PCB Dimension  ATX
    243.84mmx304.8mm
     Warranty  3 Years
    Note *** Features, Prices, and Specifications are subject to change without notice.
