Description

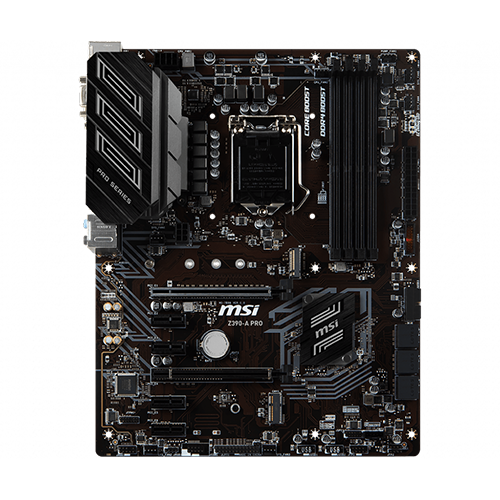

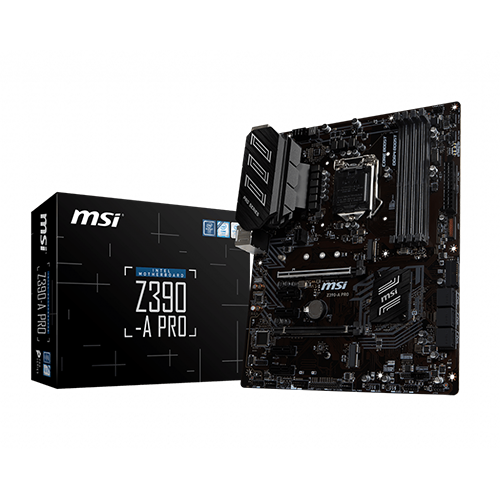

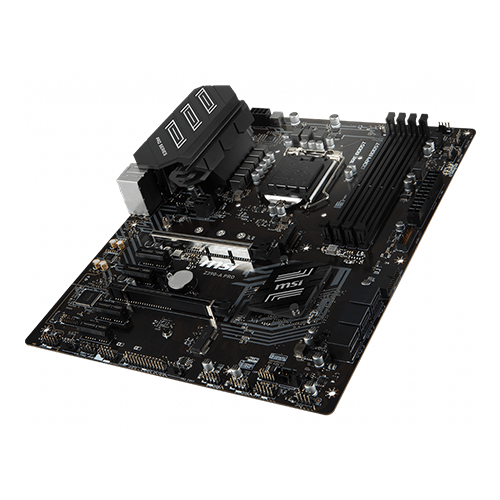

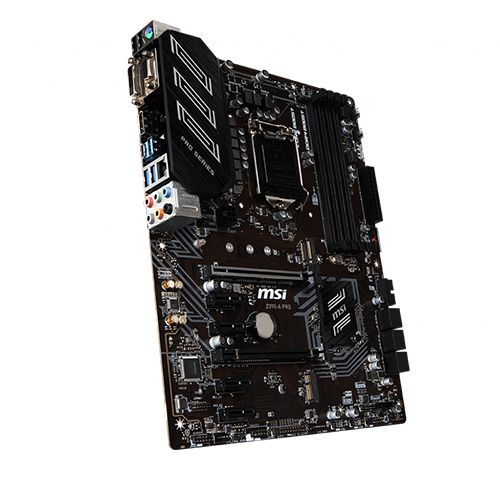

MSI Z390-A PRO MOTHERBOARD
FEATURES
Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
- Audio Boost: Reward your ears with studio grade sound quality.
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Intel® LAN：Premium network solution from Intel® for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
- Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
SPECIFICATIONS
| PROCESSOR |
Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET |
Intel® Z390 Chipset |
| MEMORY |
- 4 x DDR4 memory slots, support up to 128GB
- Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
- Supports Dual Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to Compatibility for more information on compatible memory
|
| SLOTS |
- 2 x PCIe 3.0 x16 slots
- 4 x PCIe 3.0 x1 slots
- 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only
|
| ONBOARD GRAPHICS |
|
| MULTI-GPU |
- Supports 2-Way AMD® CrossFire™ Technology
|
| STORAGE |
Intel® Z390 Chipset
- 6 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- Intel® Optane™ Memory Ready
- The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
|
| RAID |
Intel® Z390 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
| USB |
Intel® Z390 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details.
|
| AUDIO |
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
|
| LAN |
- 1 x Intel® I219-V Gigabit LAN controller
|
| INTERNAL CONNECTORS |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 6-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x M.2 slots (1 M-Key slot,1 E-Key slot)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 5 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x 4-pin RGB LED connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper
- 1 x Parallel port connector
- 1 x TPM module connector
- 1 x thunderbolt Add-on card connector
- 1 x Front OC button connector
|
| BACK PANEL PORTS |
- PS/2 Combo
- VGA
- USB 3.1 Gen2 Type A+C
- LAN
- HD Audio Connectors
- USB 2.0
- DVI-D
- Displayport
- USB 3.1
|
| DIMENSIONS |
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
|
| MOUNTING |
9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit |
| Warranty |
3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice. |
