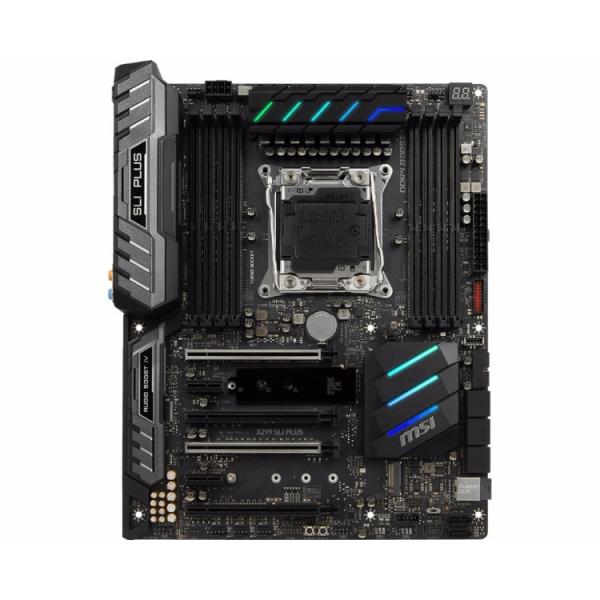

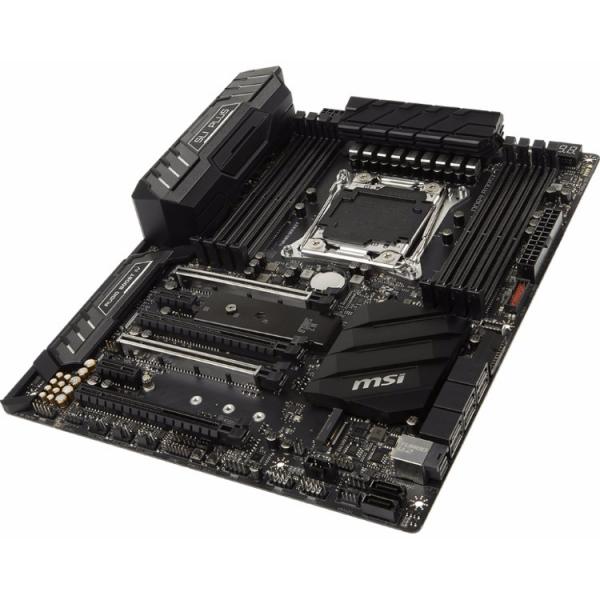

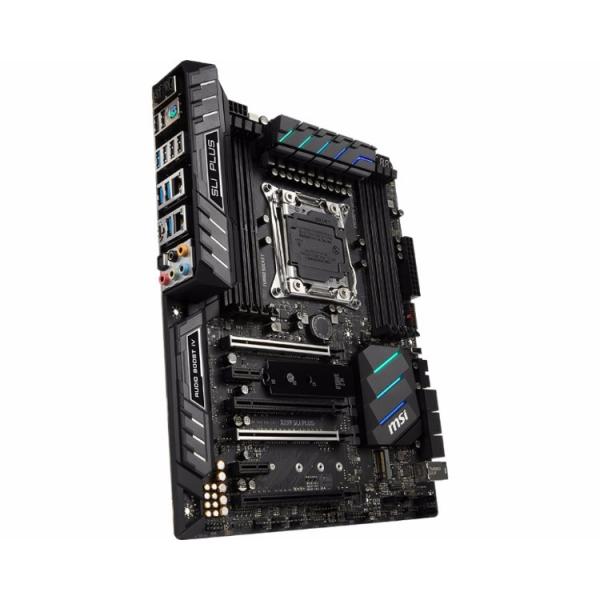

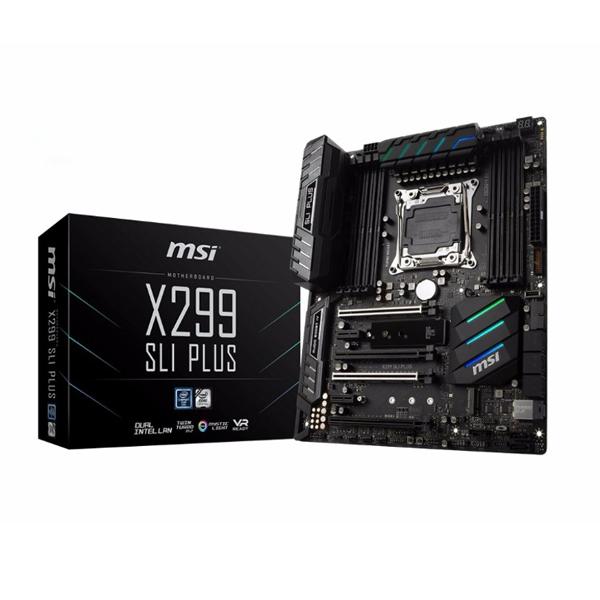

MSI X299 SLI PLUS

  • Supports Intel??Core? X-Series Processor Family for LGA2066 Socket
  • Support Quad Channel DDR4-4133(OC)+, Dual Channel DDR4-4500(OC)+
  • Dual Intel??LAN: The best solution for both Intranet and Internet through hardware design and bandwidth management offering the lowest latency.
  • M.2 SHIELD: Keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
  • DDR4 BOOST: Give your DDR4 memory a performance boost.
  • Designed for Extreme Performance: TURBO SOCKET with OC Genie 4, DIGITALL POWER Design
  • Lightning Fast Experience: TWIN TURBO M.2 and Intel??Optane Memory Ready, Turbo U.2, LIGHTNING USB 3.1 GEN2
  • MYSTIC LIGHT: 7 mixed color schemes / 8 LED effects controlled in one click
  • SYSTEM SAVER: 3 easy-to-use options to successfully boot your system again.
  • AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-way NVIDIA SLI? / AMD Crossfire?
  • VR READY: Best virtual reality experience without latency, reduces motion sickness
  • EZ Debug LED: Easiest way to troubleshoot
Motherboard
PROCESSOR Supports Intel?Core? X-Series Processor Family for LGA2066 Socket
CHIPSET Intel?X299 Chipset
MEMORY

Intel??Core? X-series Processors (6-core above CPU 78XX/79XX)

  • 8 x DDR4 memory slots, support up to 128GB
  • Quad channel memory architecture with the CPU that supports up to

4-channels DDR4

  • X-series processor support DDR4 4133+(OC)/4000(OC)/

3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/

3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz

Intel??Core? X-series Processors (4 core CPU i7-7740X/i5-7640X)

  • 4 x DDR4 memory slots, support up to 64GB
  • Dual channel memory architecture with the CPU that supports up to 2-channels DDR4
    • X-series processor support DDR4 4500(OC)/4400(OC)/

4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/

3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/

2933(OC)/2800(OC)/2667/2400/2133 MHz

  • Supports Intel??Extreme Memory Profile (XMP)
SLOTS
  • 4 x PCIe 3.0 x16 slots
    • Support x16/x16/x8 mode with the 44-lane CPU.
    • Support x16/x8/x4 modes with the 28-lane CPU.
    • Support x8/x8/x0, x8/x4/x4 modes with the 16-lane CPU.
  • 2 x PCIe 3.0 x1 slots
MULTI-GPU
  • Supports NVIDIA?SLI? Technology
  • Supports AMD?CrossFire? Technology
STORAGE

Intel??X299 Chipset

  • 8 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1 slot supports 2242/ 2260 /2280 storage devices
    • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
    • Supports Intel??Optane? Memory Ready for all M.2 slots2
  • 1 x U.2 port3
    • Supports PCIe 3.0 x4 NVMe storage
  • Supports Intel??Smart Response Technology for Intel Core? processors4
  1. M.2 slots and SATA ports share the same bandwidth. Please refer to page 38 for U.2, M.2 & SATA combination table.
  2. Please refer to user manual for Intel??Optane? Memory Configuration.
  3. PCI_E3 shares bandwidth with U2_1. If you install a PCI_E3 device, the U2_1 will be disabled.
  4. The functions will be supported depend on the CPU.
RAID

Intel??X299 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID1 for M.2 PCIe storage devices1
  1. M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to user manual for Creating a M.2 PCIe SSD RAID with M.2/Optane Genie.
USB

ASMedia??ASM3142 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector)

ASMedia??ASM1074 Hub

  • 3 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

Intel??X299 Chipset

  • 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 Type-A port on the back panel, 4 ports available through the internal USB connectors)
  • 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO

Realtek??ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel??I219-V Gigabit LAN controller
  • 1 x Intel??I211 Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 8 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 4 x 4-pin system fan connectors
  • 2 x Front panel connectors
  • 1 x Front panel audio connector
  • 1 x RGB LED connector
  • 1 x TPM module connector
  • 1 x Virtual RAID on CPU connector
  • 1 x Thunderbolt add-on card connector

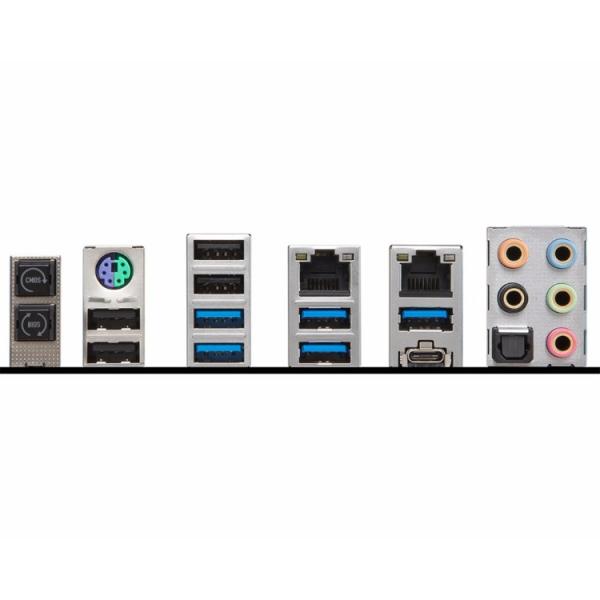

BACK PANEL PORTS
  1. Clear CMOS Button
  2. Keyboard / Mouse
  3. USB 2.0
  4. Dual Intel??LAN
  5. Golden Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0 / Flash BIOS
  8. USB 3.1 Gen1
  9. USB 3.1 Gen2 Type-A/C
  10. Optical S/PDIF-Out
DIMENSIONS
  • 12 in. x 9.6 in. (30.5 cm x 24.3 cm)
  • ATX Form Factor
MOUNTING 9 mounting holes
Warranty 3 Years
Note ***Features, Price and specifications are subject to change without notice.
