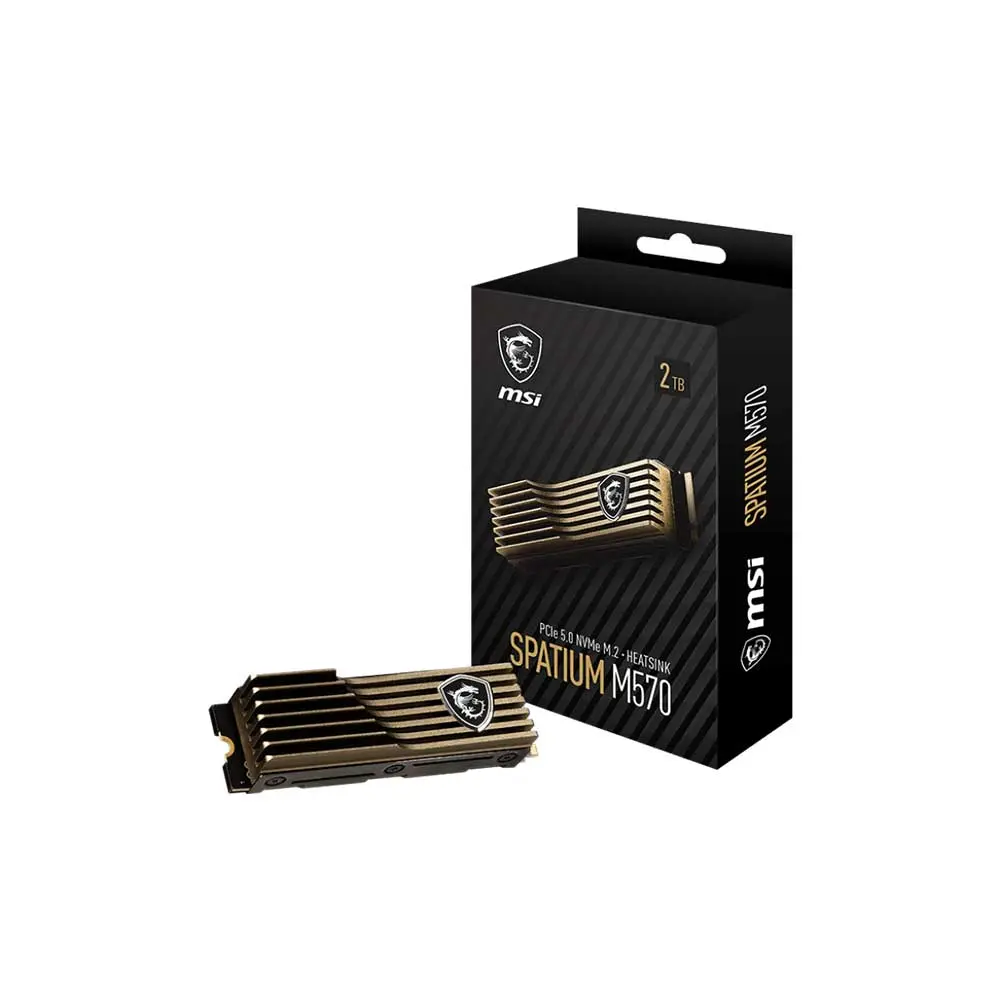

Msi Spatium M570 2Tb PCIe 5.0 Nvme M.2 Hs Internal Ssd

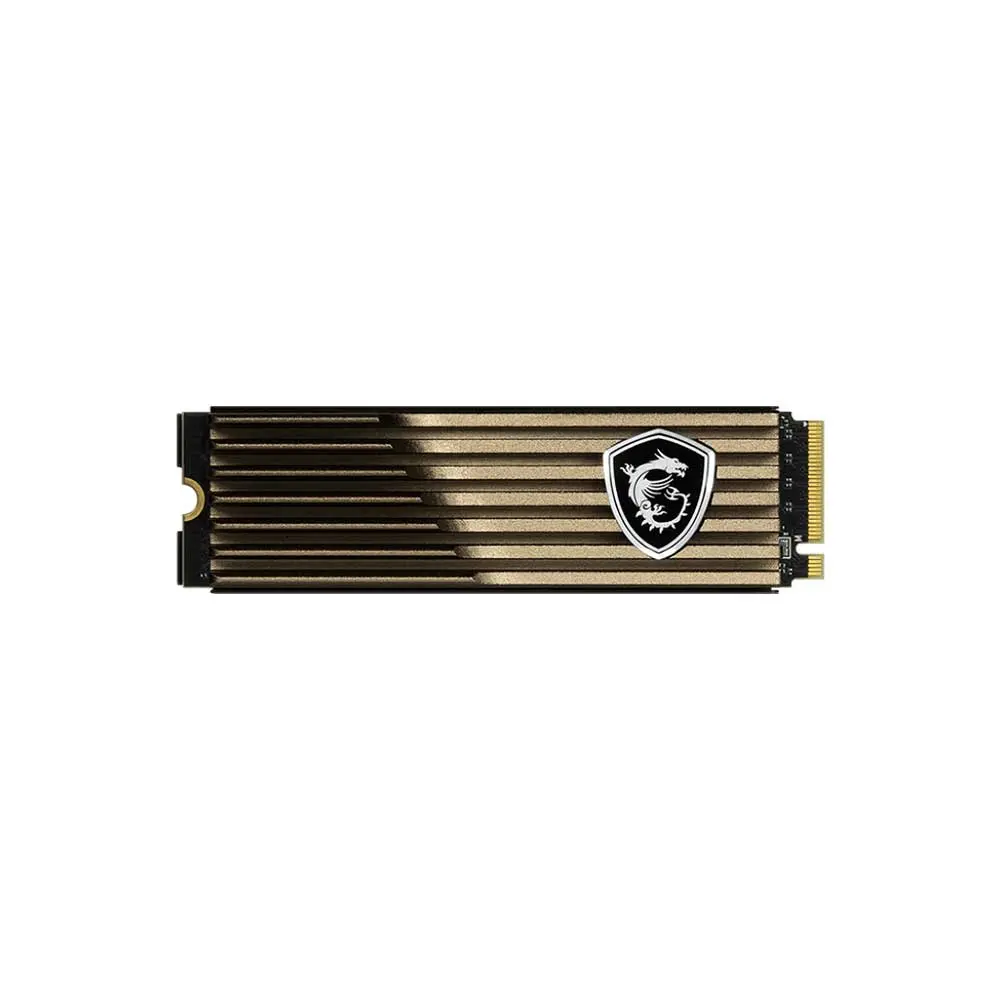

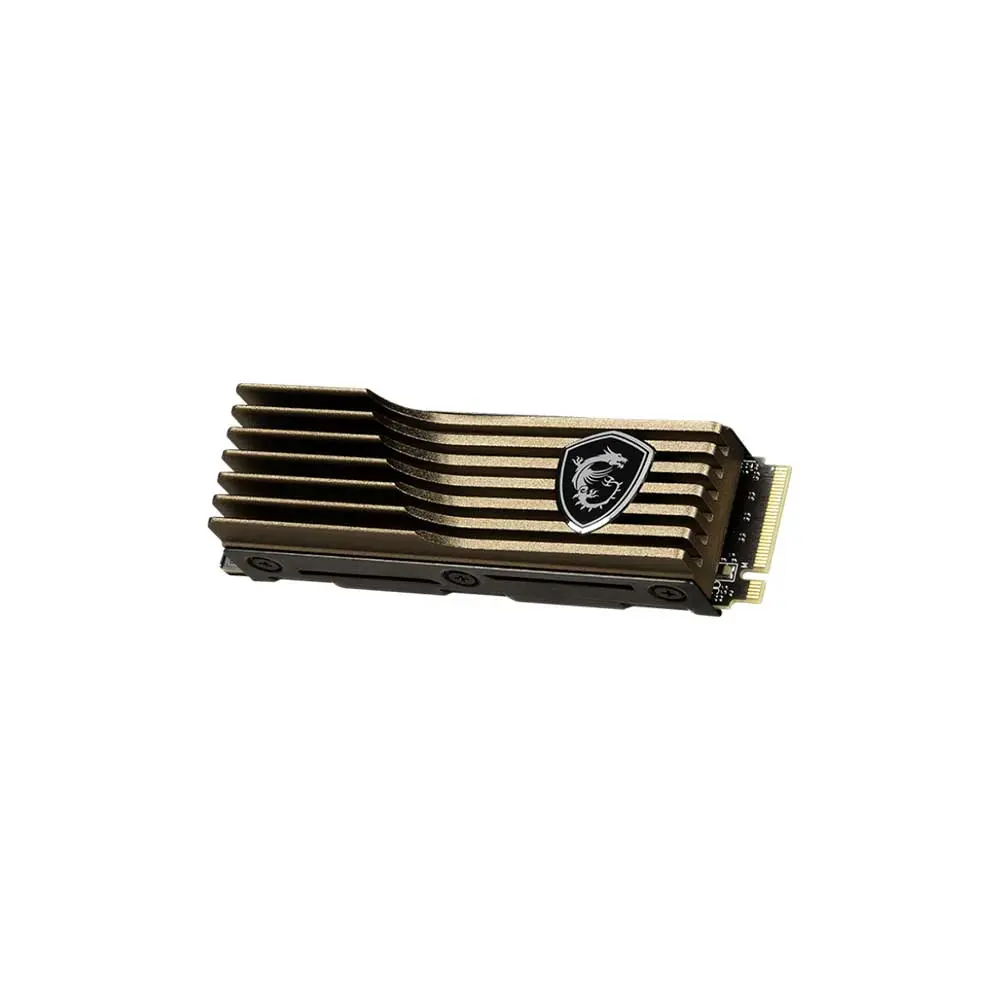

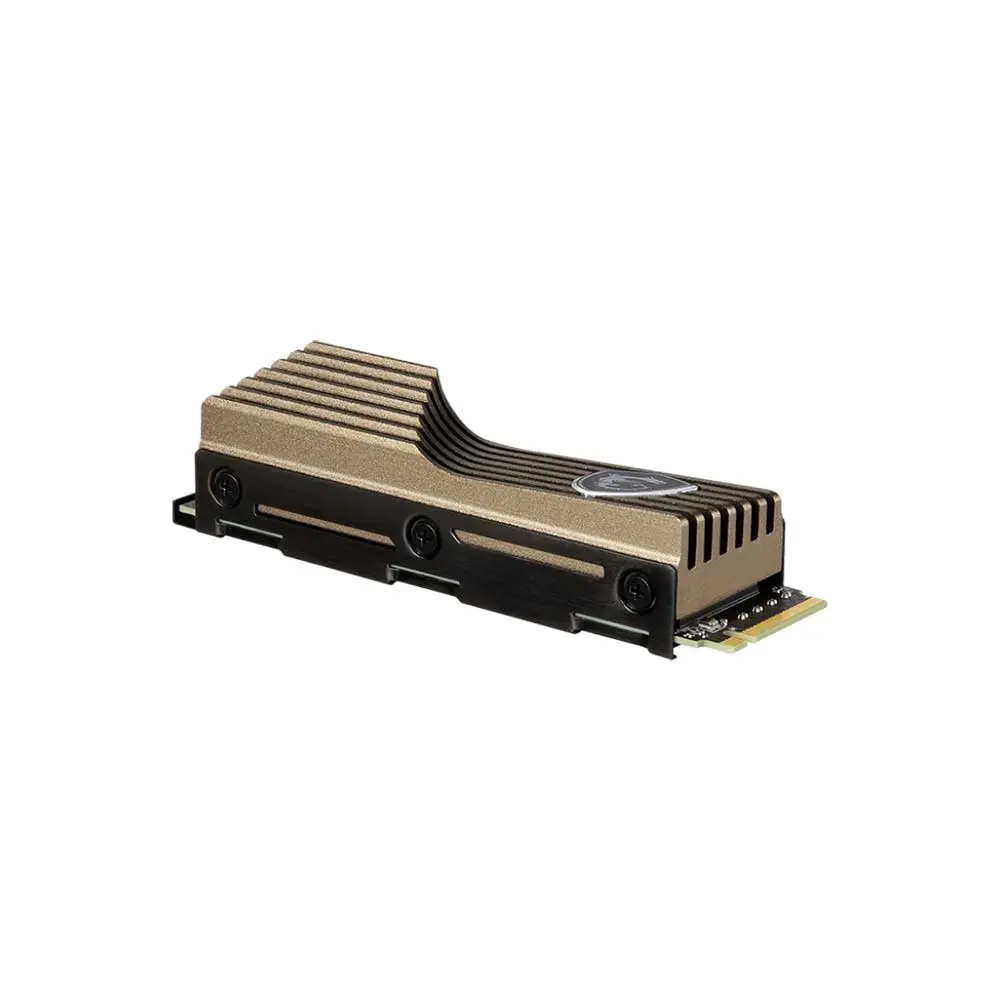

Msi Spatium M570 2Tb sports a gorgeous bronze-colored aluminum heatsink with a stacked fin structure that efficiently dissipates heat and allows the SSD to sustain maximum performance under heavy load.
- PCIe Gen5x4 interface and complies with the NVMe NVMe 2.0 standard
- Sequential Read speeds up to 10000MB/s and Write speeds up to 10000MB/s
- Up to 1400 TBW
- Built-in data security and error-correction capabilities
- 1TB to 2TB capacities in M.2 2280 form factor
- 5-Year Warranty
Model Name | SPATIUM M570 PCIe 5.0 NVMe M.2 HS |
Capacity | 2TB |
Controller | PHISON E26 |
Flash Memory | 3D NAND |
DRAM Cache | 4GB LPDDR4 |
Form Factor | M.2 2280 |
Interface | PCIe Gen5x4, NVMe 2.0 |
Compatibility | PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1 |
Dimensions | 80.00mm (L) x 22.00mm (W) x 3.5mm (H) (w/o heatsink) 80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink) |
Sequential Read Up to (Mb/s) | 10,000 |
Sequential Write Up to (Mb/s) | 10,000 |
Random Read 4Kb Up to (IOPS) | 14,00,000 |
Random Write 4Kb Up to (IOPS) | 15,00,000 |
Maximum Operating Power (W) | 11 |
Operating Temperatures | 0°C – 70°C |
Storage Temperatures | -40°C – 85°C |
Terabytes Written (TBW) | 1400 |
Mean Time Between Failure (MTBF) | Up to 1,600,000 Hours |
Advanced Features | TRIM (Performance Optimization, OS Support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) |
Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. |
Note** | **Prices, Specifications & Features are subject to change without notice |
