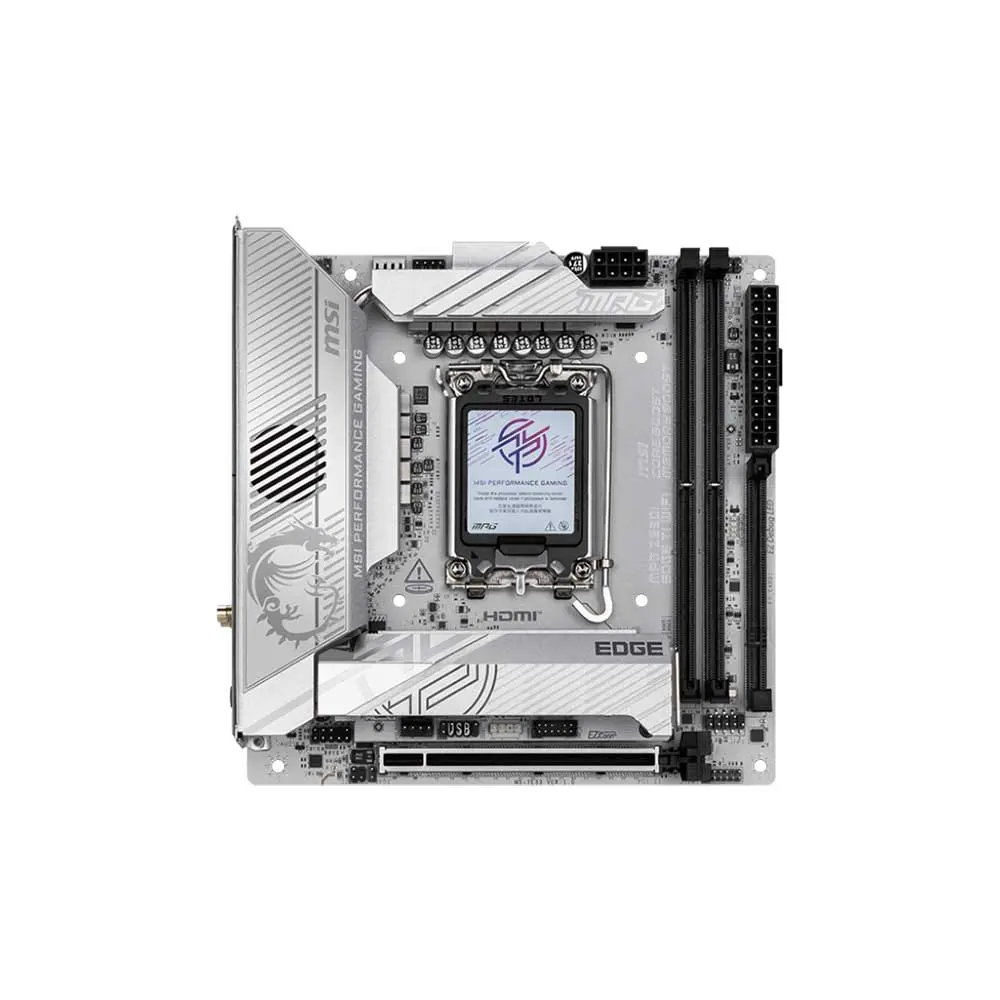

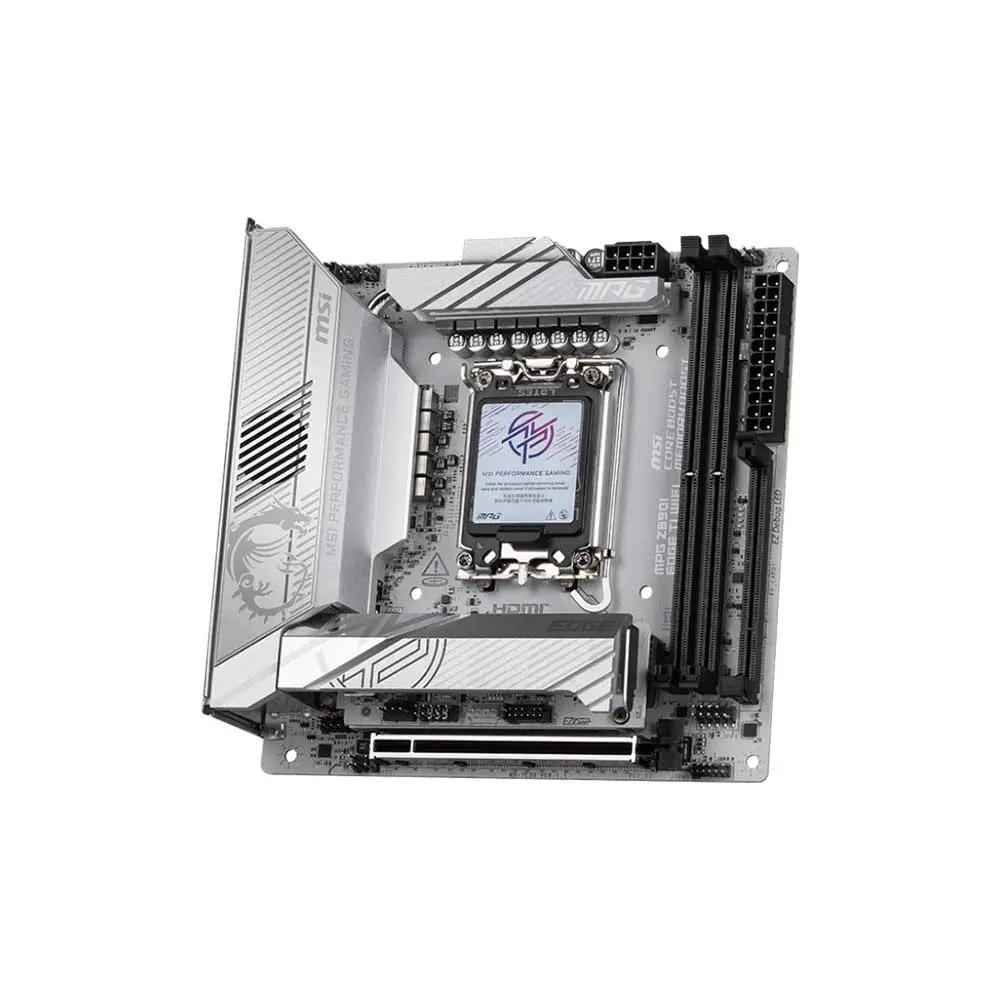

Msi Mpg Z890I Edge Ti WiFi LGA1851 Mini-ITX Motherboard
Home>Brand>MSI>Msi Mpg Z890I Edge Ti WiFi LGA1851 Mini-ITX Motherboard

Msi Mpg Z890I Edge Ti WiFi LGA1851 Mini-ITX Motherboard

Original price was: ₹45,000.Current price is: ₹42,500.

(6% OFF)

(Inclusive of all taxes)

Model No : MPG Z890I EDGE TI WIFI

Out of stock

all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Msi Mpg Z890I Edge Ti WiFi LGA1851 Mini-ITX Motherboard

MSI MPG Z890I EDGE TI WIFI is a mini-ITX Z890 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 connecitvity. The 5-in-1 Xpander brings this motherboard more connectivities. It is definetly the best mini-ITX motherboard for Intel Core Ultra processors.

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, up to 8600+ MT/s (OC)
  • Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
  • Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
  • Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
    • Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/sSupports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Onboard Graphics 1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Slot 1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G
Raid Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB 2x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
7x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN 1x Intel® Killer™ E5000B 5G LAN
Internal I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM
LED Feature 4x EZ Debug LED

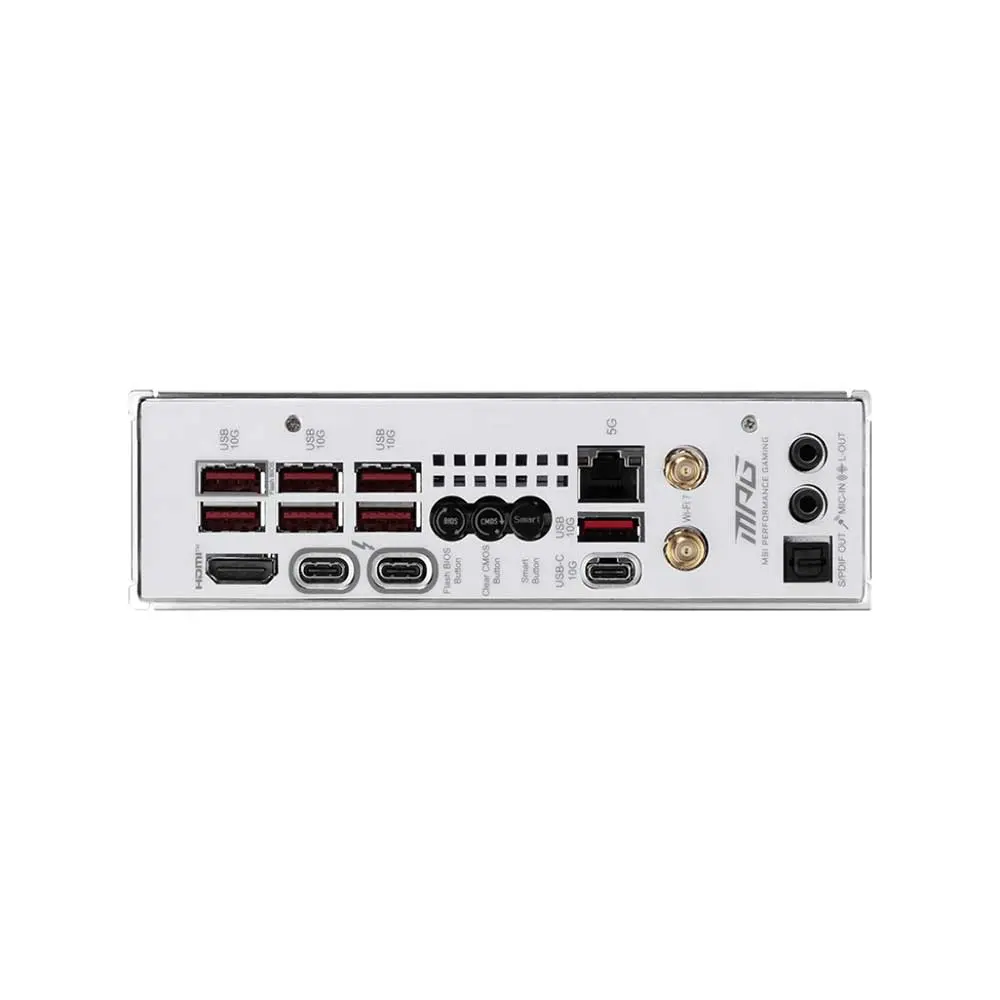

Back Panel Ports USB 10Gbps Type-A
Flash BIOS Button
Clear CMOS Button
Smart Button
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt 4
USB 10Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF Out
Operating System Support for Windows® 11 64-bit
PCB Info Mini-ITX
170mmx170mm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice

Additional information

brand

motherboard-cpu-support

motherboard-max-memory

motherboard-memory-support

motherboard-size
