Msi Mpg Z790 Carbon Max Wifi II Lga1700 Atx Motherboard
Msi Mpg Z790 Carbon Max Wifi II Motherboard support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket and PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
Features:
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 8-layer PCB made by server grade level material - Pre-installed I/O Shield: Better EMI protection and more convenience for installation
MPG Z790 CARBON MAX WIFI II TITLE
MPG Z790 CARBON MAX WIFI II employs a carbon black color scheme and reflection decoration over Mysticlight RGB lighting to show a different identity. It is also powerful inside by featuring Wi-Fi 7 solution, optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, making this motherboard one of the best Z790 ATX motherboards for Intel® 14th Gen and 13th Gen Core processors.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Specifications:
Model Number | MPG-Z790-CARBON-MAX-WIFI-II |
CHIPSET | INTEL Z790 |
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
AUDIO | Realtek® ALC4080 Codec Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panel |
STORAGE | 5x M.2 5x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices6x SATA 6G |
LAN | Realtek 5Gbps LAN |
ONBOARD GRAPHICS | 1x HDMI™ 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz |
SLOT | 2x PCI-E x16 slot 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
USB | 4x USB 2.0 (Front) 4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)6x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Rear)1x USB 20Gbps Type C (Front) |
WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.4, MLO, 4KQAM |
INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)1x ARGB+FAN Header (JAF_1)1x USB4 card connector (JTBT_U4_1, supports RTD3)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 20Gbps Type C ports |
LED FEATURE | 4x EZ Debug LED 4x EZ Debug LED1x 2-Digit Debug Code LED1x EZ LED Control switch |

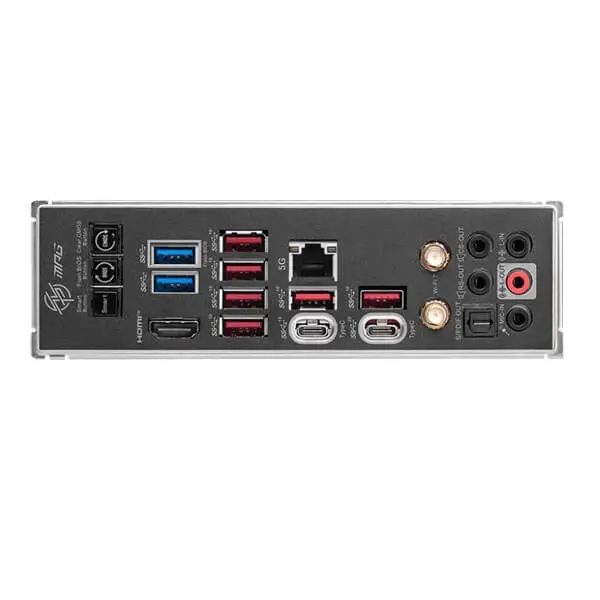

BACK PANEL PORTS | Flash BIOS / Clear CMOS USB 5 Gbps (Type-A) USB 10Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Smart Button HDMI™ USB 10Gbps (Type-C) USB 20Gbps (Type-C) Optical S/PDIF Out |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB INFO | ATX243.84mmx304.8mm |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
