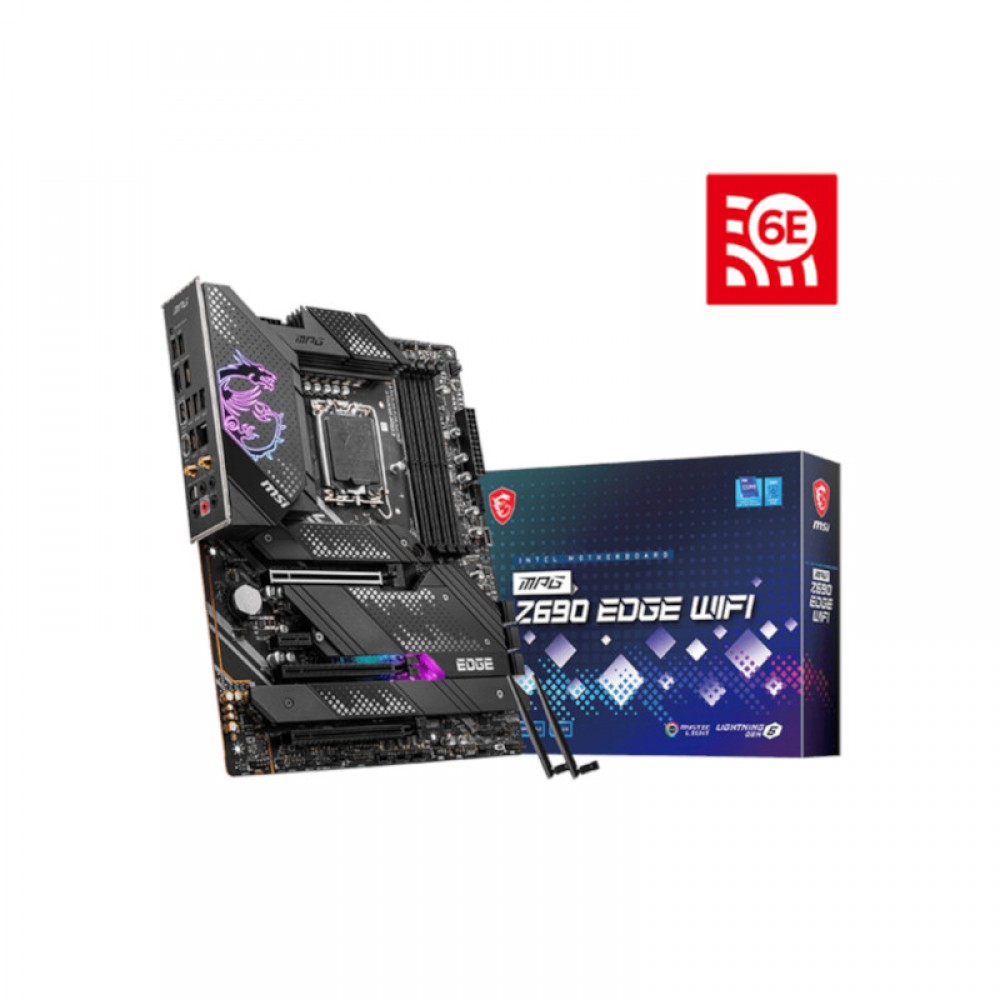

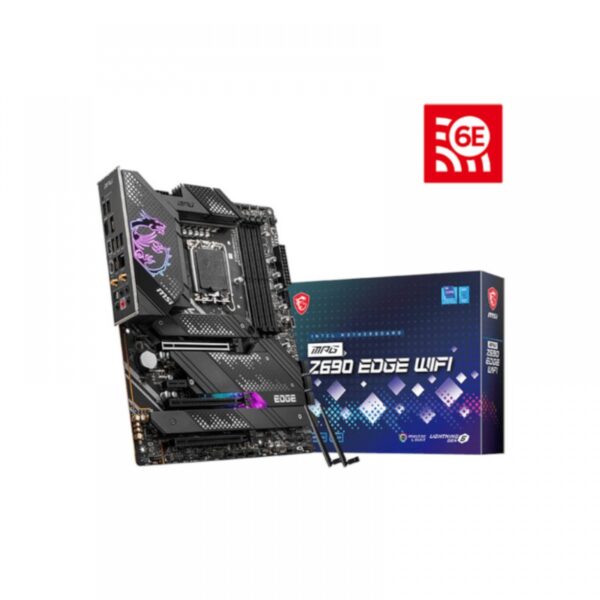

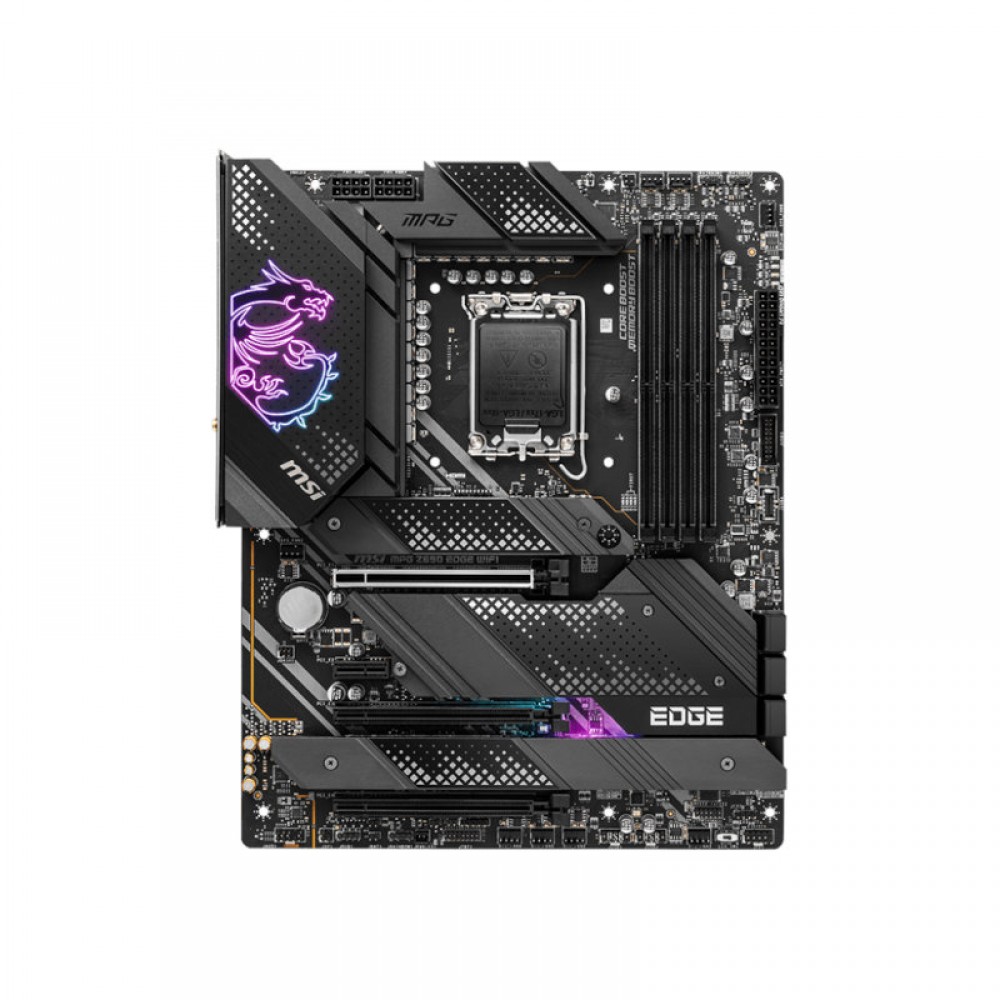

Msi Mpg Z690 Edge Wifi Lga1700 Atx Motherboard (MPG Z690 EDGE WIFI)

Model No : MPG Z690 EDGE WIFI

32,700.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

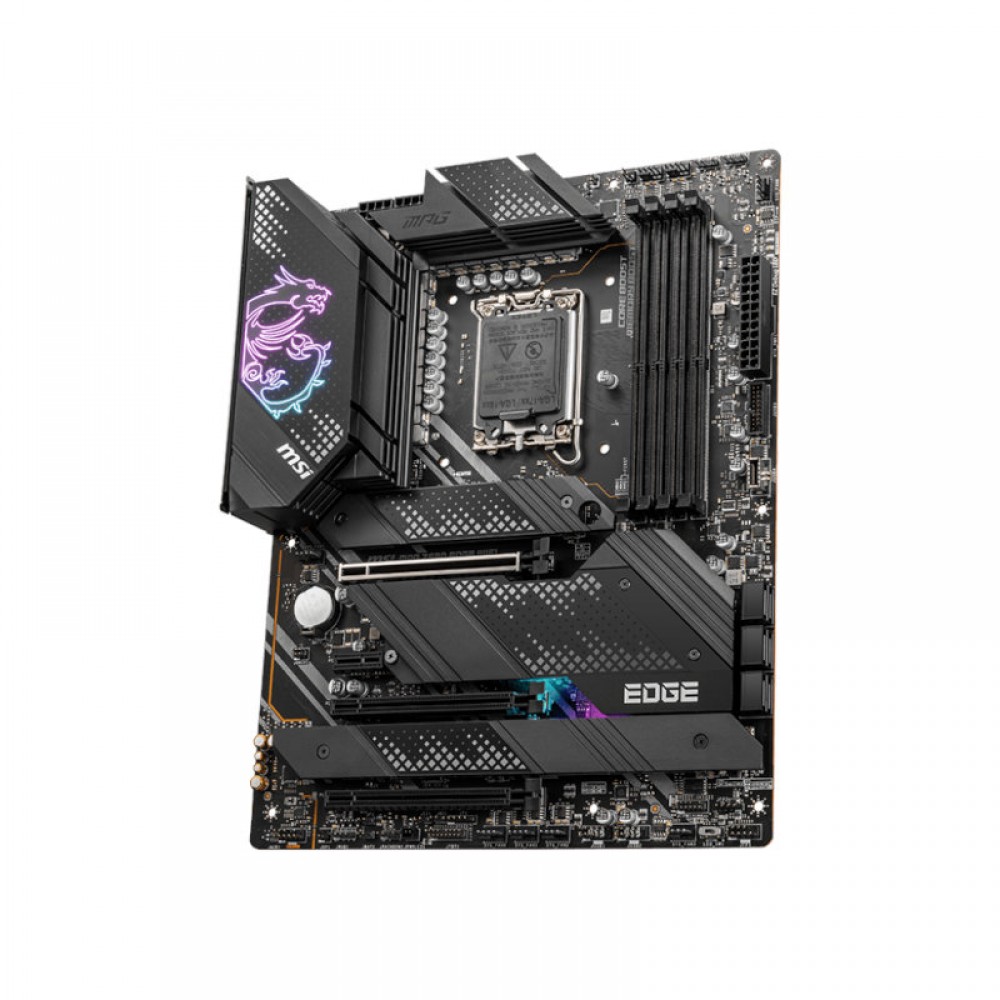

MSI MPG Z690 EDGE WIFI LGA1700 ATX MOTHERBOARD

  • Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specification
Processor Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1700

Please go to intel.com for compatibility information.

Chipset Intel® Z690 Chipset
Memory 4x DDR5 memory slots, support up to 128GB

Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1

Max. overclocking frequency:

1DPC 1R Max speed up to 6400+ MHz

1DPC 2R Max speed up to 5400+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory

Expansion Slot 3x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 5.0 x16

PCI_E3 & PCI_E4 slots (From Z690 chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot (From Z690 chipset

MULTI-GPU Supports AMD® CrossFire™ Technology
Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Audio Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Storage 6x SATA 6Gb/s ports

SATA5~8 (From Z690 Chipset)

SATAA~B (From ASMedia ASM1061)

2 x SATA 6Gb/s ports – SATAA & SATAB (From ASMedia

ASM1061)

4x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports PCIe 4.0 x4

Supports 2260/ 2280/ 22110 storage devices

M2_2 slot (From Z690 Chipset)

Supports PCIe 4.0 x4

Supports 2260/ 2280 storage devices

M2_3 slot (From Z690 Chipset)

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_4 slot (From Z690 Chipset)

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_2~4 support Intel® Optane™ Memory

Supports Intel® Smart Response Technology for Intel® Core™ processors

RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1

Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

SATAA & SATAB do not support RAID function.

LAN 1x Intel® I225V 2.5Gbps LAN controller
WIFI & BLUETOOTH Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.22, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.

USB Intel® Z690 Chipset

1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel

6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)

2x USB 2.0 Type-A ports on the back panel

2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

Internal Connectors 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

4x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1xTPM module connector

1x Clear CMOS jumper

1x Tuning controller connector

1x TBT connector (Supports RTD3)

LED Feature 1x 4-pin RGB LED connector

3x 3-pin RAINBOW LED connectors

1x EZ LED Control switch

4x EZ Debug LED

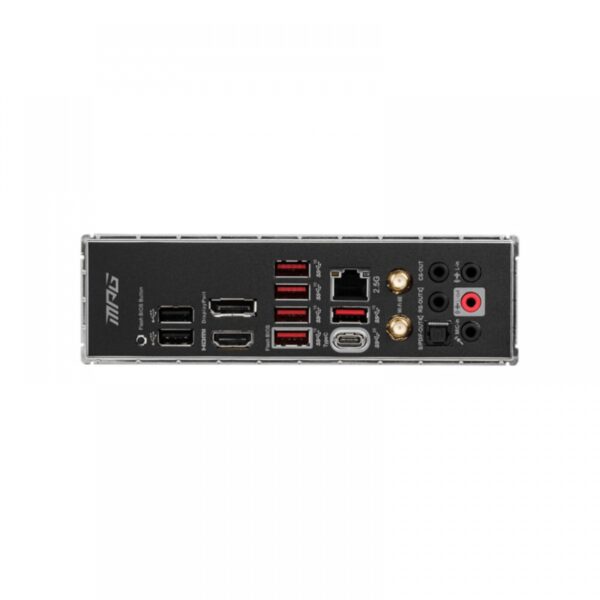

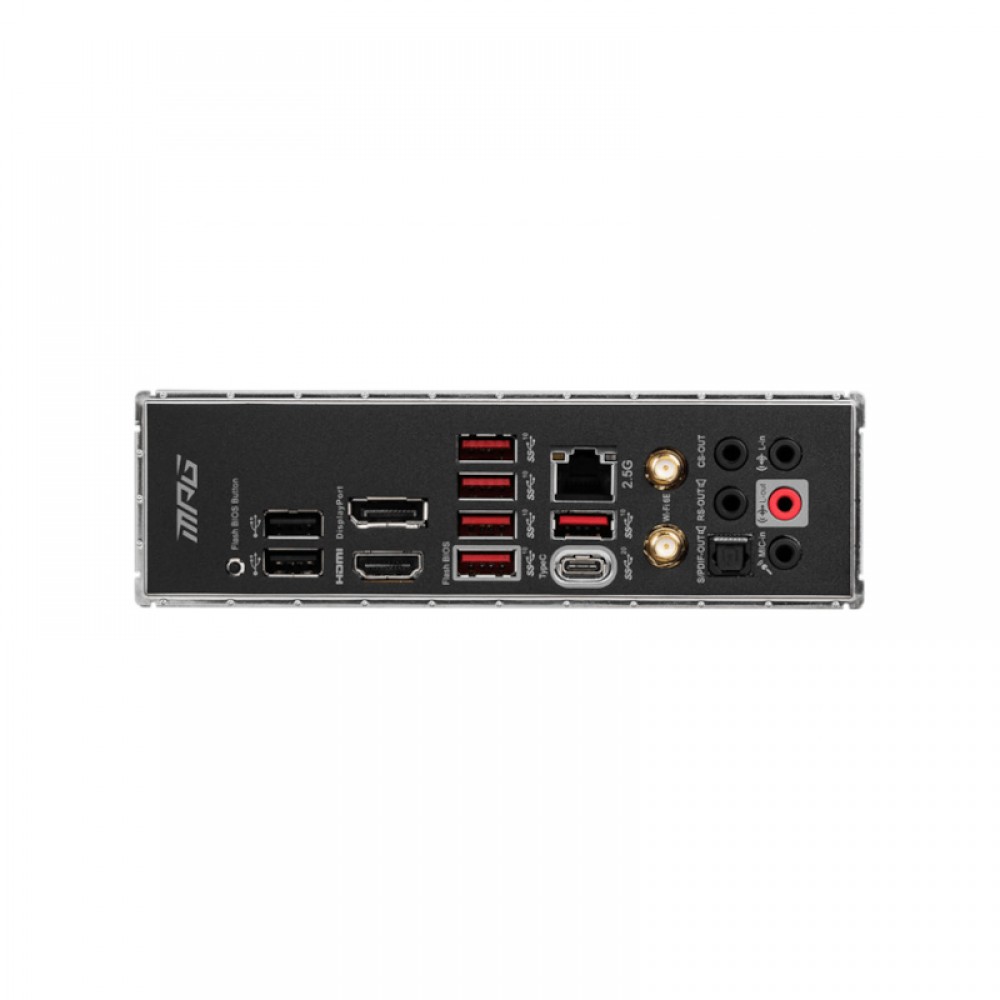

Back Panel Ports DisplayPort

2.5G LAN

Wireless Antenna

Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2×2 20Gbps Type-C

Optical S/PDIF Out

Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Mounting 9 mounting holes
Dimensions ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
