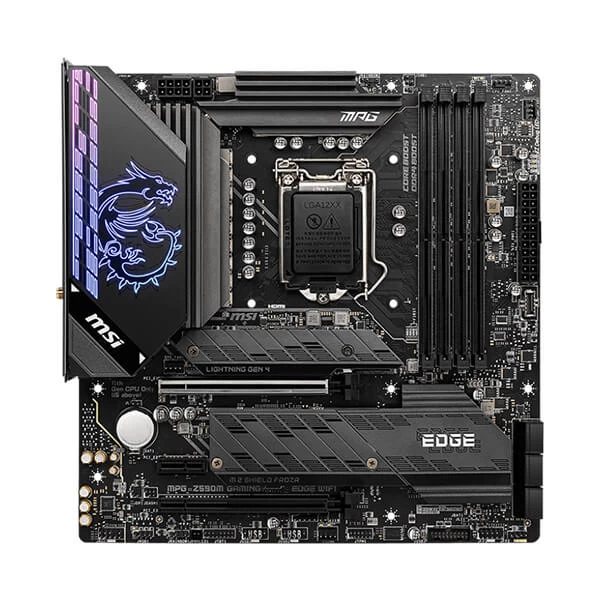

MSI MPG Z590M Gaming Edge WIFI Motherboard( MPG-Z590M-GAMING-EDGE-WIFI)

15,100.00
(28% OFF)
MRP 20,999.00

(Inclusive of all taxes)

Model No : MPG-Z590M-GAMING-EDGE-WIFI

Out of stock

all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

MSI MPG Z590M Gaming Edge WIFI Motherboard( MPG-Z590M-GAMING-EDGE-WIFI)

Buy now – MSI MPG Z590M Gaming Edge WIFI Motherboard. Unleash powerful gaming performance and seamless connectivity. Upgrade today!

Features:

  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 2x M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colours / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strips.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
  • High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Specification:

Model MPG Z590M GAMING EDGE WIFI
Processor
  • Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Processor socket LGA1200
Chipset Intel® Z590 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots 2x PCIe x16 slots

  • Support x16/x4
  • PCI_E1 (From CPU)
  • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
  • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
  • PCI_E3(From Z590 Chipset)
  • Support up to PCIe 3.0

1x PCIe 3.0 x1 slots (From Z590 Chipset)

Onboard Graphics
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  • 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Storage 6x SATA 6Gb/s ports (From Z590 Chipset)
2x M.2 slots (Key M)

  • M2_1 slot (From CPU)
  • Available only on 11th Gen Intel® CPU
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From Z590 Chipset)
  • Support up to PCIe 3.0 x4
  • Support up to SATA 6Gb/s1
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready2

Supports Intel® Smart Response Technology for Intel® Core™ processors

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Intel® Z590 Chipset

  • 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel and 2 ports are available through the internal connectors)
  • 2x USB 2.0 ports on the back panel

Hub-GL850G

  • 4x USB 2.0 ports are available through the internal connectors
Audio Realtek® ALC4080

  • 7.1-Channel High-Definition Audio
  • Supports S/PDIF output
LAN 1x Intel® I225V 2.5Gbps LAN controller
WIFI & BLUETOOTH Intel® Wi-Fi 6E AX210

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2z, FIPS, FISMA

Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump fan connector
  • 2-pin system fan connectors
    1x Front panel audio connectors
    2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x Tuning Controller connector
  • 1x TBT connector (supports RTD3)
LED Feature
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

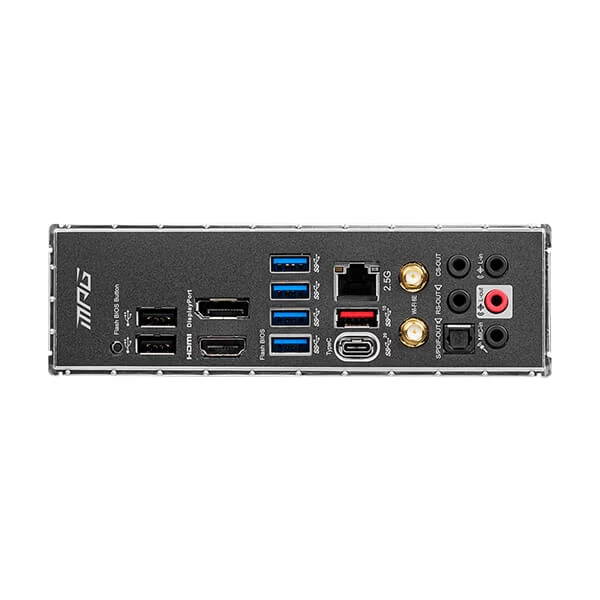

Back panel ports
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • 2.5G LAN
  • Wi-Fi/Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI™
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps
  • Type-C
  •  Optical S/PDIF Out
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Prices, and Specifications are subject to change without notice.
