MSI MPG Z590 GAMING PLUS

23,500.00

Inclusive of all taxes

Model :

MPG-Z590-GAMING-PLUS

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

Features

MPG Z590 GAMING PLUS

  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Specifications

PROCESSOR
  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors
  • Processor socket LGA1200
CHIPSET Intel® Z590 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel ® CPU (by JEDEC & POR)1
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS
  • 3x PCIe x16 slots
    • Support x16/x4/x4
    • PCI_E1 (From CPU)
      • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
      • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 & PCI_E5 (From Z590 chipset)
      • Support up to PCIe 3.0
  • 2x PCIe 3.0 x1 slots (From Z590 chipset)
    PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
MULTI-GPU
  • Supports 2-Way AMD® CrossFire™ Technology
STORAGE
  • 6x SATA 6Gb/s ports (From Z590 Chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 & M2_3 slots (From Z590 Chipset)
      • Support up to PCIe 3.0 x4 and SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
  • Supports Intel® Smart Response Technology for Intel Core ™ processors
  1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
USB Intel® Z590 Chipset

  • 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)
  • 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)

Hub-GL850G

  • 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)
AUDIO Realtek® ALC4080

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Intel® I225-V 2.5Gbps LAN controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin ATX PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (supports RTD3)
LED FEATURE
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x EZ LED Control switch
  • 4x EZ Debug LED

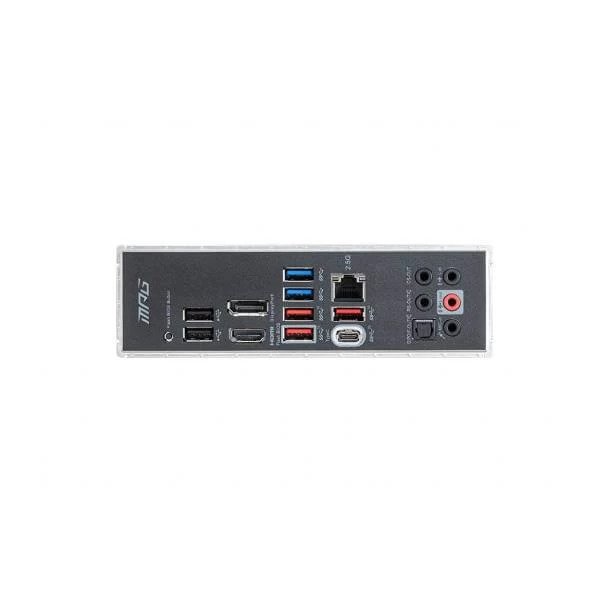

BACK PANEL PORTS
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • 2.5G LAN
  • Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • Optical S/PDIF Out
DIMENSIONS
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
