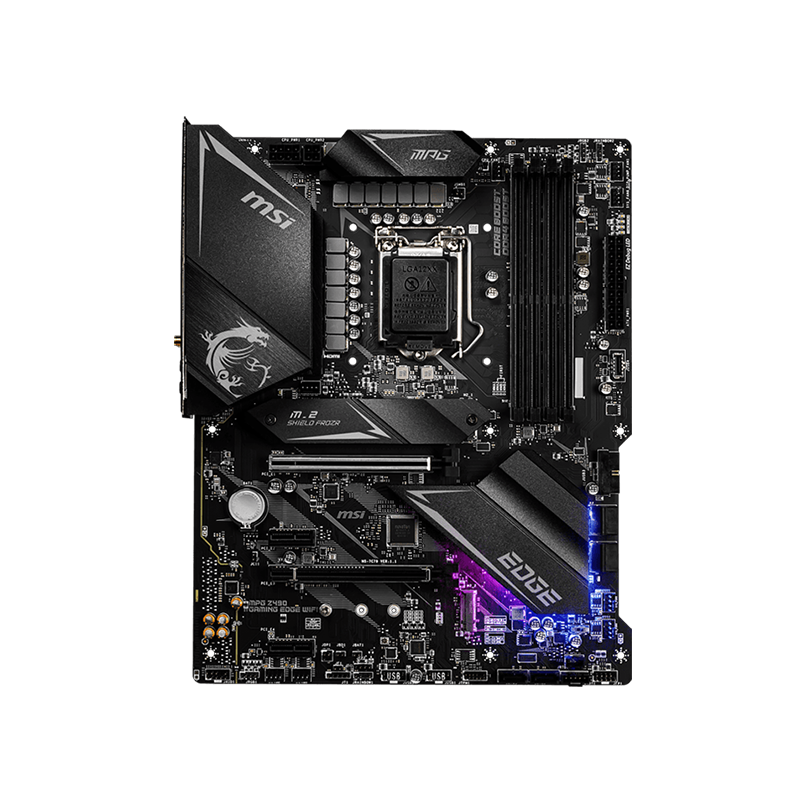

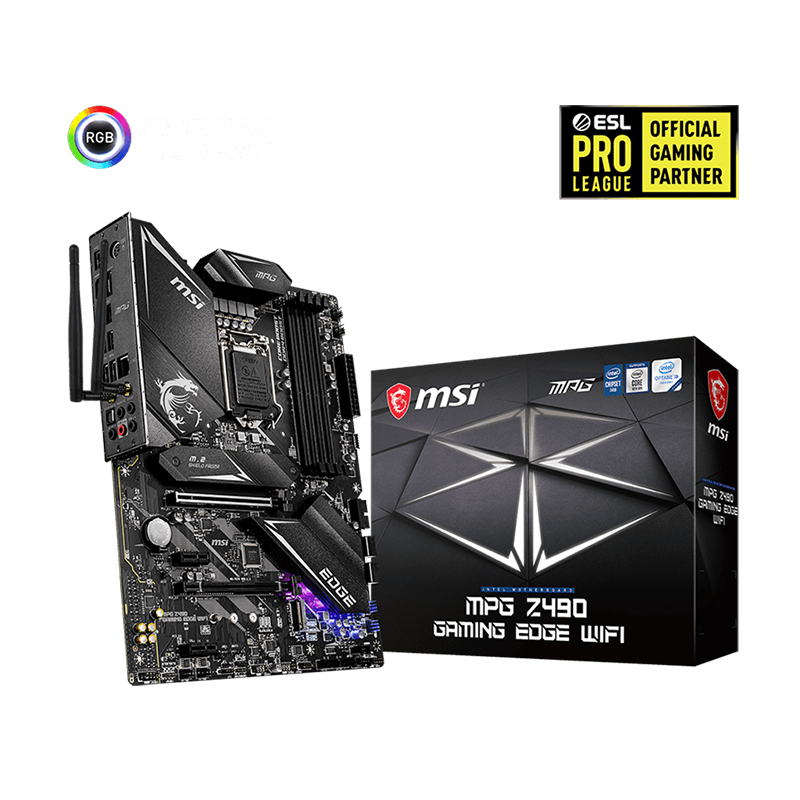

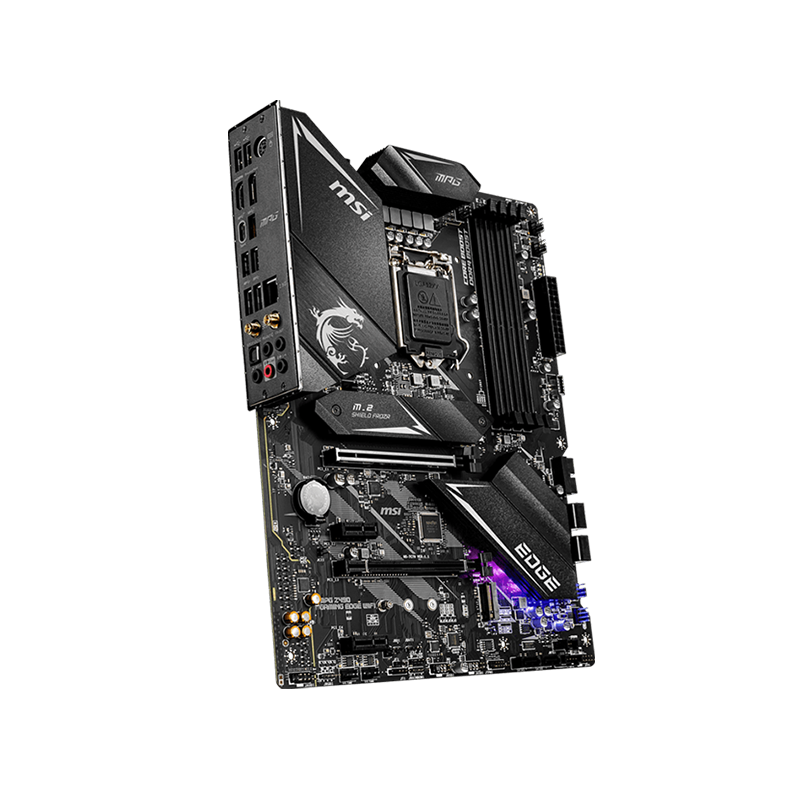

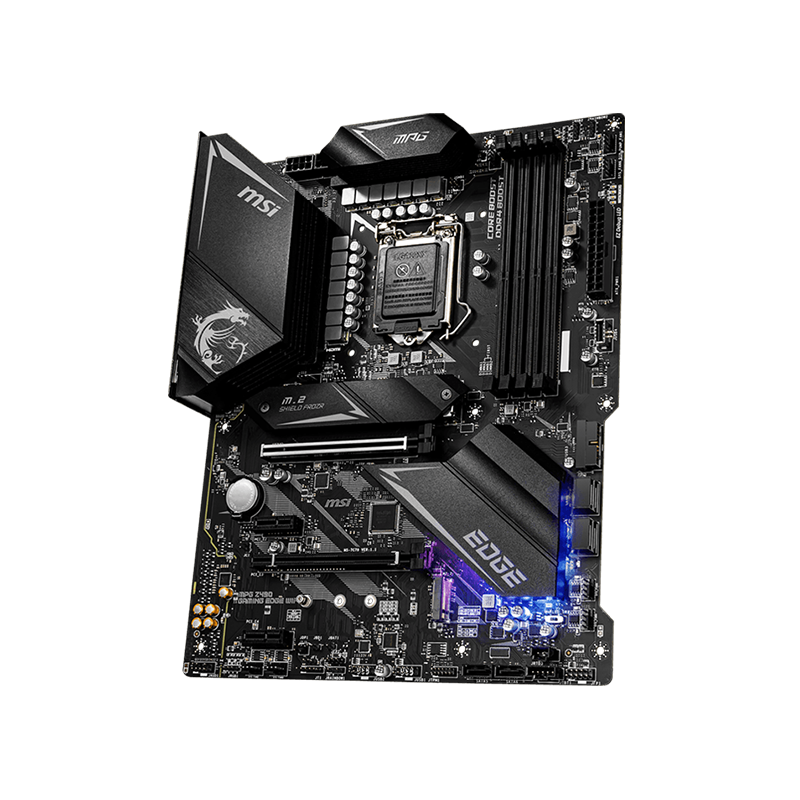

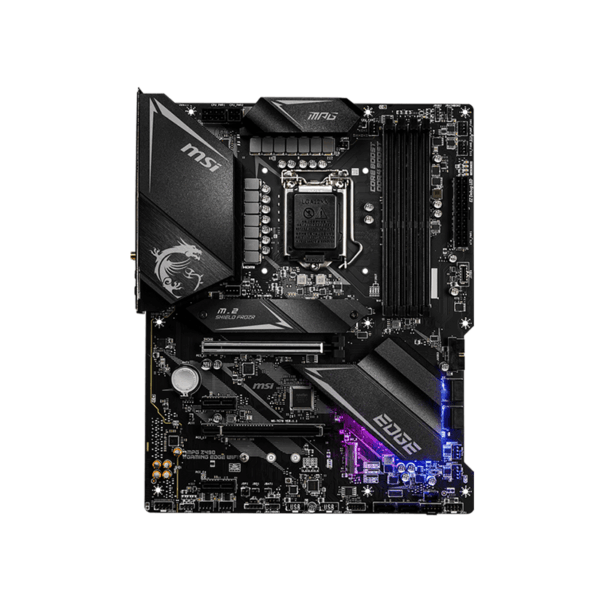

SKU: Z490 GAMING EDGE WIFI Categories: ,

Description

Features

Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.

Aluminum Cover
Fully aluminum IO cover provide the maximum surface of heat dissipation, ready for breaking the world record!

WIFI 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.

M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.

Pre-installed I/O Shielding
Better EMI protection and more convenience for installation

Specifications

SOCKET 1200
CPU (MAX SUPPORT) i9
CHIPSET Intel? Z490 Chipset
DDR MEMORY 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL DUAL
DIMM SLOTS 4
MAX MEMORY (GB) 128
PCI-E X16 2
PCI-E X1 2
SATAIII 6
M.2 SLOT 2
RAID 0/1/5/10
LAN 1x Realtek? RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT) 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) 1(Gen 2×2, Type C), 4(Gen 2, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2
AUDIO PORTS (REAR) 5+ Optical S/PDIF (Realtek? ALC1220 Codec)
DISPLAY PORT 1
HDMI 1
DIRECTX 12
FORM FACTOR ATX
CROSSFIRE Y
OPERATING SYSTEM Support for Windows? 10 64-bit
